Slotted Block Belay Devices

Some of these devices look and function very much like Sticht Plate Belayers, A few have fixed shafts that keep the slot-to-carabiner distance constant while in use. Others have irregular top and bottom surfaces that perform functions like allowing varying friction for different rigging alignments or controlling how the device rides on the belay carabiner. Some of these come very close to fitting my definition of a Sticht plate while others do the same for my definition of belay tubes. All three groups work on the same princple and there is a gradation of forms between the three.

I use the following criteria to decide whether to call something a Slot Block:

  • The devices that I placed in this category function like a Sticht Plate Belayers but do not have flat and parallel top and bottom surfaces.
  • Other than a keeper, they have no moving parts (this eliminates the Simond Toucan).
  • Each rope channel is rather short compared to the thickness of the side walls defining the channel (as opposed to the Tube Belayers).

The two early examples that I use for comparison when I consider placing a device into this category are the Forrest Triton and the Wild Country Variable Controller.

Gallery

Image ID Device Description Acquired Weight Height Width Thickness Std. volume  Slot
Length

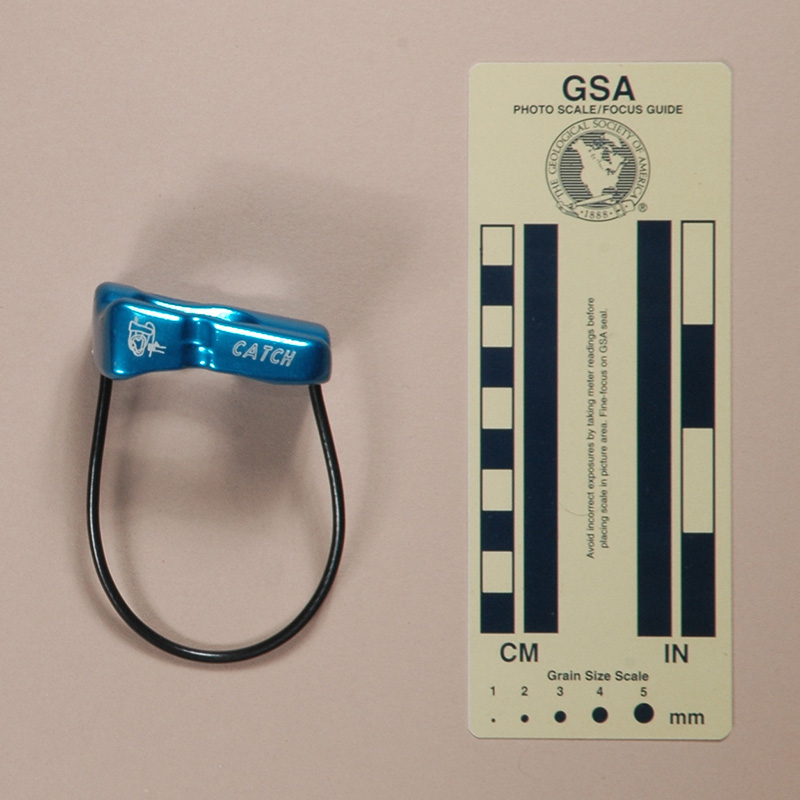

ABC Catch 1637 ABC Catch Forged Al, soft anodized, 2 slots, tube/plate hybrid, cable keeper Jeff Riddle, 2009 61 59 45 88 233 29
Russian Bukashka-3 469
828

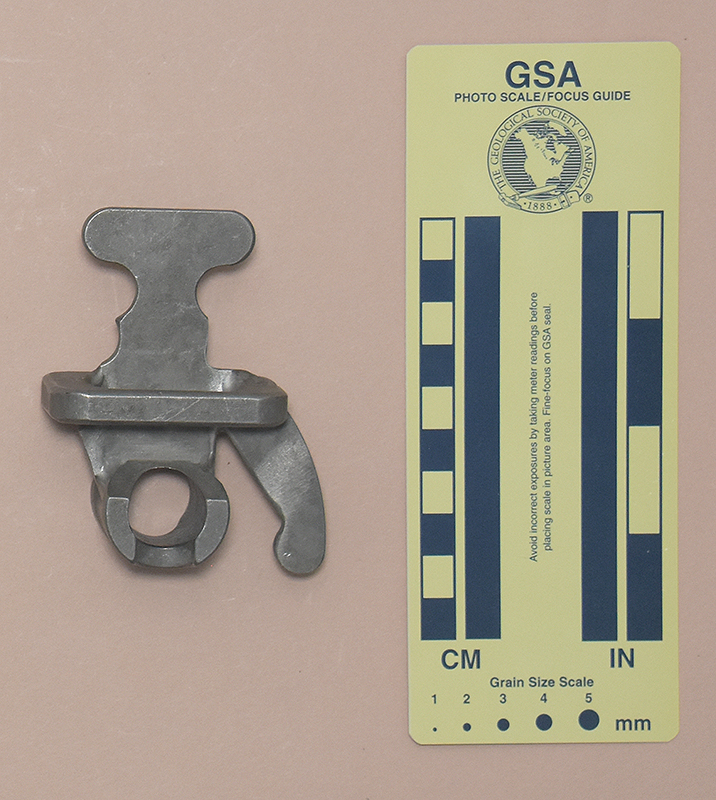

Bukashka-3 Milled and welded? Al?, coated, 2 slots, rib /w slot, eye, finger tab
  • John E. Weinel, Inc., 1990
  • Robert Allen Steed, 2006
81 112 60 50 336 37

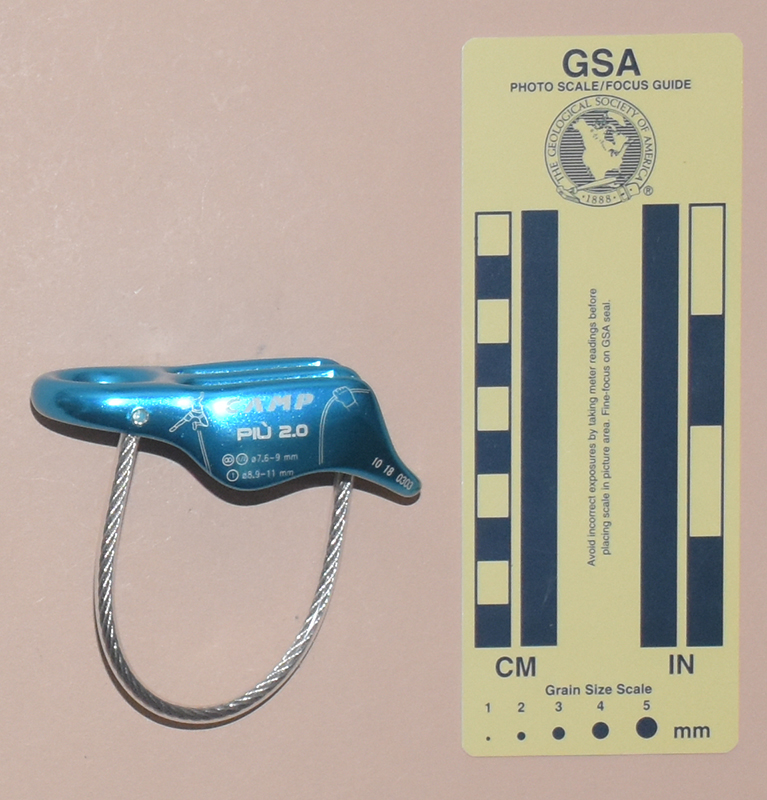

Camp Più 2.0 2812 CAMP Più 2.0 Forged Al, soft anodized, 2 slots, tab /w eye, subsidiary eye, plastic-covered cable keeper backcountry.com, 2021 77 91 44 81 321 35

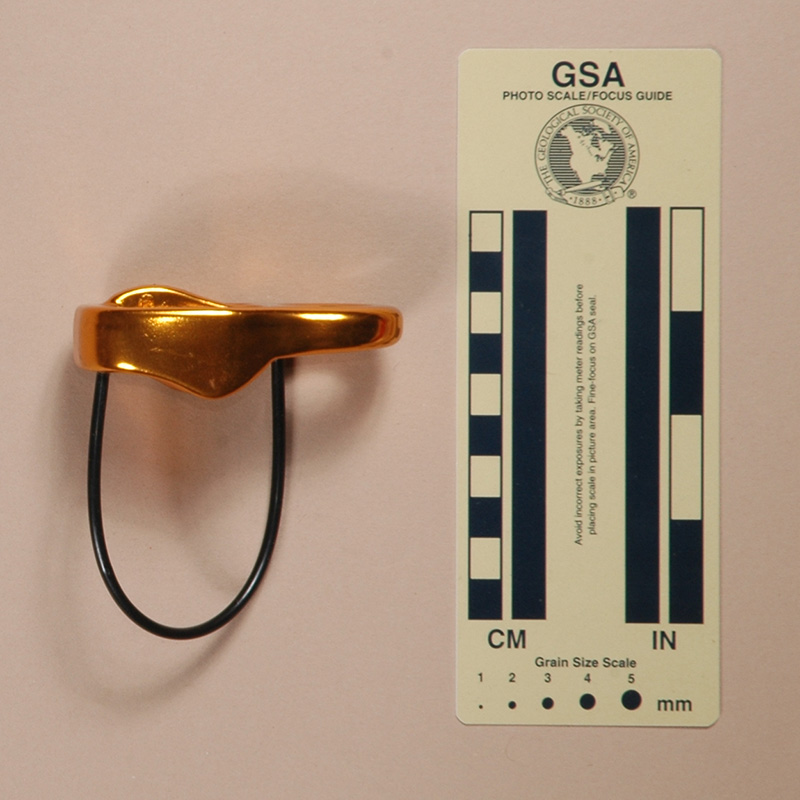

Cassin Piu' (a.k.a. GTC) 780 Cassin Piu' (a.k.a. GTC) Forged Al, soft anodized, 2 slots, tab /w eye, cable keeper Climb Max, 2003 74 80 44 85 297 29

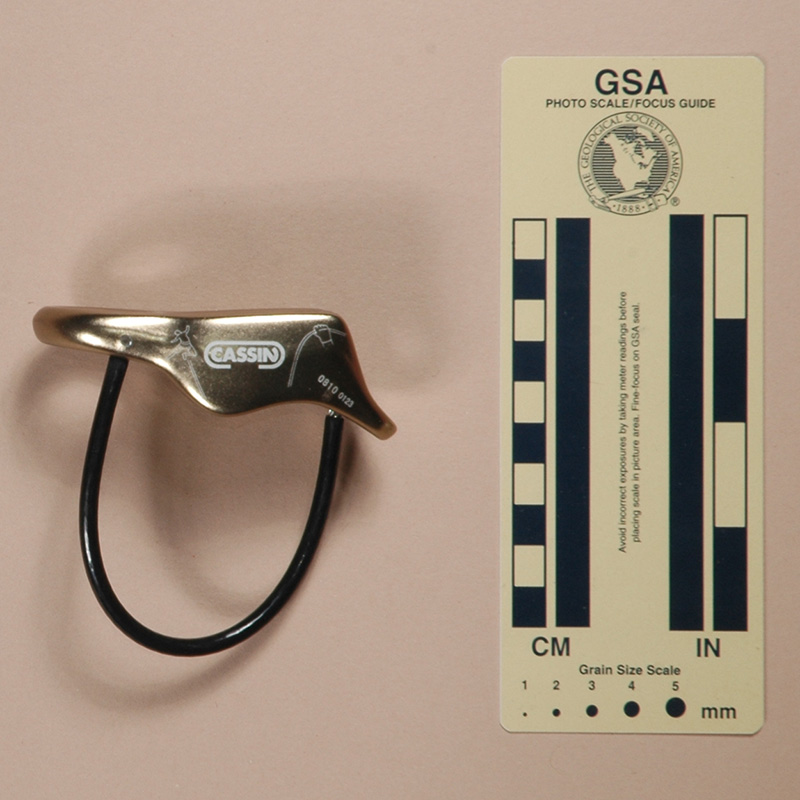

Cassin Piu'2 1680
1718
Cassin Piu'2 Forged Al, soft anodized, 2 slots, tab /w eye, subsidiary eye, plastic-covered cable keeper Mountain Gear, 2010 82 88 43 84 320 33

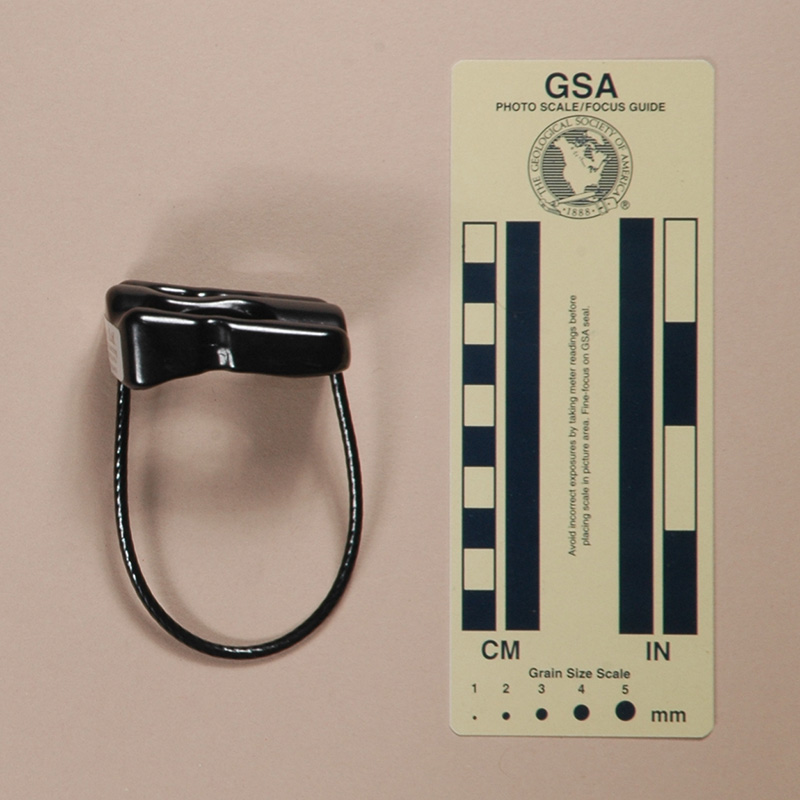

Faders Variable Belay 713 Faders Variable Belay Forged Al, hard anodized, 2 slots, tube/plate hybrid, cable keeper Climb Max, 1999 64 58 45 23 60 30

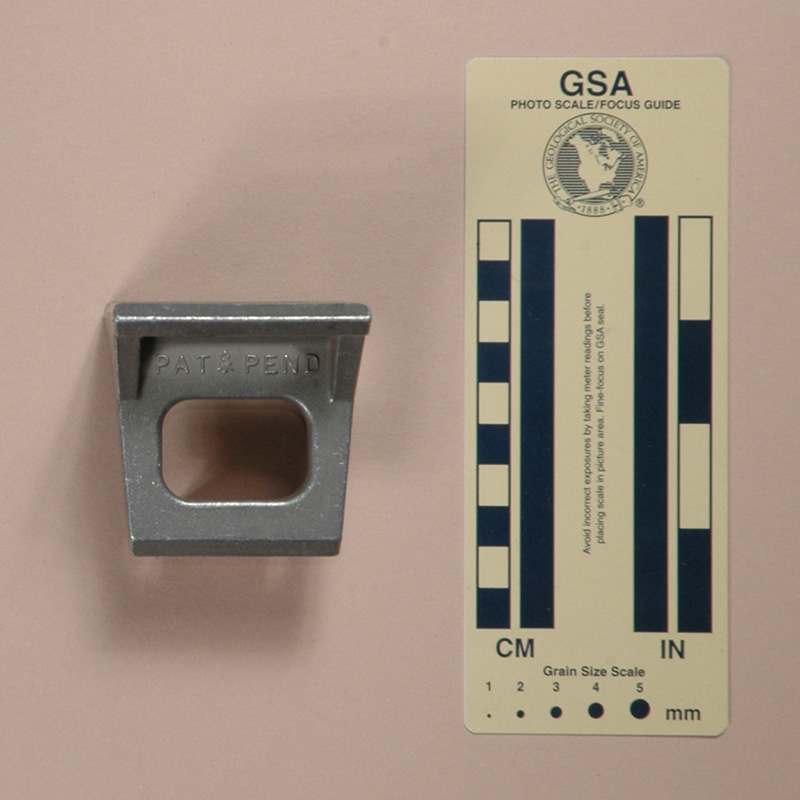

Forrest Triton 483 Forrest Triton Forged Al, hard anodized, 2 slots, rectan&gular clip hole, doubles as Titon John E. Weinel, Inc., 1985 113 60 61 61 223 38

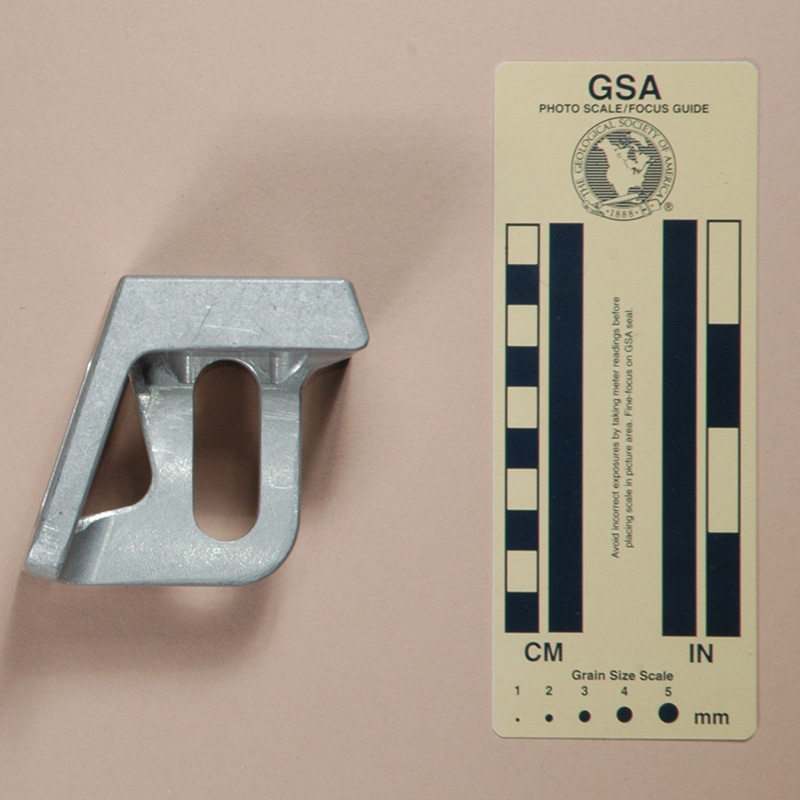

Graham 1997 806 Graham 1997 Milled Al, unfinished, angled head /w 2 rope slots, carabiner slot Gary Storrick, 2005 178 81 61 50 247 36

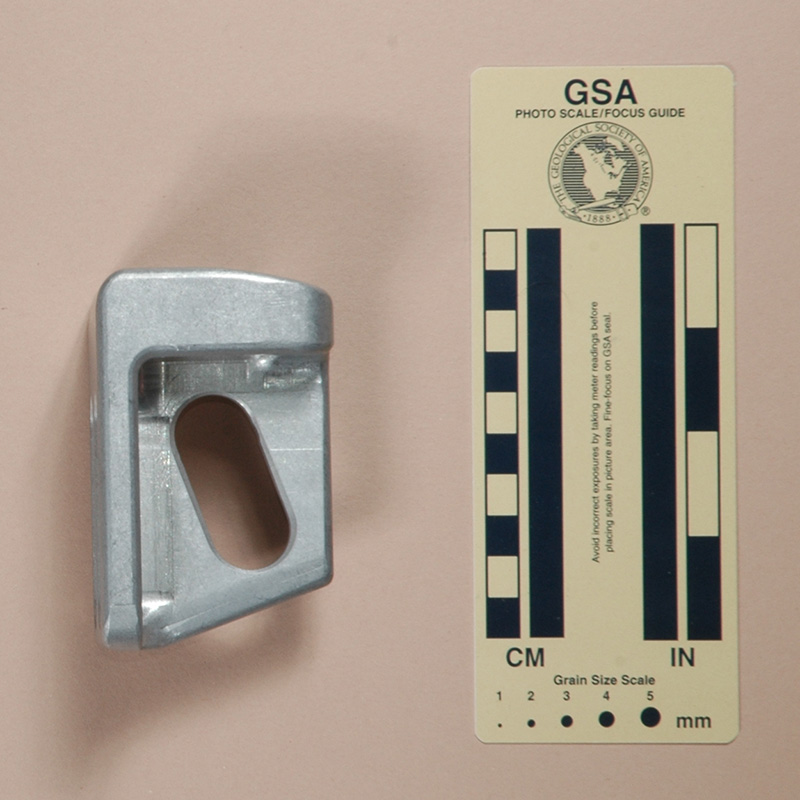

Graham 1998 807 Graham 1998 Milled Al, unfinished, head /w 2 rope slots, 2 side slots, carabiner slot Gary Storrick, 2005 191 91 57 49 255 35

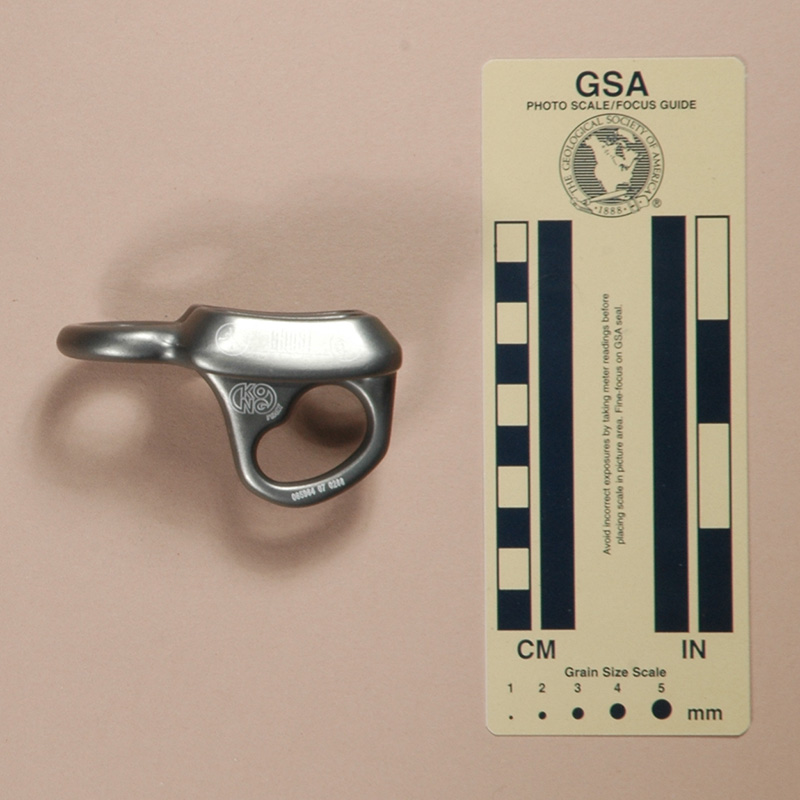

Kong Ghost 862 Kong Ghost Forged Al, hard anodized, 2 slots, irregular clip hole, round release hole On Rope 1, 2007 66 82 47 48 184 37

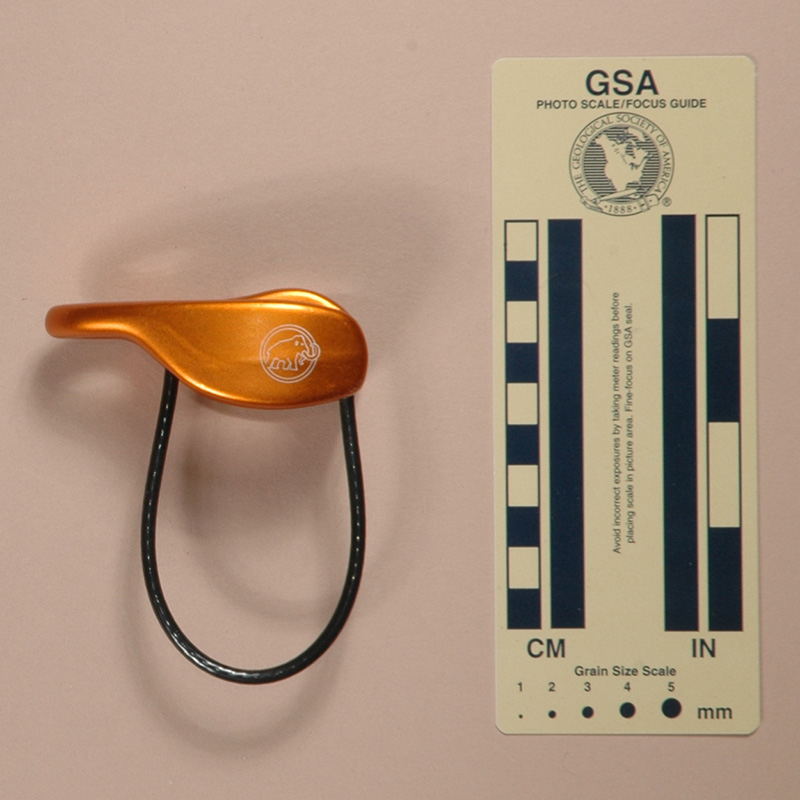

Mammut Matrix 794 Mammut Matrix Forged Al, soft anodized, 2 slots, tab with eye, plastic-covered cable keeper Mountain Gear, 2004 65 77 43 95 313 41

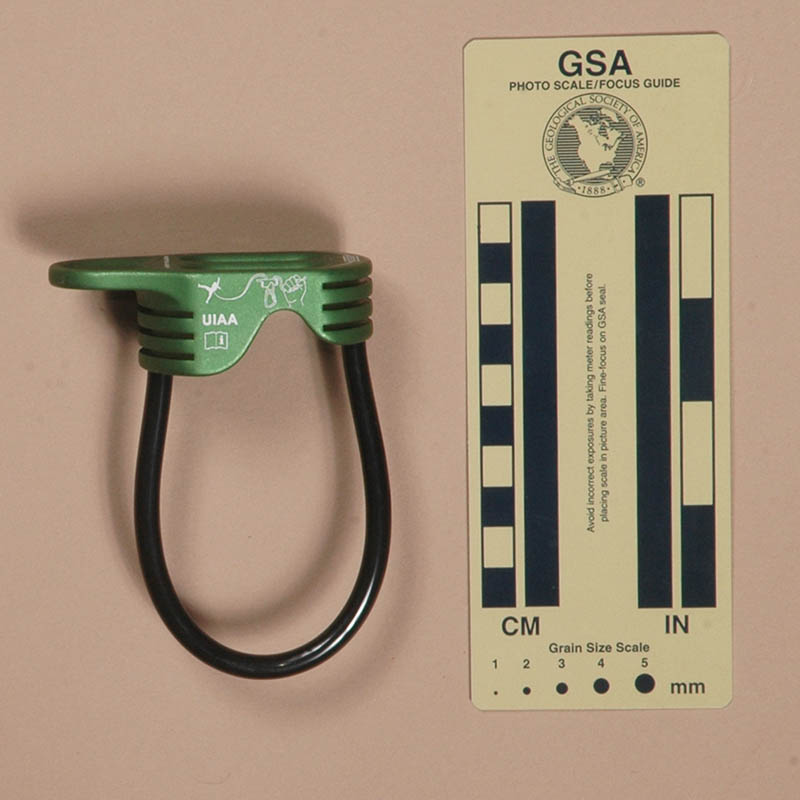

Metolius BRD 757
1747
Metolius BRD Milled Al, hard anodized, 2 slots, tab, cable keeper Metolius Mountain Products, 2001 83 84 79 44 292 33

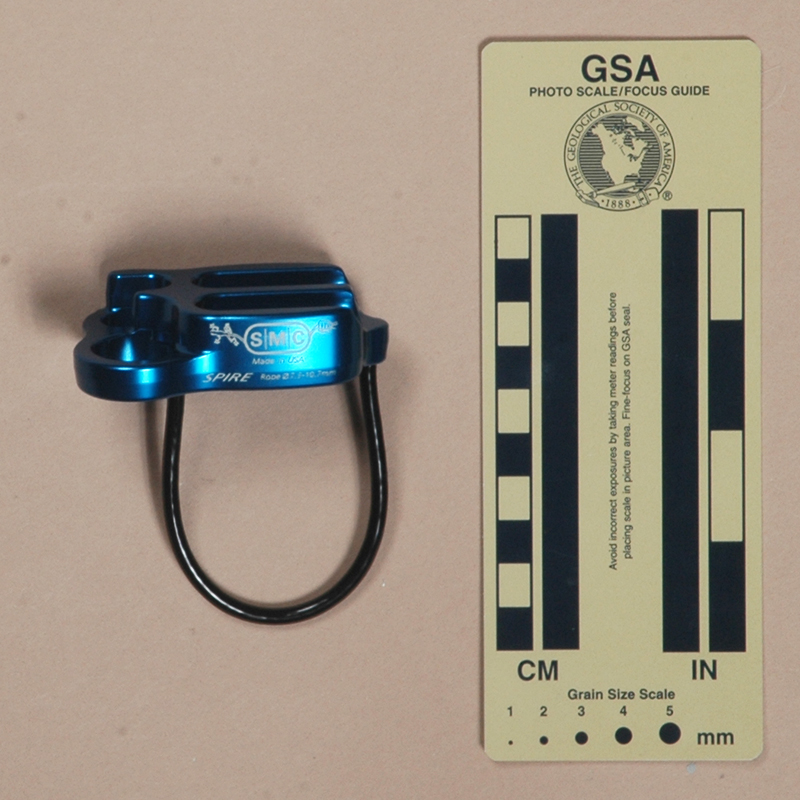

SMC Spire 1845 SMC Spire Milled Al, soft anodized, 2 slots, plastic-covered cable keeper Great Trango Holdings, 2015 57 80 44 68 239 35

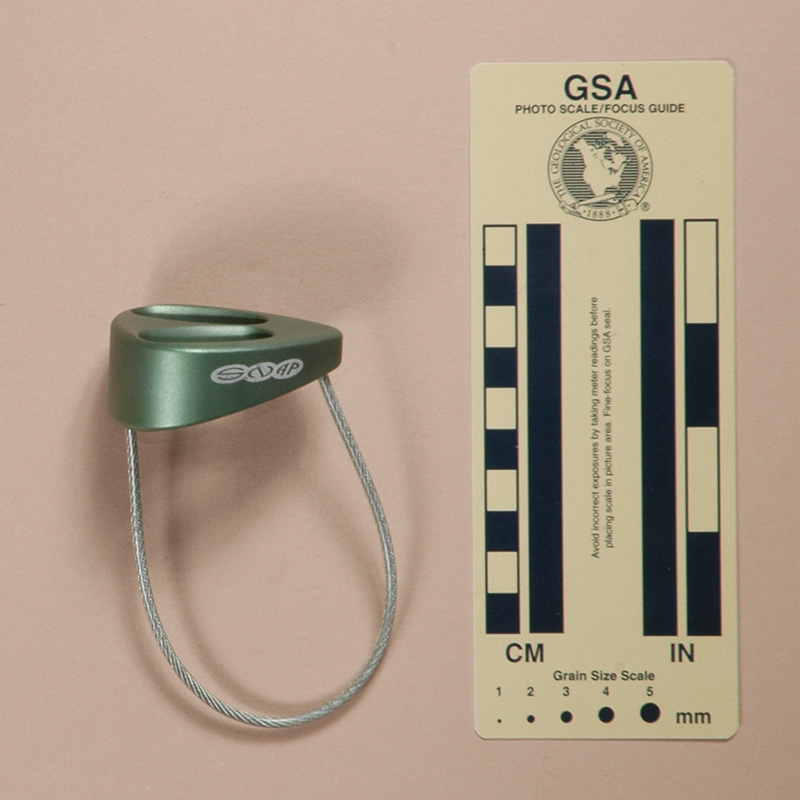

Snap Alien 751
752
Snap Alien Milled Al, soft anodized, tube/plate hybrid, 2 slots, cable keeper
  • Cormier Mountaineering, 2001
  • Yucca Dune, 2001
60 56 50 25 69  32

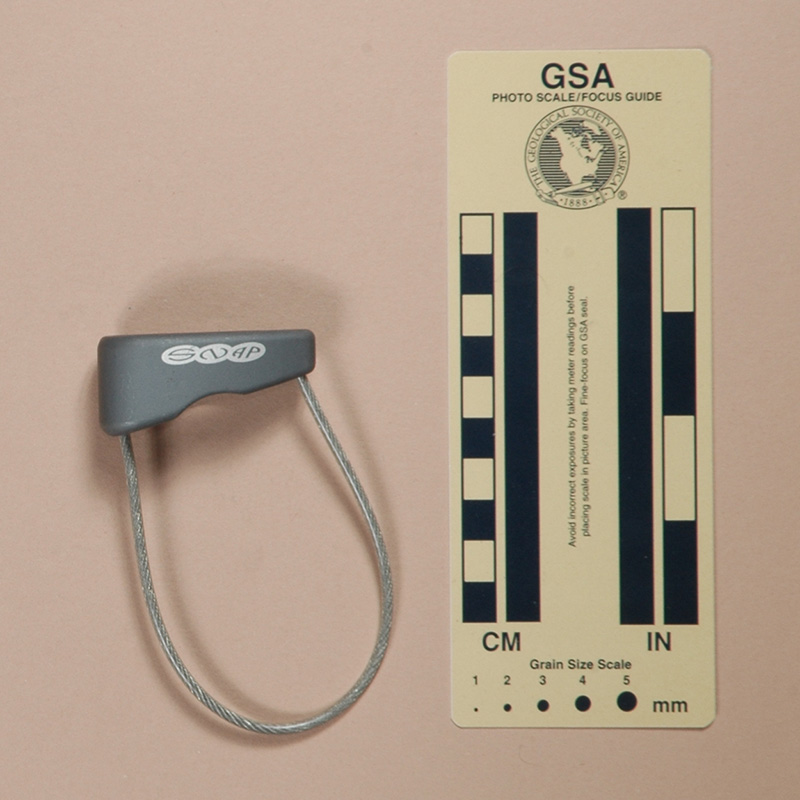

Snap Cyclops 749
750
Snap Cyclops Milled Al, soft anodized, tube/plate hybrid, 1 slot, cable keeper
  • Cormier Mountaineering, 2001
  • Yucca Dune, 2001
36 53 25 25 32 32

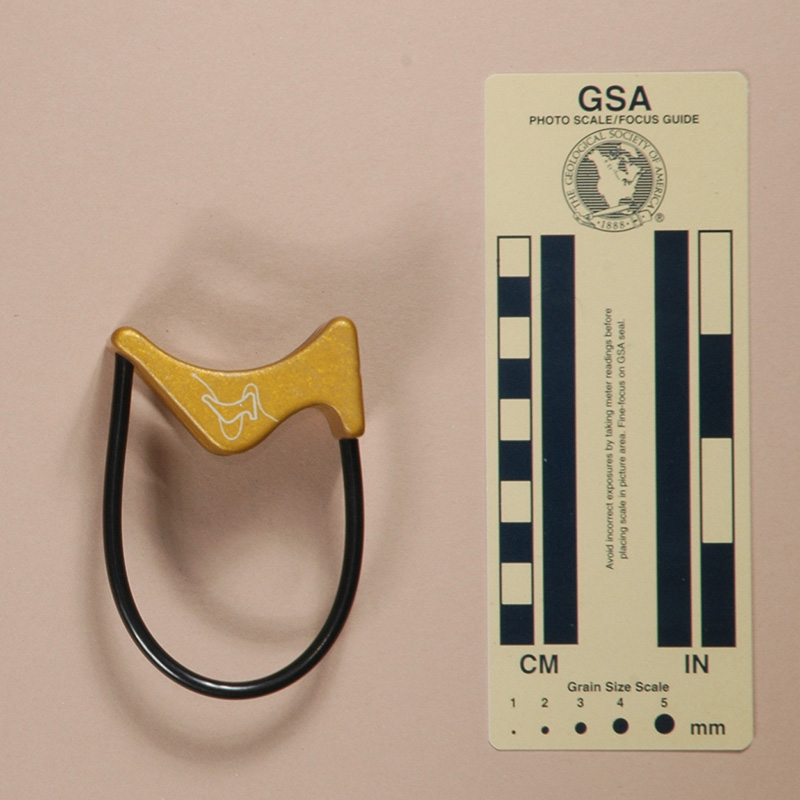

Trango B52 771 Trango B52 Forged Al, soft anodized, tube/plate hybrid, 2 slots, cable keeper Trango, 2002 64 90 59 39 208 45

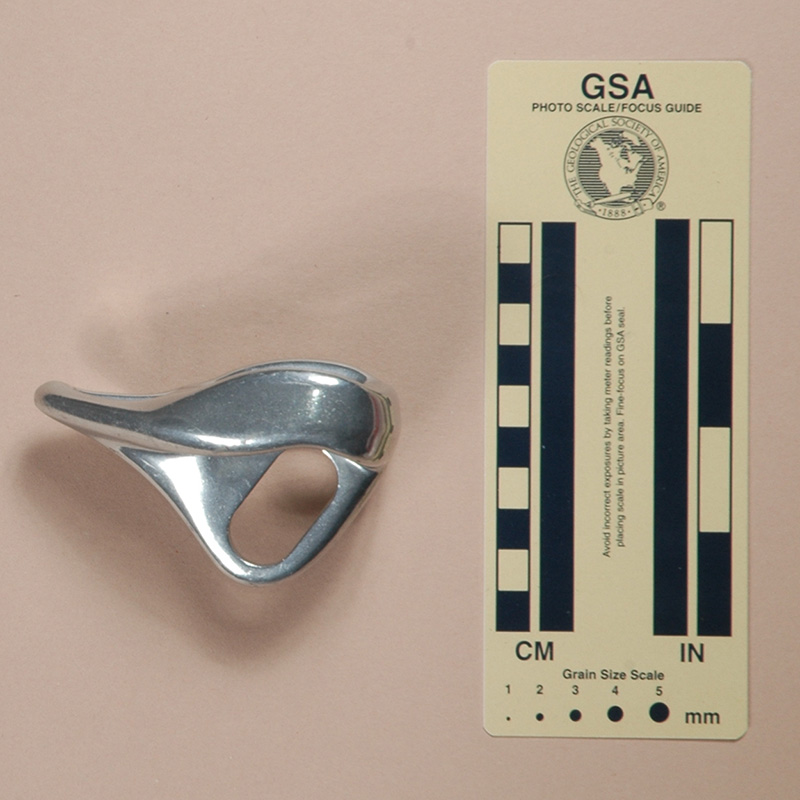

Wild Country Raptor, Version A 685 Wild Country Raptor, Version A Forged Al, soft anodized, 2 rope slots, slot eye Blue Ridge Outdoors, Blacksburg Va, 1995 113 88 57 54 270 35

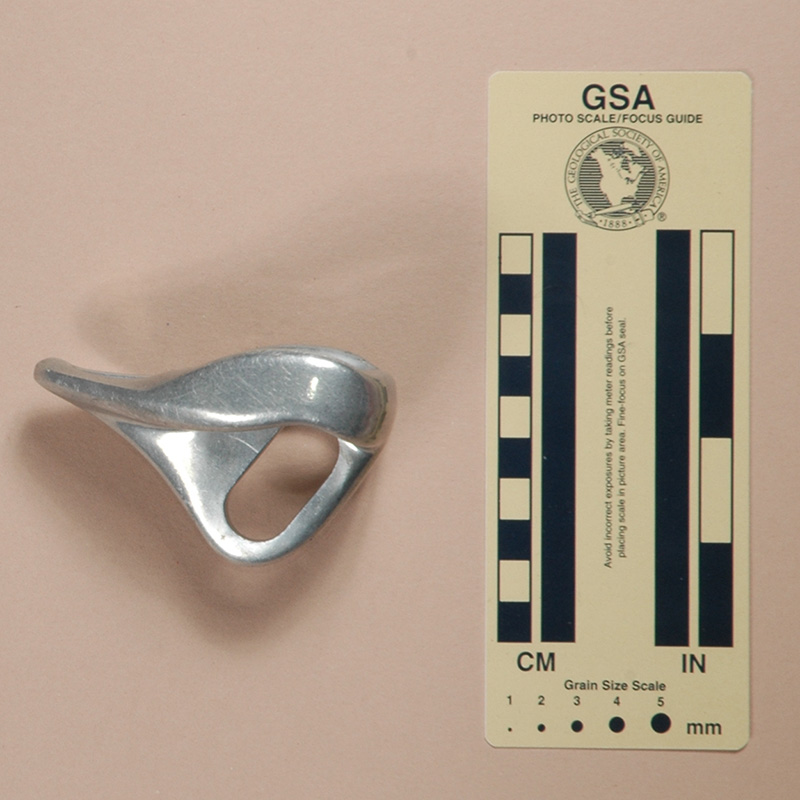

Wild Country Raptor, Version B 850 Wild Country Raptor, Version B Forged Al, unfinished, 2 rope slots, slot eye Daniel MacKinnon, 2007 104 88 57 53 264 35

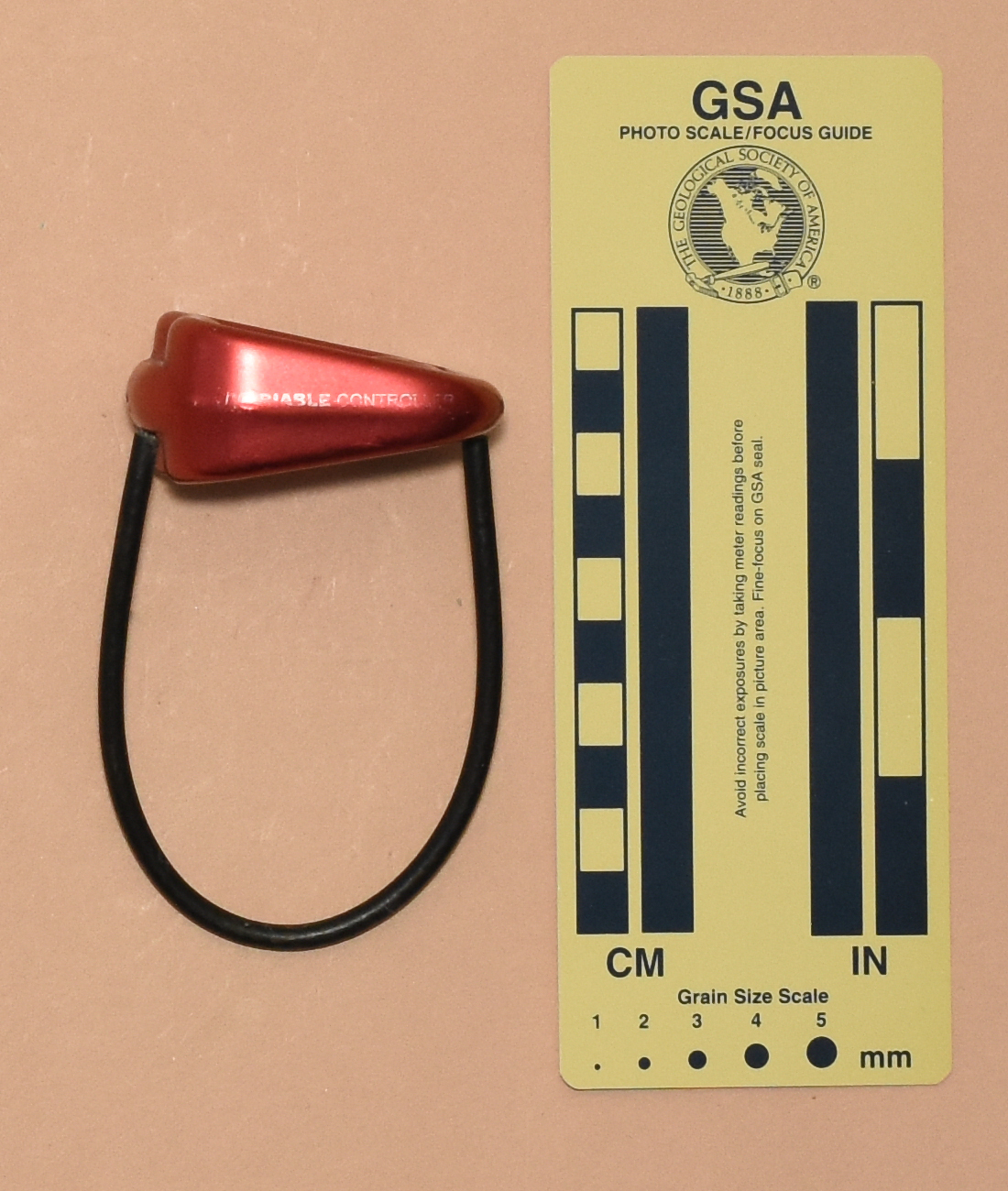

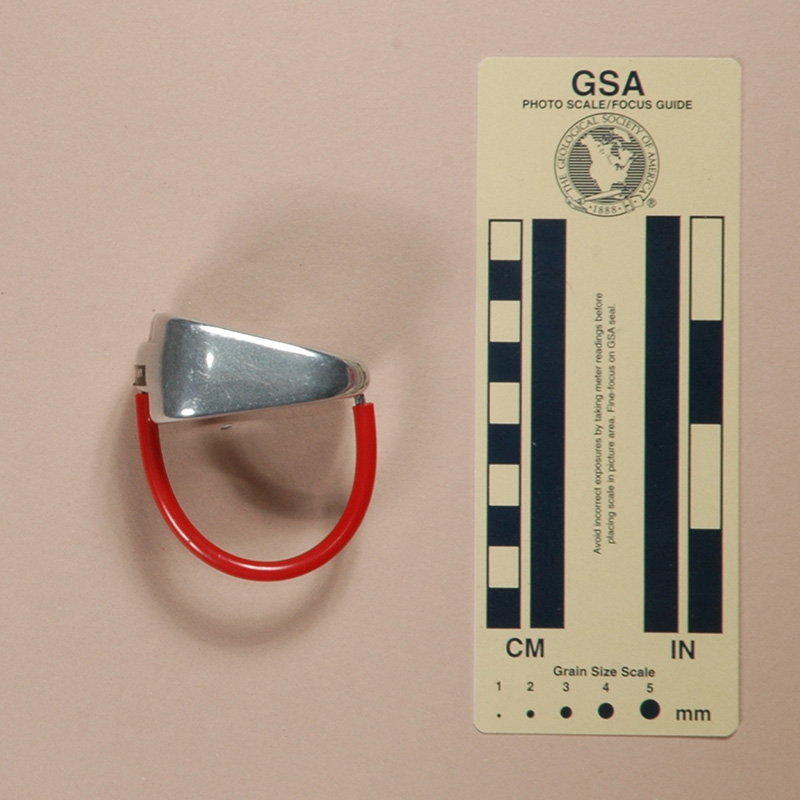

Wild Country Variable Controller, Version A 688 Wild Country Variable Controller, Version A Forged Al, unfinished, 2 slots, tube/plate hybrid, cable keeper Exkursion, 1995 68 57 46 26 68 28

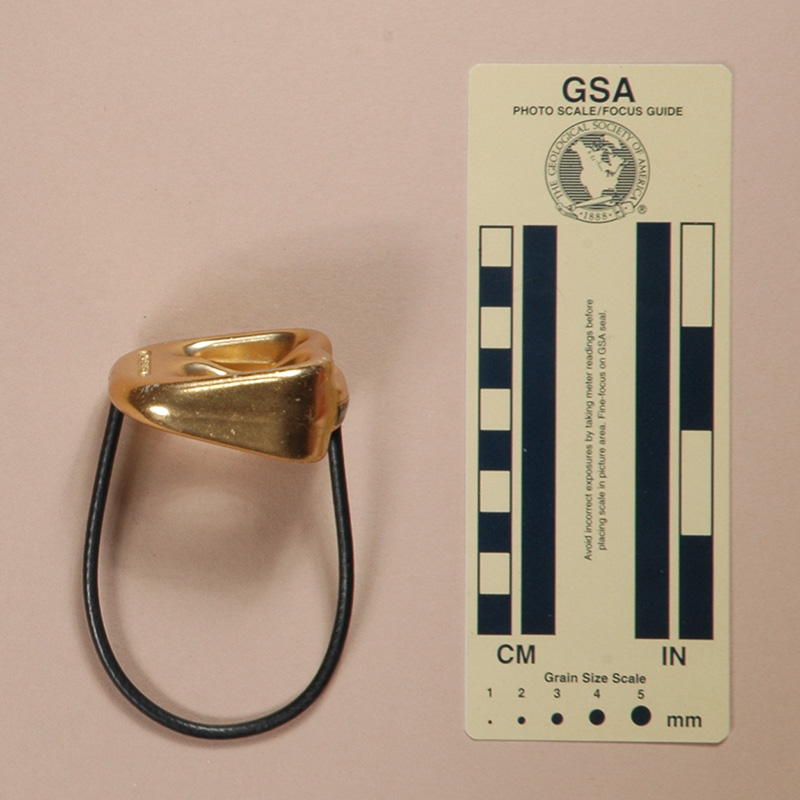

Wild Country Variable Controller, Version B 816 Wild Country Variable Controller, Version B Forged Al, soft anodized, 2 slots, tube/plate hybrid, cable keeper John Campbell, 2005 71 57 47 26 70 28

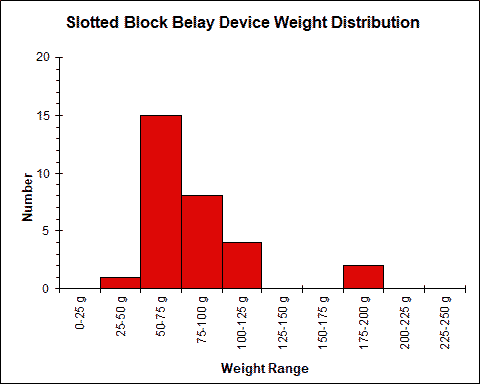

Slot Block Belayer Weight Chart

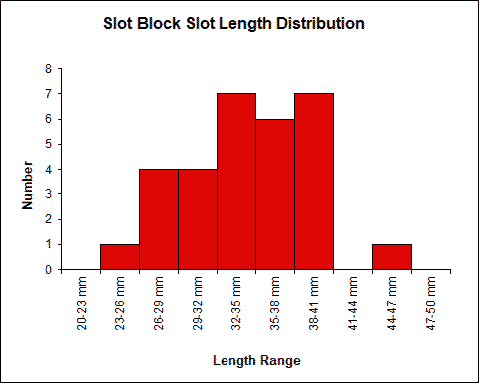

Slot Block Slot Length Chart
