Rocker Arm Ascenders

These are ascenders where the rope passes under a rocker arm and above an anvil. Tension on the standing line rotates the rocker by raising the standing line end of the rocker, pinching the trailing line between the other end of the rocker and the anvil. The load is supported by the ascender shell through the rocker fulcrum. Most of these are inefficient because of considerable lost motion as the ascender rotates under load.

Many Rocker Arm Rope Grabs can be used as ascenders and could have been listed on this page instead. The choice to call them rope grabs instead of ascenders may be arbitrary, but I usually followed how a device was marketed to me when the choice wasn't clear.

Gallery


ID Device Description Acquired Weight Height Width Thickness Std. volume

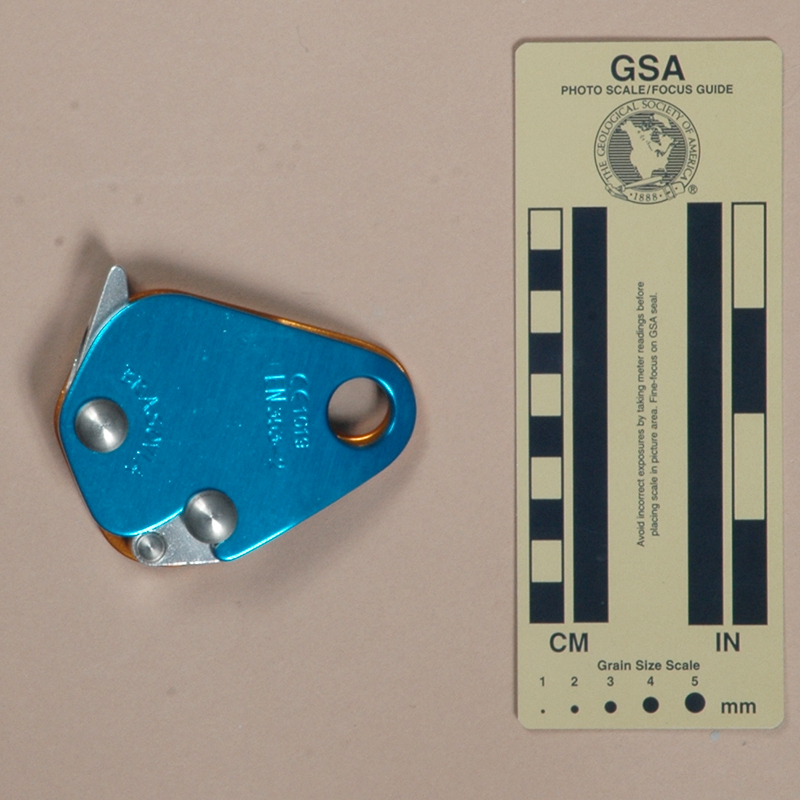

Brasovia uAscend 1588 Brasovia uAscend Stamped Al side plates, milled Al pivoting cam, extruded anvil. Brasovia, 2012 125 87 73 28 176

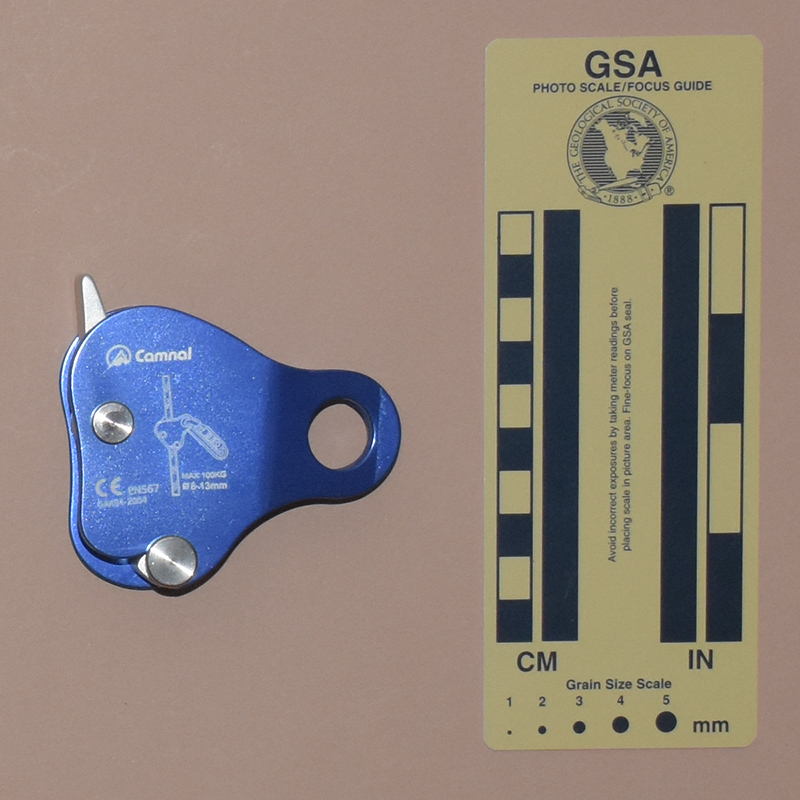

Camnal 2971 Camnal Stamped Al side plates, extruded Al pivoting cam & anvil. Liao Shao Qin, 2020 93 75 77 24 137
Camp Lift 152
2111
Camp Lift Stamped Al side plates, extruded Al pivoting cam & anvil
  • K&R Adventure Gear, 2001
  • Bob Thrun Collection, 2017
95 74 78 25 143

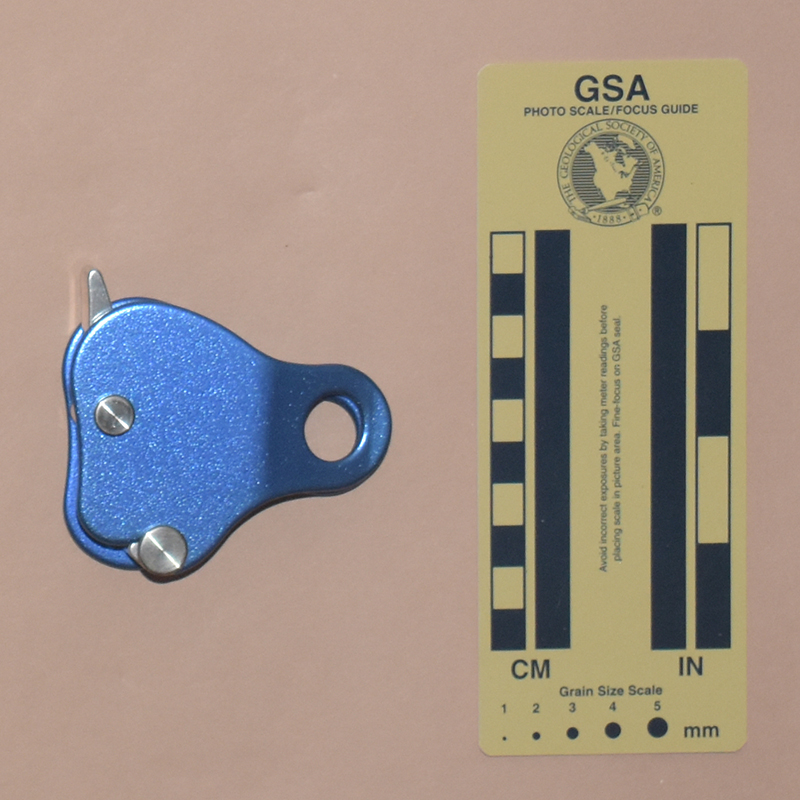

Geelife 2946 Geelife Stamped Al side plates, milled Al pivoting cam & extruded anvil. Geelife, 2019 91 74 76 25 141
GrandWall uAscend 1999
2274
GrandWall uAscend Stamped Al side plates, milled Al pivoting cam & extruded anvil.
  • Grand Wall Equipment, 2015
  • Bob Thrun Collection, 2017
121 73 87 27 174

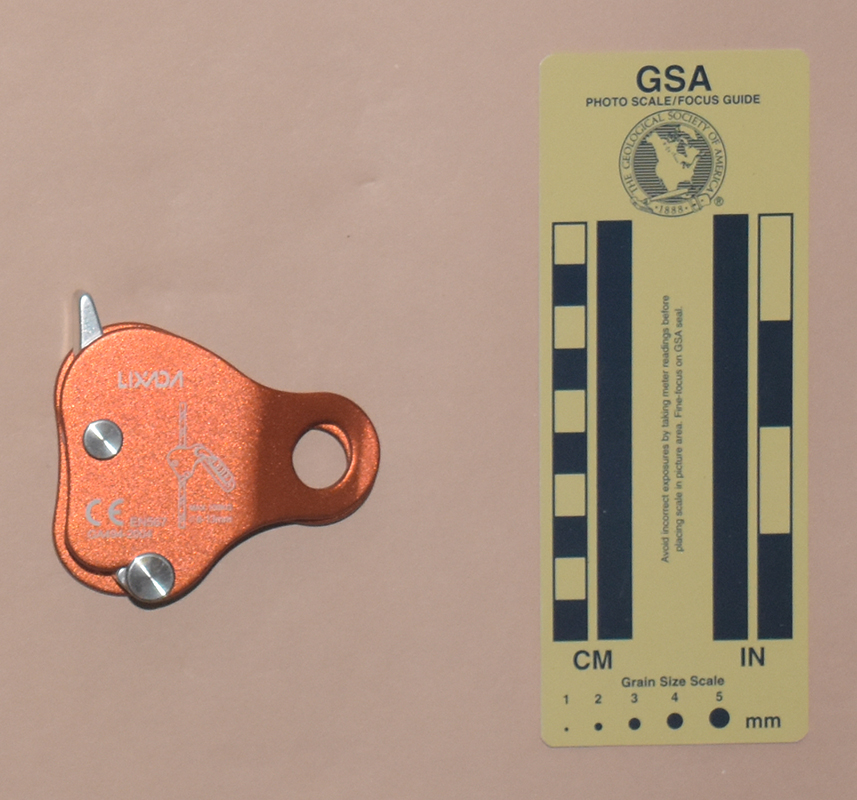

Lixada 2952 Lixada Stamped Al side plates, milled Al pivoting cam & extruded anvil. losmee, 2019 90 74 76 25 141

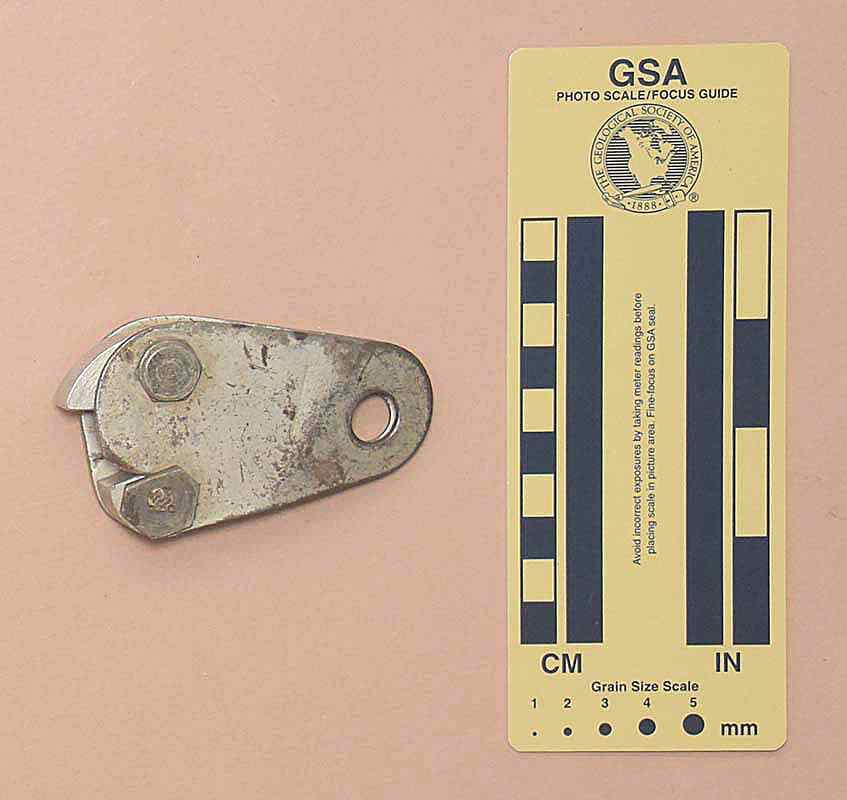

Pishchepromavtomatika Drop 3449 Pishchepromavtomatika Drop
(Пищепромавтоматика Капля)
Ti side plates, Al rocker, milled Al anvil Vitaly Tomchyk , 2021 144 81 49 26 103
Russian, Version A 104
2286
Russian, Version A Stamped Ti side plates, milled Al pivoting cam, knurled post.
  • John E. Weinel, Inc., 1990
  • Bob Thrun Collection, 2017
101 49 80 26 102

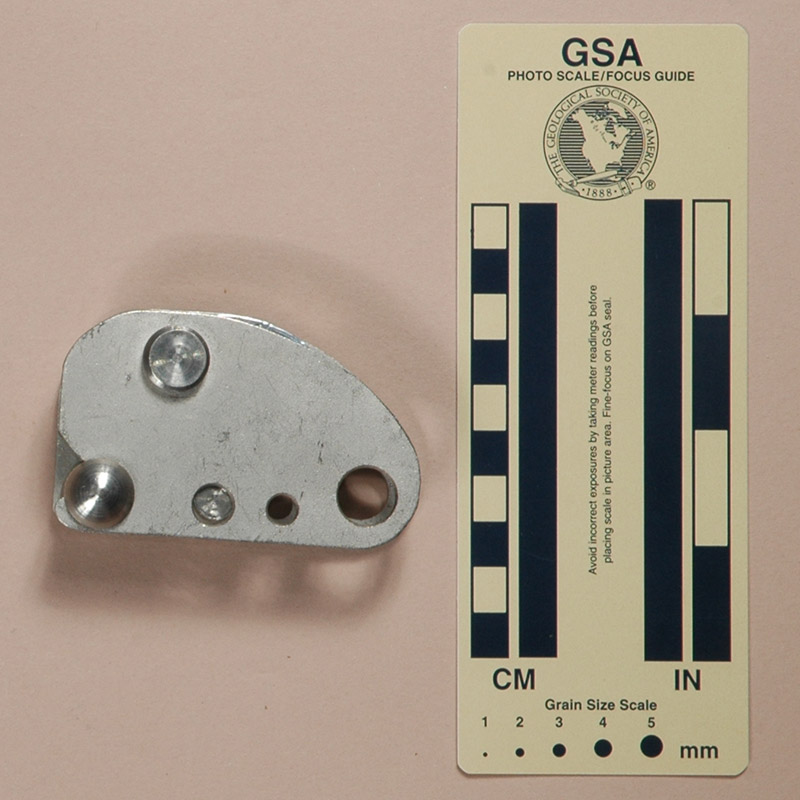

Russian, Version B 185 Russian, Version B Stamped Ti side plates, milled Al pivoting cam, knurled post, keeper hole. A. Short, 2005 103 49 81 28 108

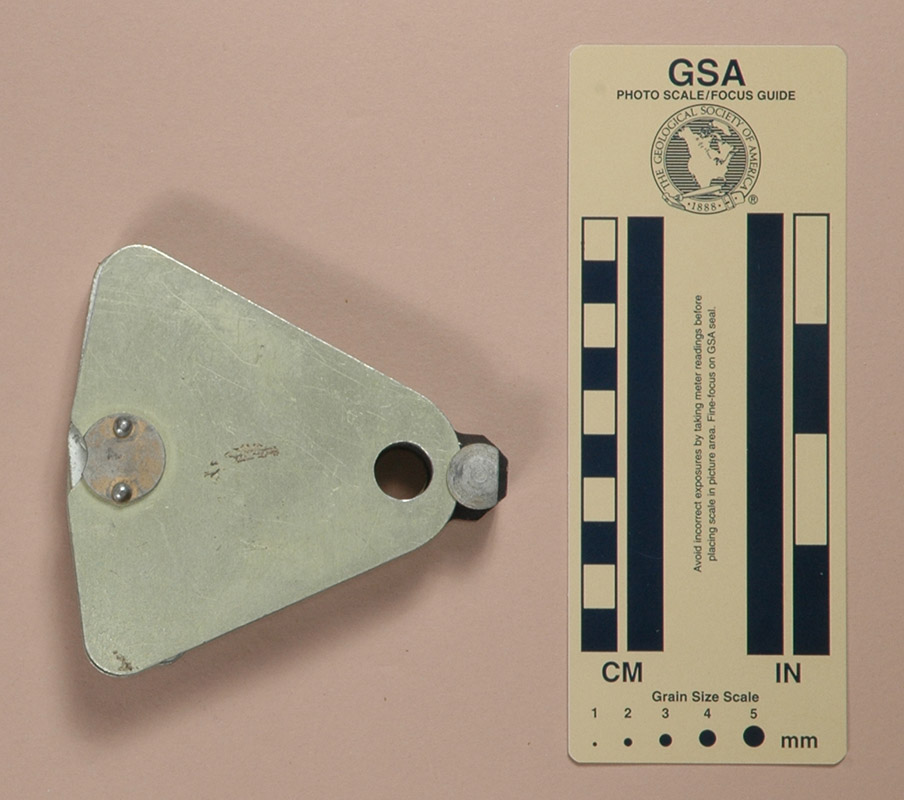

Russian, Version C 200 Russian, Version C Triangular Al side plates, double-ended lever, screw-adjustable anvil Robert Allen Steed, 2006 191 98 100 24 230

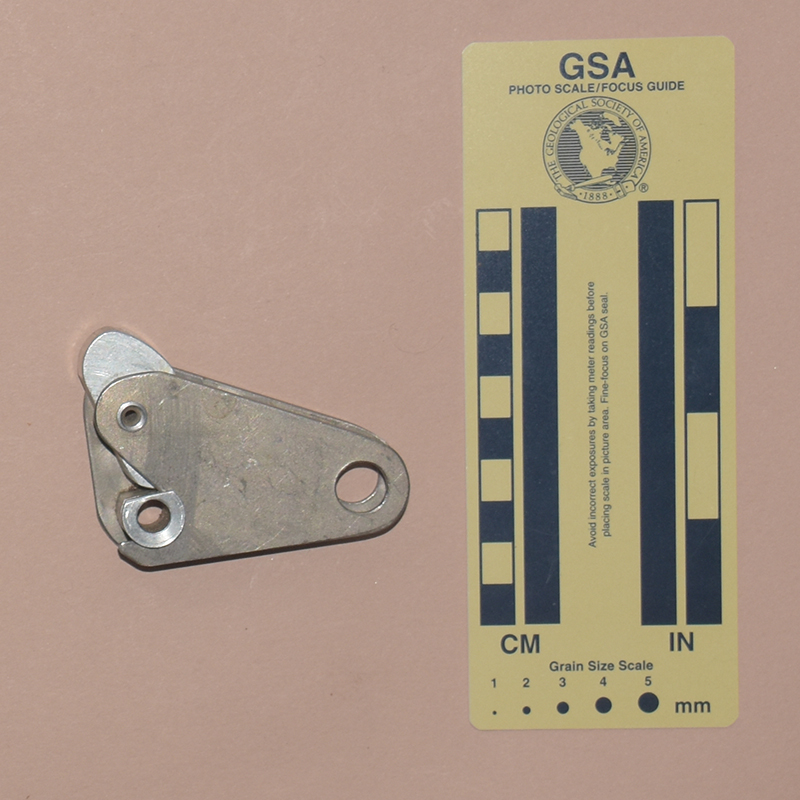

Russian, Version D 2903 Russian, Version D Ti side plates, Al rocker, milled tubular anvil Ed Sira, 2019 81 78 20 56 90
Russian, Version E 2904 Russian, Version E Ti side plates, Al rocker, milled Al anvil Ed Sira, 2019 101 83 25 62 131
2984 SOB Stamped Al side plates, extruded Al pivoting cam & anvil. wojoaonline, 2021 90 73 77 24 136
Turin Slip-stop Basic 2935 Turin Slip-stop Basic Stamped steel side plates, extruded Al pivoting cam & anvil. Artyom Babin (Артём Бабин), 2019 189 79 73 25 146
Ural Alp Al Basic 10.03 191 Ural Alp (Урал АлЬп) Al Basic 10.03 Stamped Al side plates, milled pivoting cam, milled anvil Ural Sport, 2005 137 92 75 31 216
Ural Alp Al Basic 10.04 2375 Ural Alp (Урал АлЬп) Al Basic 10.04 Stamped Al side plates, milled pivoting cam /w lightning holes, milled anvil Marina Khramstova (Марина Храмцова) (marina247), 2019 156 93 82 33 249
Ural Alp Basic 10.05, Version A 105
2071
Ural Alp (Урал АлЬп) Basic 10.05, Version A Stamped engine ruled Ti side plates, milled Ti pivoting cam, milled anvil.
  • John E. Weinel, Inc., 1994
  • Bob Thrun Collection, 2017
126 71 86 27 165
Ural Alp Basic 10.05, Version A 2985 Ural Alp (Урал АлЬп) Basic 10.05, Version B Stamped engine ruled Ti side plates, milled Ti pivoting cam, milled anvil. John E. Weinel, Inc., 1994 126 71 86 27 165
Ural Alp Basic K 10.05M 181 Ural Alp (Урал АлЬп) Basic K 10.05M Stamped engine ruled Ti side plates, milled Ti pivoting cam, milled anvil, wire gate. Ural Sport, 2004 137 111 68 27 202
Ural Alp Handled 120 Ural Alp (Урал АлЬп) Handled Stamped engine ruled Ti frame & side plate, milled Ti pivoting cam, milled anvil, toothed post /w V-groove, rubber handle. John E. Weinel, Inc., 1996 285 137 121 27 448
Ural Alp Steel Basic 20.01 190 Ural Alp (Урал АлЬп) Steel Basic 20.01 Stamped steel side plates, milled steel pivoting cam, milled steel anvil Ural Sport, 2005 308 93 75 32 225
Ural Alp Super Basic 10.07, Version A 192 Ural Alp (Урал АлЬп) Super Basic 10.07, Version A Stamped engine ruled Ti side plates, milled Ti pivoting cam /w roller, milled anvil Ural Sport, 2005 147 94 75 28 198

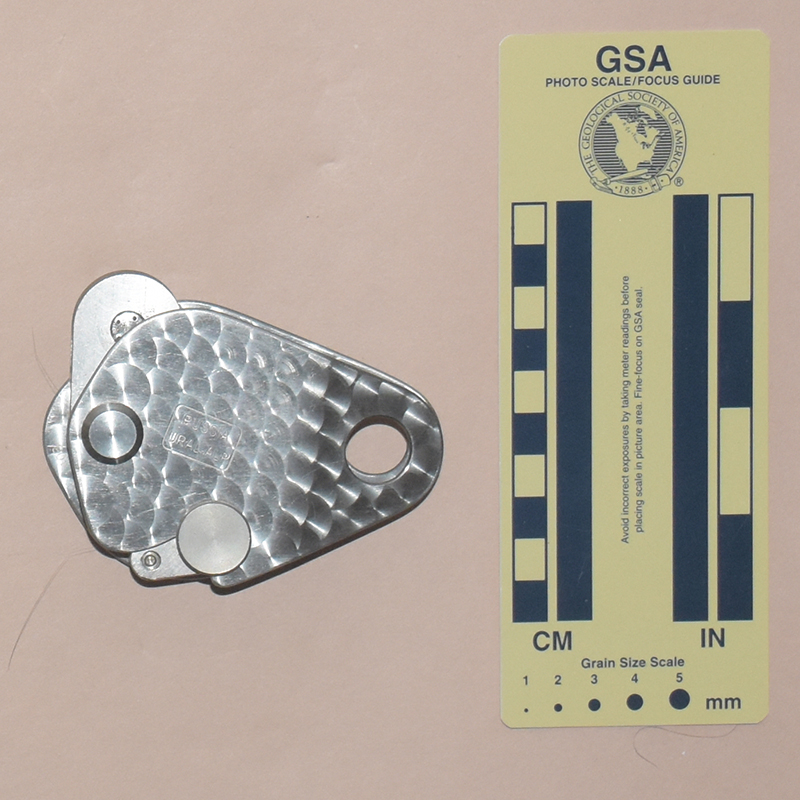

Ural Alp Super Basic 10.07, Version B 2966 Ural Al (Урал АлЬп)p Super Basic 10.07, Version B Stamped engine ruled Ti side plates, milled Ti pivoting cam /w roller, milled anvil Megan Davis, 2019 145 96 76 29 212

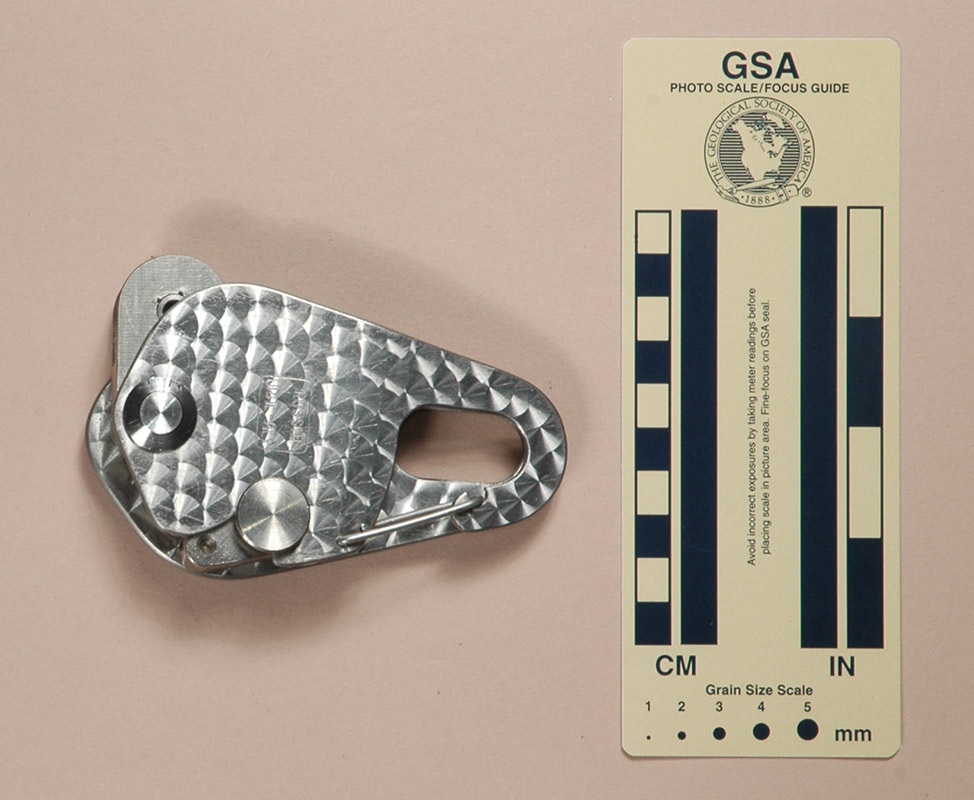

Ural Alp Super Basic K 10.07M 182 Ural Alp (Урал АлЬп) Super Basic K 10.07M Stamped engine ruled Ti side plates, milled Ti pivoting cam /w roller, milled anvil, wire gate Ural Sport, 2004 156 110 67 28 203
USHBA Mountain Works Basic 10.03 232
2275
USHBA Mountain Works Basic 10.03 Stamped Al side plates, milled pivoting cam, milled anvil
  • Mountainland Outdoor, 2007
  • Bob Thrun Collection, 2017
141 93 75 33 231
USHBA Mountain Works Basic 10.05, Version C 2276 USHBA Mountain Works Basic 10.05; Version C Stamped engine ruled Ti side plates, milled Ti pivoting cam, milled anvil. Bob Thrun Collection, 2017 125 71 86 27 165
USHBA Mountain Works Basic 10.05, Version D 2967 USHBA Mountain Works Basic 10.05; Version D Stamped engine ruled Ti side plates, milled Ti pivoting cam, milled anvil. Bob Thrun Collection, 2017 125 71 86 27 165
USHBA Mountain Works Basic 10.05, Version D 2277 USHBA Mountain Works Basic 10.05; Version E Stamped engine ruled Ti side plates, milled Ti pivoting cam, milled anvil. Bob Thrun Collection, 2017 122 93 75 29 203
USHBA Mountain Works Handled 144
2273
USHBA Mountain Works Handled Stamped engine ruled Ti frame & side plate, milled Ti pivoting cam, milled anvil /w toothed end & V-groove, rubber handle.
  • USHBA Mountain Works, 1999
  • Bob Thrun Collection, 2017
268 151 121 33 603
USHBA Mountain Works Handled 2361 Vento Stamped & painted Al side plates, extruded Al pivoting cam & anvil. Yinetyme (Nocogear), 2018 101 73 80 26 153

Rocker Arm Weight Chart
