More About Ascender Handles

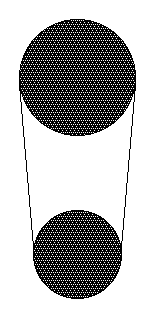

Handle templateThe U.I.A.A. once set a standard defining a minimum acceptable size for an ascender's handle. The standard included a minimum hand opening size defined by the area obtained by drawing a 20 mm. radius top circle and a 15 mm. radius bottom circle whose centers are 60 mm. apart, and then connecting the circles with the common tangents as shown in the figure. I prefer to think in terms of the overall length of the opening and the diameters of the circles, so I'll refer to this as the 95-40-30 shape.

I can't take this standard very seriously, for some of the following rather obvious reasons:

Nevertheless, I thought it might be amusing to define a few other shapes and compare the various ascenders. I made six different "handle size gages" out of wood, and used them to test the opening for each handled ascender in my collection. All of these were designed by connecting the tangents of two circles in the same manner as the U.I.A.A. defined their handle standard. In addition to the U.I.A.A. gage, I made the following gages:

 Code  Size What fits
 60-20-20 Tiny Two or three of my fingertips
 80-30-30 Small Three of my fingers, fully inserted
 100-30-30 Ample Four of my fingers, fully inserted to palm
 110-35-30 Large Four of my fingers, wearing leather gloves, fully inserted
 120-50-40 Huge! Four of my fingers, wearing expedition mittens, not badly compressed.

Needless to say, these sizes are completely arbitrary, and I don't believe that I can justify this as being a very good set. "near misses." Second, since none of the ascenders accommodated the 120-50-40 gage, it was clearly too large to be meaningful. In 2015 I made four more gages with intermediate sizes, but one of these, the 115-40-35, was still too large for any of my ascenders to accommodate it. Some of the gages are tapered (the circle at one end is larger than the other), and these columns in the table are shaded.

Now for the results. A green dot Fits indicates a fit with no problems, while half a dot One Side indicates a fit on only one side of a dual-handled ascender. A yellow dot Odd fit indicates that the gage only fit in an unusual way, such as in a particular ascender configuration not normally used for ascending (e.g., if the cam safety was not in the locked position). A green dot with an orange bar Barely fits indicates that the gage barely fit, while gray dot Barely misses indicates that the gage barely missed fitting. I used the No fit symbol to emphasize a no-fit situation that some people might find surprising, just to show that I didn't omit a green dot by accident.

In the ID column and chart, I used a red background for cast-frame ascenders, green for milled-frame ascenders, and blue for stamped-frame ascenders. Magenta indicates a two-rope ascender.

Picture ID Device U.I.A.A.
90-40-30
60-20-20 70-25-25 80-30-30 90-30-30 100-30-30 105-35-30 110-35-35 115-40-35 120-50-40


Handled Eccentric Cam Ascenders

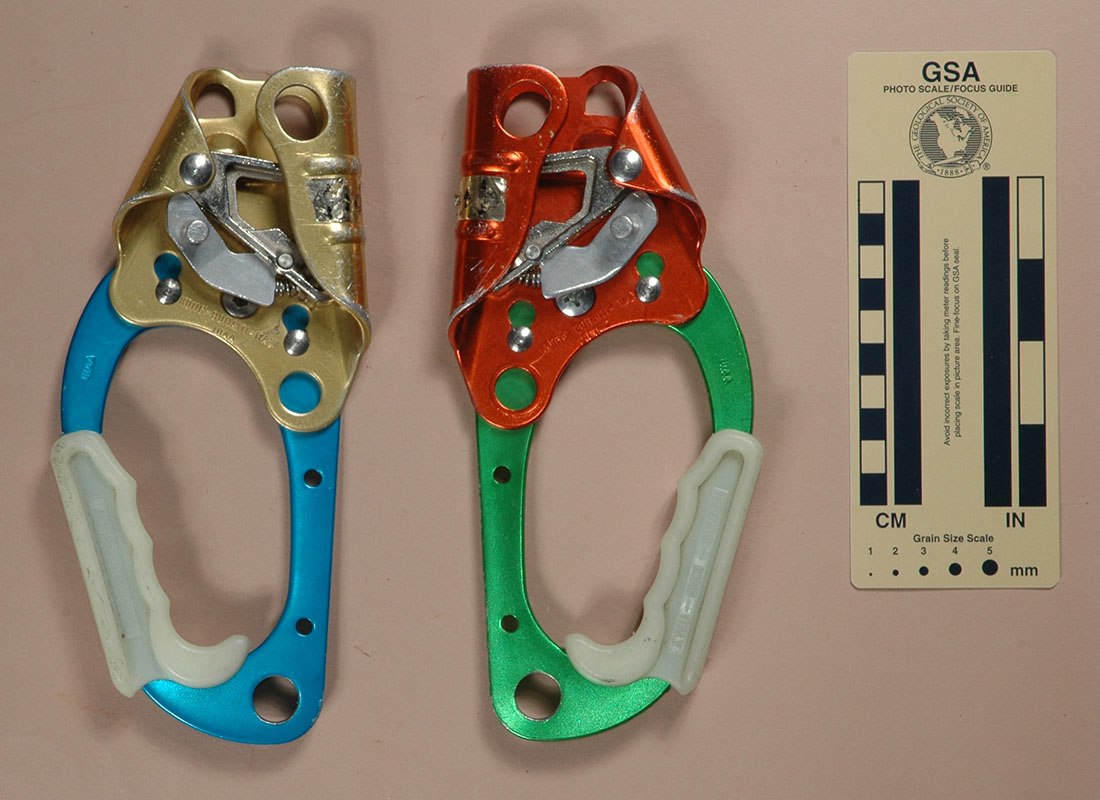

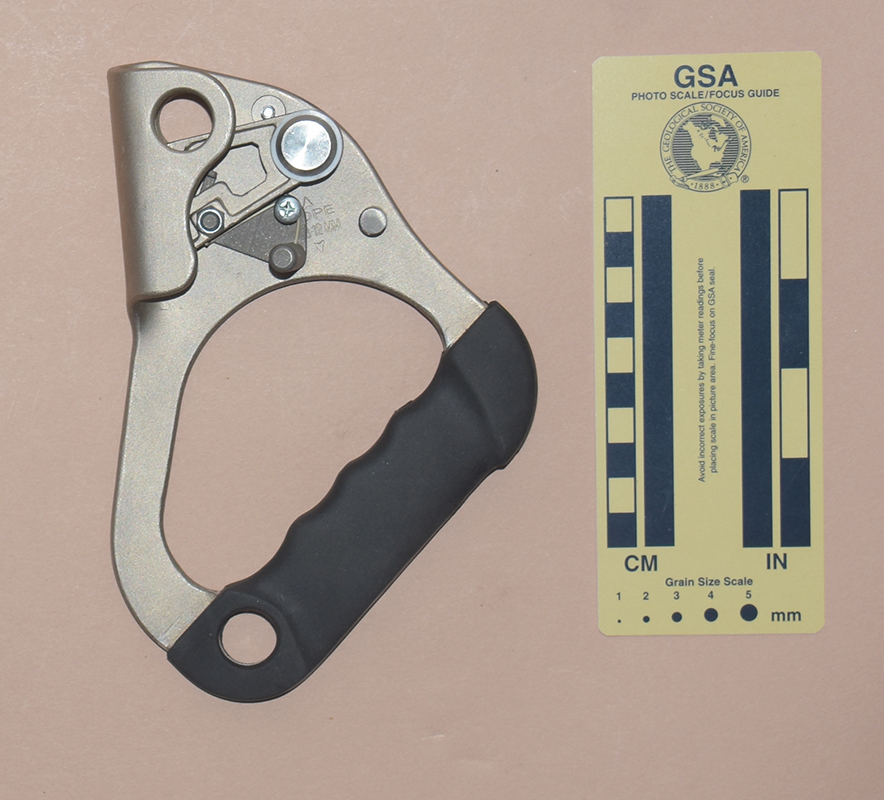

Advanced Base Camp 211
2205
Advanced Base Camp Fits Fits Fits Fits Fits Fits Fits

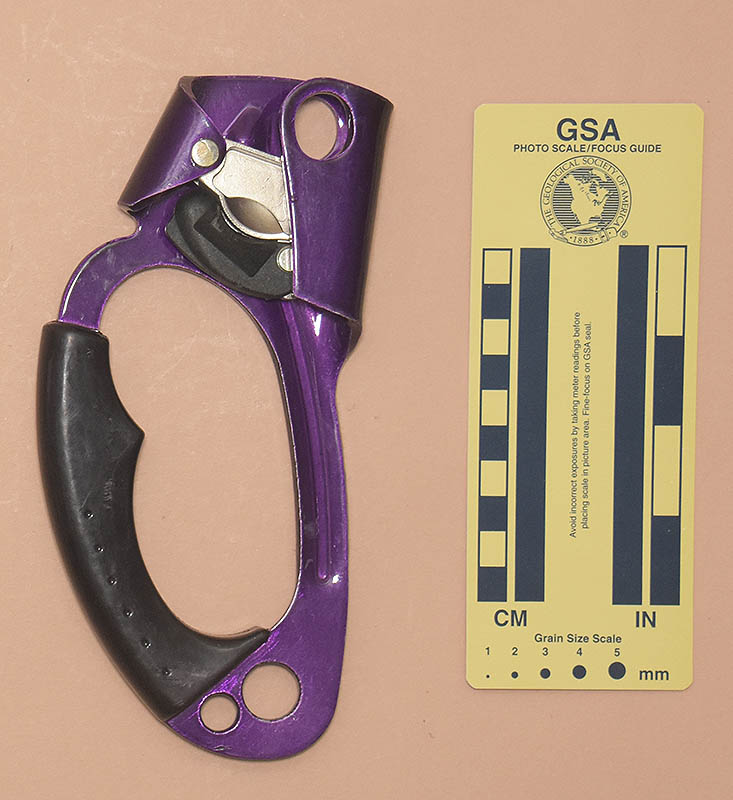

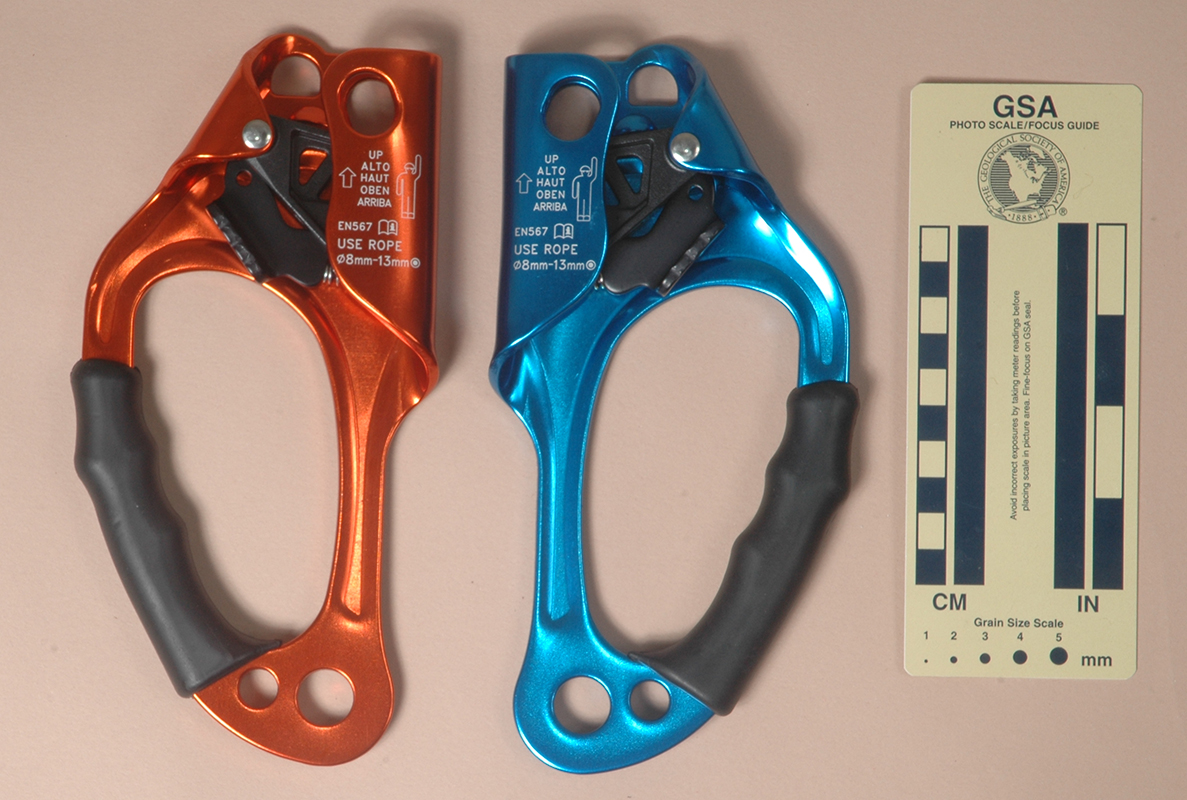

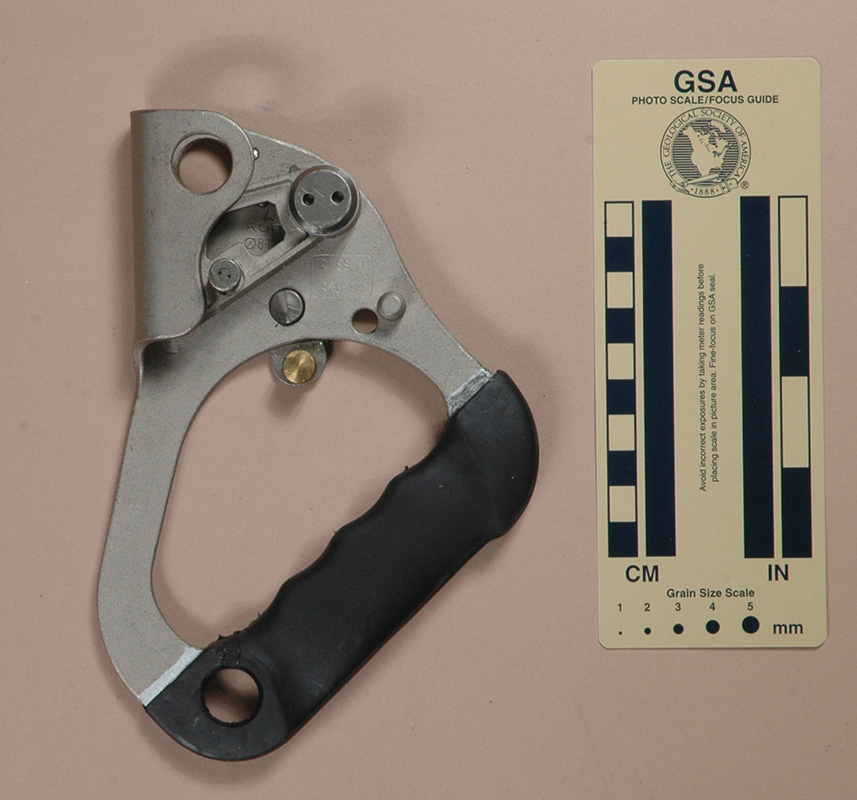

Alpidex Move Up 2308 Alpidex Move Up Fits Fits Fits Fits Fits Fits Fits

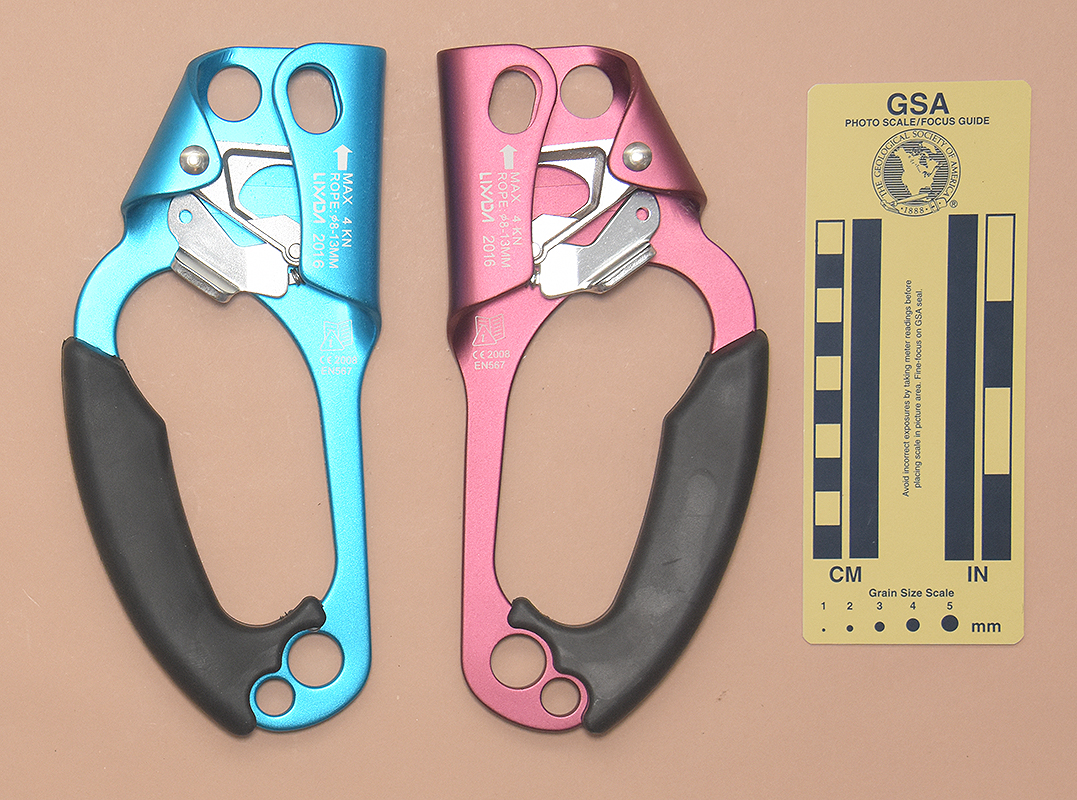

Altius, Version A 123 Altius, Version A No fit Fits Fits Fits Fits No fit
Altius, Version B 257 Altius, Version B Fits Fits Fits Fits Fits Fits

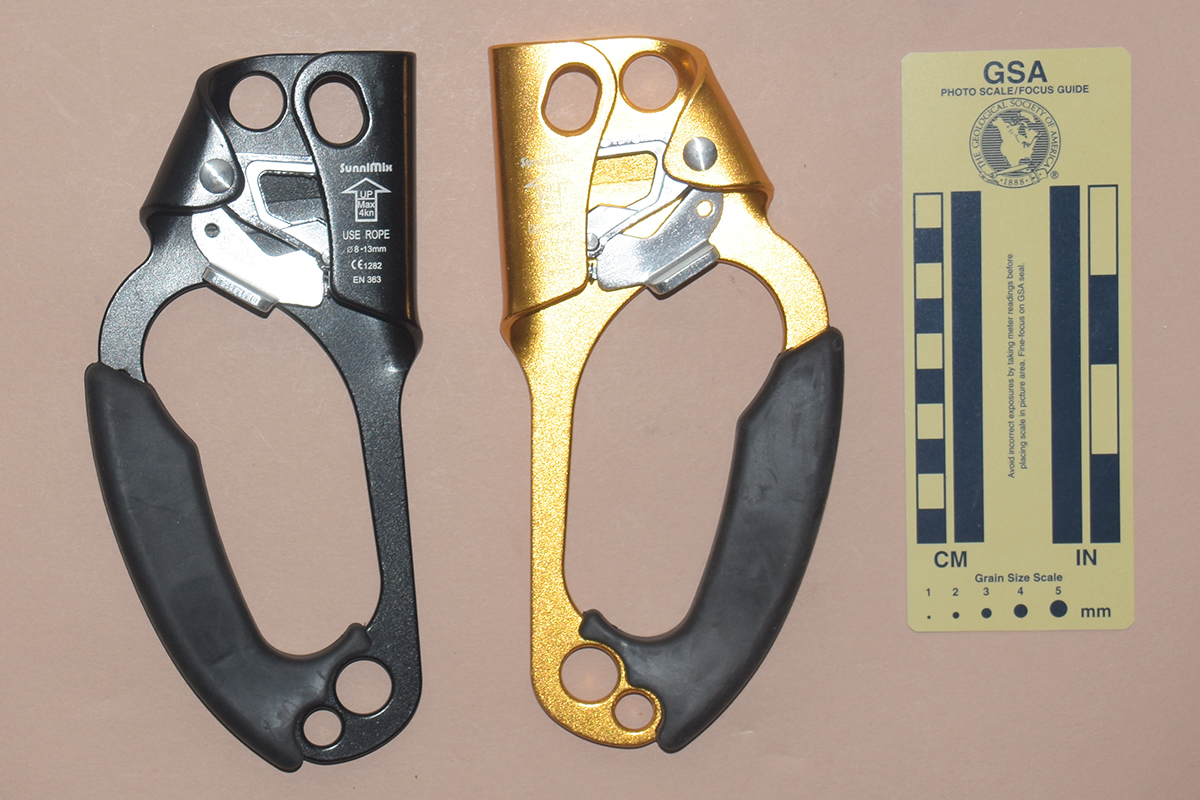

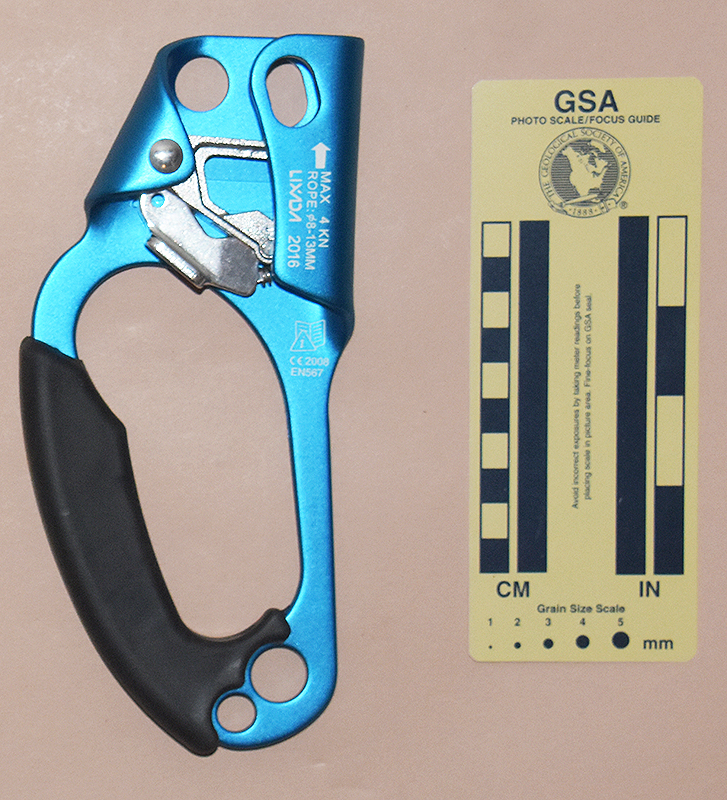

Al'turs (Альтурс), Version A 2340 Al'turs (Альтурс), Version A   Fits Fits Fits Fits Barely misses

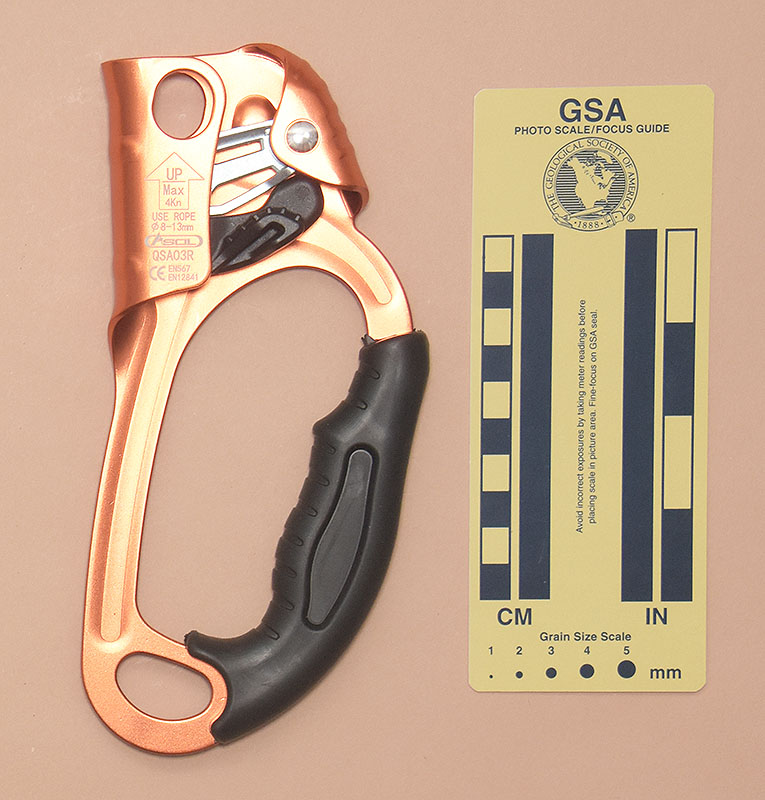

Al'turs (Альтурс), Version B 2164
2905
Al'turs (Альтурс), Version B   Fits Fits Fits Fits Barely misses
Al'turs (Альтурс), Version C 2165 Al'turs (Альтурс), Version C   Fits Fits Fits Fits Barely misses

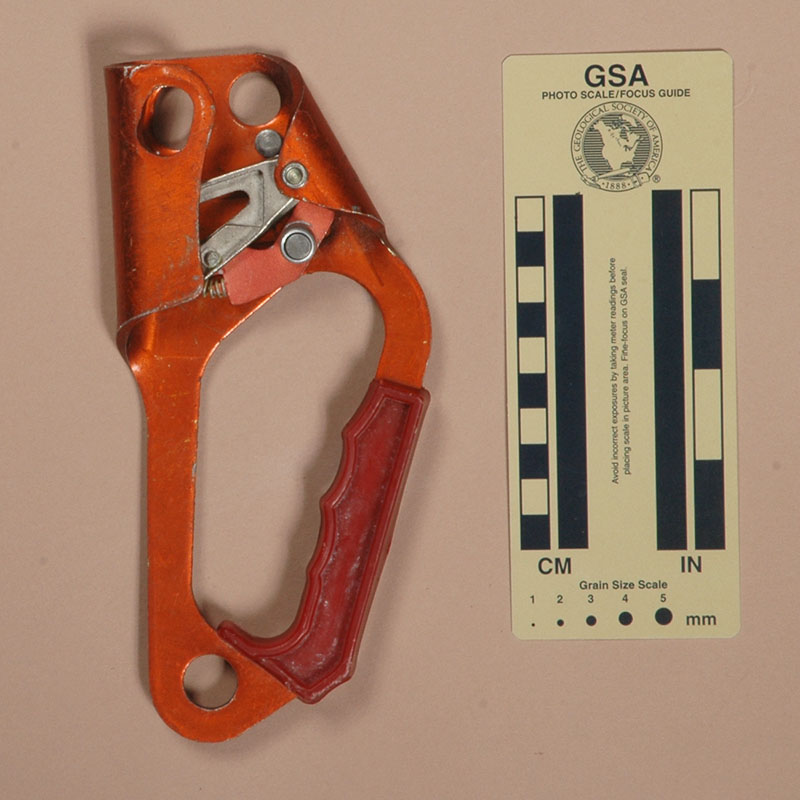

Al'turs (Альтурс), Version D 1942 Al'turs (Альтурс), Version D   Fits Fits Fits Fits Barely misses

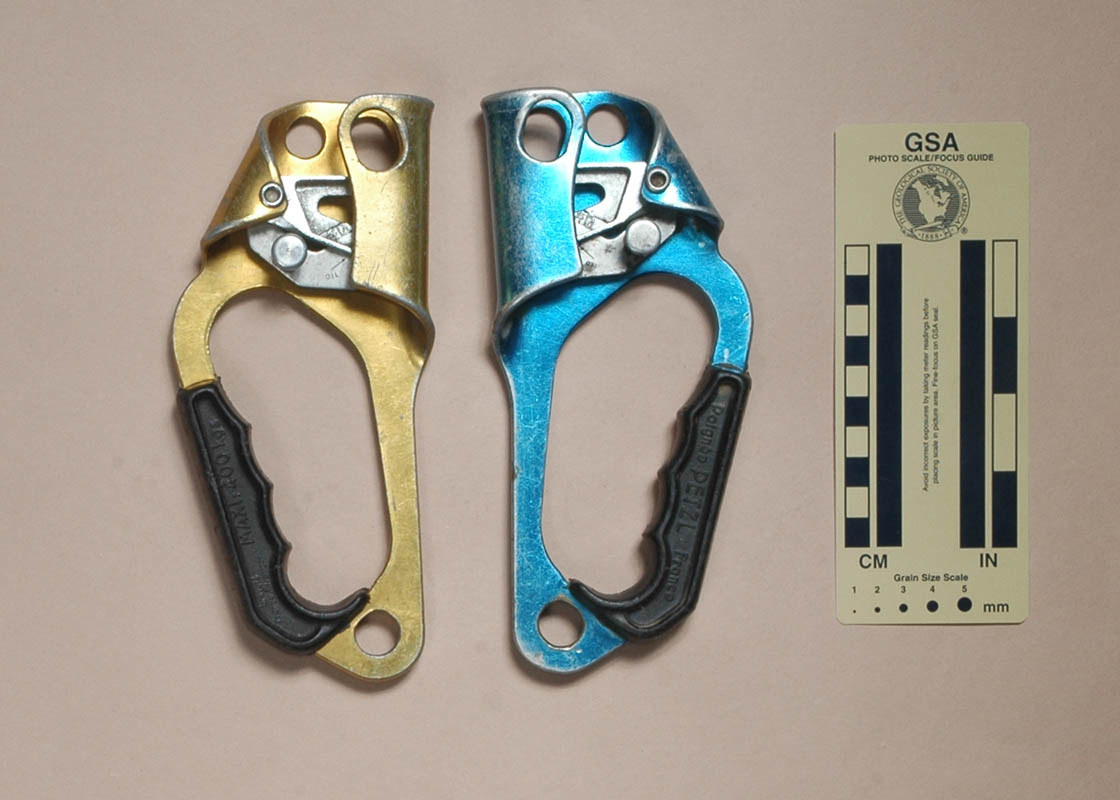

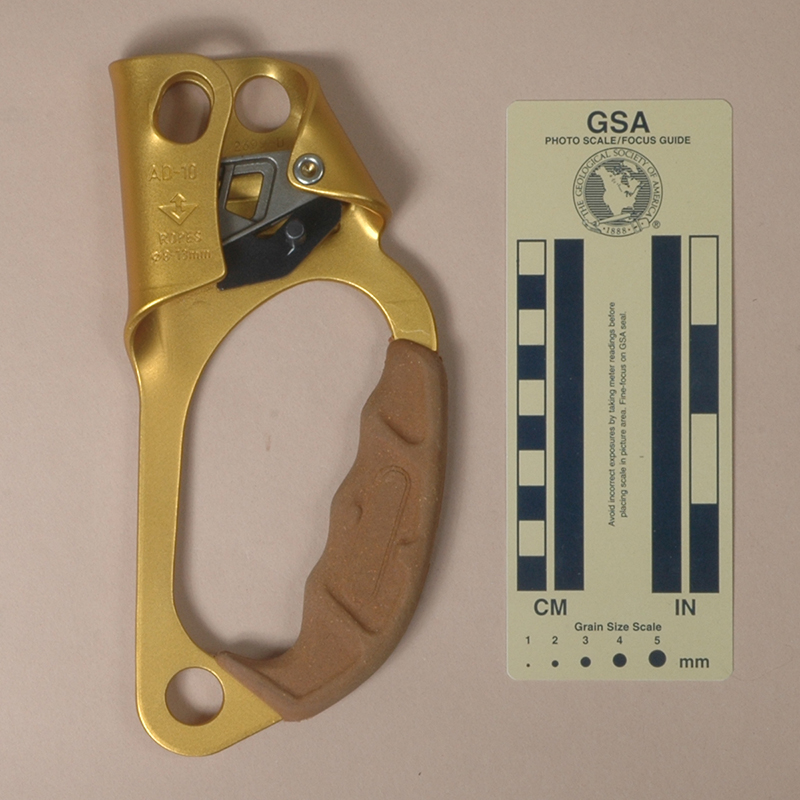

Anthron AD-10, Version A 2187 Anthron AD-10, Version A Fits Fits Fits Fits Fits Fits Fits Barely misses

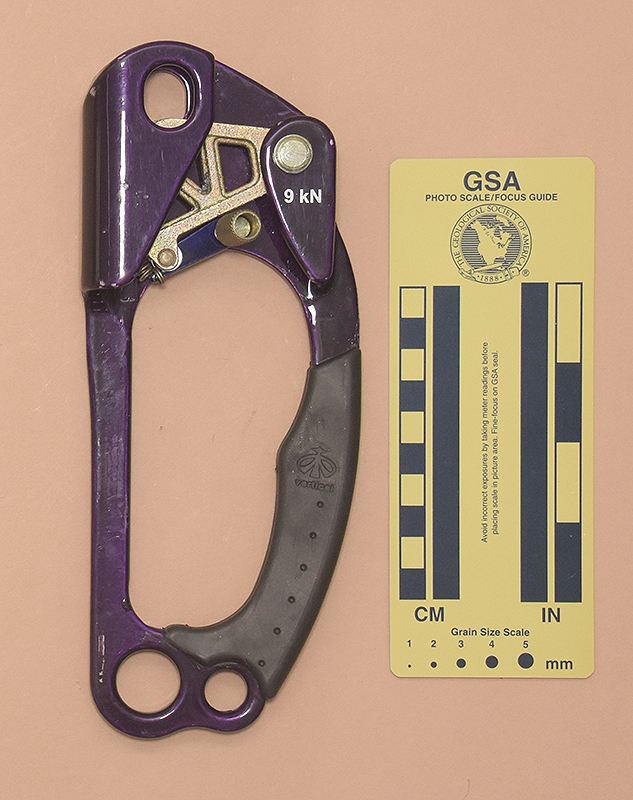

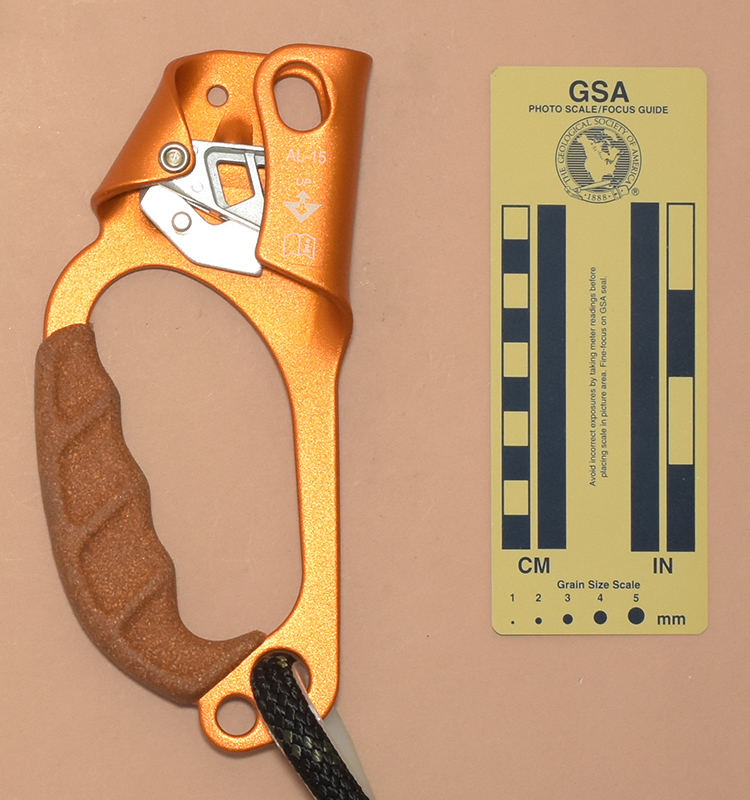

Anthron AL-15, Version B 155 Anthron AL-15, Version B Fits Fits Fits Fits Fits Fits Fits Barely misses

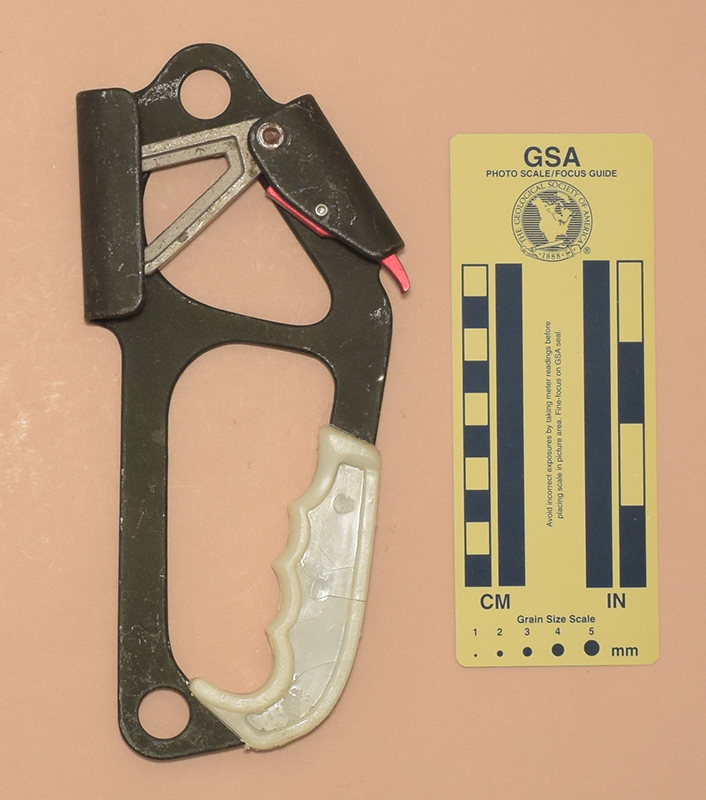

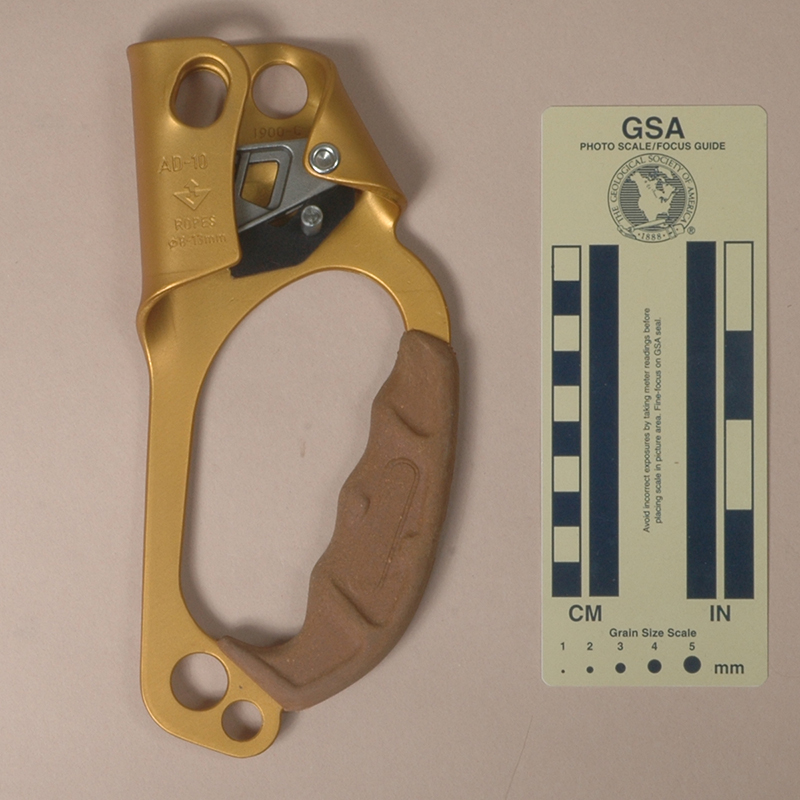

Anthron AD-10, Version C 2188 Anthron AD-10, Version C Fits Fits Fits Fits Fits Fits Fits Barely misses

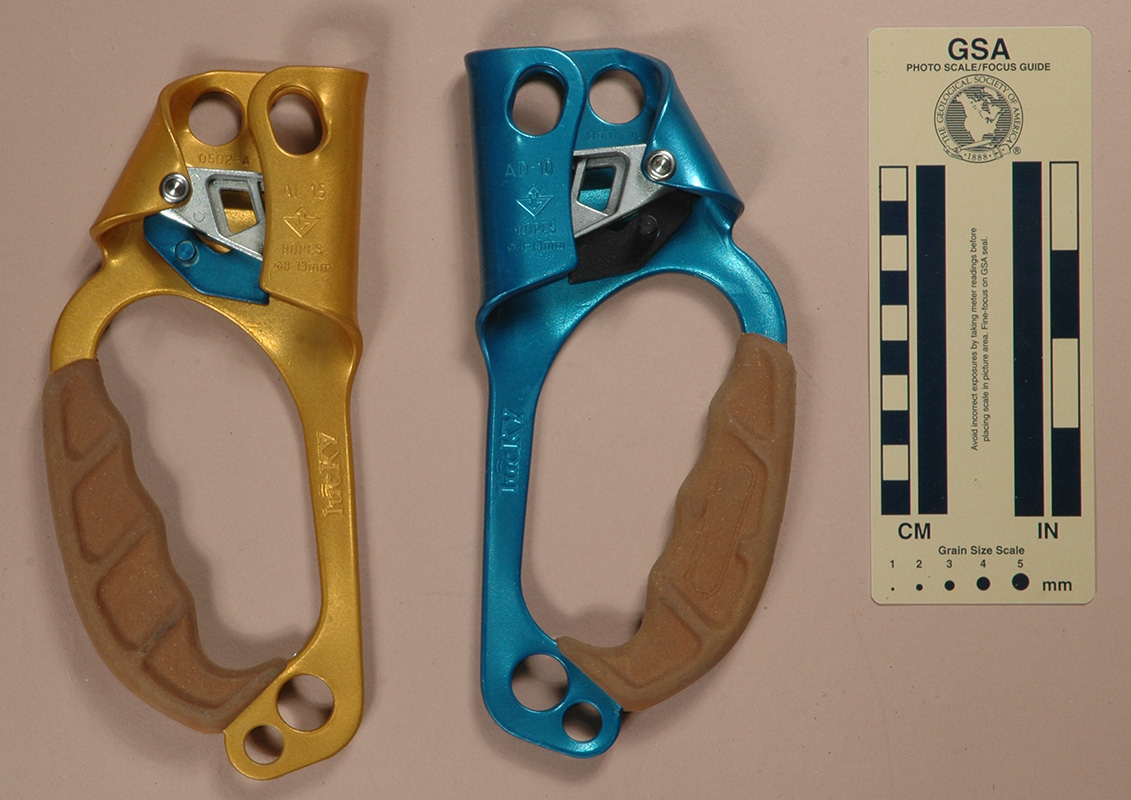

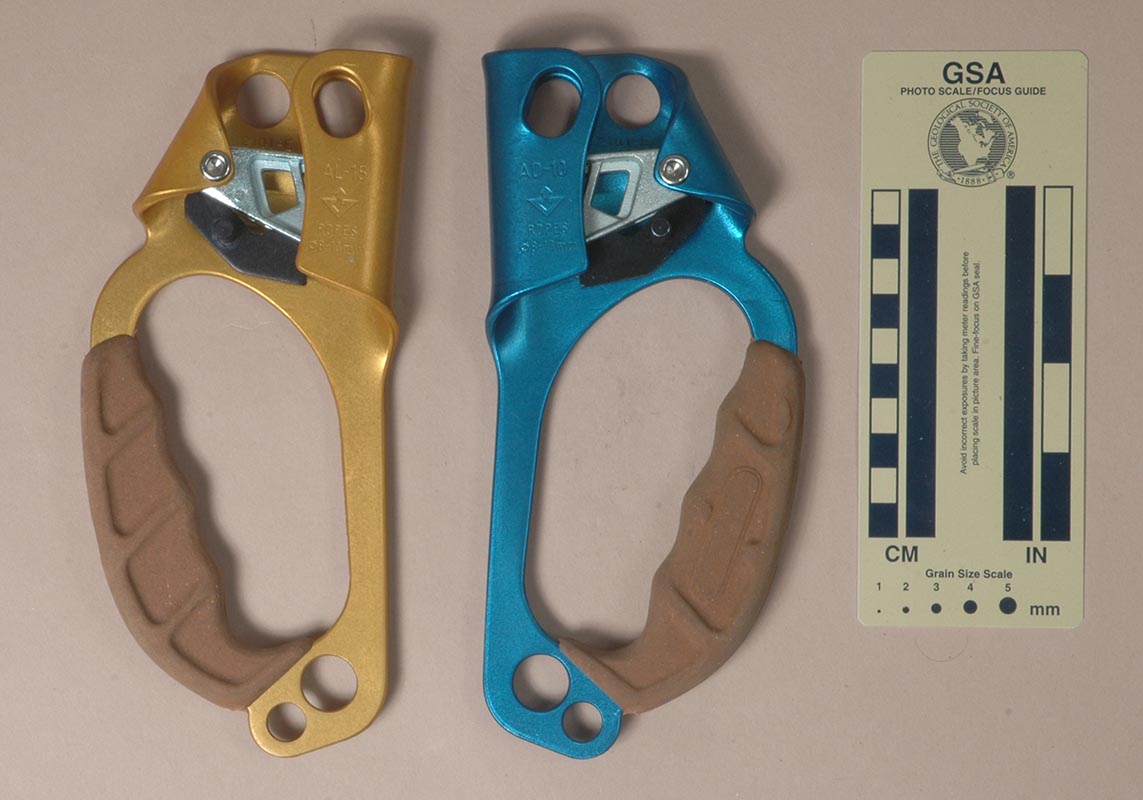

Anthron AD-10 & AL-15, Version D 156/2189 Anthron AD-10 & AL-15, Version D Fits Fits Fits Fits Fits Fits Fits Barely misses
Anthron AD-10 & AL-15, Version E 2113/2114 Anthron AD-10 & AL-15, Version E Fits Fits Fits Fits Fits Fits Fits Barely misses

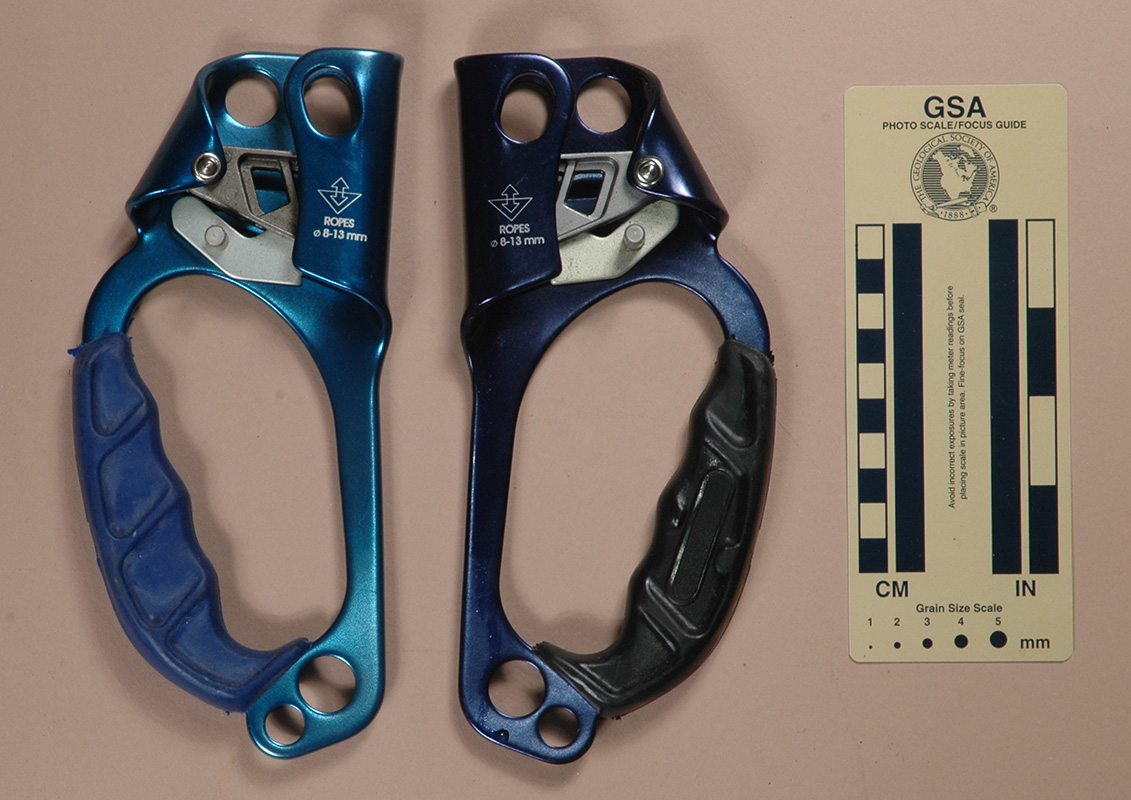

Anthron AD-10 & AL-15, Version F 194/195 Anthron AD-10 & AL-15, Version F Fits Fits Fits Fits Fits Fits Fits Barely misses

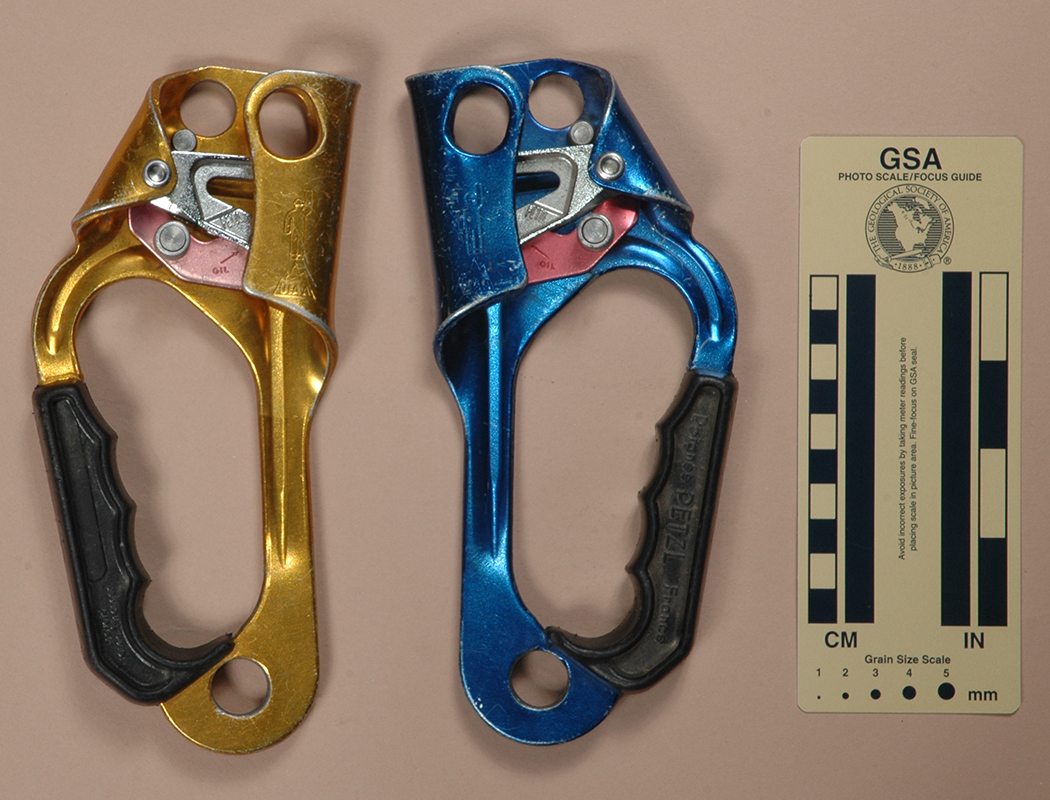

Anthron VauDe AD-10 & AL-15 133/134
2190/2191
Anthron VauDe AD-10 & AL-15 Fits Fits Fits Fits Fits Fits Fits Fits

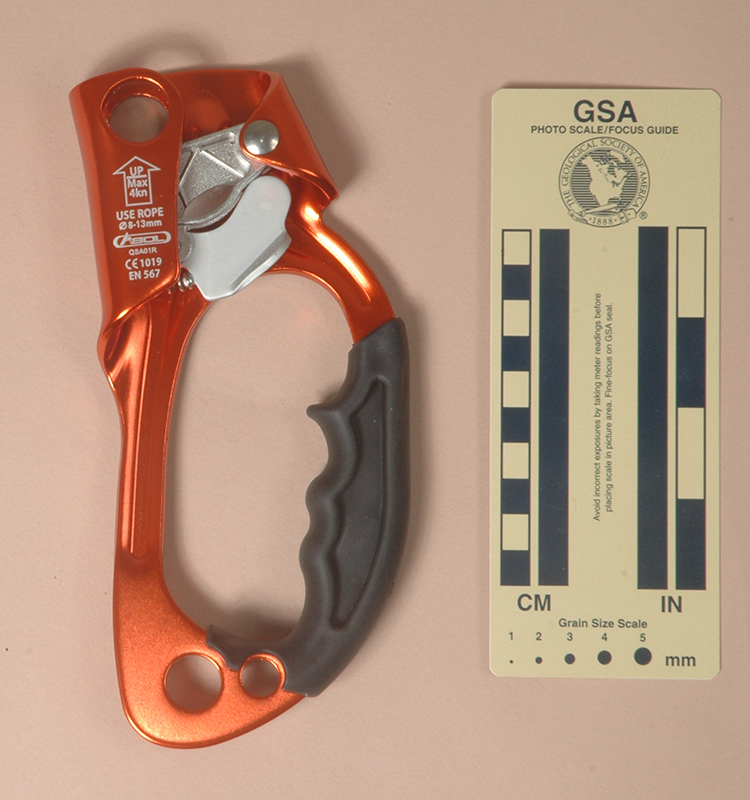

Asol, Version A 2323 Asol, Version A   Fits Fits Fits Fits Fits
Asol, Version B 2358 Asol, Version B   Fits Fits Fits Fits Fits

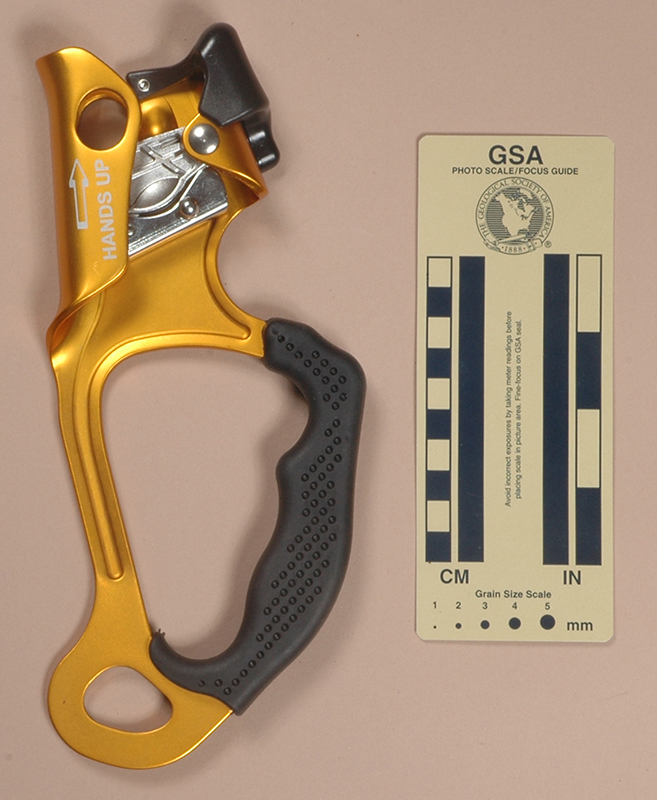

Beal Hands Up 2052 Beal Hands Up Fits Fits Fits Fits Fits Barely misses

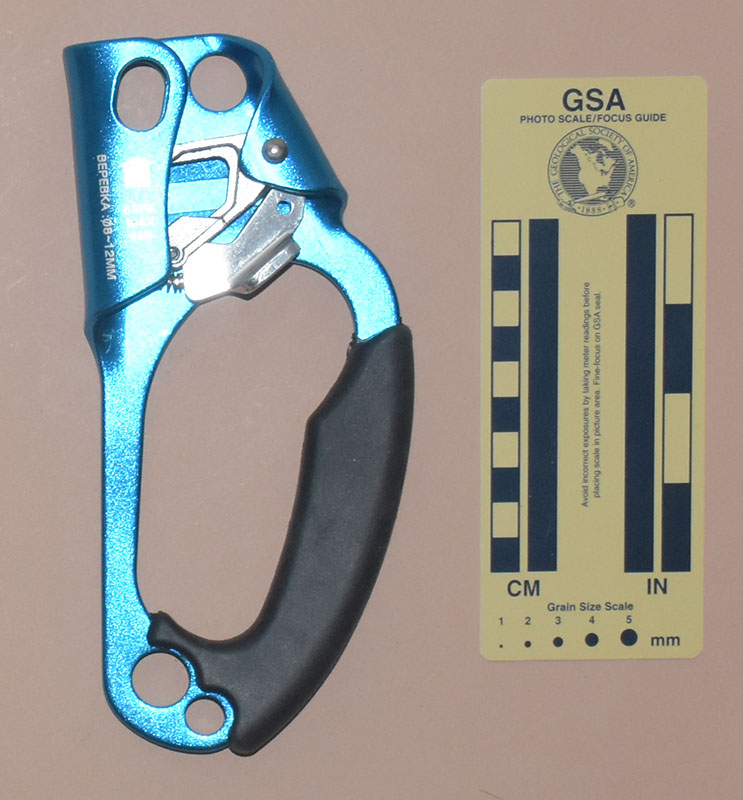

Венто 2986 Венто Fits Fits Fits Fits Fits Fits Fits

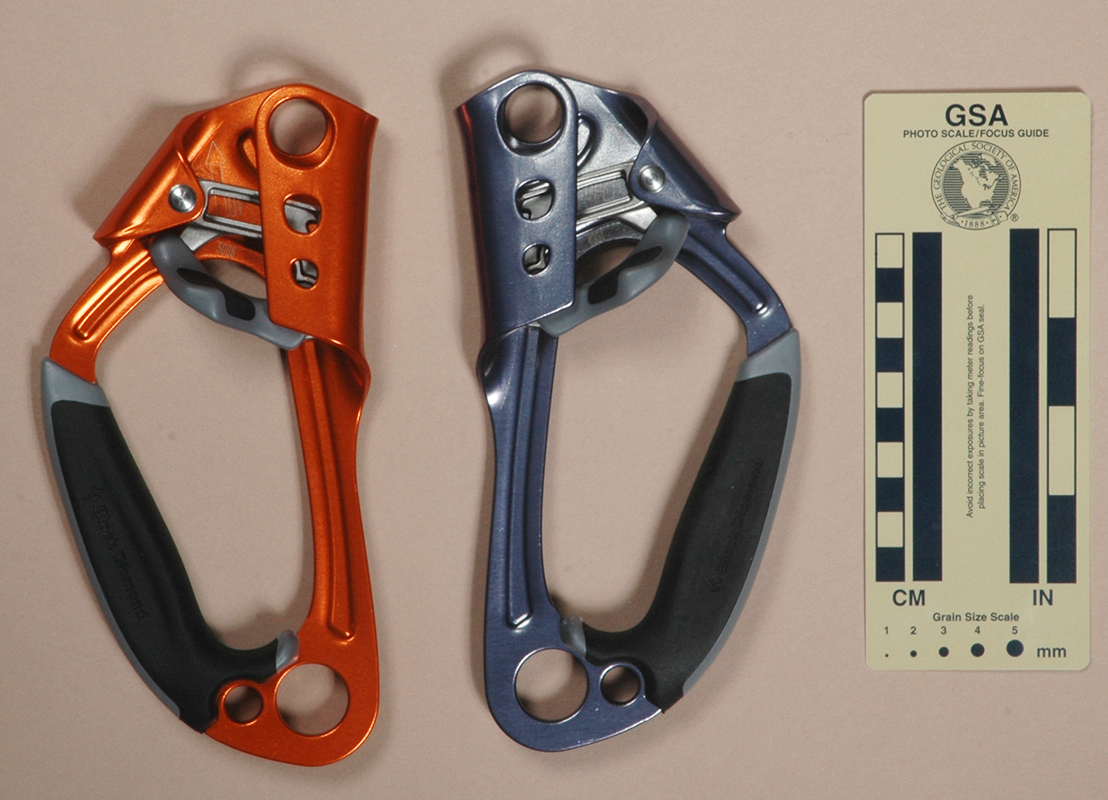

Black Diamond Index 1995/1996 Black Diamond Index Fits Fits Fits Fits Fits Fits
Blanzo 2325 Blanzo Fits Fits Fits Fits Fits Fits Fits

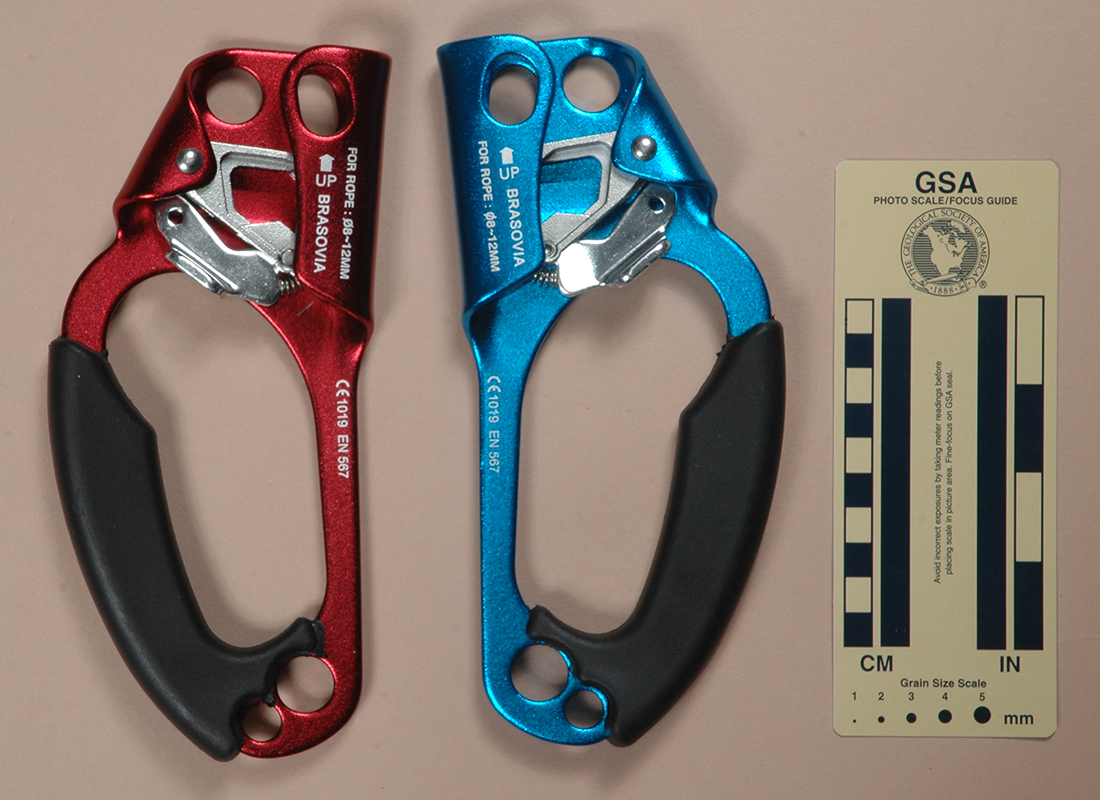

Brasovia 1589 Brasovia Fits Fits Fits Fits Fits Fits Barely misses

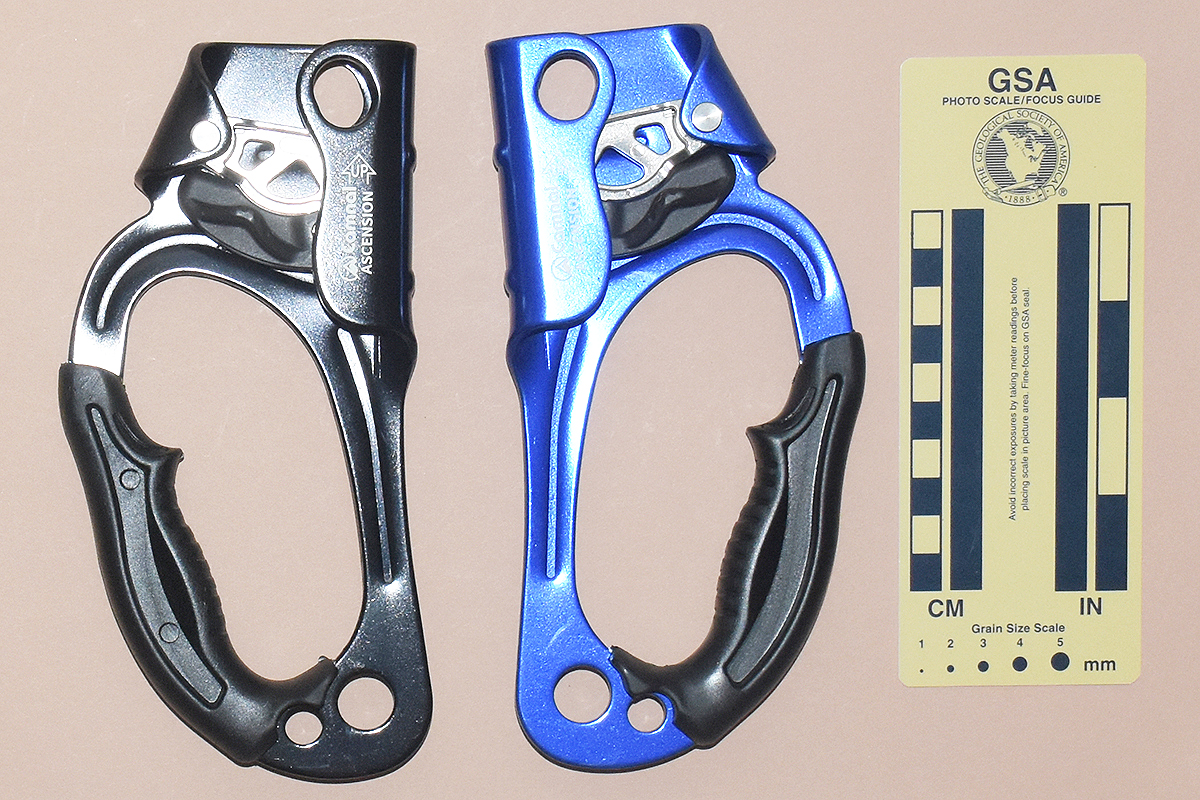

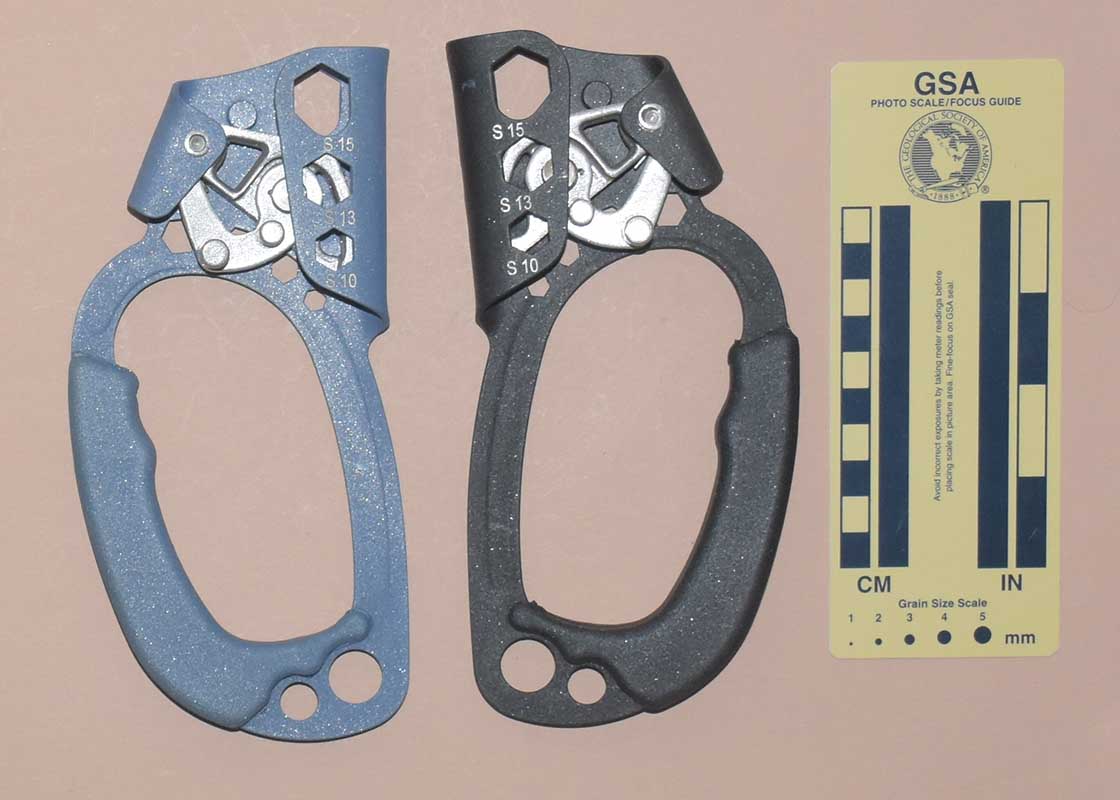

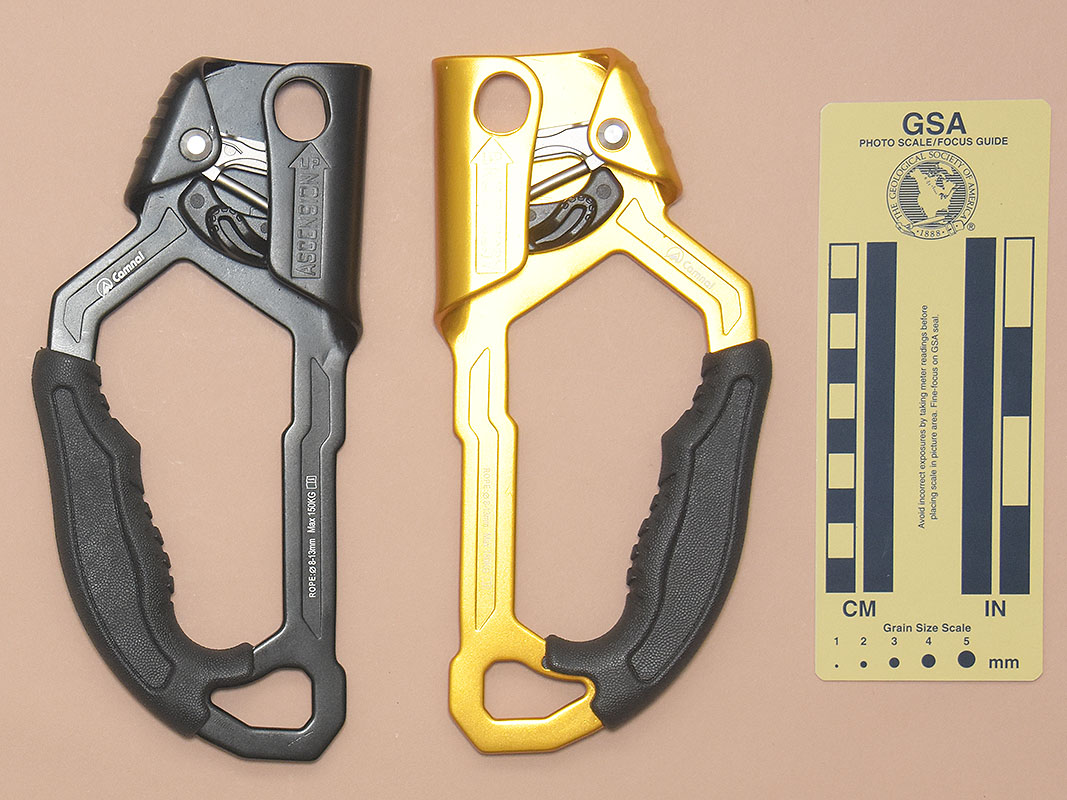

Camnal 2977/2978 Camnal Fits Fits Fits Fits Fits Fits
Camp Pilot 151 Camp Pilot, Version A Fits Fits Fits Fits Fits Fits Fits

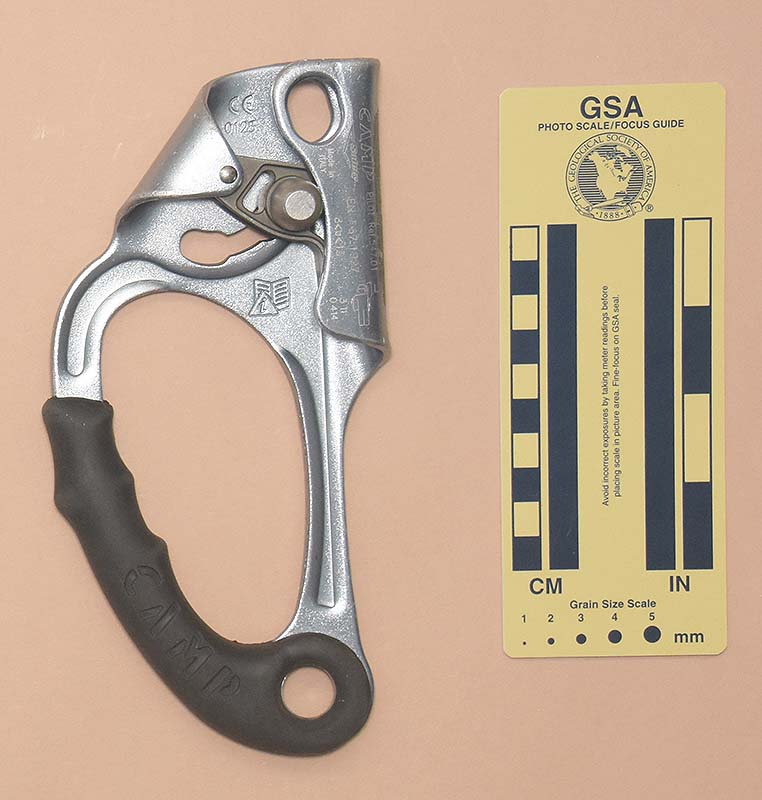

Camp Pilot, Version B 3452 Camp Pilot, Version B Fits Fits Fits Fits Fits Fits Fits

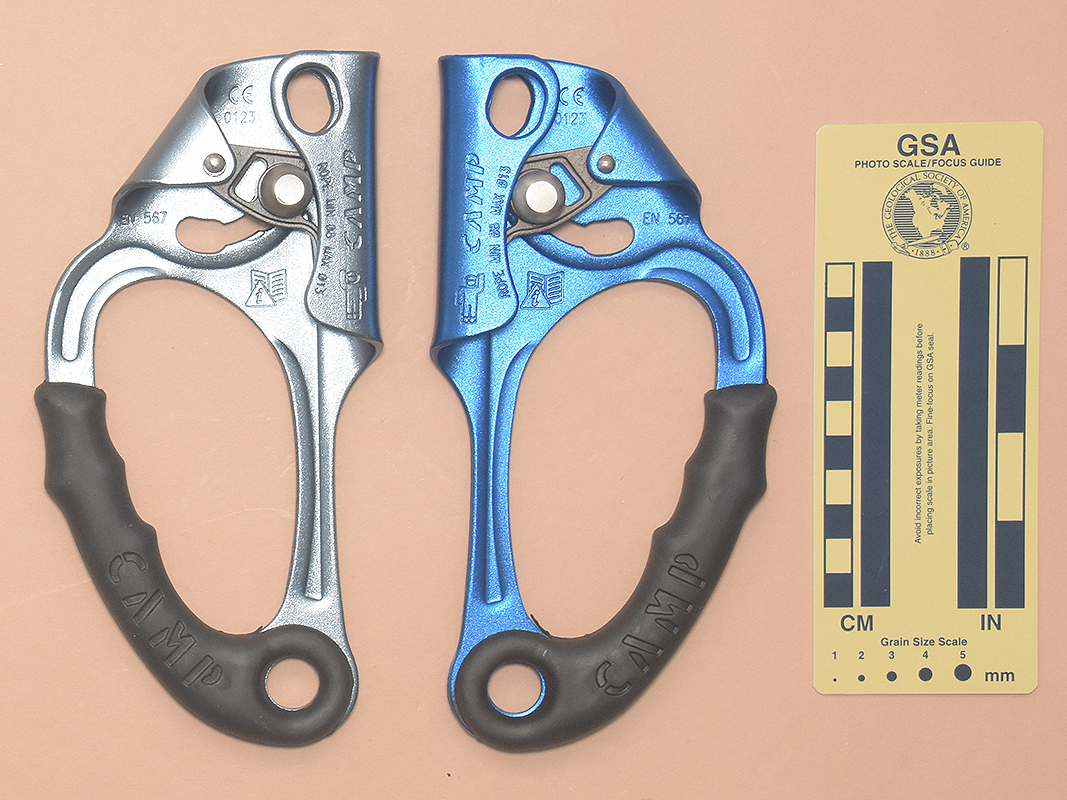

Camp Pilot, Version C 2206 Camp Pilot, Version C Fits Fits Fits Fits Fits Fits Fits

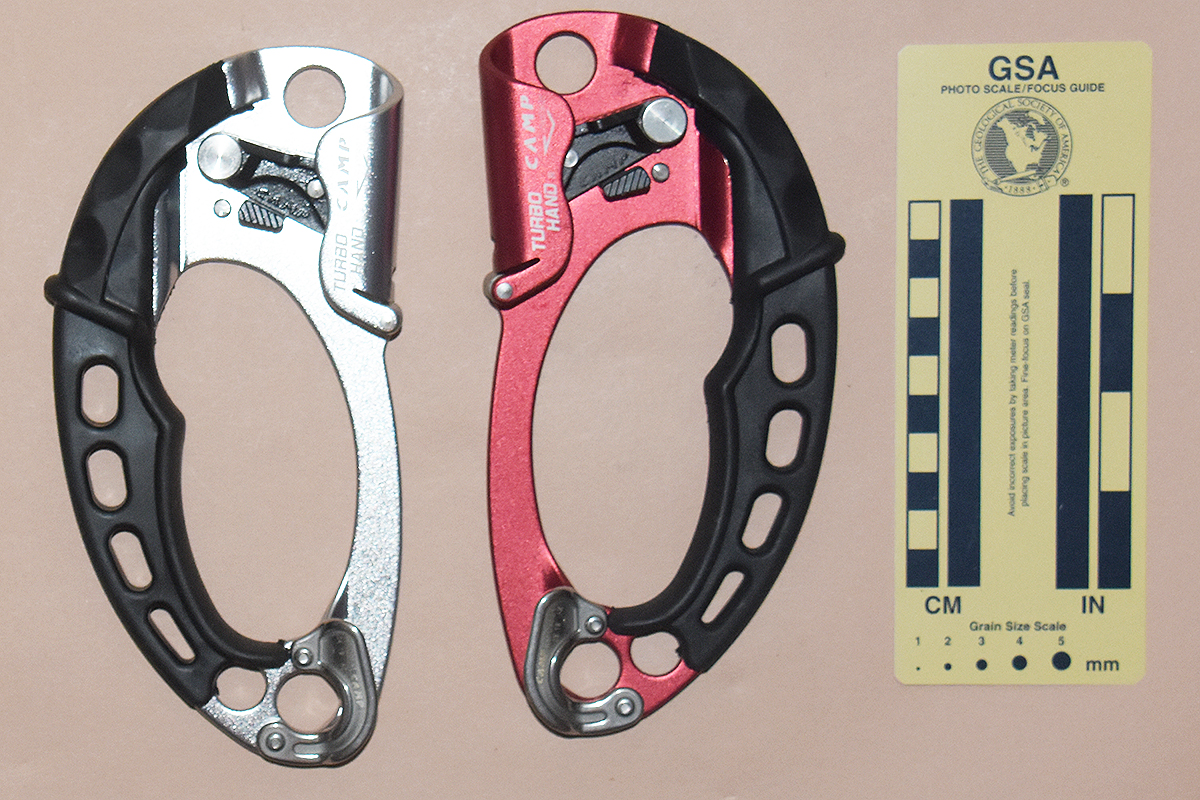

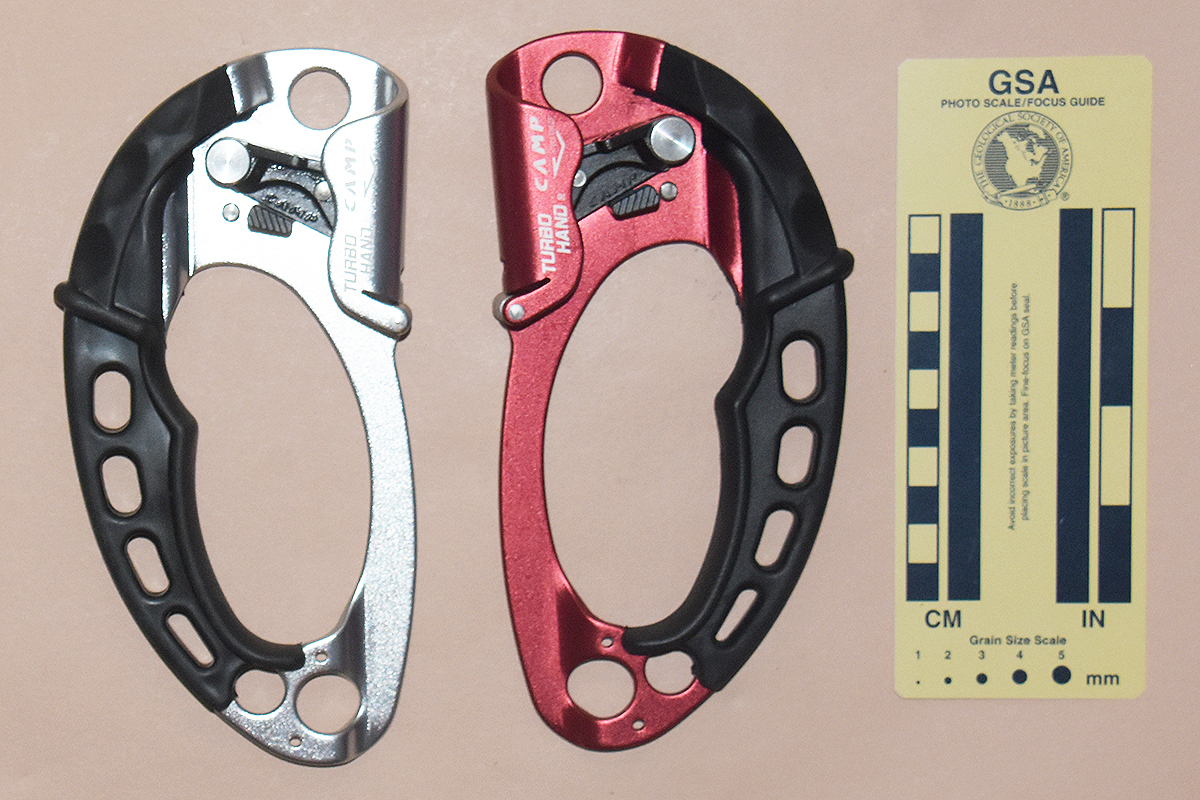

Camp Turbohand 2386/2943 Camp Turbohand Barely misses Fits Fits Fits Fits Barely misses
Camp Turbohand 2944 Camp Turbohand Pro Barely misses Fits Fits Fits Fits Barely misses
Chkalovsky Aviation Plant, Version A 122 Chkalovsky Aviation Plant, Version A Fits  Fits Fits Fits Fits Fits
Chkalovsky Aviation Plant, Version B 3445 Chkalovsky Aviation Plant, Version B Fits  Fits Fits Fits Fits Fits
Clark Single-handled Dual Ascender 1531 Clark Single-handled Dual Ascender   Fits Fits Fits Fits Fits
Climb Tech 1932/1972
2197
Climb Tech Fits Fits Fits Fits Fits Fits Barely misses

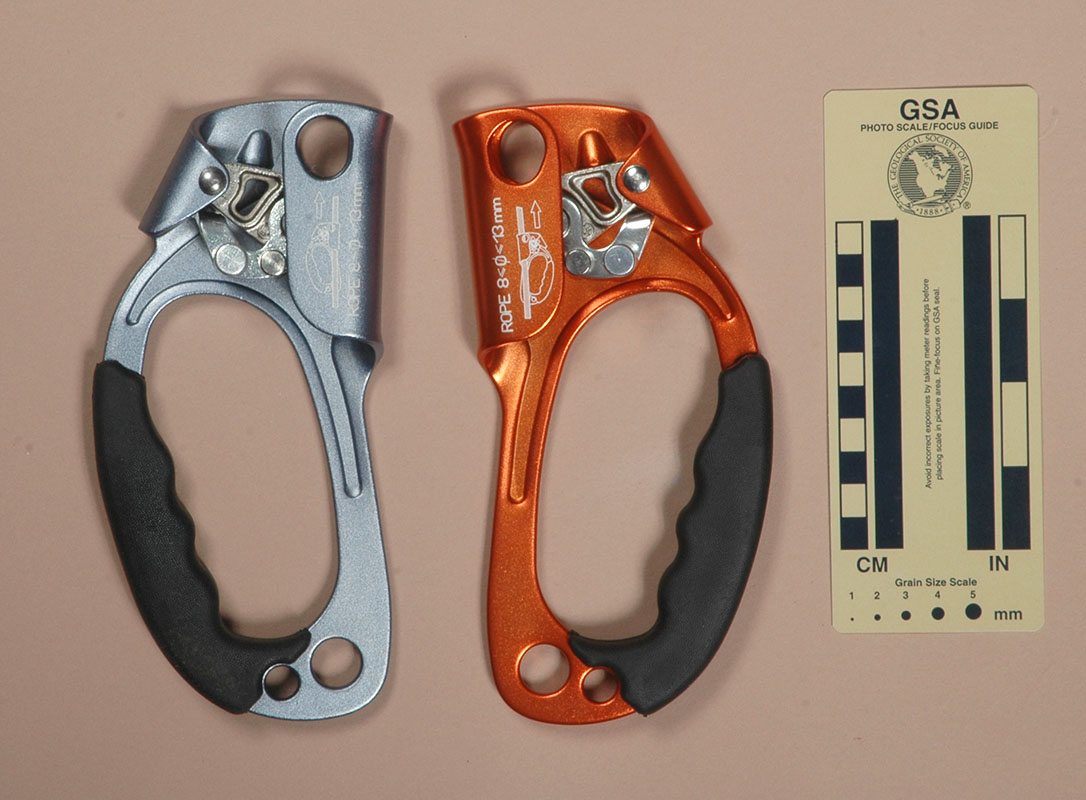

Climbing Technology Amelia (Knot & Rope) 1950/1951 Climbing Technology Amelia
(Knot & Rope)
Fits Fits Fits Fits Fits Fits Fits
Climbing Technology Quick'Arbor 1976
2289
Climbing Technology Quick'Arbor Fits Fits Fits Fits Fits Fits Fits Barely misses

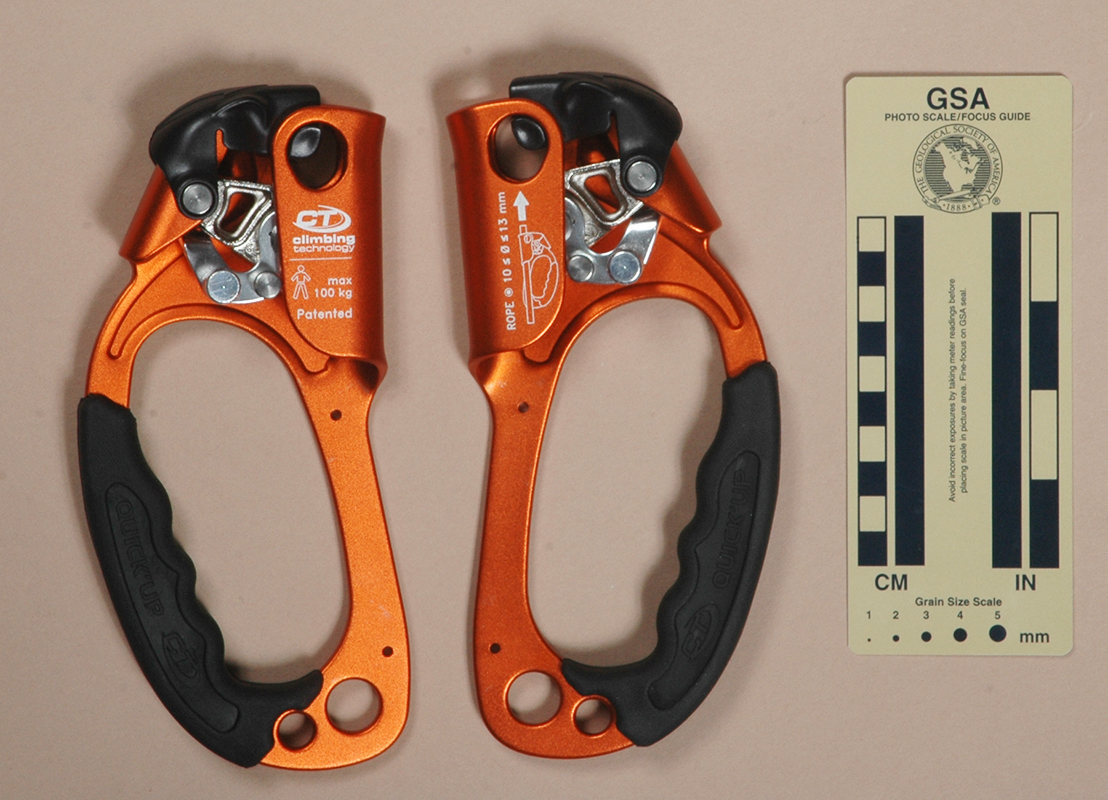

Climbing Technology Quick'Arbor (separated) 1990 Climbing Technology Quick'Arbor (separated) Fits Fits Fits Fits Fits Fits Fits Barely misses

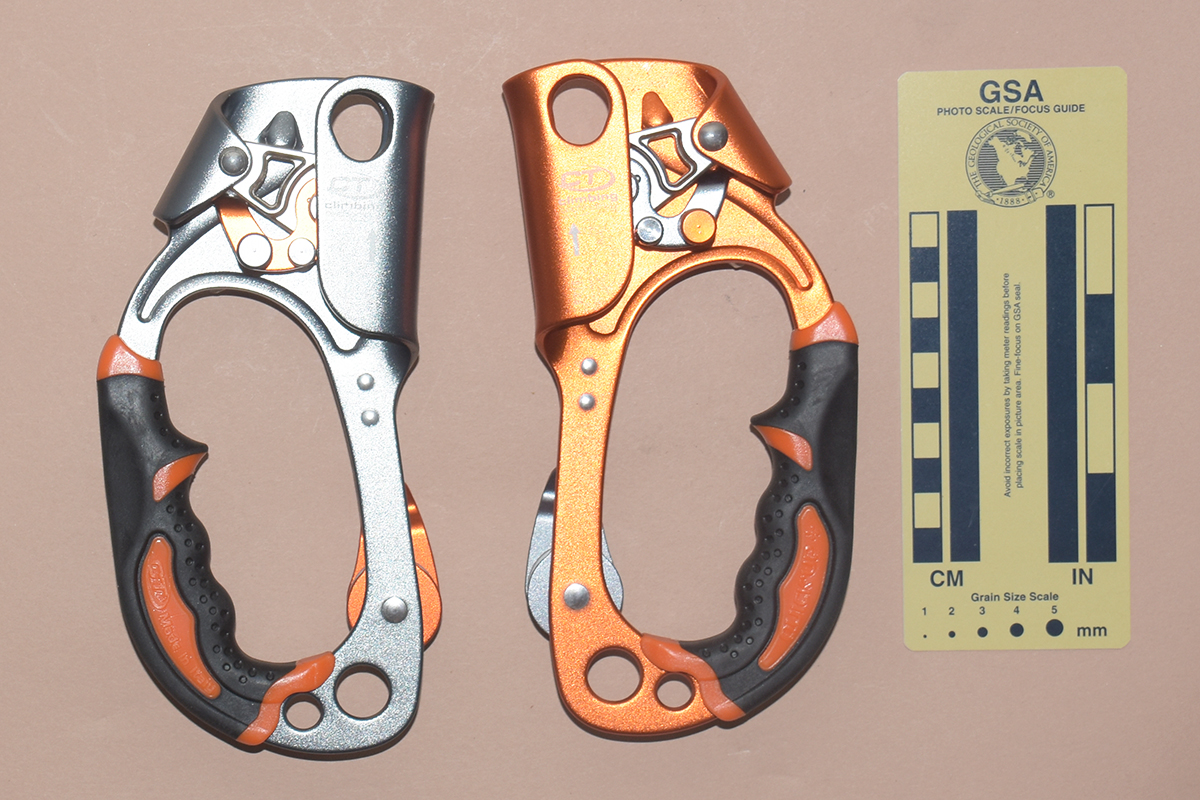

Climbing Technology Quick Roll 2082/2183 Climbing Technology Quick Roll No fit Fits Fits Fits Fits Fits Blocked
by
finger
ledge.

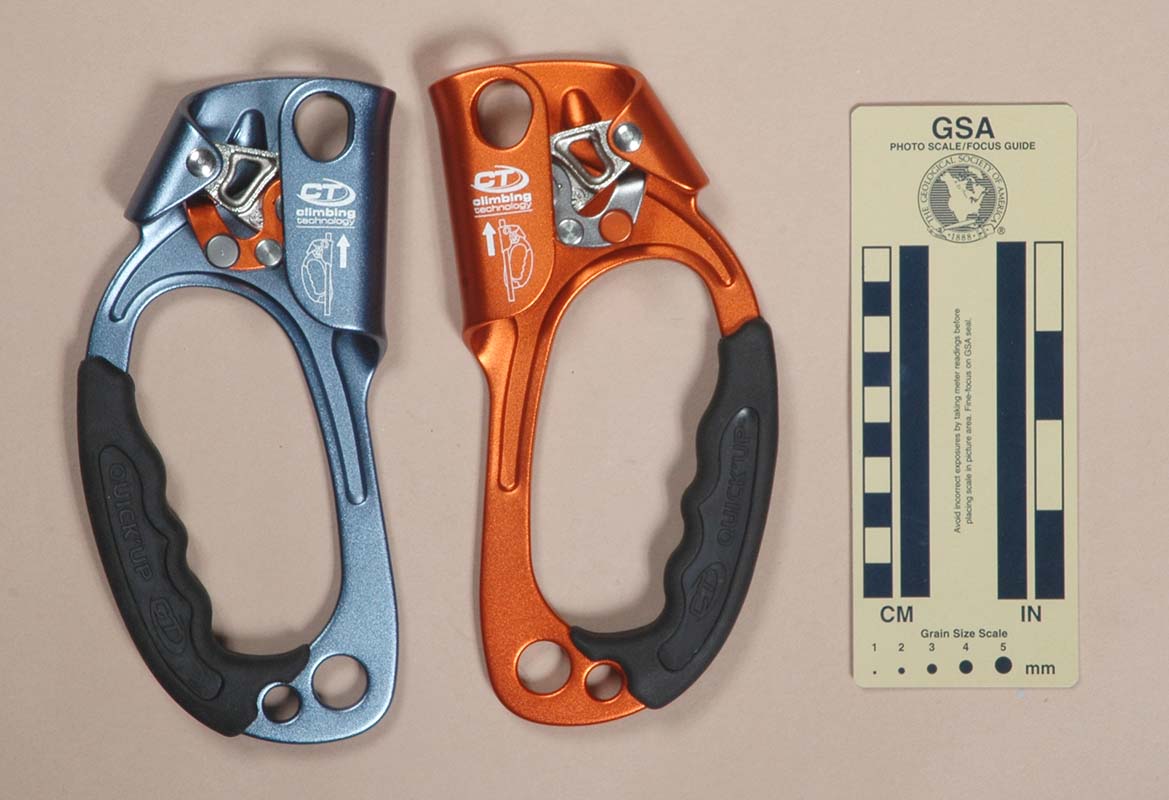

Climbing Technology Quick'Up, Version A 2008
2011
Climbing Technology Quick'Up, Version A Fits Fits Fits Fits Fits Fits Fits

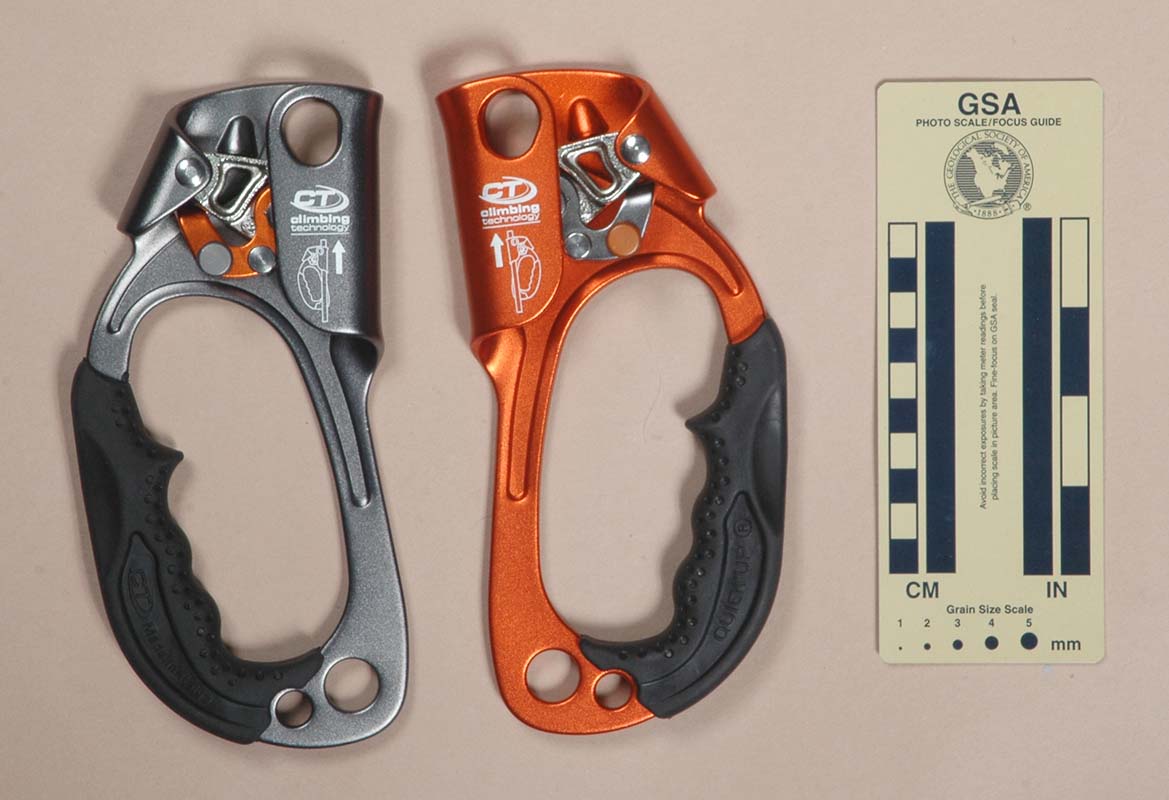

Climbing Technology Quick'Up, Version B 2012
2954
Climbing Technology Quick'Up, Version B Fits Fits Fits Fits Fits Fits Blocked
by
finger
ledge.

Climb X X Ascender 1997 Climb X X Ascender Fits Fits Fits Fits Fits Fits Odd fit

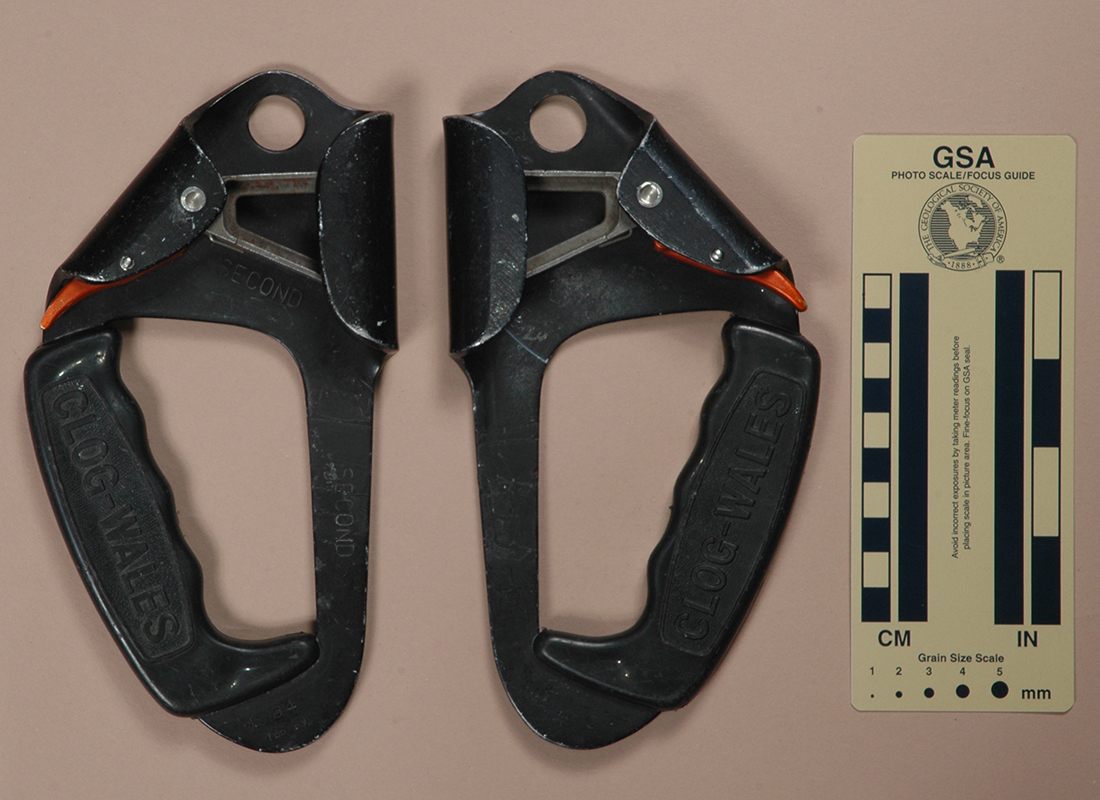

Clog Expedition, Version A 2159 Clog Expedition, Version A   Fits Fits No fit
Clog Expedition, Version B 24
1910
2158
Clog Expedition, Version B   Fits Fits No fit
Clog Expedition, Version C 2156 Clog Expedition, Version C   Fits Fits Fits Barely misses

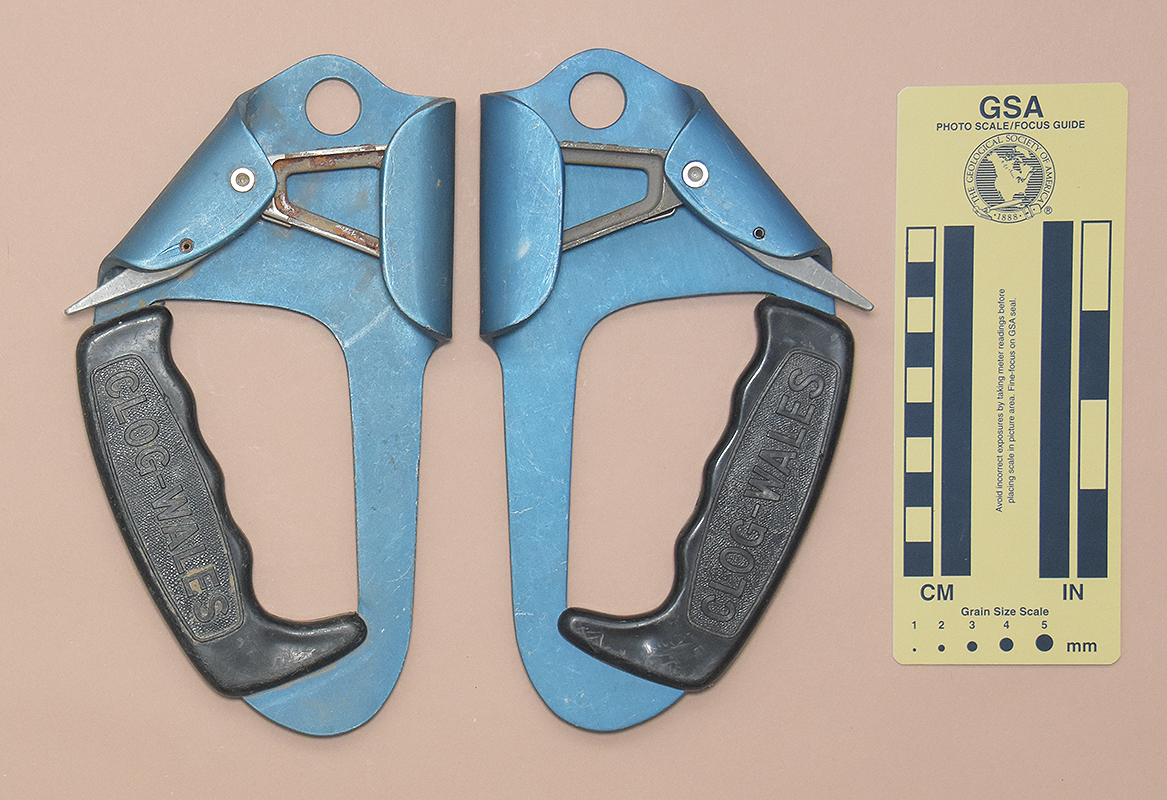

Clog Expedition, Version D 25
2157
Clog Expedition, Version D   Fits Fits Fits Barely misses

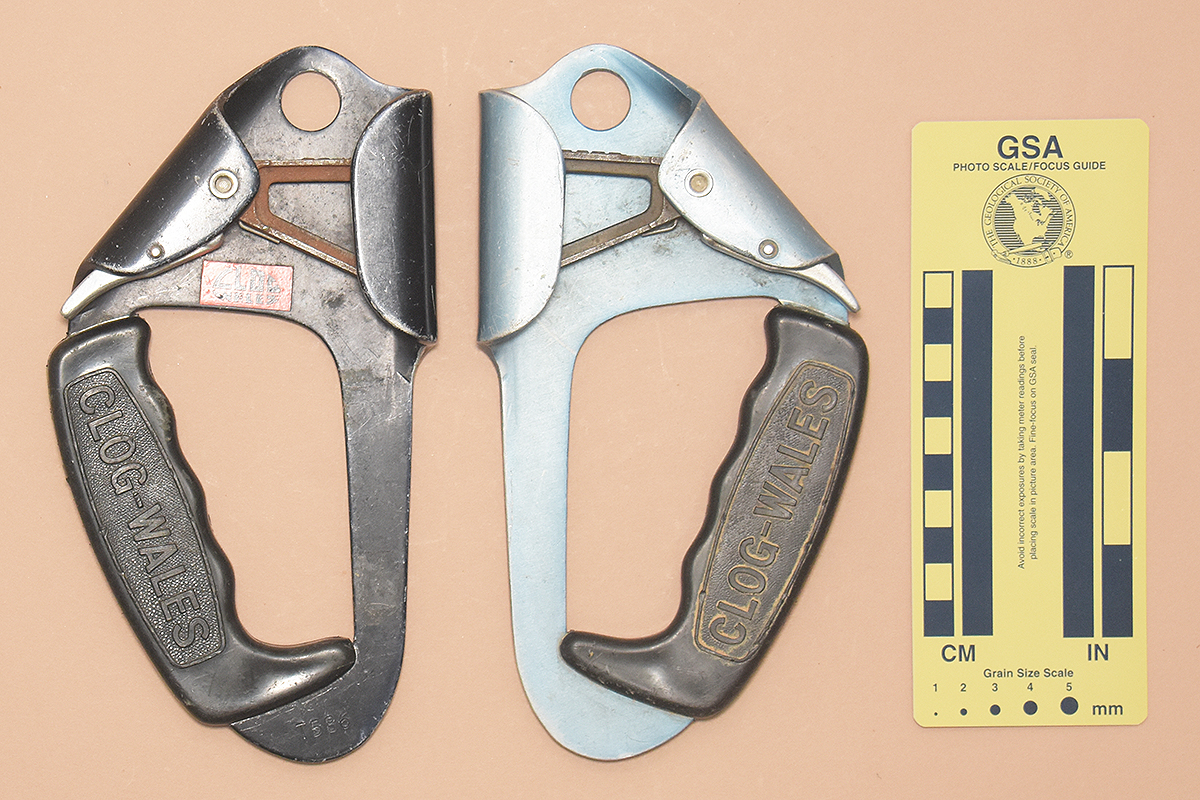

Clog Expedition, Version E 1505R
1567
Clog Expedition, Version E   Fits Fits Fits Fits
Clog Expedition, Version F 1505L Clog Expedition, Version F   Fits Fits Fits Barely misses
Clog Expedition, Version G 171
1555
2007
Clog Expedition, Version G   Fits Fits Fits Barely misses
Clog Expedition, Version H 218
2166
Clog Expedition, Version H   Fits Fits Fits Barely misses
Clog Expedition, Version I 26
172
2167
Clog Expedition, Version I   Fits Fits Fits Barely misses
CMI Expedition 130
2226
CMI Expedition, Version A Fits Fits Fits Fits Fits Fits Fits

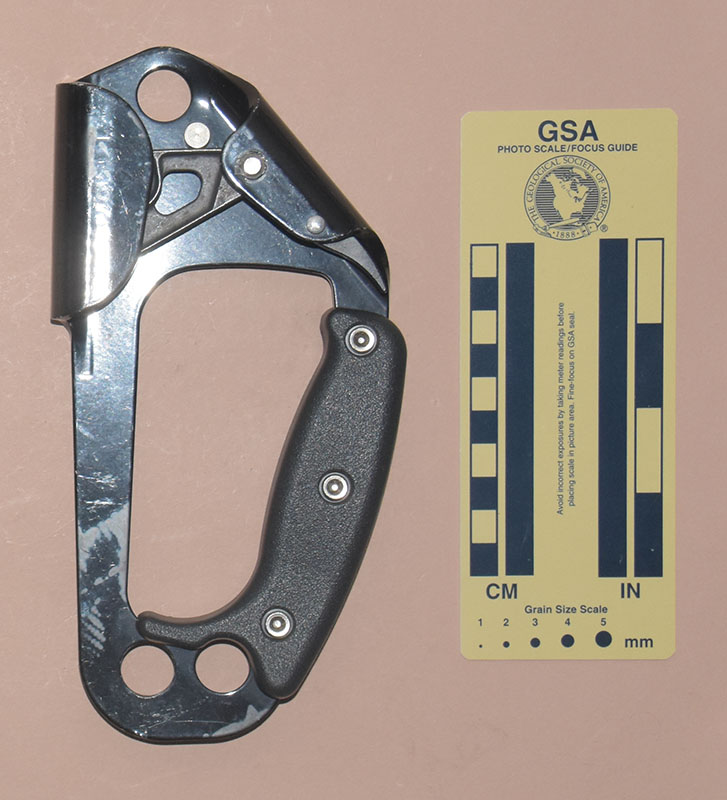

CMI Expedition, Version B 3431 CMI Expedition, Version B Fits Fits Fits Fits Fits Fits Fits

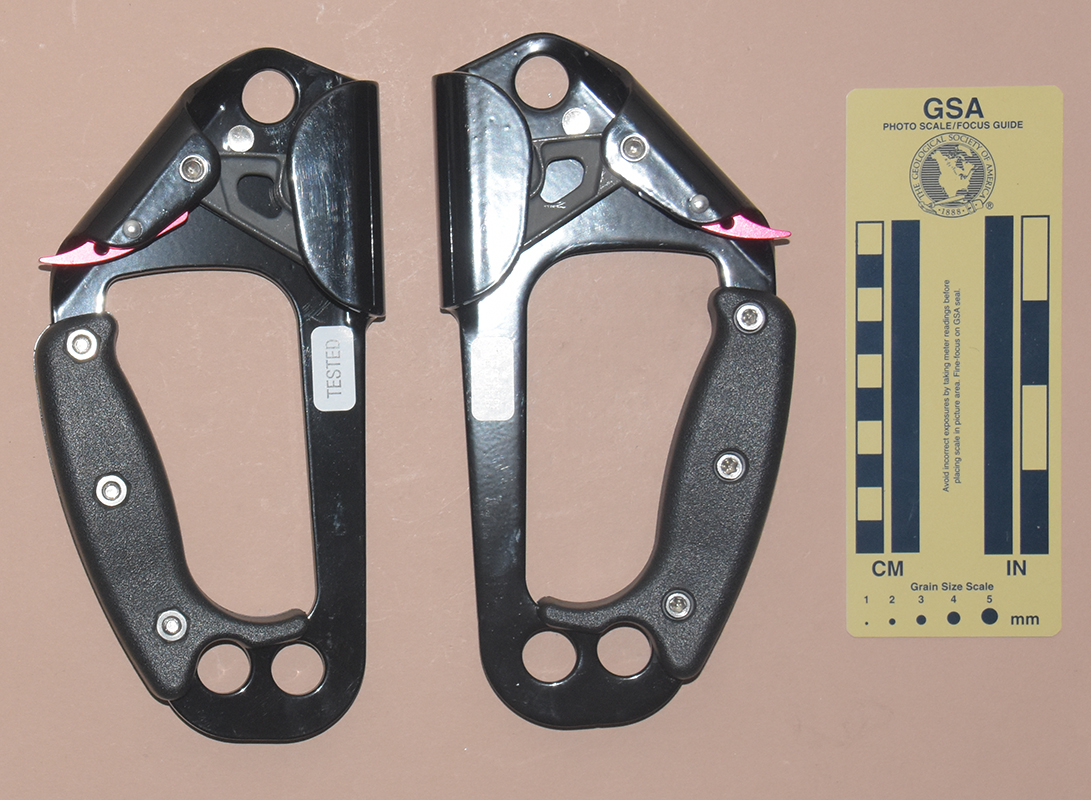

CMI Expedition, Version C 3437 CMI Expedition, Version C Fits Fits Fits Fits Fits Fits Fits
CMI Expedition Double, Version A 239
2227
CMI Expedition Double, Version A Fits Fits Fits Fits Fits Fits Fits

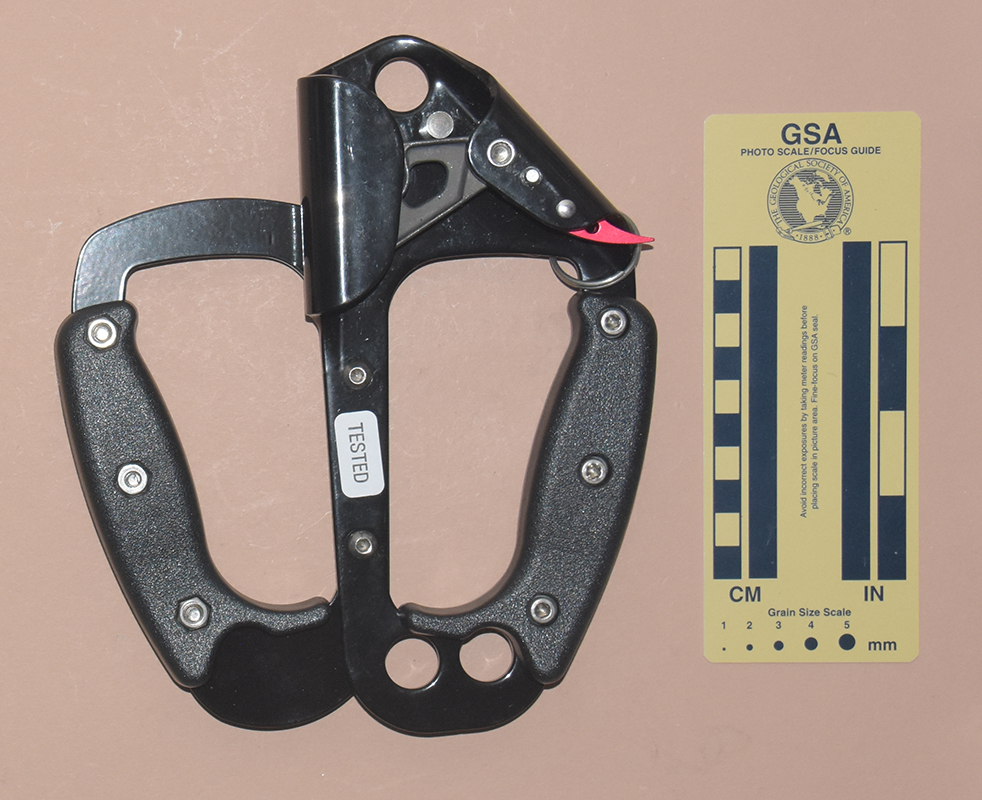

CMI Expedition Double, Version B 3438 CMI Expedition Double, Version B Fits Fits Fits Fits Fits Fits Fits
CMI Expedition Twin, Version A 1934
1940
CMI Expedition Twin, Version A Fits Fits Fits Fits Fits Fits Fits
CMI Expedition Twin, Version B 2279 CMI Expedition Twin, Version B Fits Fits Fits Fits Fits Fits Fits
CMI Expedition Twin, Version C 3439 CMI Expedition Twin, Version C Fits Fits Fits Fits Fits Fits Fits
CMI 5000, Version A 2221 CMI 5000, Version A   Fits Fits Fits Fits
CMI 5000, Version B 2225 CMI 5000, Version B   Fits Fits Fits Fits
CMI 5000, Version C 2222 CMI 5000, Version C   Fits Fits Fits Fits
CMI 5000, Version D 2299 CMI 5000, Version D   Fits Fits Fits Fits
CMI 5000, Version E 27 CMI 5000, Version E   Fits Fits Fits Fits
CMI 5000, Version F 2220 CMI 5000, Version F   Fits Fits Fits Fits
CMI 5000, Version G 292
2219
CMI 5000, Version G
(a.k.a. 5001)
  Fits Fits Fits Fits

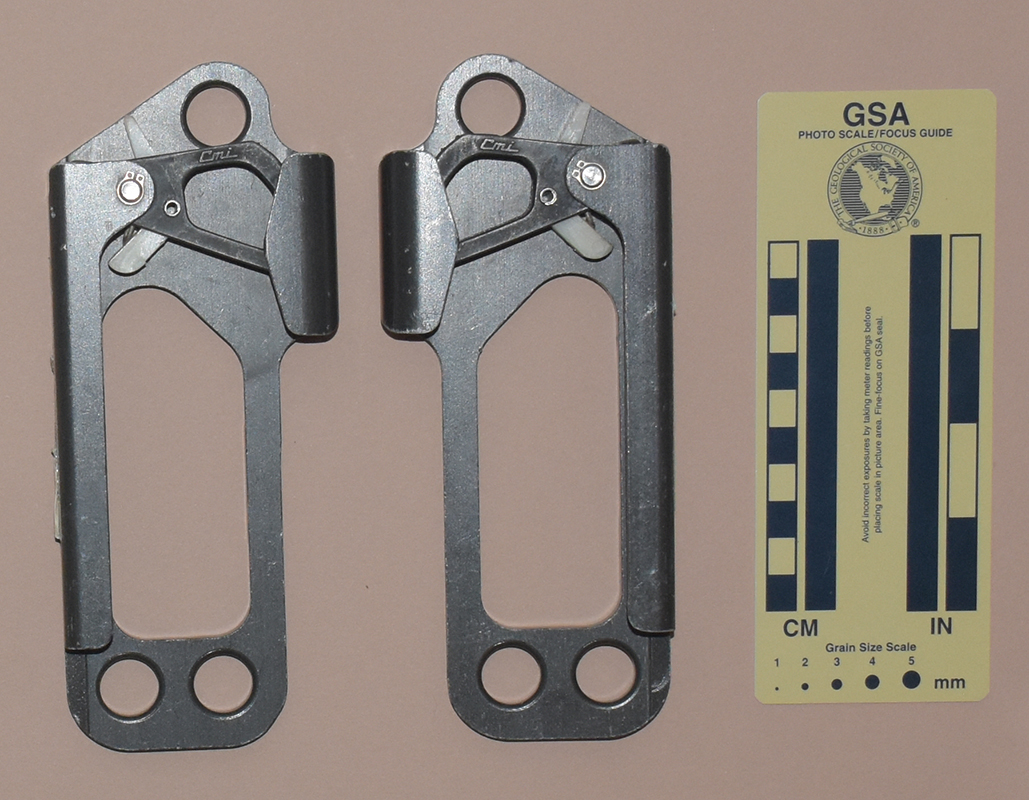

CMI 5002, Version A 2385 CMI 5002, Version A   Fits Fits Fits Fits
CMI 5002, Version B 28
170
1545
2224
CMI 5002, Version B   Fits Fits Fits Fits
CMI 5003 29 CMI 5003   Fits Fits Fits Fits
CMI 5004 30
2223
CMI 5004   Fits  Fits Fits Fits
CMI Large UltrAscender, Version A 31
2229
CMI Large UltrAscender, Version A   Fits Fits No fit
CMI Large UltrAscender, Version B 114 CMI Large UltrAscender, Version B   Fits Fits No fit
CMI Large UltrAscender, Version C 216
2230
CMI Large UltrAscender, Version C   Fits Fits No fit
CMI Large UltrAscender, Version D 246 CMI Large UltrAscender, Version D   Fits Fits No fit
CMI Large UltrAscender, Version D (Modified) 115/116 CMI Large UltrAscender, Version D (Modified)   Fits Fits Fits
CMI Small UltrAscender, Version A 32 CMI Small UltrAscender, Version A   Fits
CMI Small UltrAscender, Version B 33 CMI Small UltrAscender, Version B   Fits
CMI Small UltrAscender, Version C 1518
2228
CMI Small UltrAscender, Version C   Fits
CMI Small UltrAscender, Version D 229 CMI Small UltrAscender, Version D   Fits
CMI Small UltrAscender, Version D (Modified) 34/35 CMI Small UltrAscender, Version D (Modified)   Fits

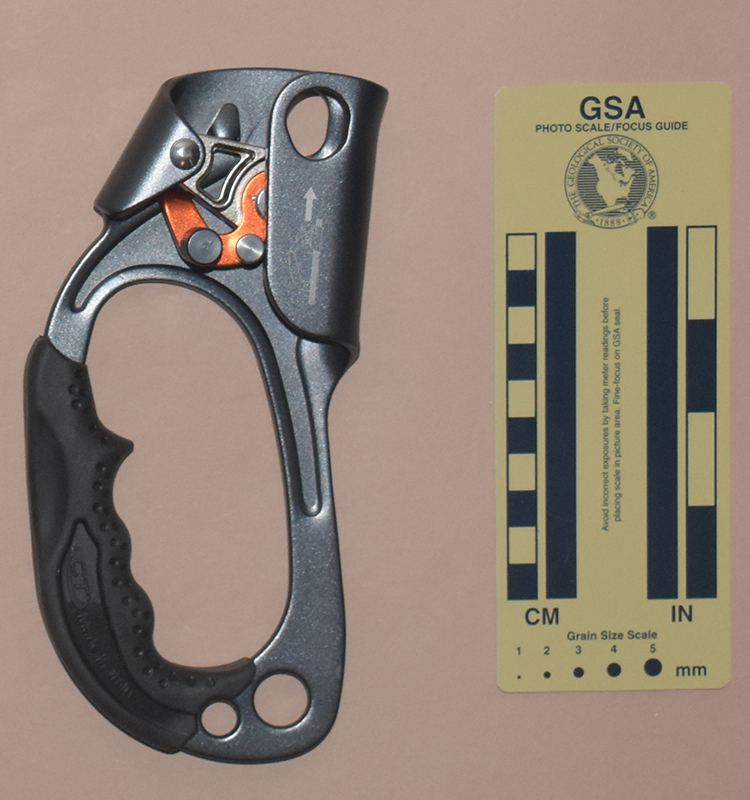

Cypher, Version A 2954 Cypher, Version A Fits Fits Fits Fits Fits Fits Blocked
by
finger
ledge.

Cypher, Version B 2968/3409 Cypher, Version B Fits Fits Fits Fits Fits Fits Blocked
by
finger
ledge.

Edelrid Elevator 220 Edelrid Elevator Fits Fits Fits Fits Fits Fits Fits

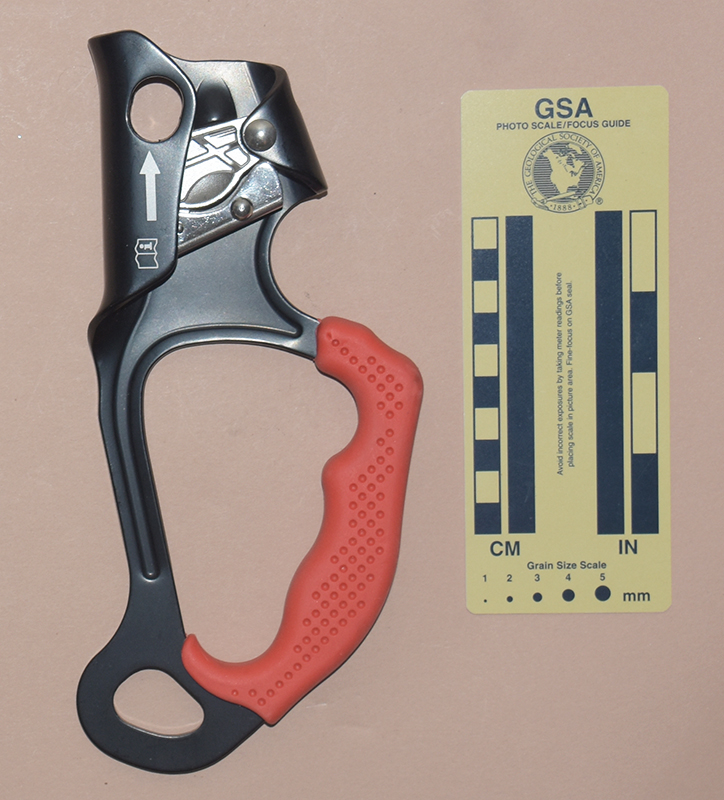

Edelweiss AS16 2369 Edelweiss AS16 Fits Fits Fits Fits Fits Barely misses

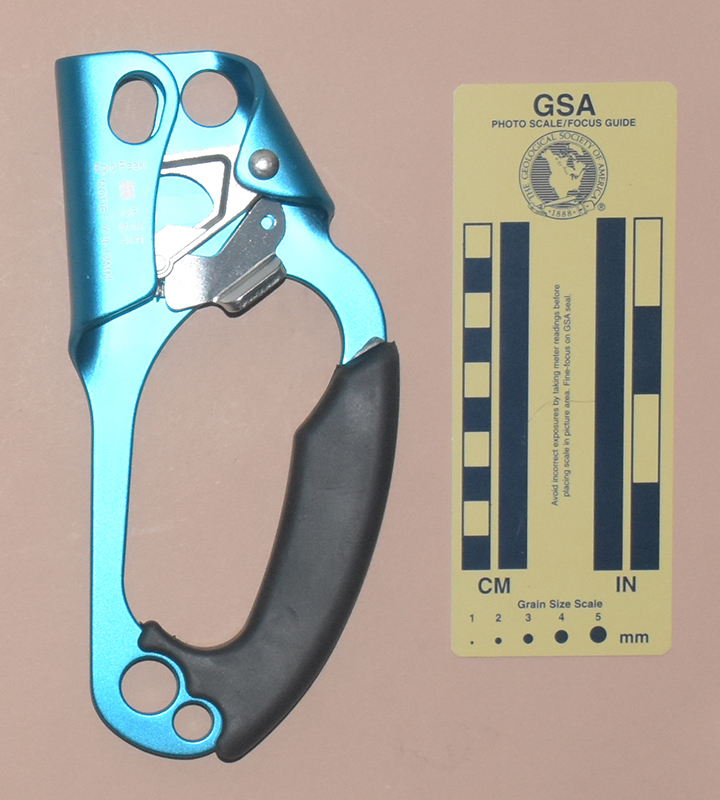

Epic Peak 3413, 3414 Epic Peak Fits Fits Fits Fits Fits Fits Fits

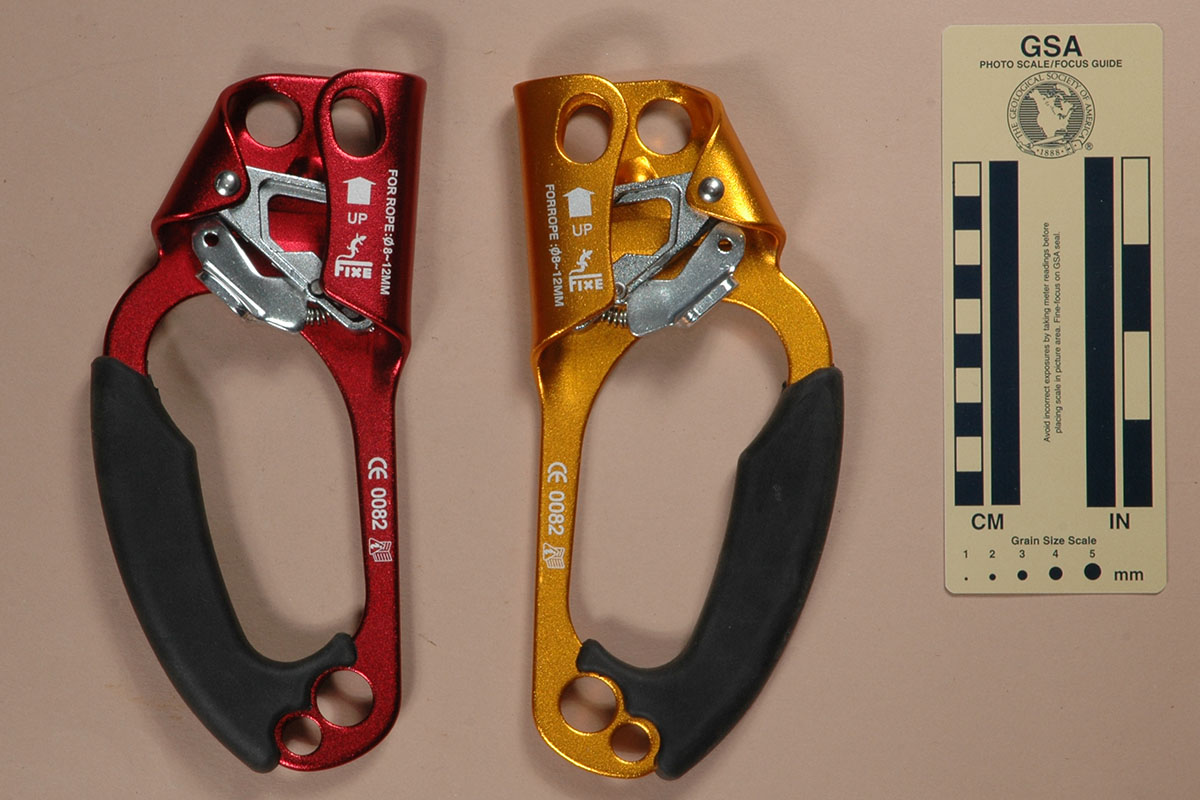

Fixe Capitan 258 Fixe Capitan Fits Fits Fits Fits Fits Fits Barely misses
Fusion Voltron, Version A 2359 Fusion Voltron, Version A   Fits Fits Fits Fits Fits

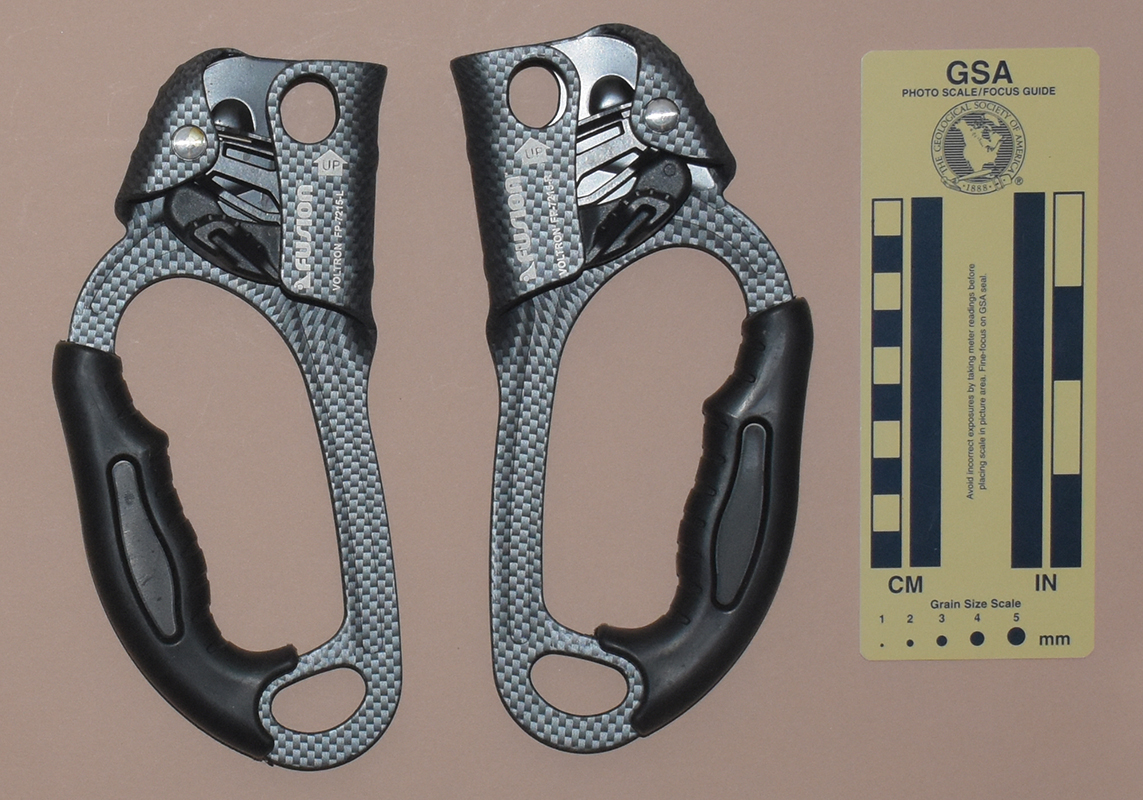

Fusion Voltron, Version B 2910/2970 Fusion Voltron, Version B   Fits Fits Fits Fits Fits

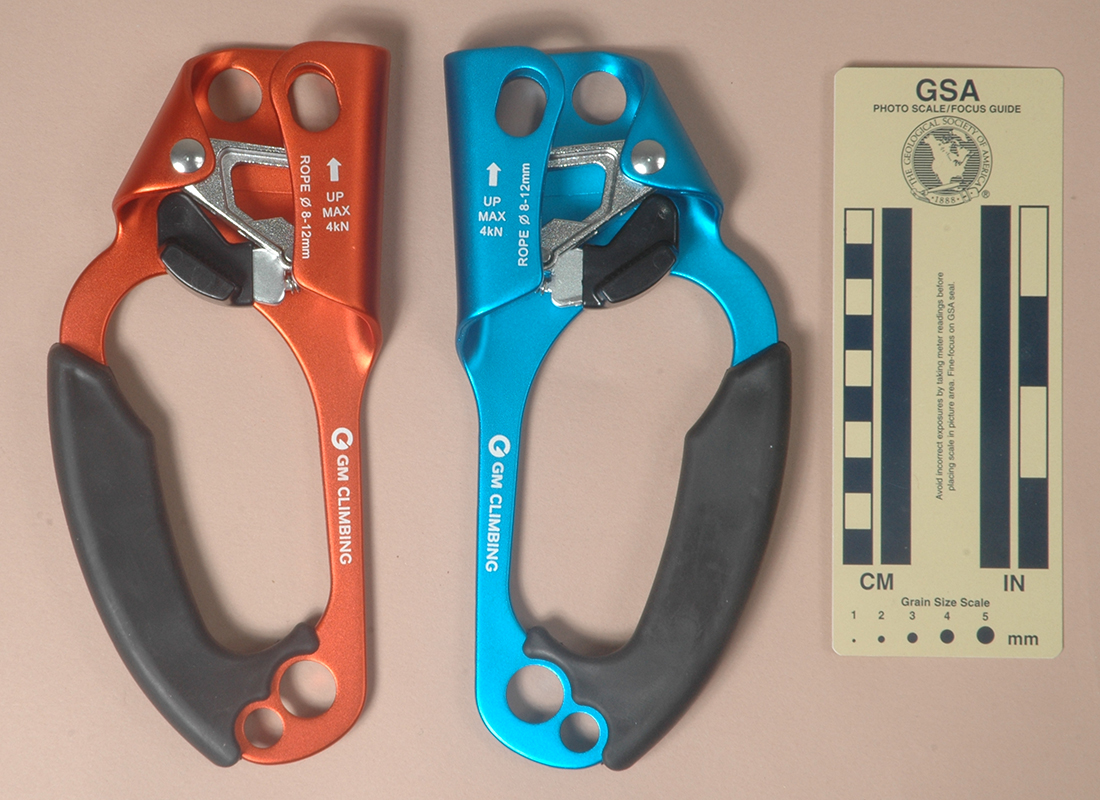

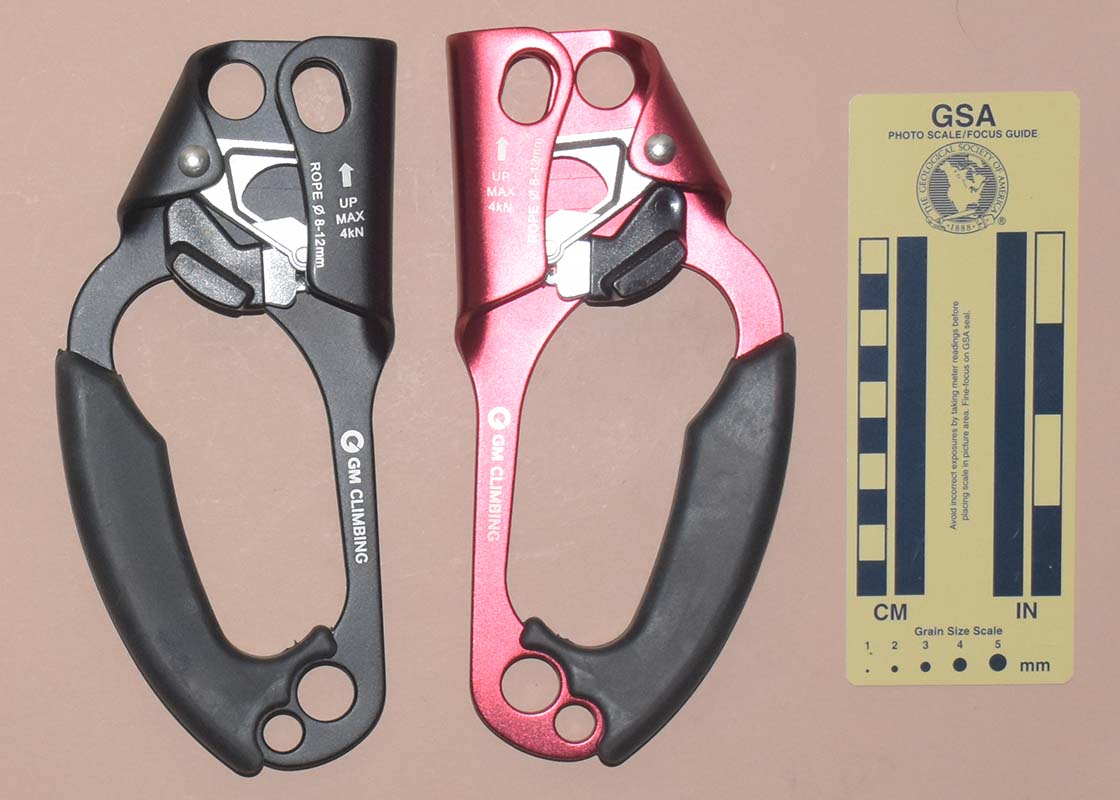

GM Climbing, Version A 2322 GM Climbing, Version A Fits Fits Fits Fits Fits Fits Barely misses
GM Climbing, Version B 3423 GM Climbing, Version B Fits Fits Fits Fits Fits Fits Barely fits
Good Makings 1973 Good Makings Fits Fits Fits Fits Fits Fits Barely misses
GrandWall 1998
2193
GrandWall Fits Fits Fits Fits Fits Fits Barely misses
Grivel A&D, Version A 1981/1982
2087/2088
Grivel A&D, Version A Fits Fits Fits Fits Fits Fits Barely misses

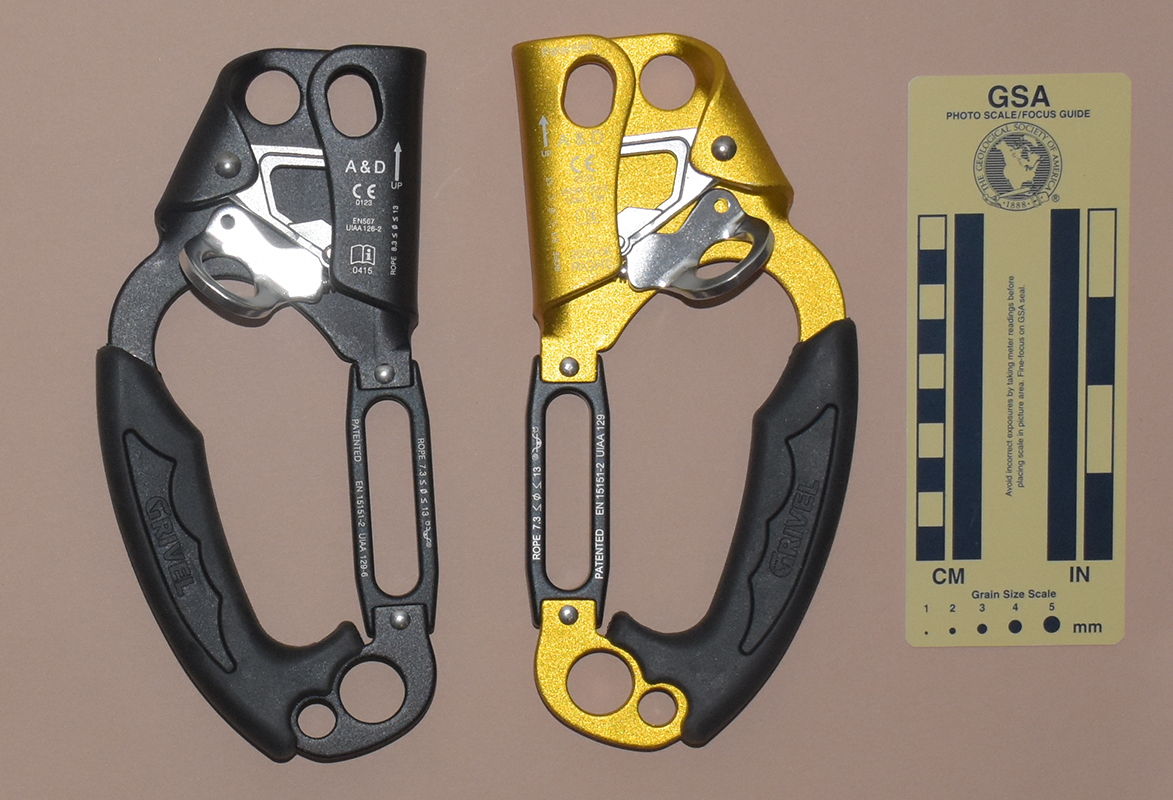

Grivel A&D, Version B 2337/2974 Grivel A&D, Version B Fits Fits Fits Fits Fits

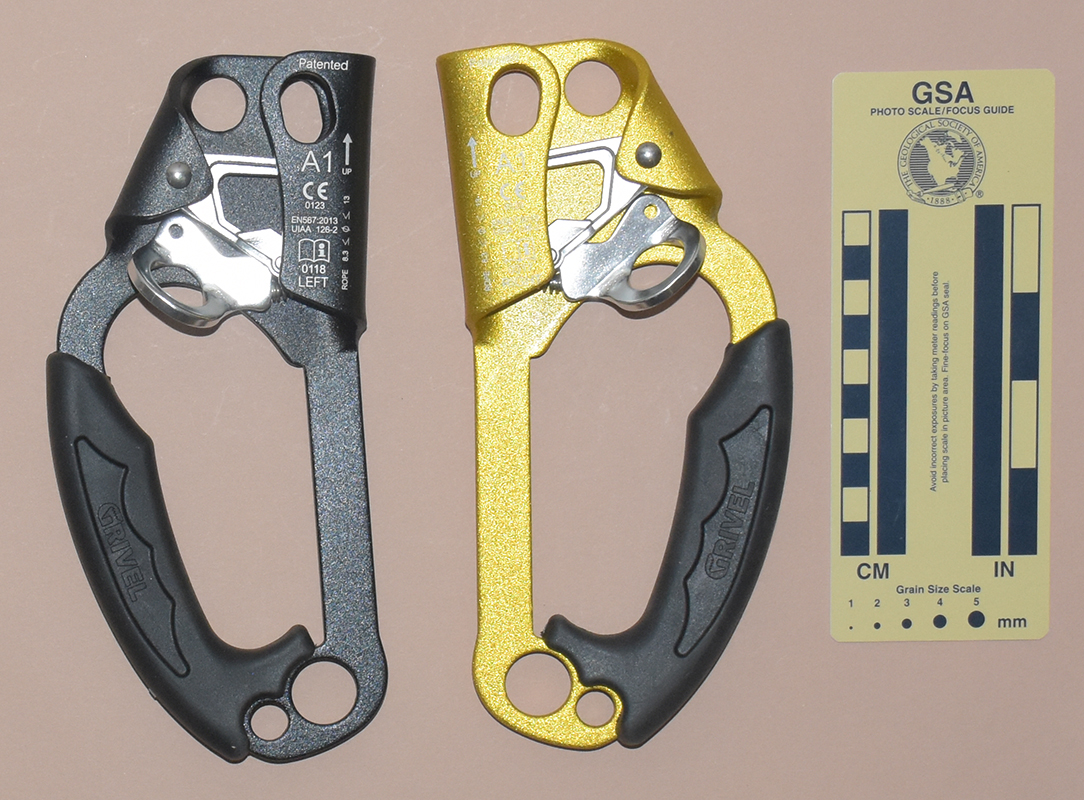

Grivel A1 2327/2980 Grivel A1 Fits Fits Fits Fits Fits
heightec-PMI Pulsar D40, Version A 256
2093
heightec-PMI Pulsar D40, Version A Odd fit
(but only
upside-down!)
Fits Fits Fits Fits Fits No fit
heightec-PMI Pulsar D40, Version B 1500
2094
2212
heightec-PMI Pulsar D40, Version B Odd fit
(but only
upside-down!)
Fits Fits Fits Fits Fits Odd fit
(but only
upside-down!)

Hugh Banner, Version A 1541 Hugh Banner, Version A Fits Fits Fits Fits Fits Fits
Hugh Banner, Version B 199 Hugh Banner, Version B Fits Fits Fits Fits Fits Fits
Interalp (Russian) 123 Interalp (Russian)   Fits Fits Fits Fits

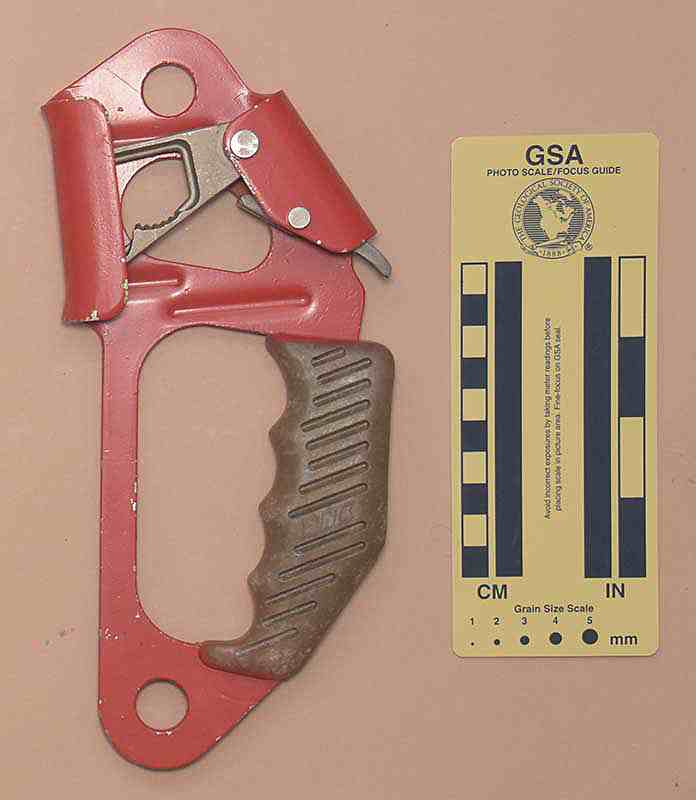

Izhevsk Mechanical Plant Peak (ПИК) 3444 Izhevsk Mechanical Plant Peak (ПИК) Fits Fits Fits Fits Fits Fits
International Safety Components, Version A 145
2211
International Safety Components, Version A Fits Fits Fits Fits Fits Fits No fit
International Safety Components, Version B 287 International Safety Components, Version B Fits Fits Fits Fits Fits Fits Fits

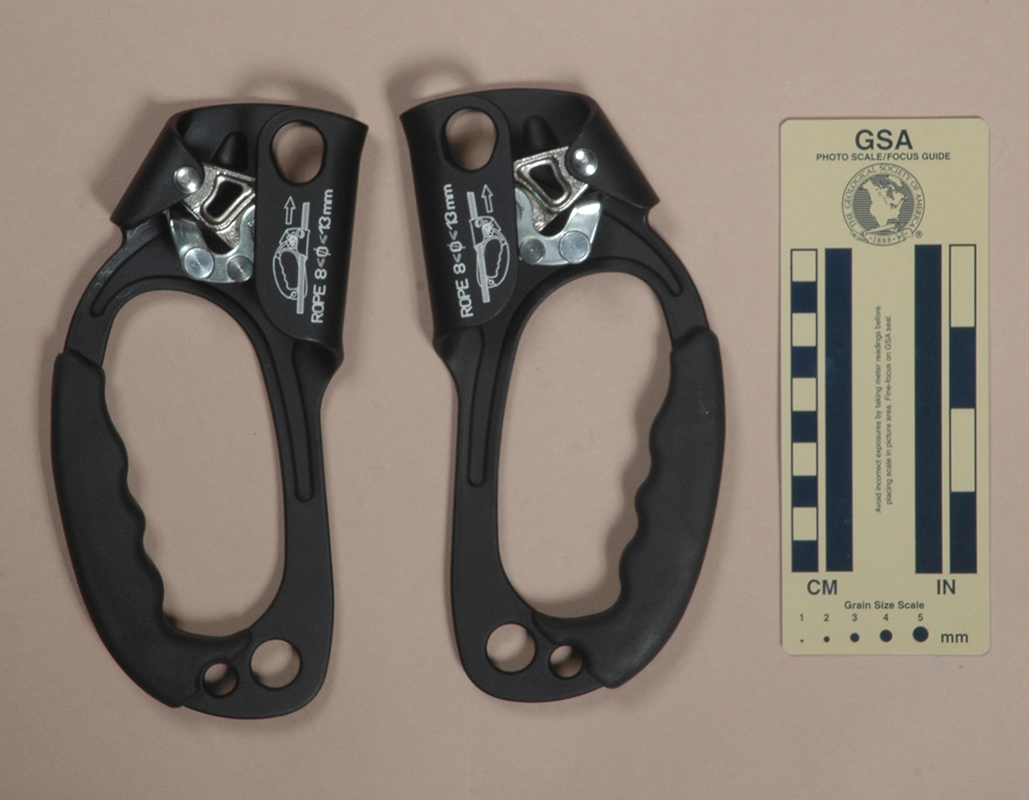

International Safety Components RP240 2024
2209
International Safety Components RP240 Fits Fits Fits Fits Fits Fits Fits
Jumar, Version A 1551 Jumar, Version A   Fits No fit No fit
Jumar, Version B 1576
2172
Jumar, Version B   Fits Fits Fits
Jumar, Version C 136 Jumar, Version C   Fits Fits Fits
Jumar, Version D 2351
2352
Jumar, Version D   Fits Fits Fits
Jumar, Version E 236
1506
1549
1550
2001
Jumar, Version E   Fits Fits Fits
Jumar, Version F 36
37
272
Jumar, Version F   Fits Fits Fits
Jumar, Version G 38
293
1547
1911
2171
2173
2174
Jumar, Version G   Fits Fits Fits
Jumar, Version H 1535 Jumar, Version H   Fits Fits Fits
Jumar, Version I 118 Jumar, Version I   Fits Fits No fit
Jumar 78, Version A 39
297
2067
Jumar 78, Version A   Fits Fits Fits Fits
Jumar 78, Version B 40 Jumar 78, Version B   Fits Fits Fits Fits
Jumar 78, Version C 41 Jumar 78, Version C   Fits Fits Fits Fits
Jumar 78, Version D 265
270
285
1532
1905
Jumar 78, Version D   Fits Fits Fits Fits
Jumar 78, Version E 42
1908
Jumar 78, Version E   Fits Fits Fits Fits
Jumar, Fritschi 271
2175
2278
Jumar, Fritschi   Fits Fits Fits Fits
Jumar, Swiss Rescue 1967
2177
Jumar, Swiss Rescue   Fits Fits Fits Fits Odd fit
Jumar Tree 1968
2285
Jumar Tree   Fits Fits Odd fit
Jumar, WAG 273
2176
Jumar, WAG   Fits Fits Fits Fits
Jumar 79, Modified Version D 1905 Jumar 79, Modified Version D   Fits Fits Fits Fits

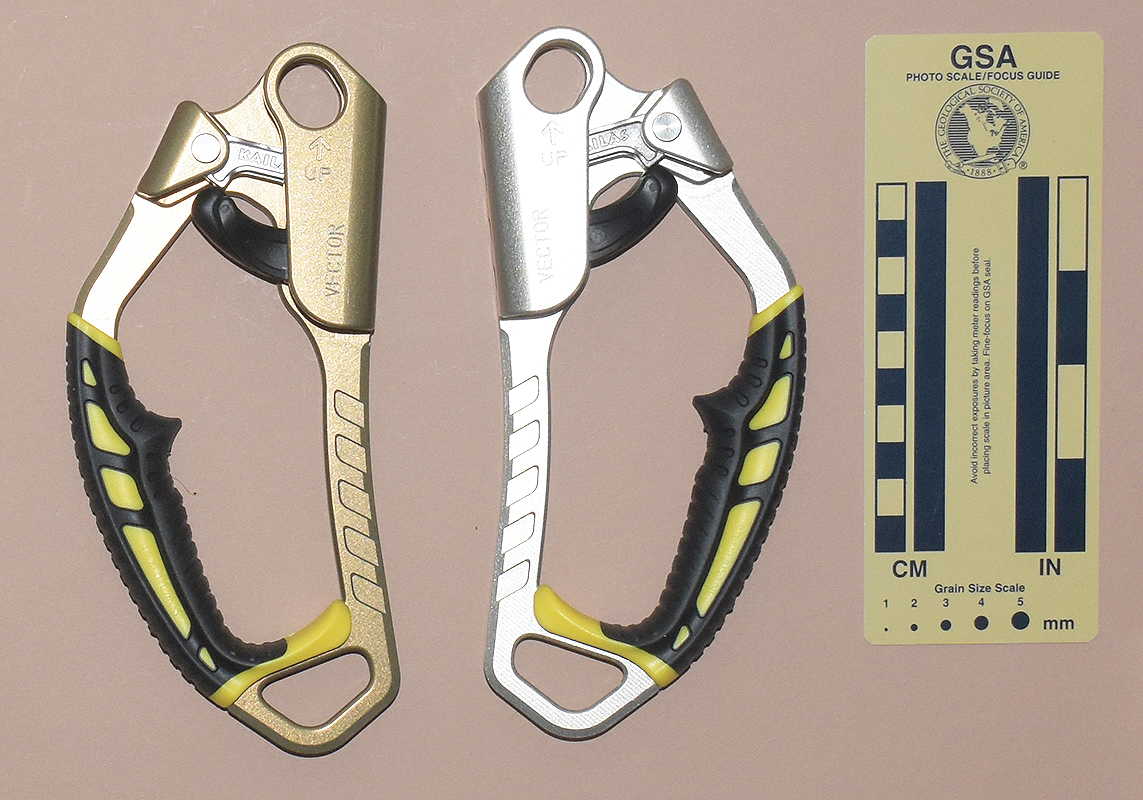

Kailas Vector 2972 Kailas Vector
Star
Barely fits Fits  Fits Fits Fits Fits
Kong-Bonaiti, Version A 223 Kong-Bonaiti, Version A Fits Fits Fits Fits Fits Fits
Kong-Bonaiti, Version B 139
2199
2202
Kong-Bonaiti Lift Fits Fits Fits Fits Fits Fits
Kong-Bonaiti Modular With Caver Handle 22
1566
1579
Kong-Bonaiti Modular With Caver Handle   Fits Fits Fits Fits
Kong-Bonaiti Modular With Climber Handle 23
230
269
Kong-Bonaiti Modular With Climber Handle   Fits Fits
Kong-Bonaiti Modular With Dual Handle 23
230
269
2381
3407
Kong-Bonaiti Modular With Dual Handle   Fits Fits One side
Kong-Bonaiti double rope 1516 Kong-Bonaiti double rope Fits Fits Fits Fits Fits

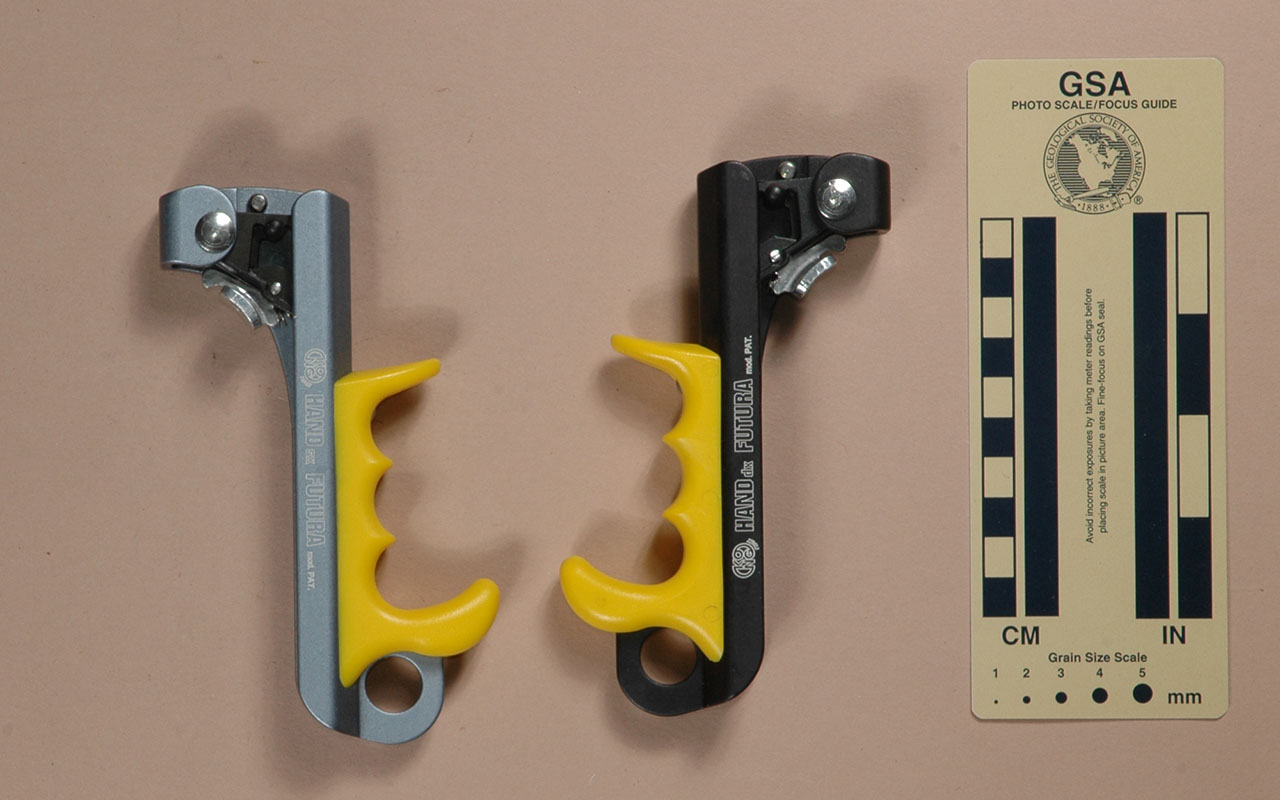

Kong Hand Futura (Large Grip) 1552
2103
Kong Futura (Large Grip)   Fits
Kong Hand Futura (Small Grip) 299 Kong Futura (Small Grip)   No fit
Kong Lift, Version A 2200 Kong Lift, Version A Fits Fits Fits Fits Fits Fits Fits

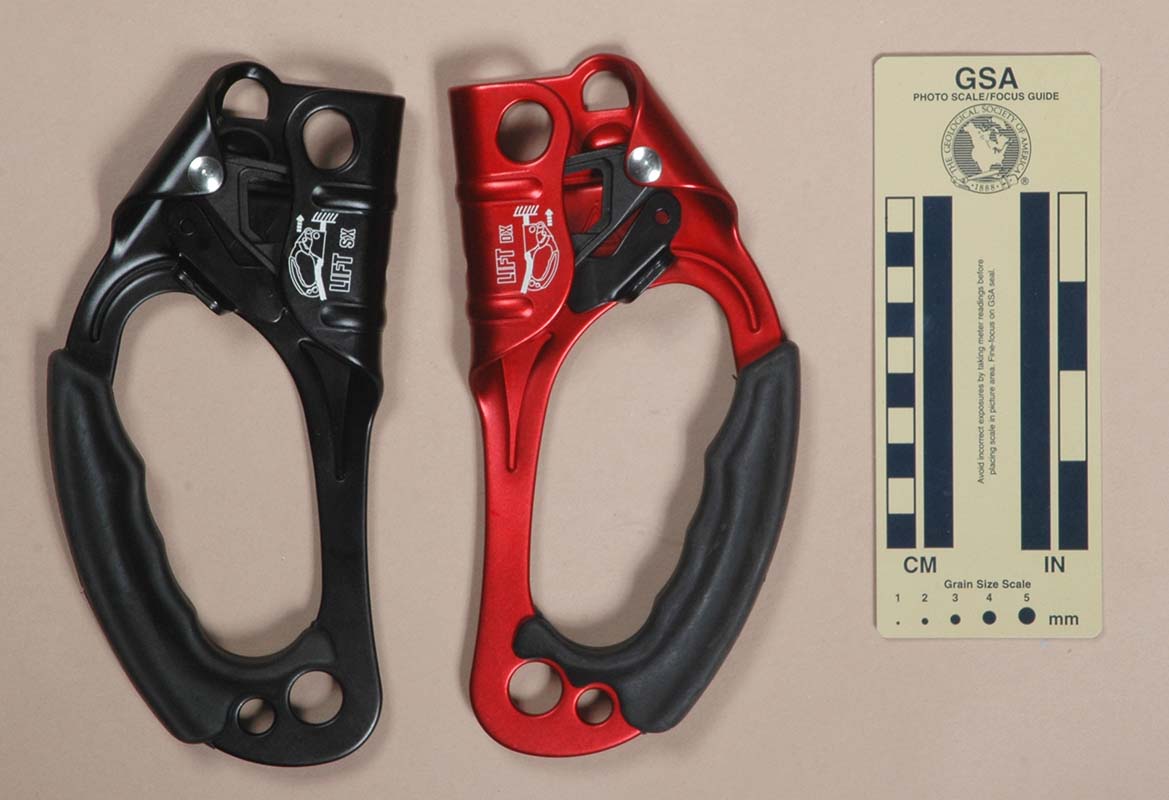

Kong Lift, Version B 2016/2017 Kong Lift, Version B Fits Fits Fits Fits Fits Fits Fits
Kong Procave 249
2201
Kong Procave   Fits Fits Fits Fits
Kong Trender 1523
2291
Kong Trender Fits Fits Fits Fits Fits One side
Kong Twin, Version A 210
2290
Kong Twin, Version A One side Fits Fits One side One side
Kong Twin, Version B 1529
2292
Kong Twin, Version B One side Fits Fits One side One side
Krasnoyarsk Aircraft Repair Plant 3421 Krasnoyarsk Aircraft Repair Plant (Красноярский авиаремонтный завод)   Fits Fits Fits Fits Fits Barely misses
Kratos 2355 Kratos Fits Fits Fits Fits Fits Fits Barely misses
Krok, Version A 1533 Krok, Version A Fits Fits Fits Fits Fits Fits Fits
Krok, Version B 1565 Krok, Version B Fits Fits Fits Fits Fits Fits Fits
Krok, Version C 2090 Krok, Version C Fits Fits Fits Fits Fits Fits Fits
Krok, Version D 2089 Krok, Version D Fits Fits Fits Fits Fits Fits No fit

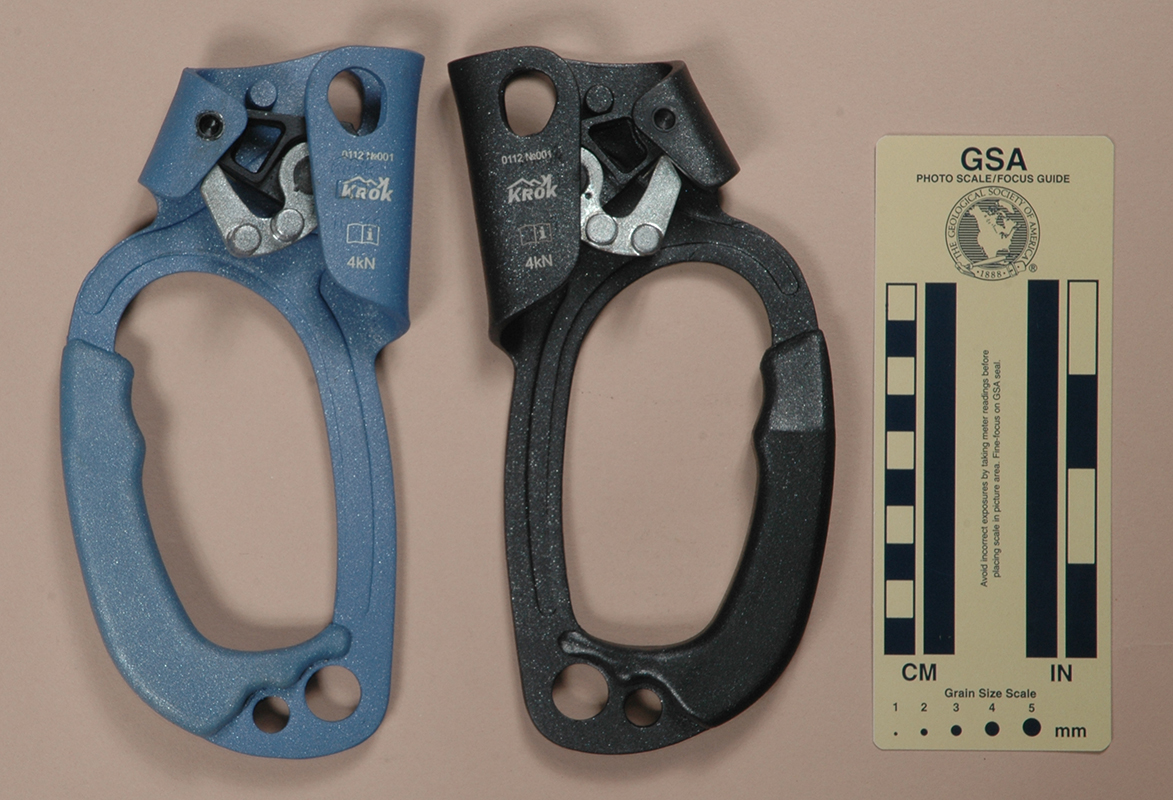

Krok, Version E 1580/1581 Krok, Version E Fits Fits Fits Fits Fits Fits Barely misses

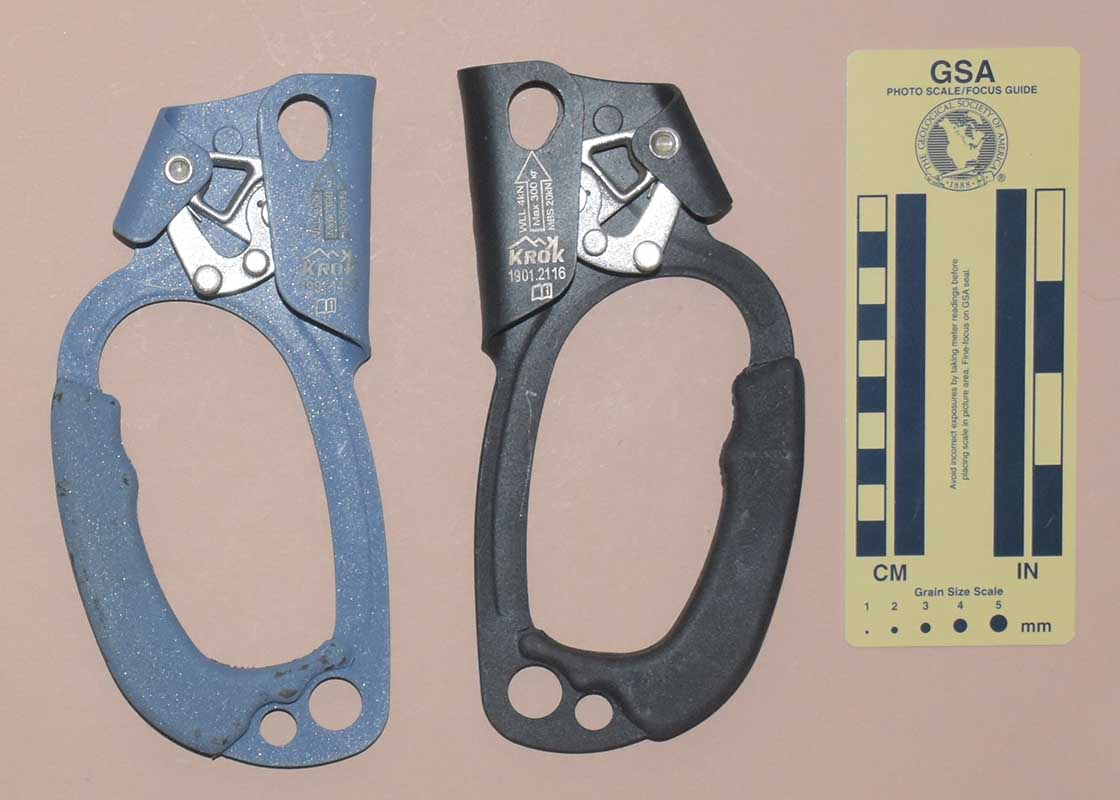

Krok, Version F 2995/2996 Krok, Version F Fits Fits Fits Fits Fits Fits Fits
Krok, Version G 2997/2998 Krok, Version G Fits Fits Fits Fits Fits Fits Fits
Krok, Version H 2999 Krok, Version H Fits Fits Fits Fits Fits Fits Blocked
by
trigger.

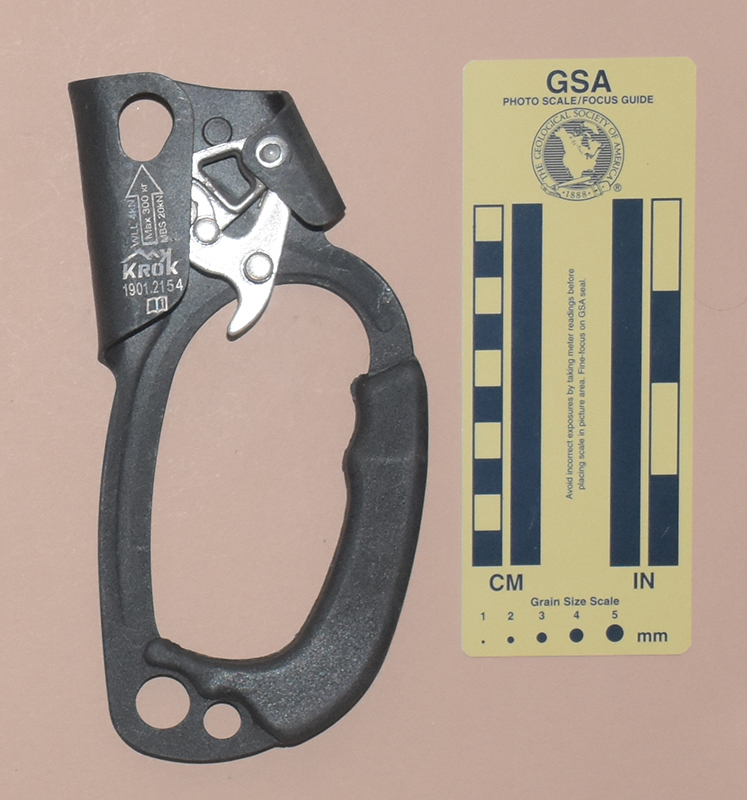

Krok, Version I 3400 Krok, Version I Fits Fits Fits Fits Fits Fits Blocked
by
trigger.

Krok, Version J /w Elevon + 3401 Krok, Version J /w Elevon + Fits Fits Fits Fits Fits Fits

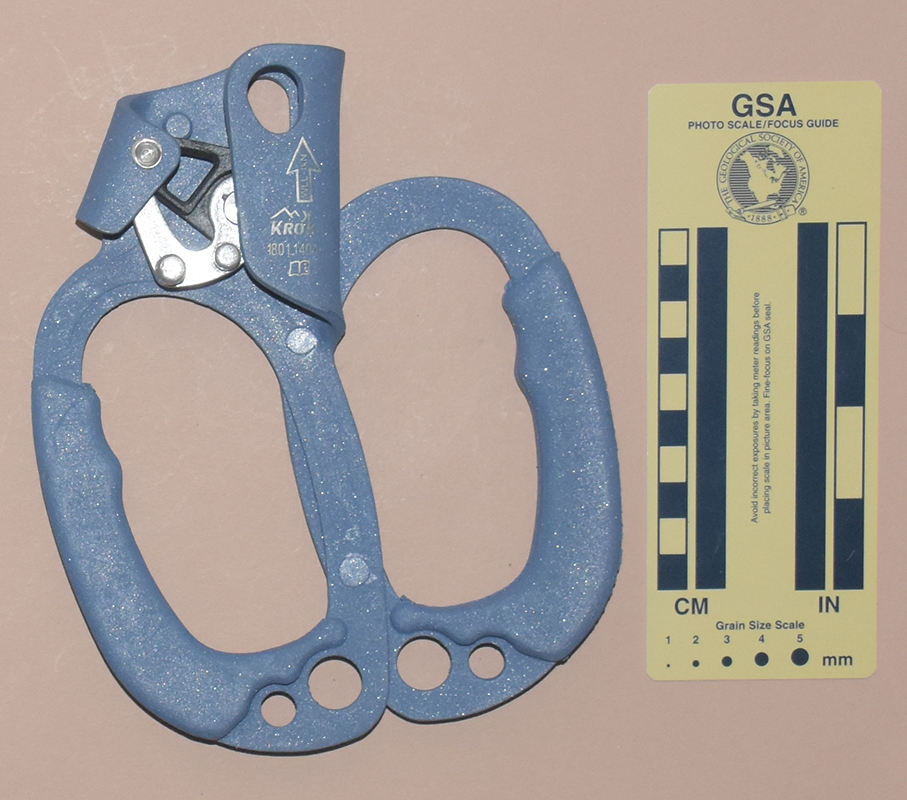

Krok, Friendship-2 3402 Krok, Friendship-2 Fits Fits Fits Fits Fits Fits
LACD 1952
2195
LACD   Fits Fits Fits Fits Odd fit
Lixada 2937 Lixada Fits Fits Fits Fits Fits Fits Barely misses
Lucky Pern AD-10 & AL-15 162/ 165 Lucky Pern AD-10 & AL-15 Fits Fits Fits Fits Fits Fits Fits No fit

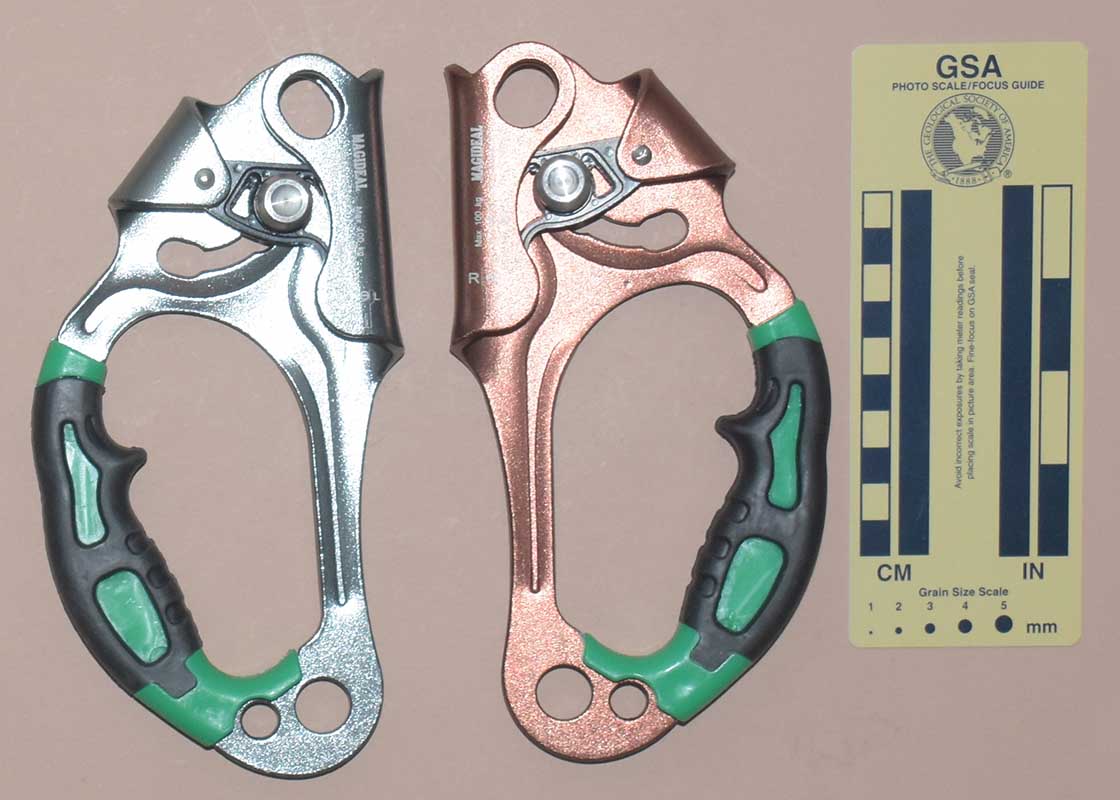

Magideal 2922/3410 Magideal Fits Fits Fits Fits Fits Fits
Naxen 2363 Naxen   Fits Fits Fits Fits Fits

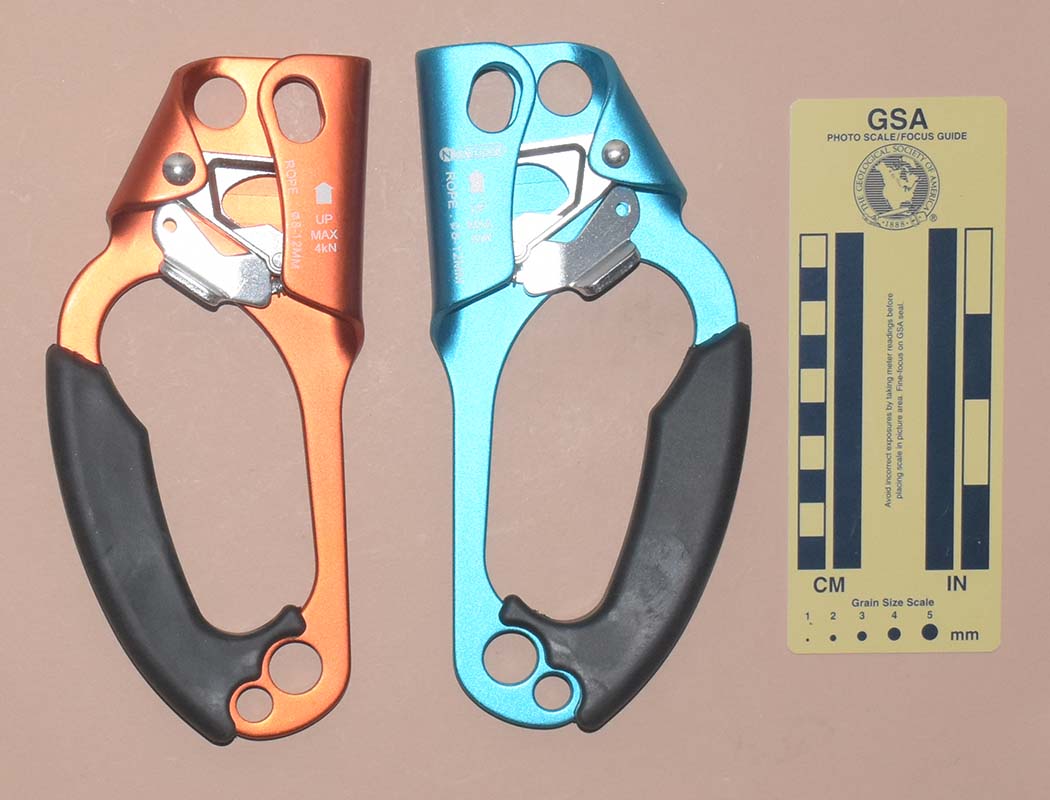

Newdoar 2362 Newdoar Fits Fits Fits Fits Fits Fits Barely misses
NTR, Version A 2014 NTR, Version A Fits Fits Fits Fits Fits Fits Barely misses
NTR, Version B 2324/3412 NTR, Version B   Fits Fits Fits Fits Fits
Odessa 3422 Odessa   Fits Fits Fits Barely fits
Omni USA 201
2198
Omni USA Fits Fits Fits Fits Fits Fits Fits

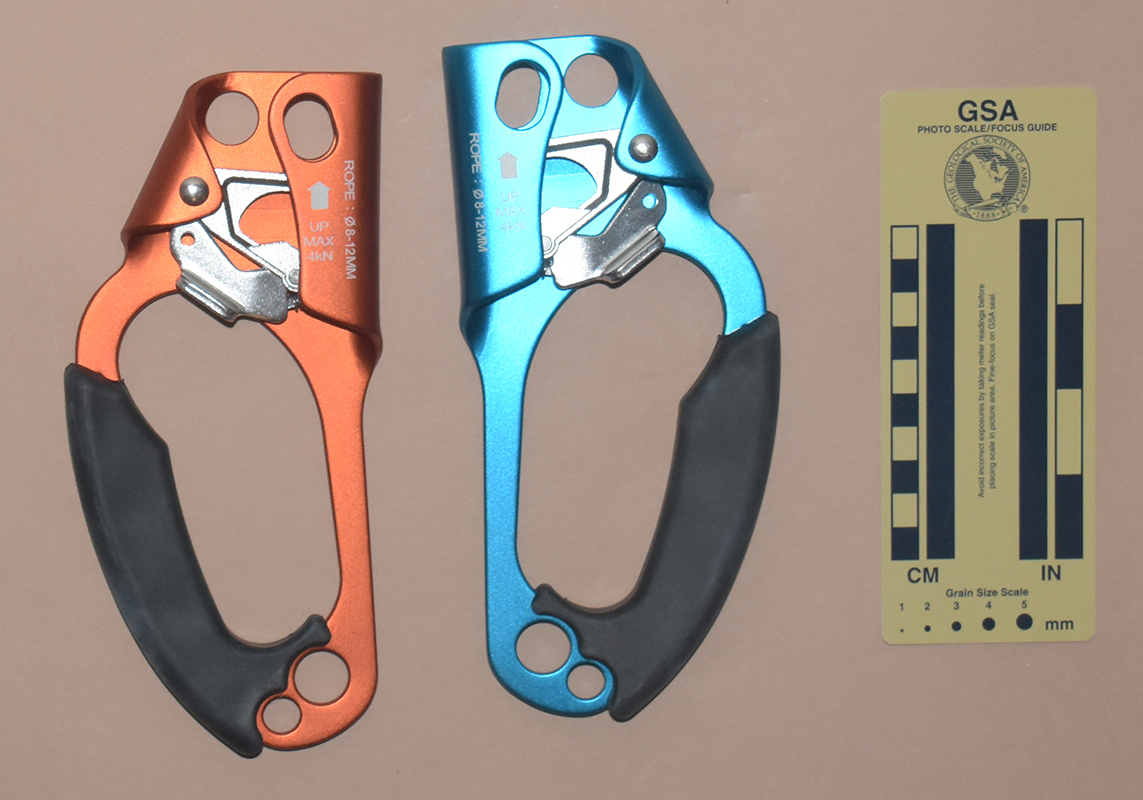

Paliston 2964 Paliston Fits Fits Fits Fits Fits Fits Barely misses
Petzl Ascension, Version A 2105 Petzl Ascension, Version A   Fits Fits Barely misses
Petzl Ascension, Version B 2031
2183
Petzl Ascension, Version B   Fits Fits Fits No fit
Petzl Ascension, Version C 43 Petzl Ascension, Version C   Fits Fits Fits Fits No fit
Petzl Ascension, Versions D1 & D2 296
1902
1906
2043
Petzl Ascension, Versions D1 & D2   Fits Fits Fits Fits Fits

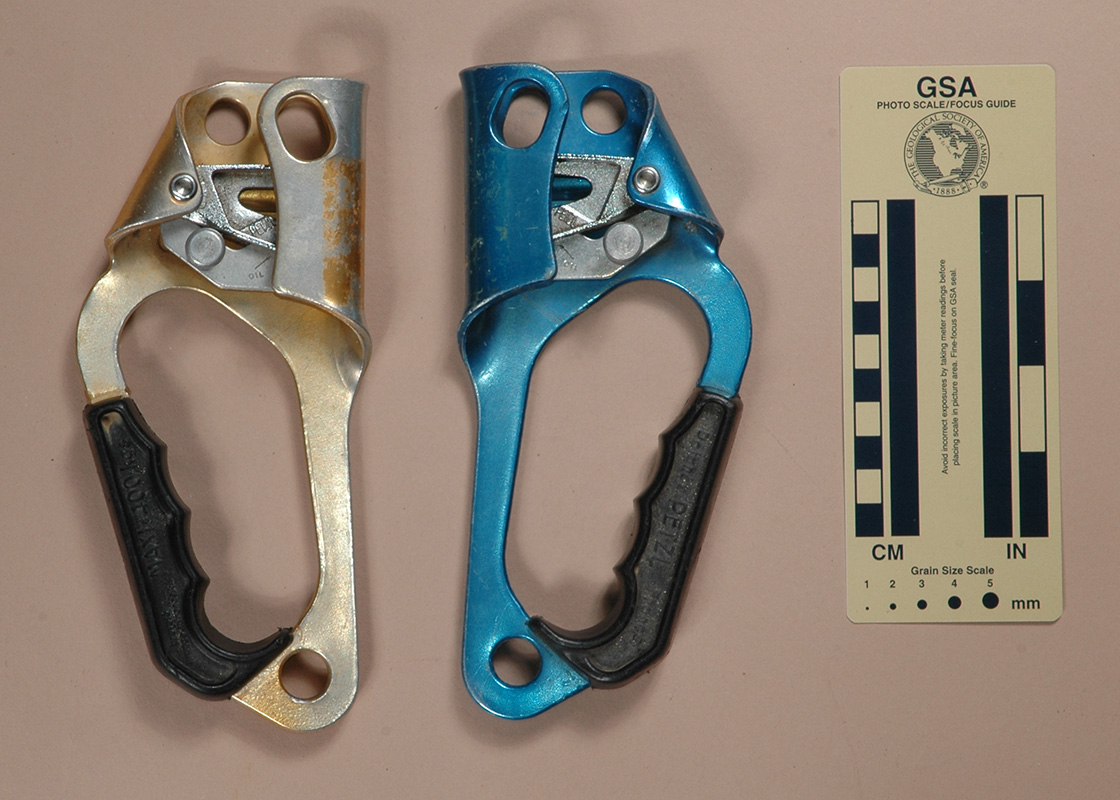

Petzl Ascension, Versions E1 & E2 1513
1554
1946
Petzl Ascension, Version E1 & E2   Fits Fits Fits Fits Fits
Petzl Ascension, Versions F1 & F2 44/45
1514
2353
Petzl Ascension, Versions F1 & F2   Fits Fits Fits Fits Fits
Petzl Ascension, Versions G 1507L
1568
1569
2184
Petzl Ascension, Version G   Fits Fits Fits Fits Fits
Petzl Ascension, Version H 1507R
2184
Petzl Ascension, Version H   Fits Fits Fits Fits Fits
Petzl Ascension, Version I 46
2185
Petzl Ascension, Version I Fits Fits Fits Fits Fits Fits
Petzl Ascension, Version J 1901 Petzl Ascension, Version J   Fits Fits Fits Fits Fits
Petzl Ascension, Version K 1571 Petzl Ascension, Version K   Fits Fits Fits Fits Fits
Petzl Ascension, Version L 169
2054
Petzl Ascension, Version L   Fits Fits Fits Fits Fits
Petzl Ascension, Version M 266
1900
Petzl Ascension, Version M   Fits Fits Fits Fits Fits
Petzl Ascension, Version N 266
1900
2925
Petzl Ascension, Version N   Fits Fits Fits Fits Fits
Petzl Ascension, Version O 264 Petzl Ascension, Version O   Fits Fits Fits Fits Fits
Petzl Ascension, Version P 127
2186
Petzl Ascension, Version P   Fits Fits Fits Fits Fits
Petzl Ascension, Version Q 298
2112
Petzl Ascension, Version Q
(B17SLN, B17SRG)
  Fits Fits Fits Fits No fit
Petzl Ascension, Version R 2010
2065
Petzl Ascension, Version R
(B17ALA, B17ARA)
  Fits Fits Fits Fits Fits
Petzl Ascentree, Version A 275
2278
Petzl Ascentree, Version A Fits Fits Fits Fits Fits No fit
Petzl Ascentree, Version B 2041 Petzl Ascentree, Version B Fits Fits Fits Fits Fits Fits
Petzl Ascentree (half) 1536 Petzl Ascentree (half) Fits Fits Fits Fits Fits No fit
Petzl Pompe, Version A 47
2110
2182
Petzl Pompe, Version A   Fits Fits Fits Fits Fits
Petzl Pompe, Version B 241
2110
Petzl Pompe, Version B   Fits Fits Fits Fits Fits

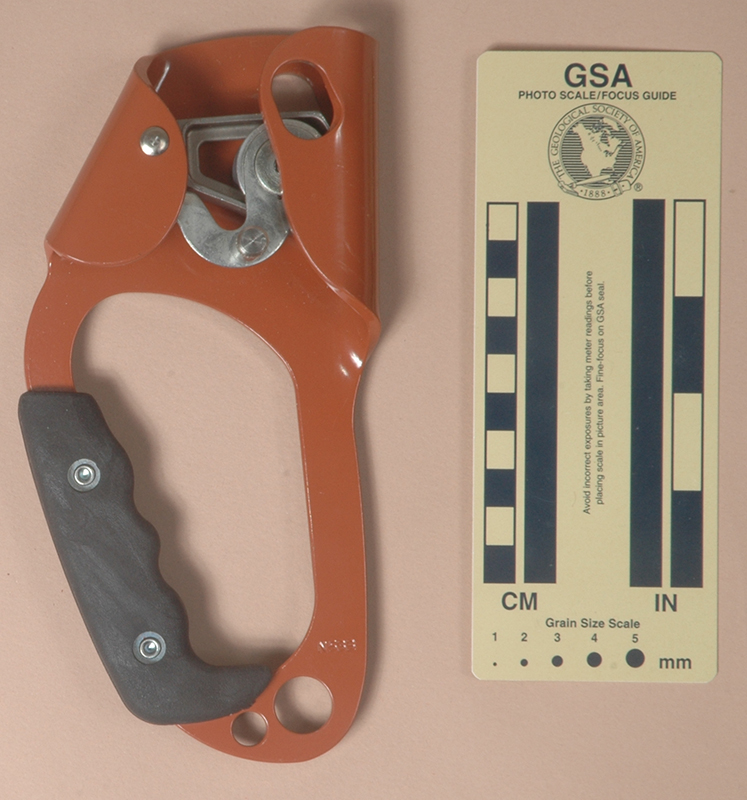

PMI Cat, Version A 2310 PMI Cat, Version A Fits Fits Fits Fits Fits Fits No fit
PMI Cat, Version B 164
2163
PMI Cat, Version B Fits Fits Fits Fits Fits Fits No fit
PMI Puma 157
2210
PMI Puma Fits Fits Fits Fits Fits Fits Fits
Proverti CD 211 & CD 212 2021 Proverti CD 211 & CD 212 Fits Fits Fits Fits Fits Fits
Proverti CD 211L & CD 212L 2022 Proverti CD 211L & CD 212L   Fits Fits Fits Fits Fits
Rock Empire 1587
2194
Rock Empire   Fits Fits Fits Fits Barely misses
Roloff, Version A 2305 Roloff, Version A   Fits Fits No fit
Roloff, Version B 167
2342
Roloff, Version B   Fits Fits No fit
Roloff, Version C 2040
2181
Roloff, Version C   Fits Fits No fit
Roloff (Modified, Version A) 2179 Roloff
(Modified, Version A)
  Fits Fits No fit
Roloff (Modified, Version B) 48 Roloff
(Modified, Version B)
  Fits Fits No fit
Roloff (Modified, Version C) 2392 Roloff
(Modified, Version C)
  Fits Fits No fit
Russian, Homemade 3446 Russian, Homemade   Fits Fits
Singing Rock Lift 2026 Singing Rock Lift, Versiion A Fits Fits Fits Fits Fits Fits Fits

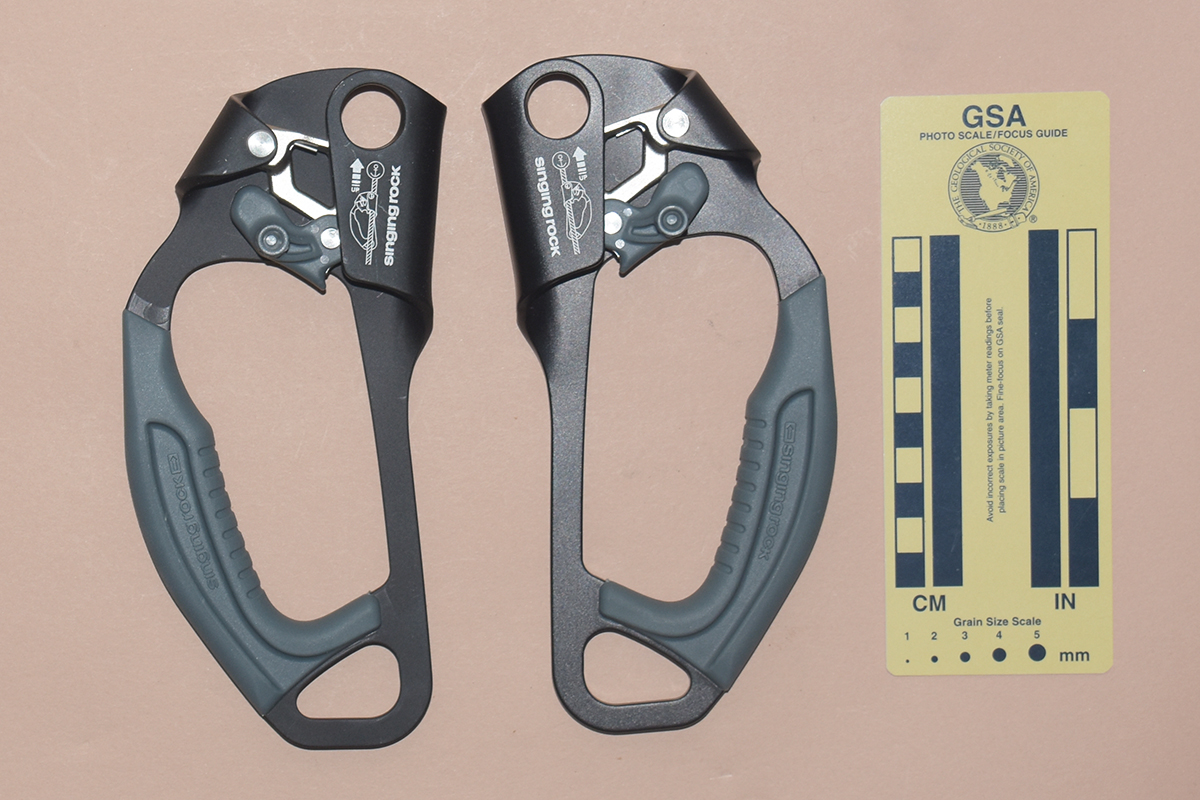

Singing Rock Lift, Version B 2919/2920 Singing Rock Lift, Version B Fits Fits Fits Fits Fits Fits
Single Rope Technique Caver, 8-11 mm 51
2214
Single Rope Technique Equipment Caver, 8-11 mm   Fits Fits Fits  Fits
Single Rope Technique Caver, 8-15mm 52
53
2216
Single Rope Technique Equipment Caver, 8-15mm Fits Fits Fits Fits Fits
Single Rope Technique Climber 50
2215
Single Rope Technique Equipment Climber   No fit

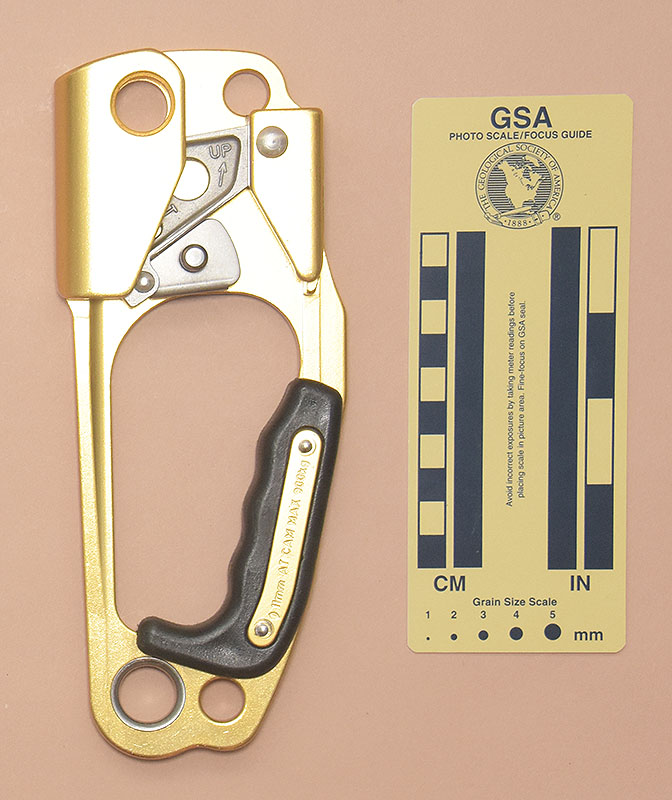

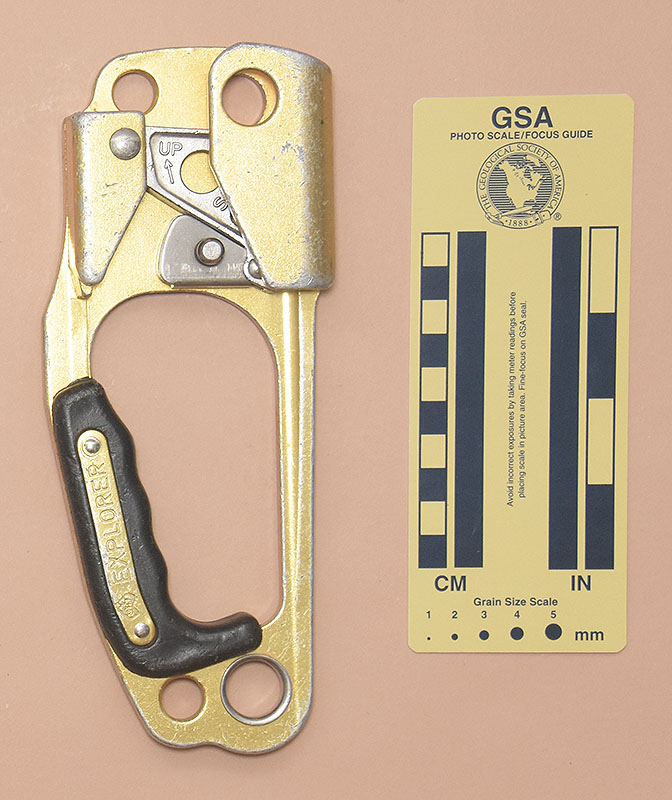

Single Rope Technique A1 Explorer 54
2213
Single Rope Technique Equipment A1 Explorer   Fits Fits Fits Fits Fits

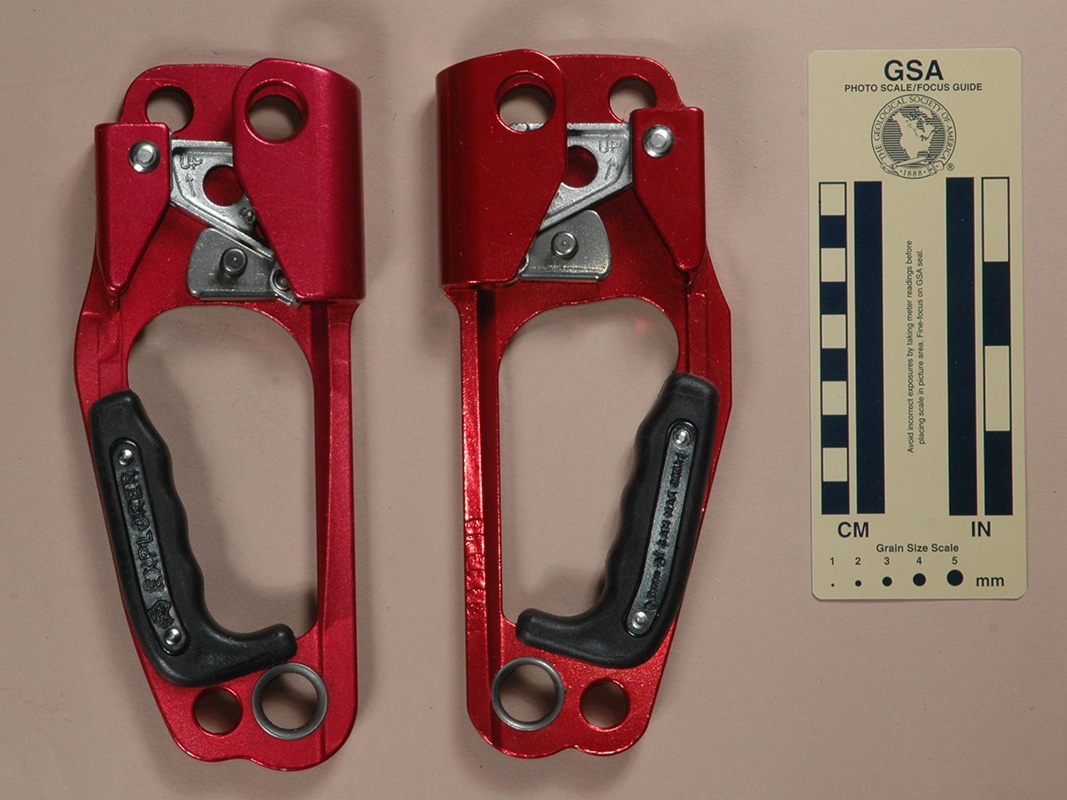

Single Rope Technique A1 EXP 6 Large Explorer 147 Single Rope Technique Equipment A1 EXP 6 Large Explorer   Fits Fits Fits Fits No fit
Single Rope Technique Equipment / Rollgliss / DBI Sala A1 EXP 6L & 6R 2217
2218
Single Rope Technique Equipment / Rollgliss / DBI Sala A1 EXP 6L & 6R Barely misses Fits Fits Fits Fits No fit
SOB, Version A 1933
2192
SOB, Version A Fits Fits Fits Fits Fits Fits

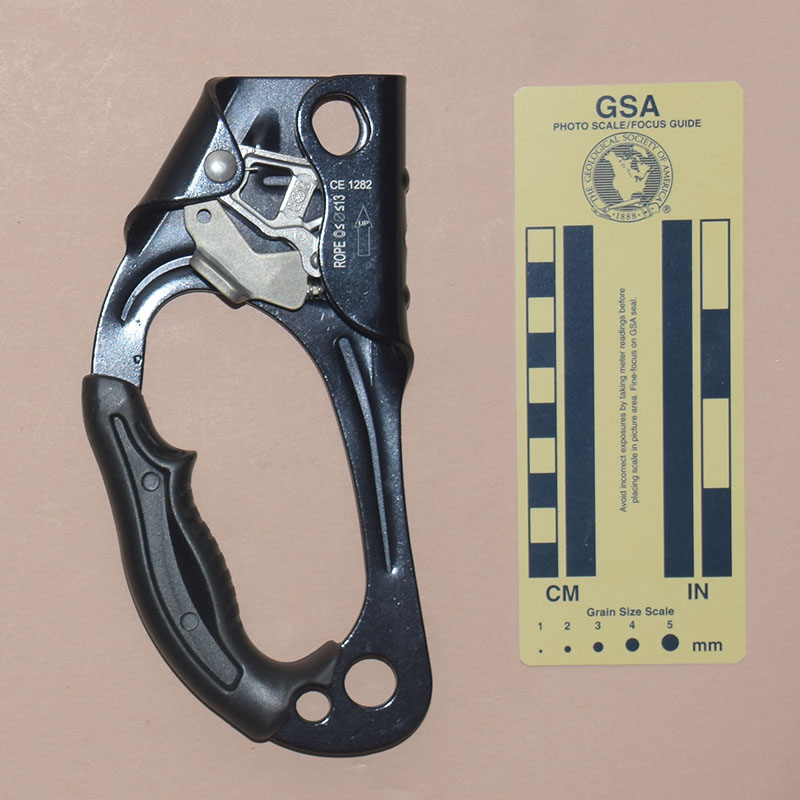

SOB, Version B 2051 SOB, Versions B Fits Fits Fits Fits Fits Fits
SOB, Version C 2057 SOB, Version C Fits Fits Fits Fits Fits Fits
Spelet Horní 1941
1953/1954
Spelet Horní   Fits Fits Fits Fits Fits

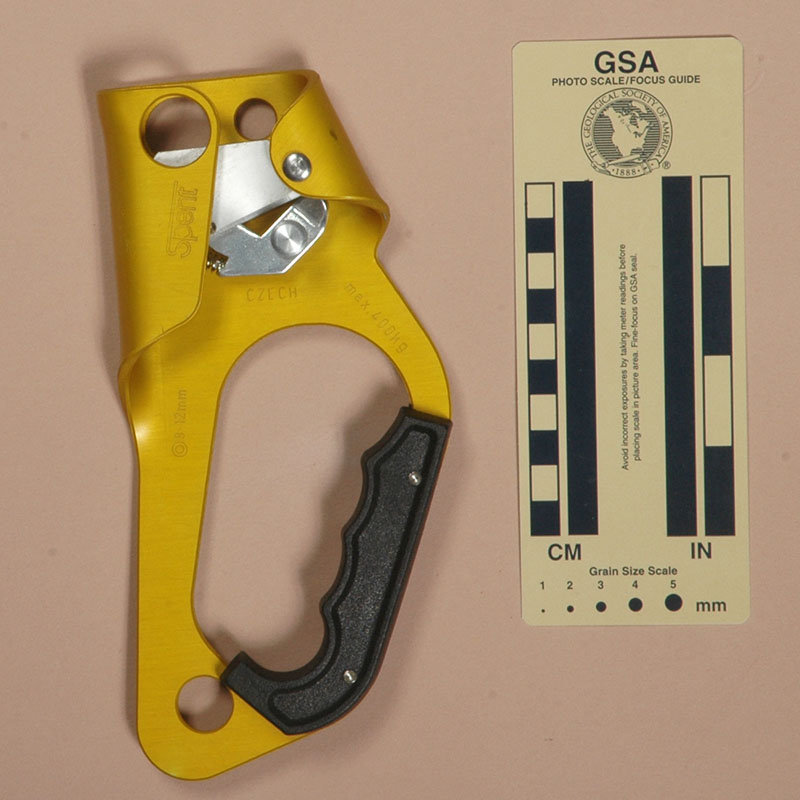

Spent Ruční 1956 Spent Ruční   Fits Fits Fits Fits
Strmeň Žiara 2961 Strmeň Žiara   Fits Fits Fits Fits Fits
SunniMix 2364 SunniMix Fits Fits Fits Fits Fits Fits Barely misses

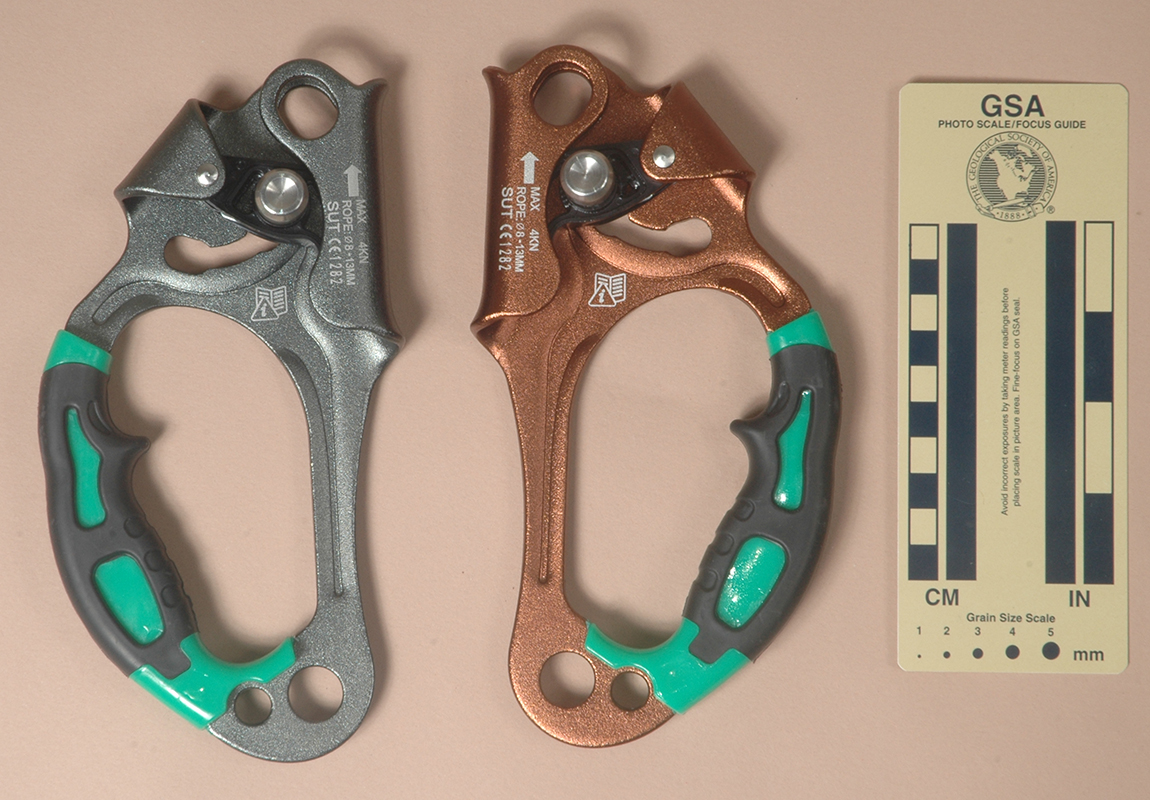

SUT 2326 SUT Fits Fits Fits Fits Fits Fits
Tokyo Top 2000 Tokyo Top   Fits Fits
Trango 1991 Trango   Fits Fits Fits Fits Fits Barely misses
Trango Passport 2025 Trango Passport Fits Fits Fits Fits Fits Fits Barely misses
Tsentrolit 3448 Tsentrolit Fits Fits Fits Fits Fits

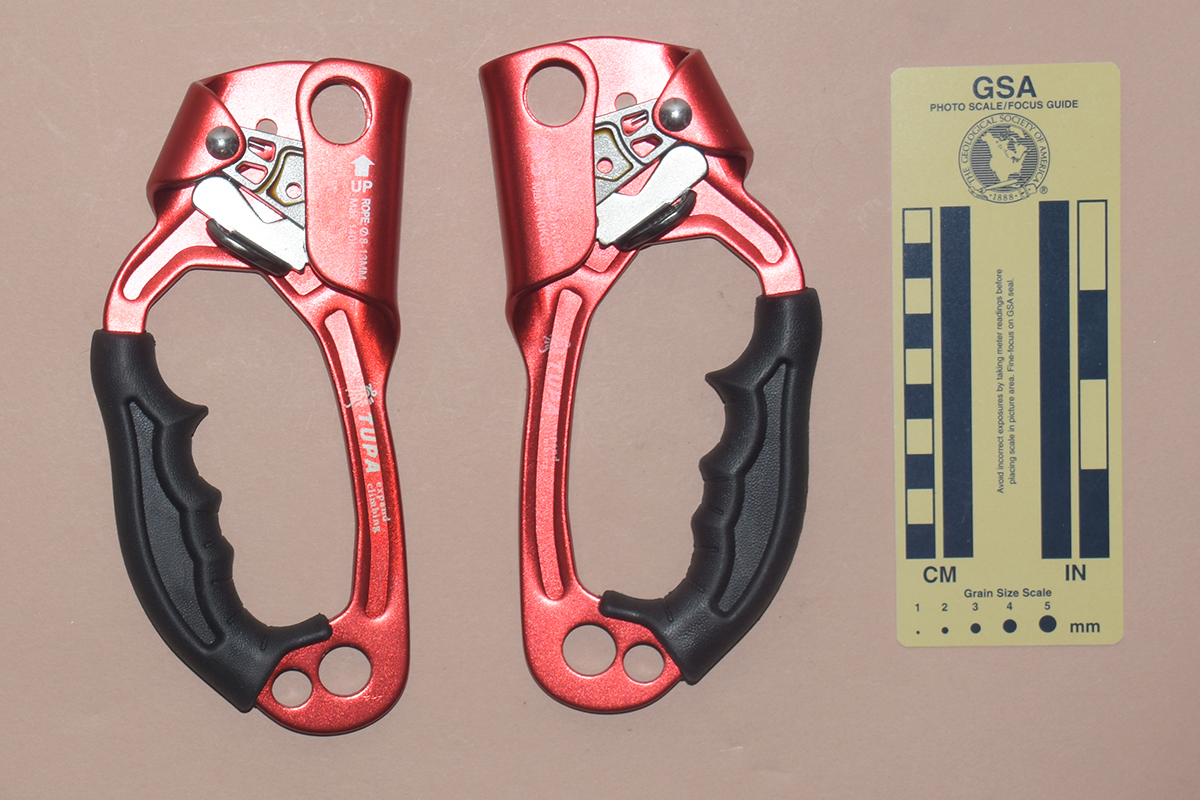

Tupa 2921 Tupa   Fits Fits Fits Fits Barely fits
Turin, Version A 2929 Turin, Version A Odd fit Fits Fits Fits Fits

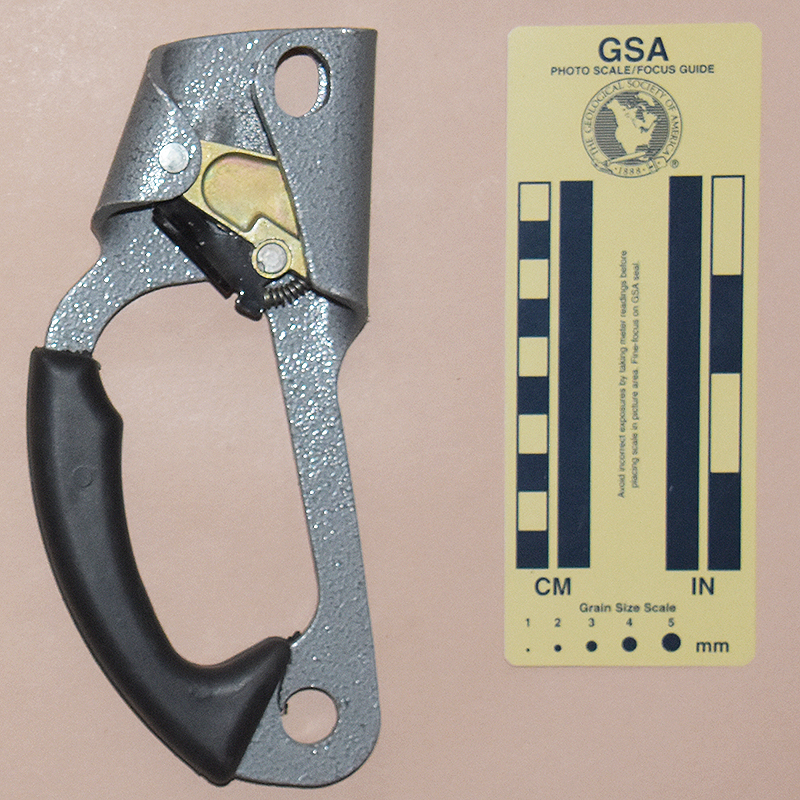

Turin, Version B 2934 Turin, Version B Barely fits Fits Fits Fits Fits

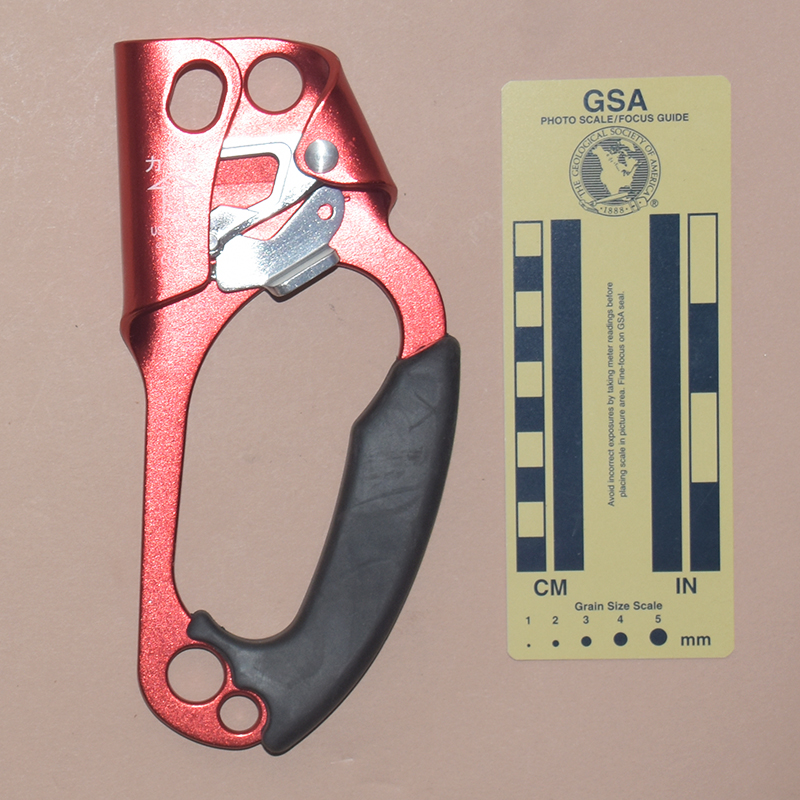

Unknown Chinese, Version A 2365 Unknown Chinese, Version A Fits Fits Fits Fits Fits Fits Barely misses
Unknown Chinese, Version B 2926 Unknown Chinese, Version B Fits Fits Fits Fits Fits Fits Barely misses

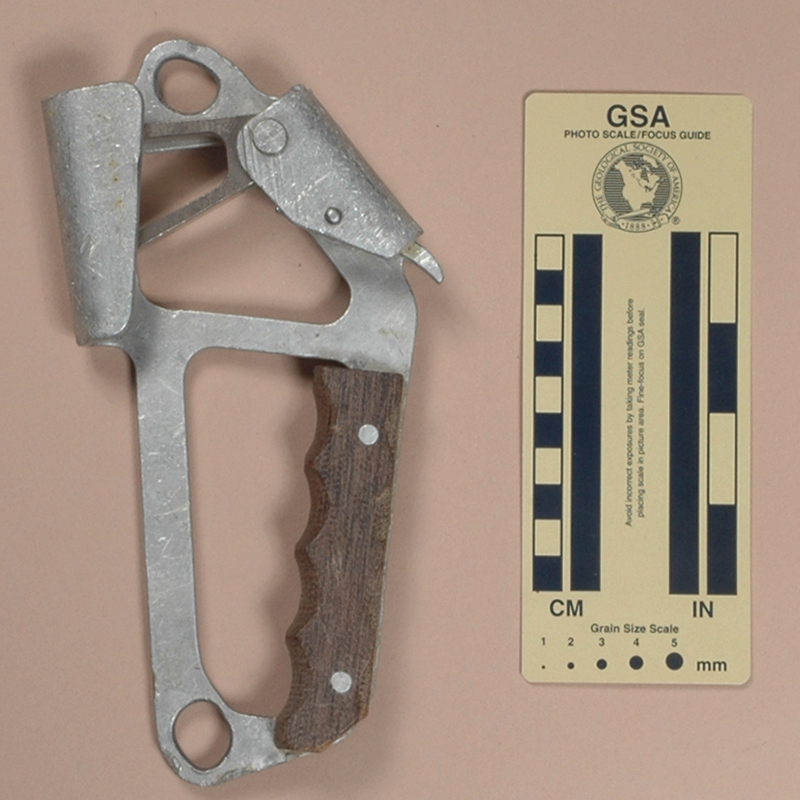

Unknown Homemade 2058 Unknown Homemade   Fits Fits
Uola, Version A 2161 Uola, Version A Fits Fits Fits Fits Fits Fits
Uola, Version B 49
2160
Uola, Version B Fits Fits Fits Fits Fits Fits
Uola, Version C 2162 Uola, Version C Fits Fits Fits Fits Fits Fits
Ural-Alp 10.32, Version A 178 Ural Alp 10.32, Version A Fits Fits Fits Fits Fits Barely misses
Ural-Alp 10.32, Version B 188 Ural-Alp 10.32, Version B Fits Fits Fits Fits Fits Barely misses
Ural-Alp 10.32, Version C 2367 Ural Alp 10.32, Version C Fits Fits Fits Fits Fits Barely misses
VauDe, Version A 1992 VauDe, Version A Fits Fits Fits Fits Fits Fits Fits Barely misses
VauDe, Version B 1993 VauDe, Version B Fits Fits Fits Fits Fits Fits Fits Barely misses
Vento Ascension 1559/1560 Vento Ascension Fits Fits Fits Fits Fits Fits Fits

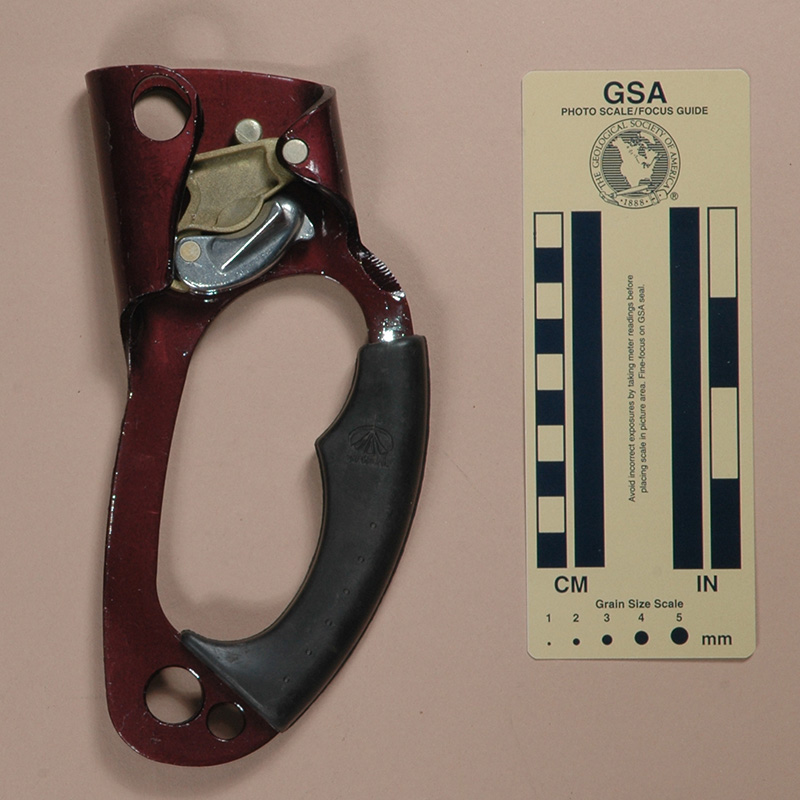

Vertical, Version A  (a.k.a. Kirov) 187 Vertical, Version A  (a.k.a. Kirov) Fits Fits  Fits Fits Fits Fits

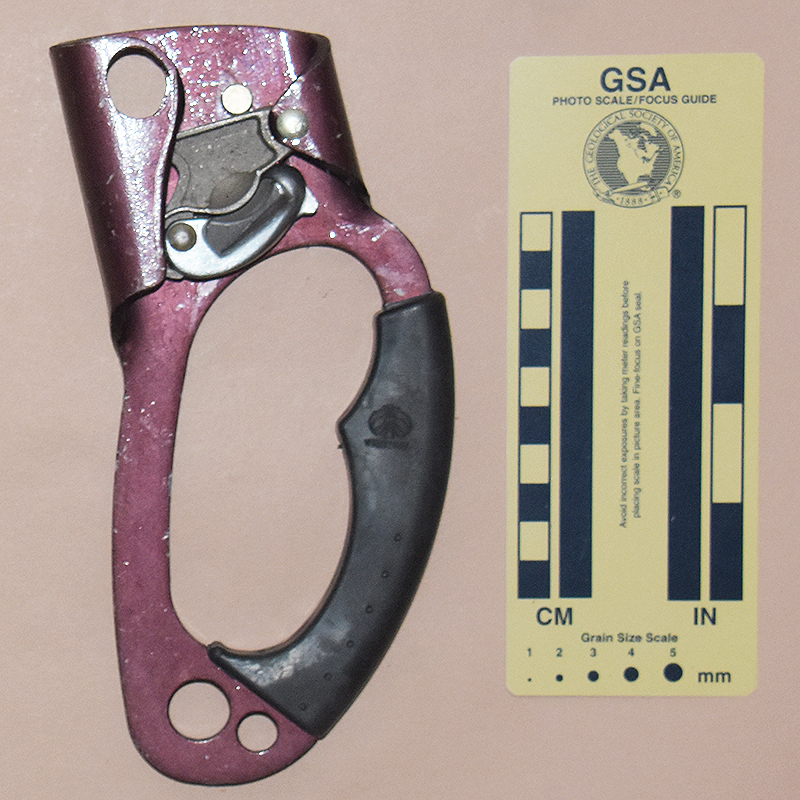

Vertical, Version B 2932 Vertical, Version B Fits Fits Fits Fits Fits Fits
Vertical, Version C 2931 Vertical, Version C Fits Fits Fits Fits Fits Fits
Vertical, Version D 2311 Vertical, Version D Fits Fits Fits Fits Fits Fits
Walkosz i Spółka 2104 Walkosz i Spółka   Fits Fits Fits Fits Fits
Xinda, Version A 2938
2939
Xinda, Version A   Fits Fits Fits Fits Barely misses
Xinda, Version B 2965 Xinda, Version B   Fits Fits Fits Fits Barely misses
Xinda, Version C 3441 Xinda, Version C Fits Fits Fits Fits Fits Fits Barely misses
Yates Big Wall 291
2208
Yates Big Wall Fits Fits Fits Fits Fits Fits Fits
Yoke 1939
2196
Yoke Fits Fits Fits Fits Fits Fits Barely misses
Z&W, Version A 2366 Z&W, Version A Fits Fits Fits Fits Fits Fits Barely misses
Z&W, Version B 2366 Z&W, Version B Fits Fits Fits Fits Fits Fits Barely misses


Handled Type 1 Lever Cam Ascenders

Black Diamond nForce 219
2106
Black Diamond nForce Fits Fits Fits Fits Fits Fits Fits Fits

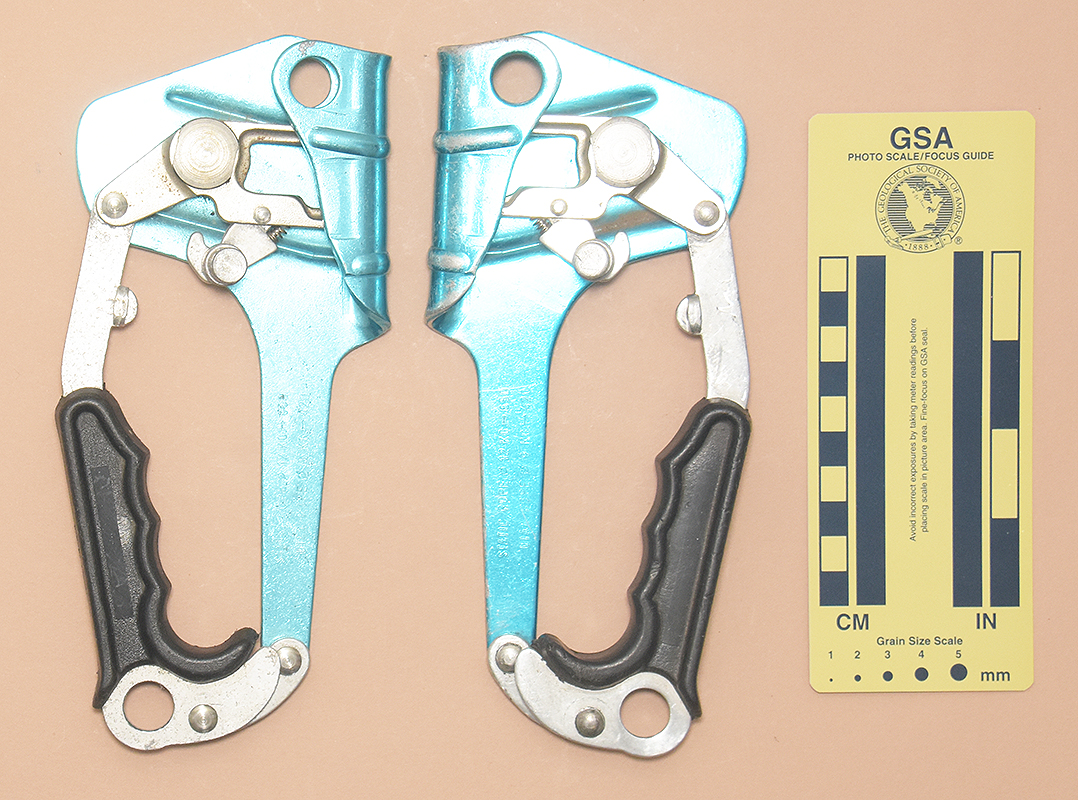

Camp 2959 Camp   Fits Fits Fits Odd fit
Kong-Bonaiti, Version A 55 Kong-Bonaiti, Version A   Fits Fits Fits Odd fit
Kong-Bonaiti, Version B 56
1556
2107
Kong-Bonaiti, Version B   Fits Fits Fits Odd fit
Leningrad Experimental Shipyard 58 Leningrad Experimental Shipyard
(Ленинградская Экспериментальная Судоверфь ВЦСПС)
Fits Fits Fits Fits Fits Fits Fits Odd fit


Handled Rocker Arm Ascenders

Ural Alp Handled 120 Ural Alp Handled No fit  Fits Fits Fits Fits No fit
USHBA Mountain Works Handled 144
2273
USHBA Mountain Works Handled Fits Fits Fits Fits Fits Fits
