Horizontal Spools

It may be dangerous to generalize, but spools provide the smoothest operation of any descender class. This is one reason that spools were the preferred lowering device for the ascending races at the NSS convention each year, at least when spool owners ran the event. Their disadvantages offset their advantages, and they are seldom used for caving. The biggest problem is their weight, and to a lesser extent, their size. They are also incremental friction devices at best, since one can only change friction by changing the number of loops that the rope makes around the spool. Some designs allow this to be done on rope, others do not.

Some spools are susceptible to having the rope come off if the user is not careful. I've marked the worst offenders with a warning icon.

Gallery

Image ID Device Description Acquired Weight Height Width Thickness Std. volume

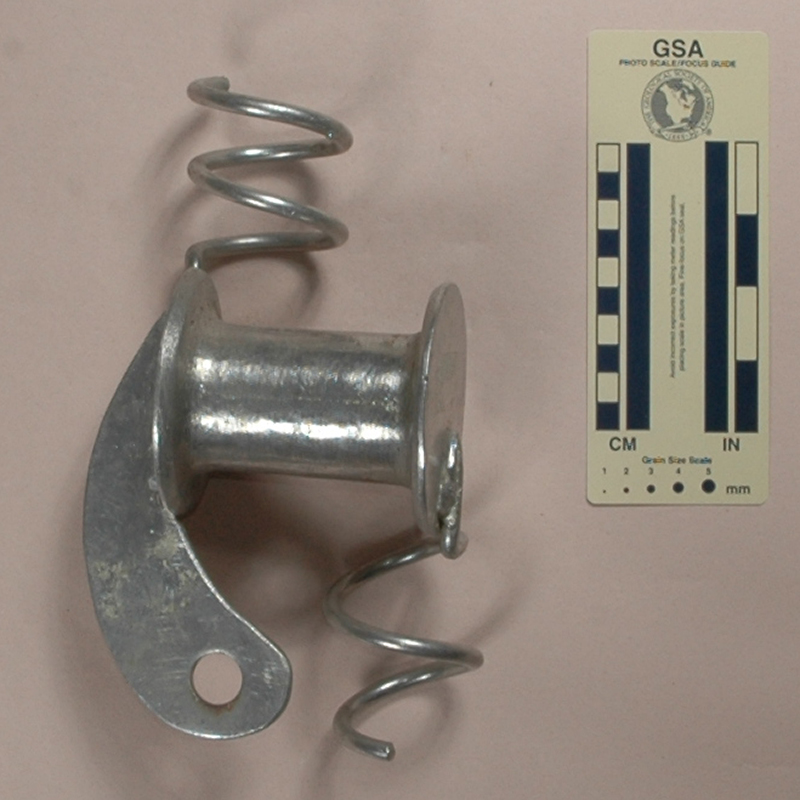

Cuddington Spool 579 Cuddington Spool Chrome-plated steel spool, guide coils. John E. Weinel, Inc., 2000 1272 225 129 92 2679

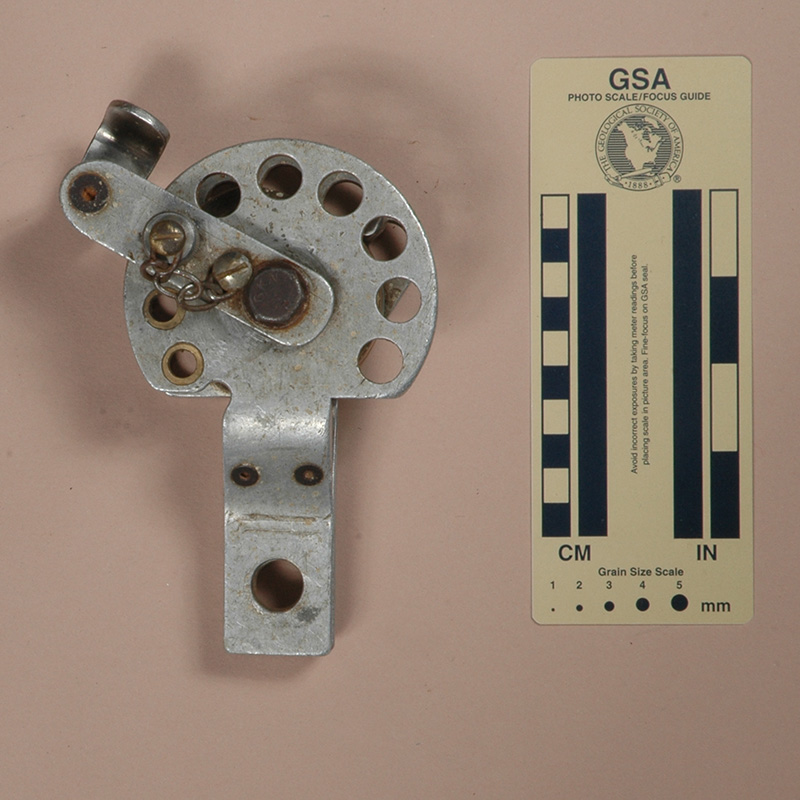

Drum 1268 Drum Bronze spool, fixed & pivoting side plates, pivoting guide arm with screw lock. Julian Turner, 2010 699 157 106 72 1210

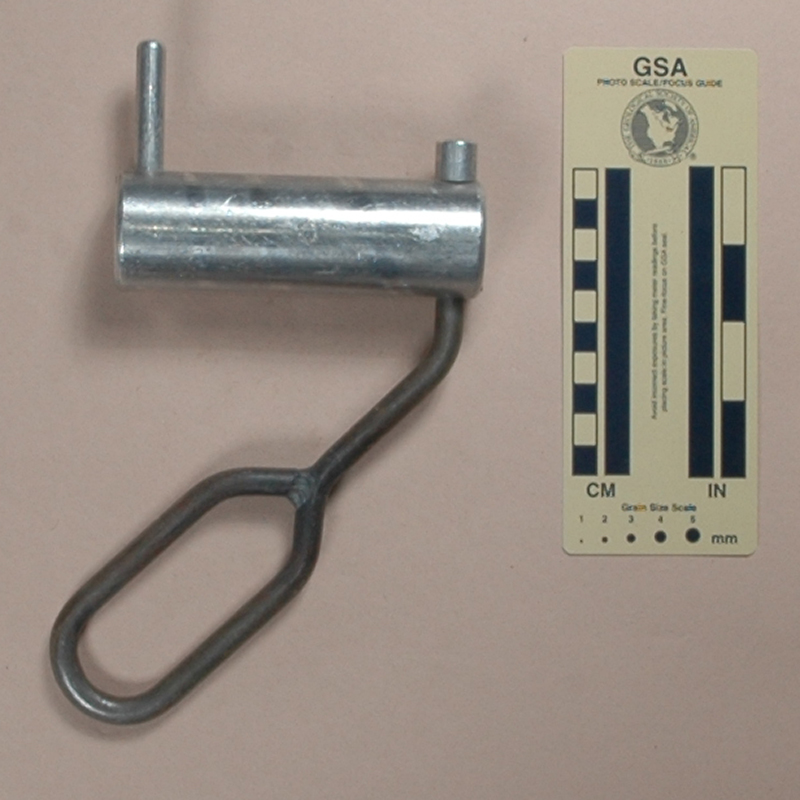

Forrest Rope Rider 418 Forrest Rope Rider
Al tube on steel frame, Al rope retention pin. John E. Weinel, Inc., 1985 412 219 122 39 1042

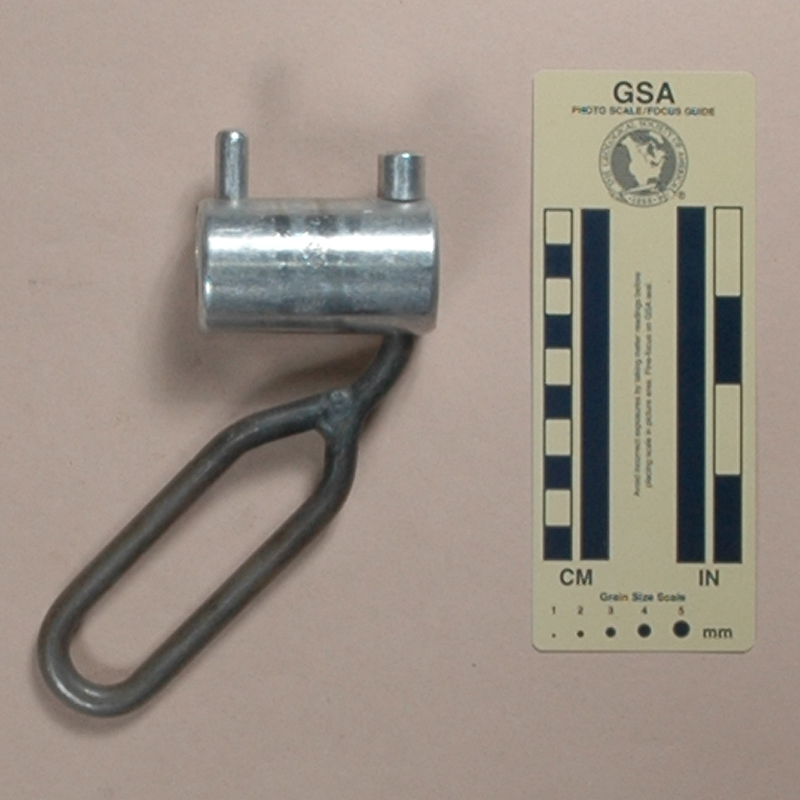

Forrest Rope Rider Jr. 419 Forrest Rope Rider Jr.
Al tube on steel frame, Al rope retention pin. John E. Weinel, Inc., 1985 300 170 76 39 504

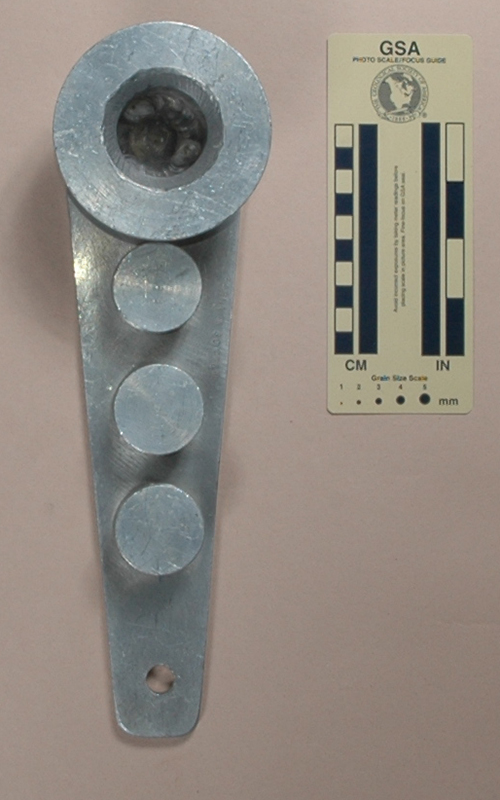

Garre A. Conner 420 Garre A. Conner
Al spool and 3 Al bollards mounted on Al back plate. Noncommercial. John E. Weinel, Inc., 1985 719 300 91 57 1556
Lewis Spool 550 Lewis Spool Steel tube /w welded steel bar eye arm and rope guides. Noncommercial. Warren Lewis, 1998 1462 272 114 142 4403

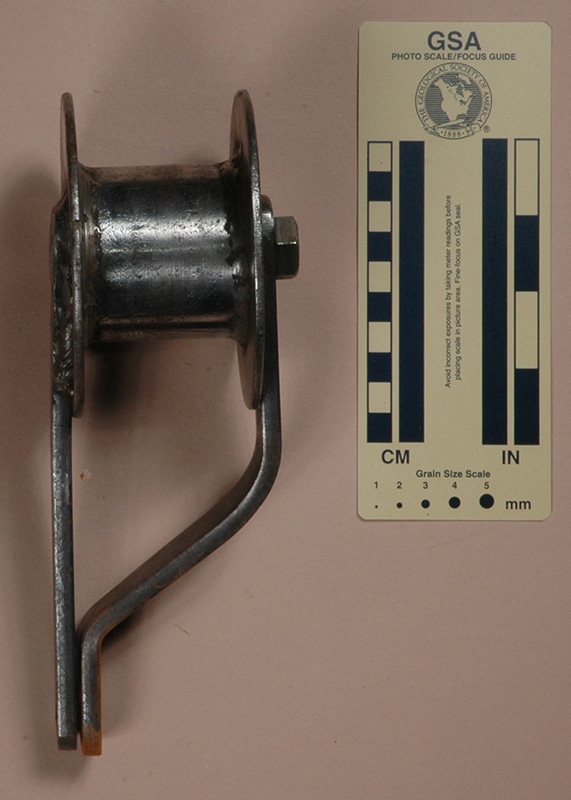

Steinke Spool 1240 Steinke Spool Steel spool, 1 welded and 1 rotating bolted arm, wide flange, no guides. Ted Steinke, 2009 849 214 103 79 1730

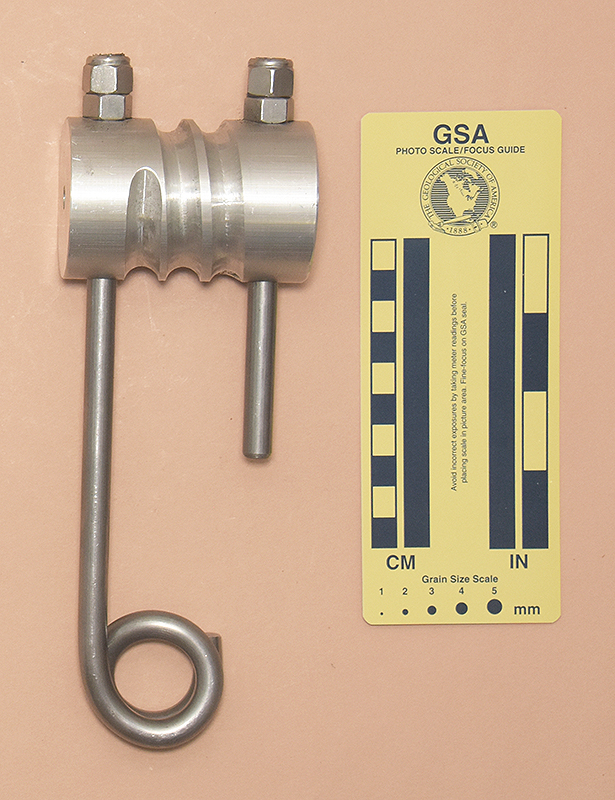

Storrick Helical Spool 3228 Storrick Helical Spool
Al spool , helical rope groove, 9.5mm. 1018 frame Gary Storrick, 2022 667 222 76 51 865

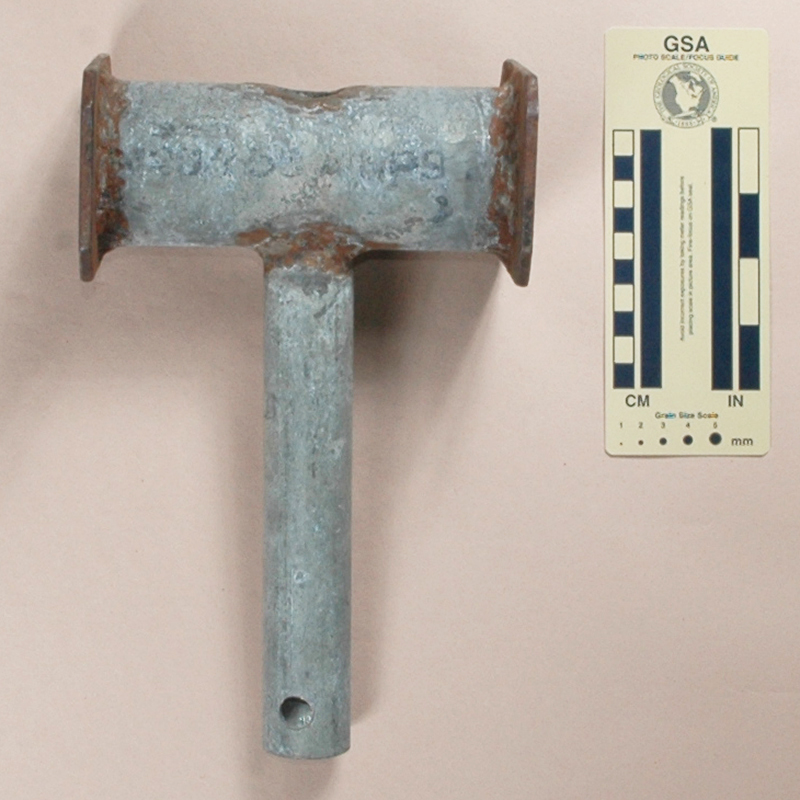

Rappel Hammer, Version A 424 Storrick Rappel Hammer, Version A
Galvanized pipes welded in "T" shape, with end plate rope guides. Noncommercial. Gary Storrick, 1991 1957 250 160 110 4400

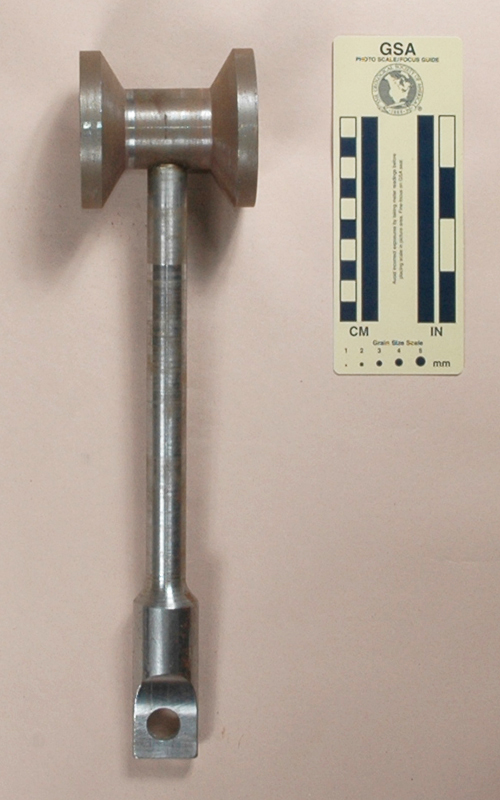

Storrick Rappel Hammer, Version B 1071 Storrick Rappel Hammer, Version B
Hammer shaped, 1018 steel Noncommercial. Gary Storrick, 2007 2263 340 82 75 2105

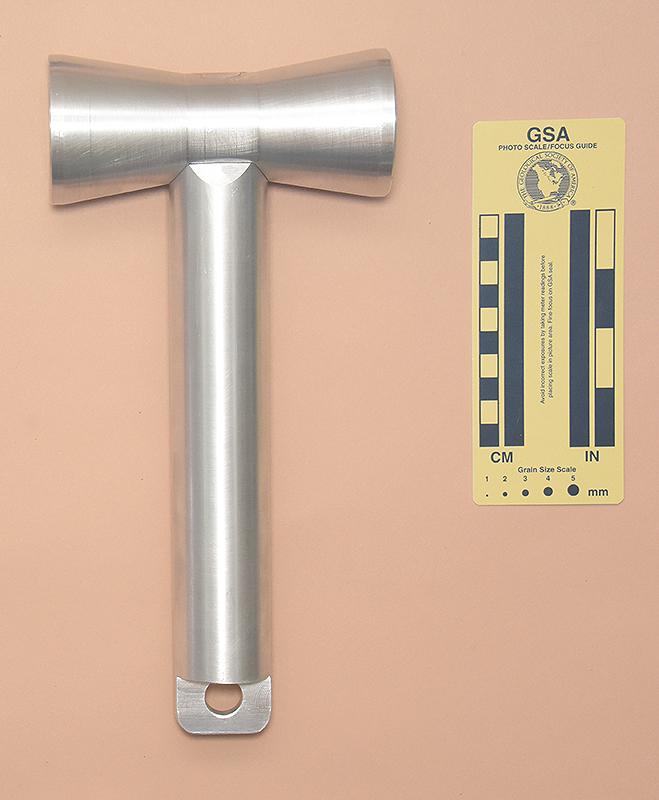

Storrick Rappel Hammer, Version C 3089 Storrick Rappel Hammer, Version C
Hammer shaped, 7075 Al. Gary Storrick, 2021 1652 289 138 60 2404

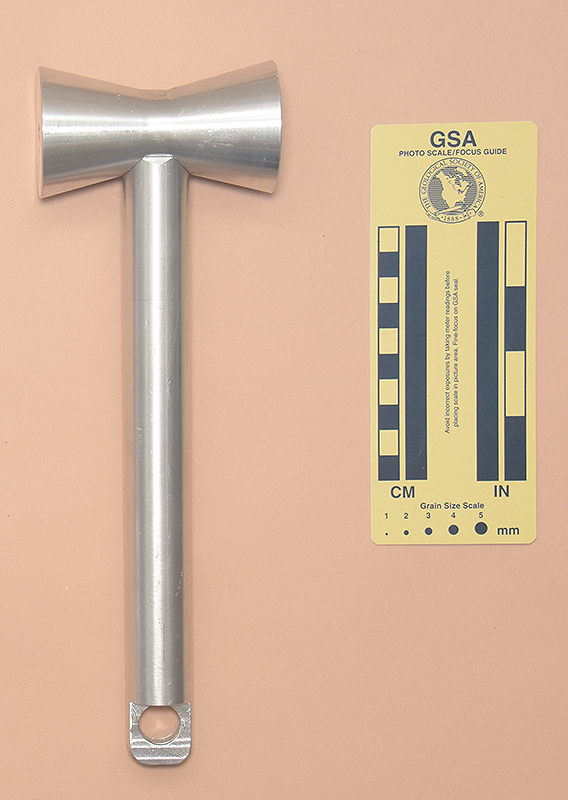

Storrick Rappel Hammer, Version D 3090 Storrick Rappel Hammer, Version D
Hammer shaped, 7075 Al. Gary Storrick, 2021 597 270 87 48 1130

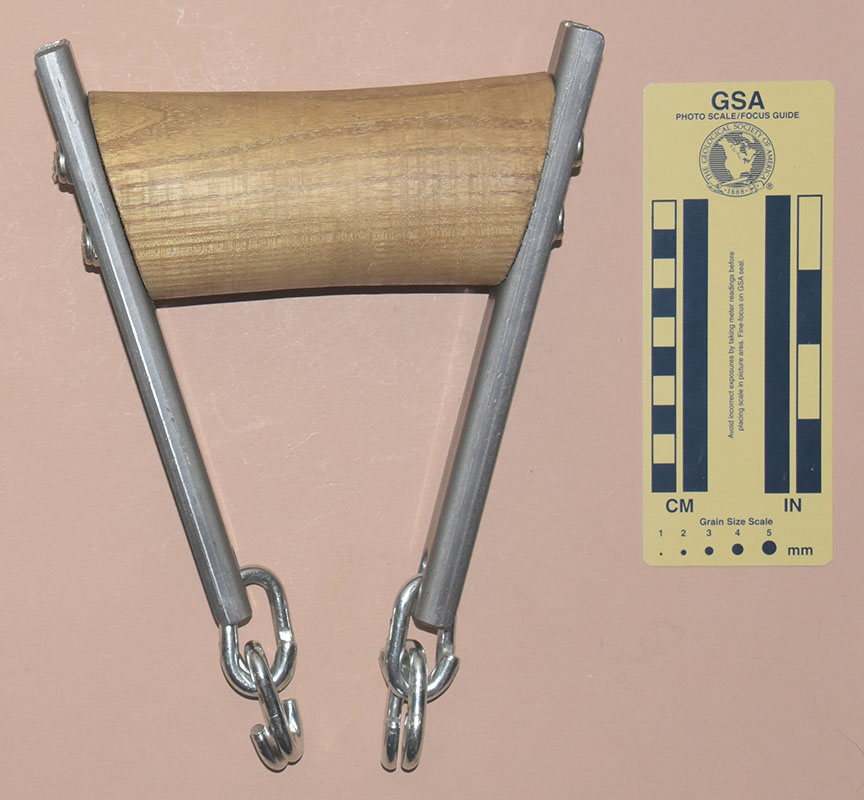

Storrick Rappelling Log 3057 Storrick Rappelling Log Catalpa spool bolted between channel-iron sides, lap link eyes. Gary Storrick, 2021 1023 198 185 70 2542

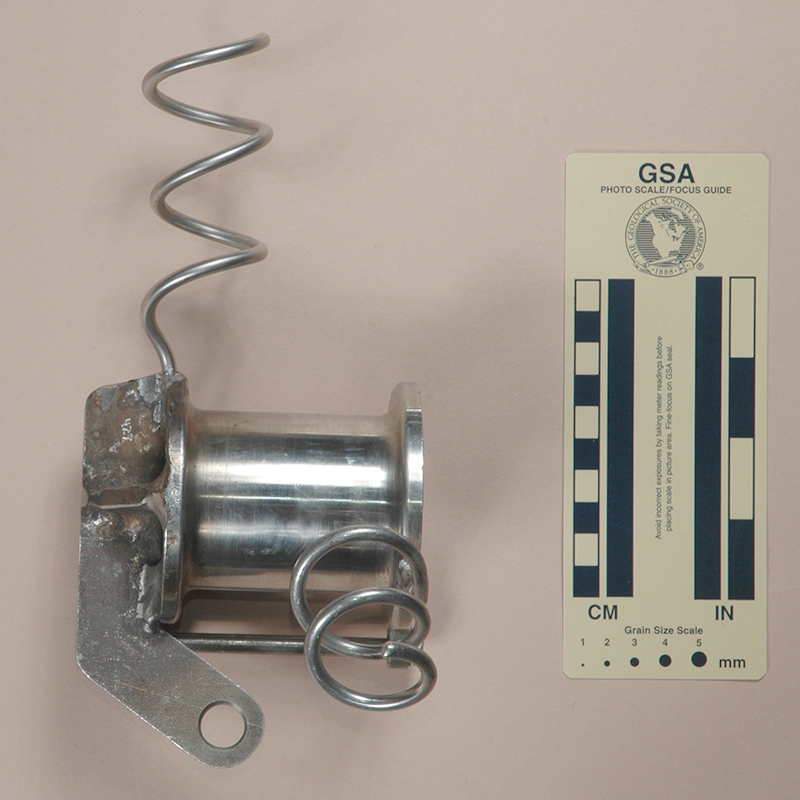

Storrick Spool 427 Storrick Spool SS spool, SS arm /w eye, SS guide coils, rope retention bolt. Noncommercial. Robert W. Storrick 1261 169 108 121 2205

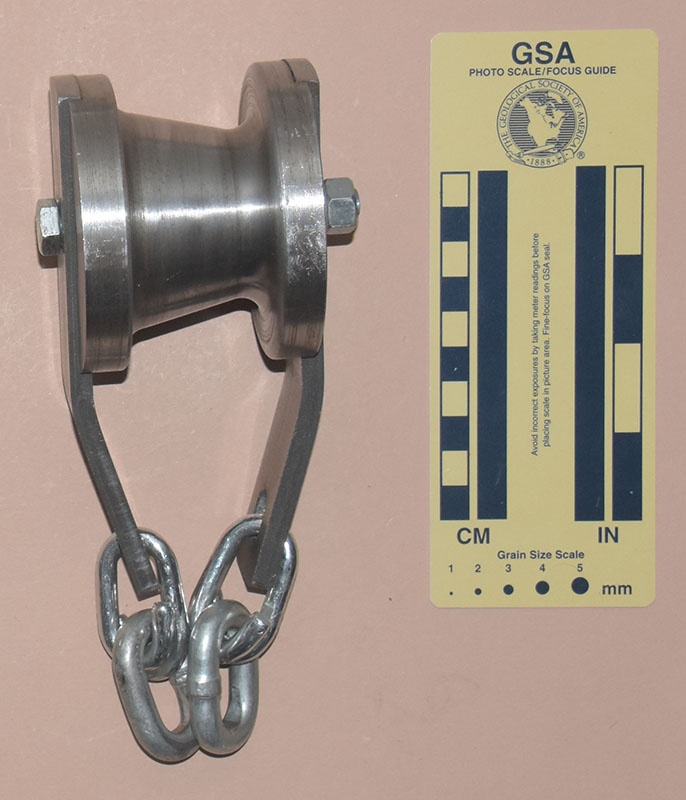

Storrick Tapered Spool 3048 Storrick Tapered Spool 12L14 spool, 1018 arms, chain link tie-ins. Gary Storrick, 2021 1829 59 88 82 428

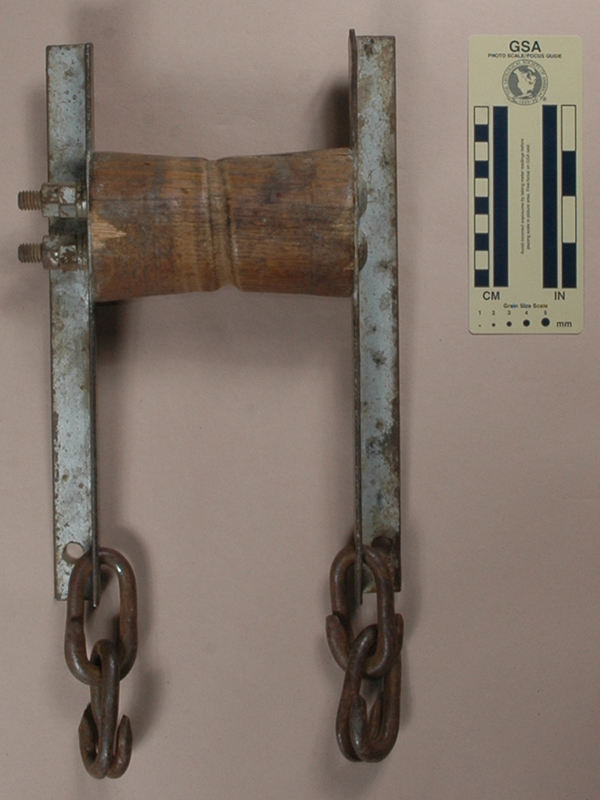

University of Virginia Rappelling Log 1137 University of Virginia Rappelling Log Wood spool bolted between angle-iron sides, cold shut eyes. Dwight Deal, 2007 1927 304 204 78 4851

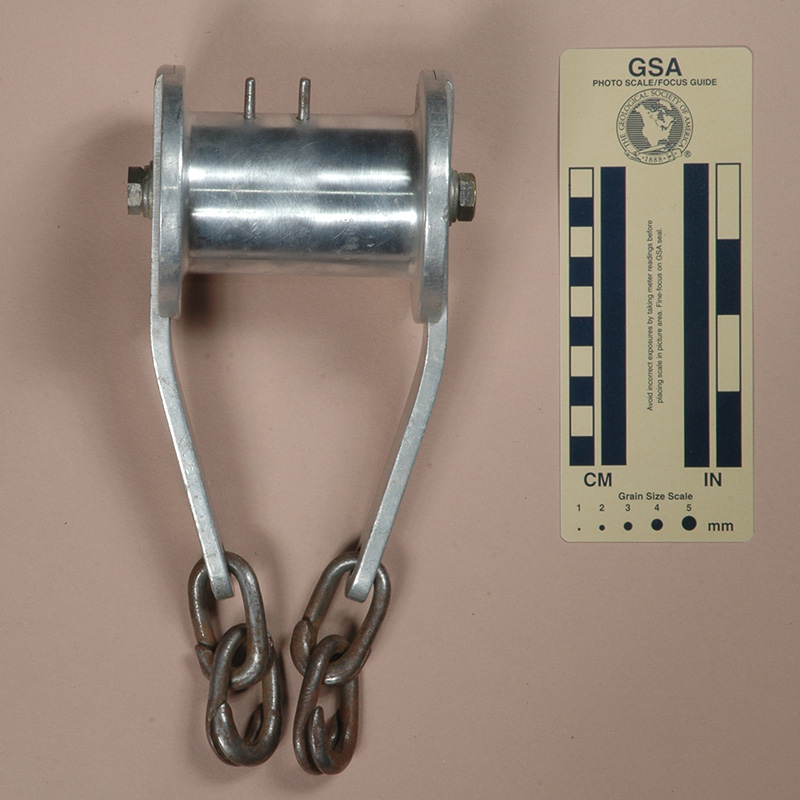

Unknown 1281 Unknown Al spool, 2 guide pins, 2 arms, cold shut tie-ins. J. W. Jackson, 2011 803 177 113 82 1639

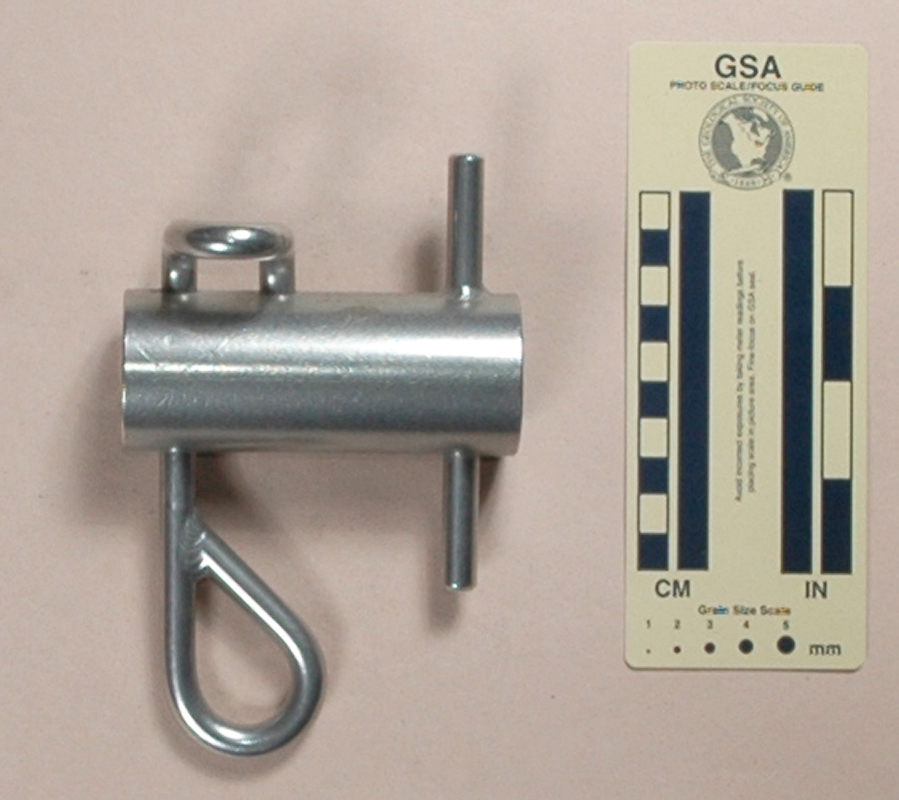

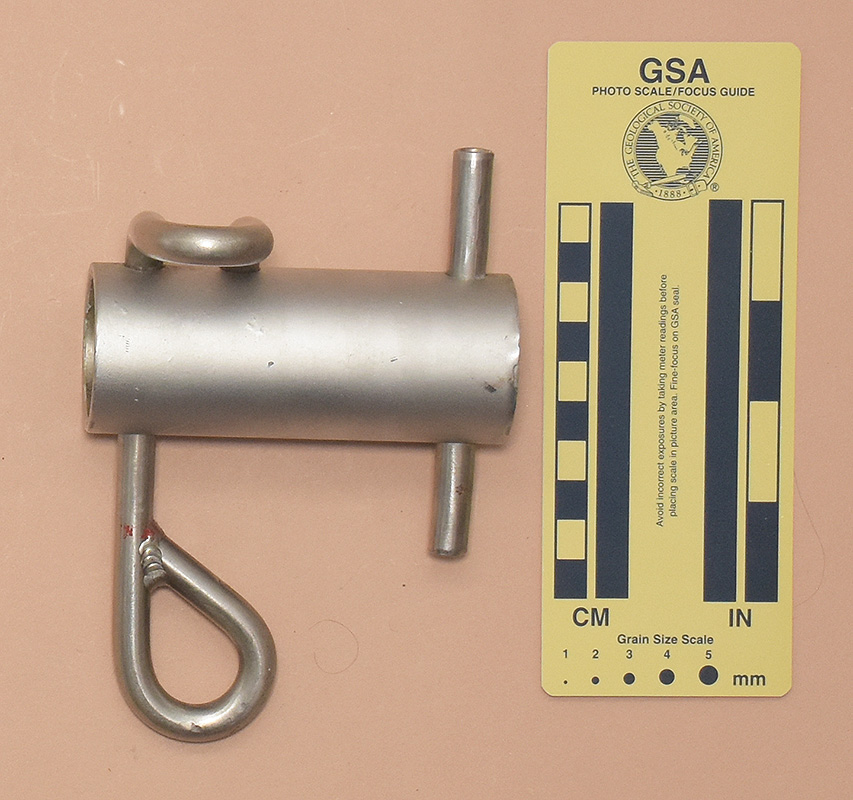

Vertical Supply Rappel Tube 423 Vertical Supply Rappel Tub
e
SS tube sliding on SS shaft /w eye & rope guide, two vertical pin guides, cooling sponge. Vertical Supply, 1993 498 145 112 49 796

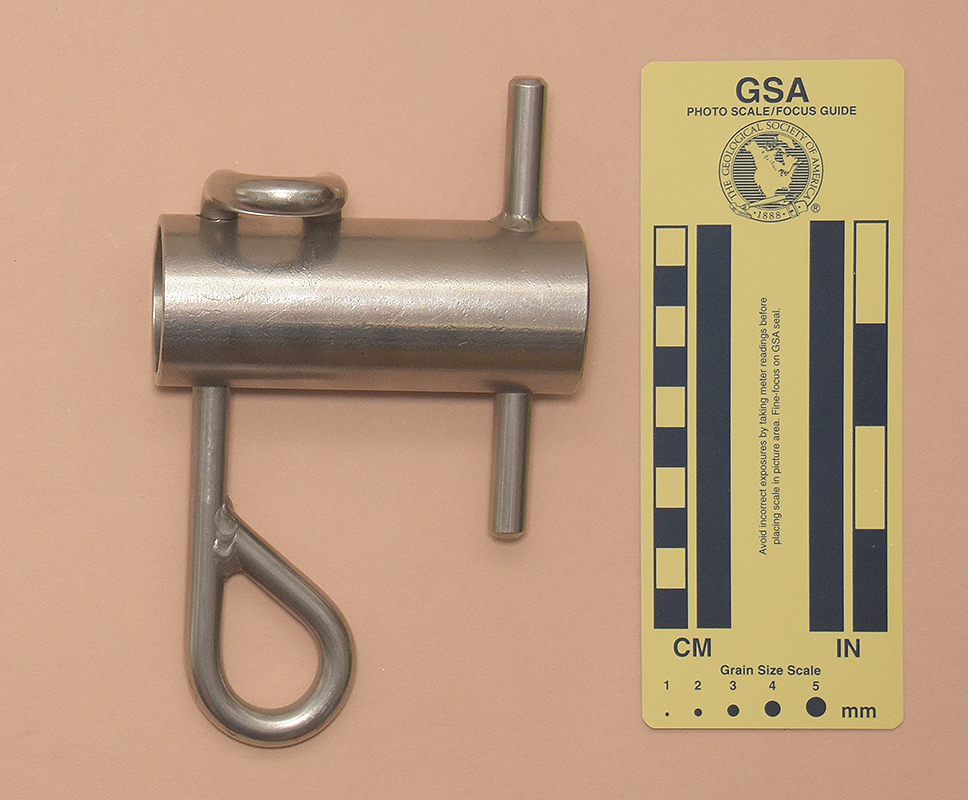

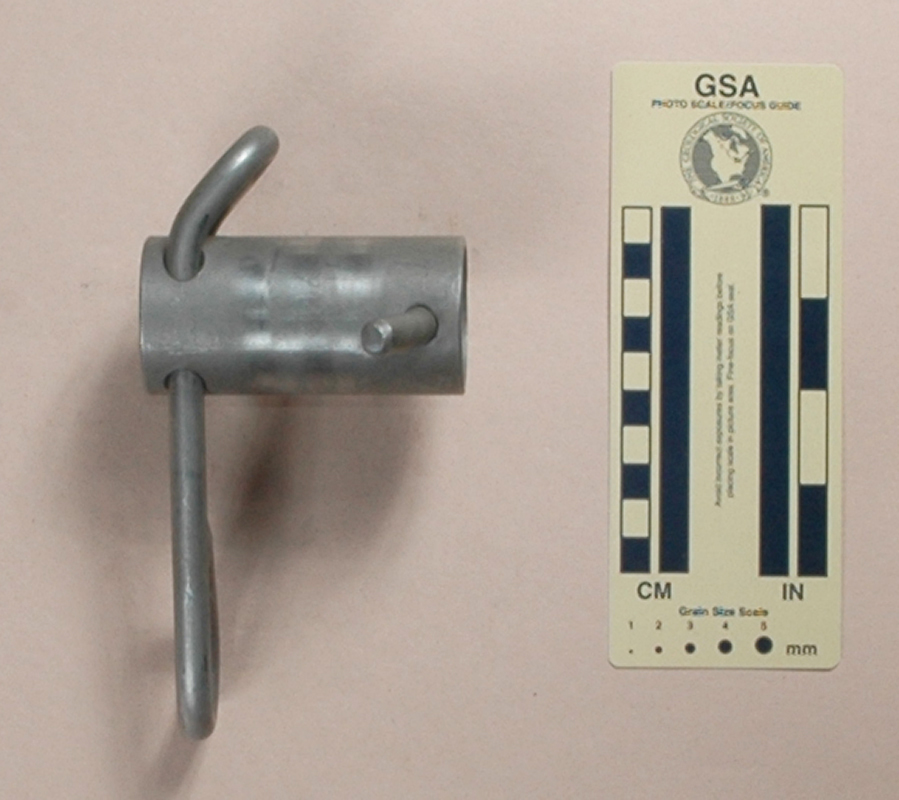

Vertical Supply Rappel Tube Prototype 422 Vertical Supply Rappel Tube Prototype
SS tube sliding on SS shaft /w eye & rope guide, two horizontal pin guides. Vertical Supply, 1994 438 168 84 100 1411

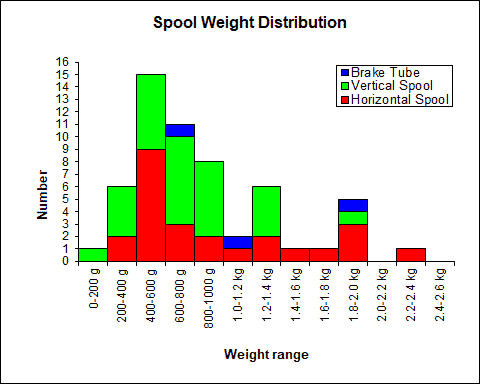

Brake Tubes Vertical Spools Spool Weight Chart
