Handleless Eccentric Cam Ascenders
Chest Ascenders

This section includes mechanical ascenders consisting of a shell or frame and an eccentric cam assembly attached to the shell/frame at a single pivot point. The shell/frame is open on one side to allow admittance of the standing rope. No sling attachment points are provided on the cam. No handle is provided.

I split the Handleless Eccentric Cam Ascenders into these three groups:

Chest ascenders are specialized for people who prefer to climb with the Frog System, or are required to do so because of where they live. Almost all chest ascenders are left-handed, reflecting the bigoted views that normal people are right-handed and right-handed froggers need left-handed chest ascenders. Proverti is one current manufacturer that does not express those views with their product line.

In the ID column and chart, I use a red background for hand ascenders, green for chest ascenders, and blue for emergency ascenders.

Gallery

Image ID Device Description Acquired Weight Height Width Thickness Std. volume Channel Diameter Cam Angle Tooth Pattern
Advanced Base Camp, Version A 225
2137
Advanced Base Camp, Version A LH chest, stamped frame, oval top hole, large oval bottom hole, hybrid cam /w sloping teeth, large loop safety with pivot on side of cam
  • On Rope 1, 2007
  • Bob Thrun Collection, 2017
141 103 75 37 285 15.3 31° (3.4.2)(1H1.2)^3(3.2)
Advanced Base Camp, Version B 244
2138
Advanced Base Camp, Version B LH chest, stamped frame, oval top hole, large oval bottom hole, hybrid cam /w sloping teeth, double-pin safety with pivot on side of cam
  • On Rope 1, 2008
  • Bob Thrun Collection, 2017
143 102 75 38 291 15.3 31° (3.4.2)(1H1.2)^3(3.2)
Advanced Base Camp, Version C 278
2138
Advanced Base Camp, Version C LH chest, stamped frame, oval top hole, large oval bottom hole, hybrid cam /w sloping teeth, small loop safety with pivot on side of cam
  • On Rope 1, 2009
  • Bob Thrun Collection, 2017
143 101 74 38 291 15.3 31° (3.4.2)(1H1.2)^3(3.2)
Alpidex Olymp 2928 Alpidex Olymp LH chest, stamped frame, irregular holes, stamped cam stop, braced cam /w straight teeth, tab safety below cam ShoppingMadeEasy2, 2019 149 100 78 33 261 16.2 31° (3)(4.H)^2(3.H)^2(3.2.2)
Anthron AC-30,  Version A 2150 Anthron AC-30, Version A LH chest, stamped frame, round top hole, oval bottom hole, braced cam /w sloping teeth, pin safety below cam Bob Thrun Collection, 2017 144 119 79 33 315 15.1 27° (3.2)^2(1.2)^2(B)
Anthron AC-30,  Version B 2149 Anthron AC-30, Version B LH chest, stamped frame, round top hole, oval bottom hole, plated braced cam /w sloping teeth, pin safety below cam Bob Thrun Collection, 2017 144 119 79 33 315 14.3 27° (3.2)^2(1.2)^2(B)
Anthron AC-30,  Version C 294 Anthron AC-30, Version C LH chest, stamped frame, round top hole, oval bottom hole, braced cam /w sloping teeth, pin safety below cam Rescue Technology, 2009 140 119 80 33 291 15.0 27° (3.2)^2(1.2)^2(B)
Альтурс, Version A 2933 Al'turs (Альтурс), Version A LH, chest, stamped frame, oval top & bottom holes, pin cam stop, hybrid cam /w straight teeth, D-loop safety below cam Artyom Babin (Артём Бабин), 2019 152 115 79 38 342 15.9 25° (3.4)(2S2.1S1)^2(2.2.3)
Альтурс, Version B 2143 Al'turs (Альтурс), Version B LH chest, stamped frame, oval top hole, large oval bottom hole, pin cam stop, hybrid cam /w sloping teeth, knob safety below cam Bob Thrun Collection, 2017 142 115 78 40 361 15.3 28° (2.2)(2S2.1S1)^2(1S1)^3(1.2)
Beal Hold Up 2053 Beal Hold Up LH chest, stamped frame, round top hole /w slot, rear hole, hybrid cam /w sloping teeth, knob safety below cam Expé-Spelemat, 2016 156 82 72 59 347 15.5 33° (3.4)(1S1.2S2)^2(3.2.1)(BB)

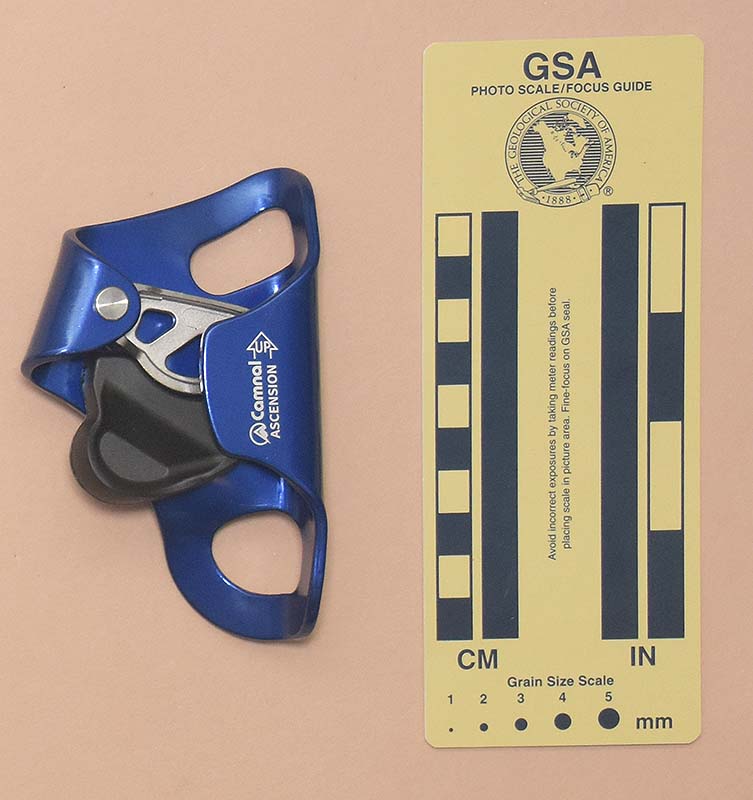

Camnal Ascension 3450 Camnal Ascension LH, chest, stamped frame, oval top & bottom holes, semi-web cam /w sloping teeth, plastic safety below cam beautylover_uk, 2021 117 110 69 39 296 14.3 31° (3.4)(1S1)(2S2)^2(1S1.2S2)(3.4.3)
Camp Turbo Chest 1987
2086
Camp Turbo Chest LH chest, stamped frame /w 2 Al rollers, subtriangular top hole, drooped cam /w sloping teeth, tab safety /w pull cord below cam
  • Expé-Spelemat, 2014
  • Bob Thrun Collection, 2017
110 92 57 38 199 14.5 28° (2)(1S1)^7(1)
CIC 1974 CIC LH, chest, stamped frame, oval top & bottom holes, open-web cam /w sloping teeth, tab safety below cam Gold Bucket, 2014 158 117 79 35 319 18.0 27° (3)^3(1S1)^5(3)^2
Climb Tech 1938
1971
2144
Climb Tech LH chest, stamped frame, oval top & bottom holes, open-web cam /w sloping teeth, tab safety below cam
  • Climb Tech, 2012
  • OmniProGear, 2014
  • Bob Thrun Collection, 2017
158 118 79 33 302 15.8 27° (3)^3(1S1)^5(3)^2
Climbing Technology Chest Ascender Evo 2003
2009
Climbing Technology Chest Ascender Evo LH chest, stamped frame, oval top hole, large oval bottom hole, hybrid cam /w sloping teeth, small loop safety with pivot on side of cam
  • Knot & Rope Supply / Amazon.com, 2015
  • Expé-Spelemat, 2015
145 107 77 37 307 15.2 31° (3.4.2)(1H1.2)^3(3.2)
Climbing Technology Chest Ascender HC 2981 Climbing Technology Chest Ascender HC LH chest, hardcoat stamped frame, oval top hole, large oval bottom hole, hybrid cam /w sloping teeth, small loop safety with pivot on side of cam Hector Avelianeda, 2021 148 107 77 36 292 15.2 31° (3.4.2)(1H1.2)^3(3.2)
Climbing Technology Chest Ascender + 2989 Climbing Technology Chest Ascender +
LH chest, stamped frame, oval top hole, large oval bottom hole, hybrid cam /w sloping teeth, small loop safety with pivot on side of cam
Canyon Store, 2021 146 107 76 34 275 15.5 31° (3.4.2)(1H1.2)^3(3.2)

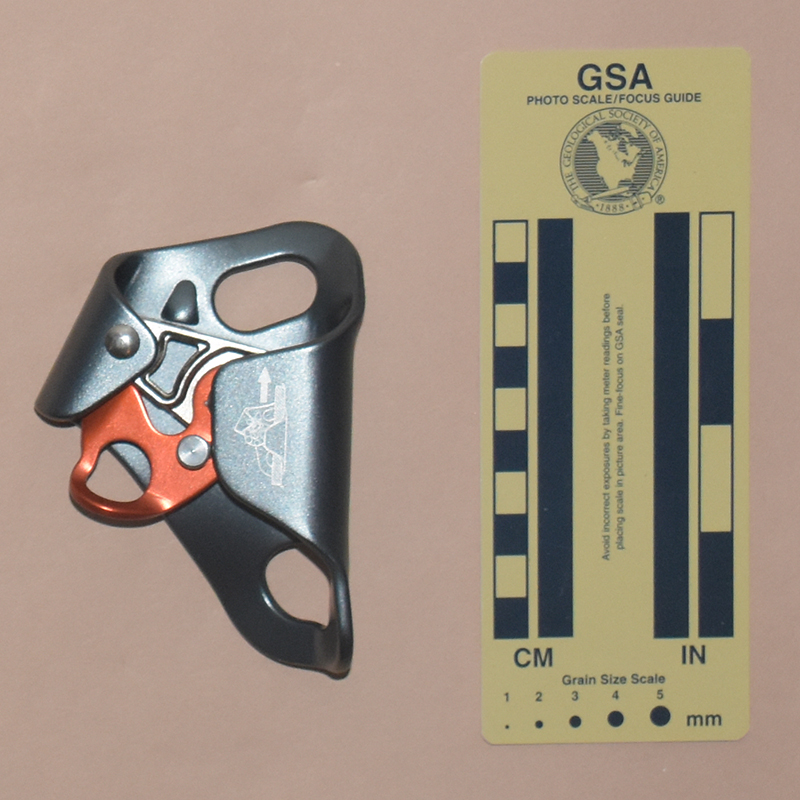

Cypher 2953 Cypher Evo LH chest, stamped frame, oval top hole, large oval bottom hole, hybrid cam /w sloping teeth, small loop safety with pivot on side of cam Boardparadise, 2019 146 107 77 37 307 15.2 31° (3.4.2)(1H1.2)^3(3.2)
Edelrid Windup 2384 Edelrid Windup LH chest, stamped frame, oval top hole, large oval bottom hole, hybrid cam /w sloping teeth, small loop safety with pivot on side of cam Amazon.com, 2019 147 107 76 37 296 15.1 31° (3.4.2)(1H1.2)^3(3.2)

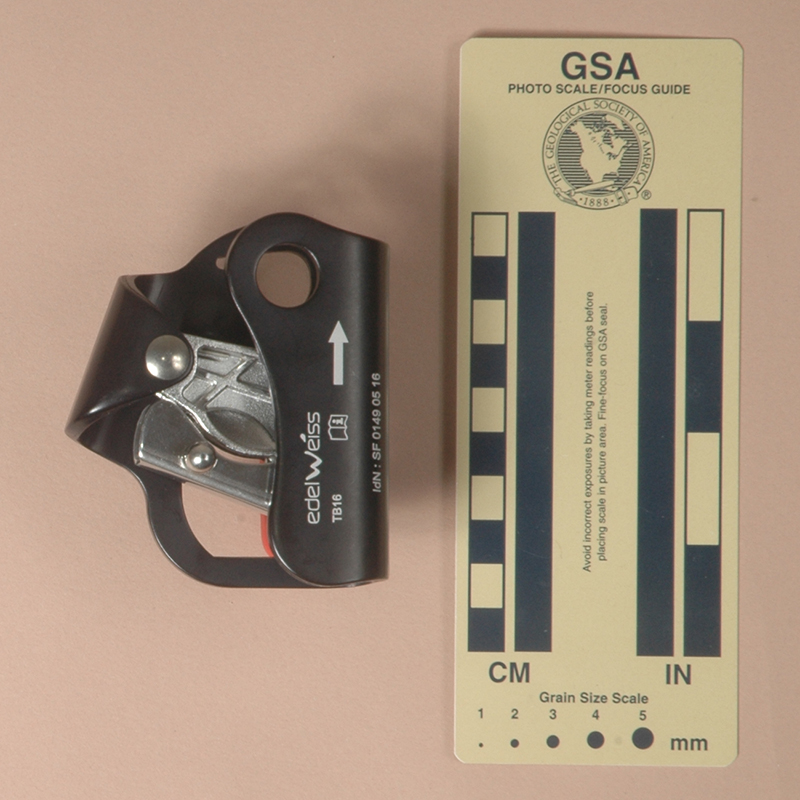

Edelweiss TB16 2312 Edelweiss TB16 LH chest, stamped frame, round top hole /w slot, rear hole, hybrid cam /w sloping teeth, knob safety below cam Buffalo Gap Outfitters, 2017 157 78 72 36 203 15.5 33° (3.4)(1S1.2S2)^2(3.2.1)(BB)
Emilsa 203 Emilsa LH chest, stamped frame, unfinished, oval top hole, steel-lined oval bottom hole, open cam /w sloping teeth, shell-mounted safety /w hook Luc Bourguignon, 2005 174 126 87 38 413 15.2 22° (2.3)(4.3)^5(2.3)
Epic Peak 2329 Epic Peak LH, chest, stamped frame, oval top & bottom holes, open-web cam /w sloping teeth, tab safety below cam Epic Peak Gear, 2017 159 118 81 35 335 16.5 28° (3)^3(1S1)^5(3)^2
GM Climbing 2330 GM Climbing LH, chest, stamped frame, oval top & bottom holes, open-web cam /w sloping teeth, tab safety below cam Emma Xiao, 2017 159 118 81 35 335 16.5 28° (3)^3(1S1)^5(3)^2
heightec-PMI Twist D42A, Version A 268
2140
heightec-PMI Twist D42A, Version A LH chest, stamped frame, oval top hole, distorted bottom hole, open-web cam /w straight teeth, pin safety below cam
  • On Rope 1, 2009
  • Bob Thrun Collection, 2017
142 107 71 31 229 15.8 25° (1.2^3)^2(1.2)^2(B)
heightec-PMI Twist D42A, Version B 1502
2141
heightec-PMI Twist D42A, Version B LH chest, stamped frame, oval top hole, distorted bottom hole, open-web cam /w straight teeth, plastic safety below cam
  • On Rope 1, 2009
  • Bob Thrun Collection, 2017
145 103 73 38 229 16.1 25° (1.2^3)^2(1.2)^2(B)

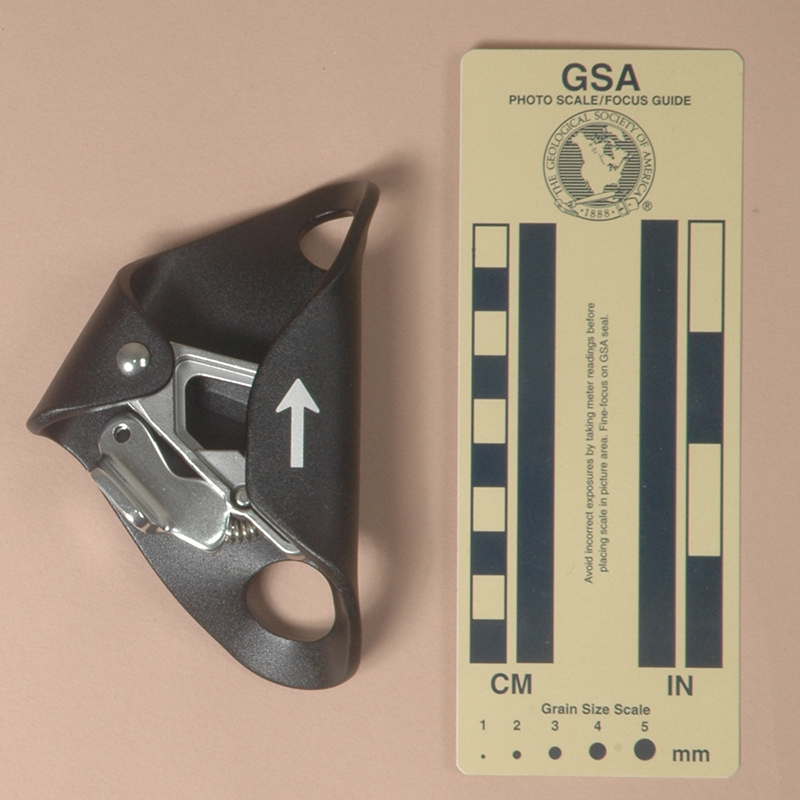

International Safety Components RP229 2313 International Safety Components RP229 LH, chest, stamped frame, oval top & bottom holes, asymmetrical open-web cam /w sloping teeth, tab safety below cam F R Jones and Son, 2017 163 117 77 40 354 14.5 28° (3)^3(1S1)^5(3)^2

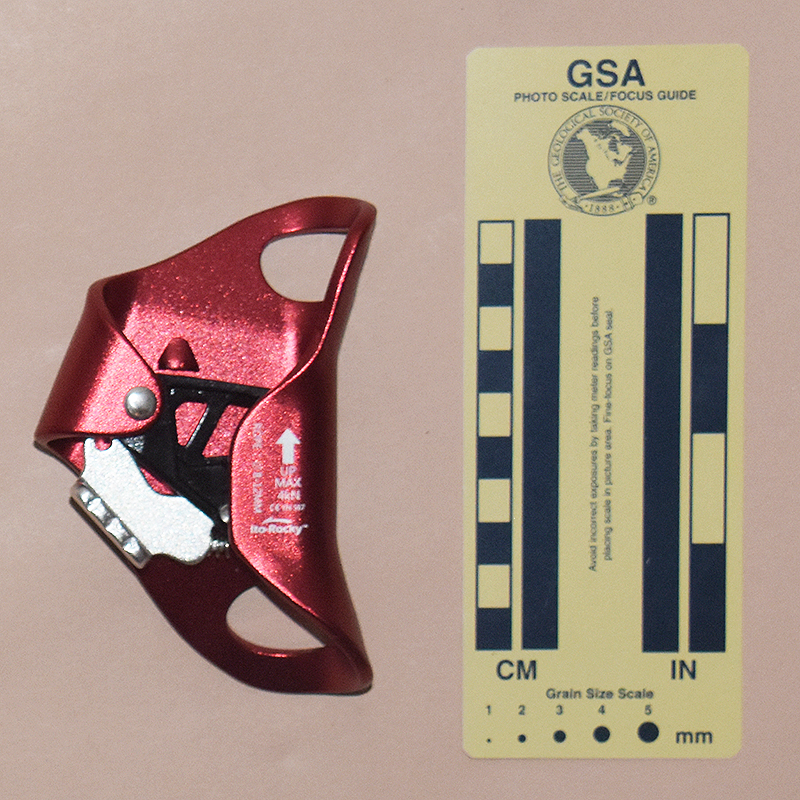

Ito-Rocky 2941 Ito-Rocky LH chest, stamped frame, oval holes, stamped cam stop, braced cam /w straight teeth, tab safety below cam Ito Rocky Direct, 2019 163 115 77 41 355 15.6 31° (3)(4.H)^2(3.H)^2(3.2.2)
Kailas Chest-Up 2915 Kailas Chest-Up LH chest, milled frame, oval top and irregular bottom hole, drooped cam /w cutouts & straight teeth, plastic safety below cam Kailas / Amazon, 2019 107 97 65 30 191 15.0 30° (3.4)(1S1.2S2)^2(2.2.3)

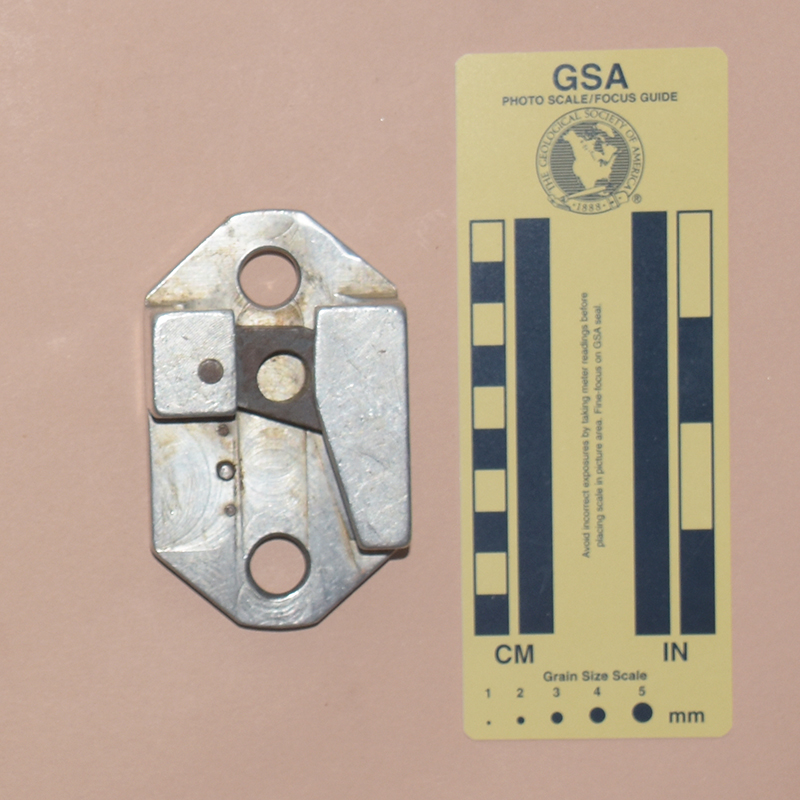

Kaunas Polytechnic Institute 2916 Kaunas Polytechnic Institute LH Chest, milled AL shell, drilled plate cam /w "Z" teeth, push-button safety on shell Gintautas Švedas, 2019 184 100 60 25 149 15.1 27° (4Z)^9
Kong-Bonaiti Cam-Clean, Version A 9
2145
Kong-Bonaiti Cam-Clean, Version A LH chest, stamped frame, oval top hole, large oval bottom hole, asymmetrical open-web cam /w sloping teeth, pin safety below cam Bob & Bob, 1987 155 117 77 40 360 15.8 34° (3.4)(H.3)^3(H.2.1)
Kong-Bonaiti Cam-Clean, Version A 2145 Kong-Bonaiti Cam-Clean, Version B LH chest, stamped frame, oval top hole, large oval bottom hole, asymmetrical open-web cam /w sloping teeth, pin safety below cam Bob Thrun Collection, 2017 149 115 80 39 362 14.8 30° (3)(4.H)^2(3.H)^2(2.2.1)

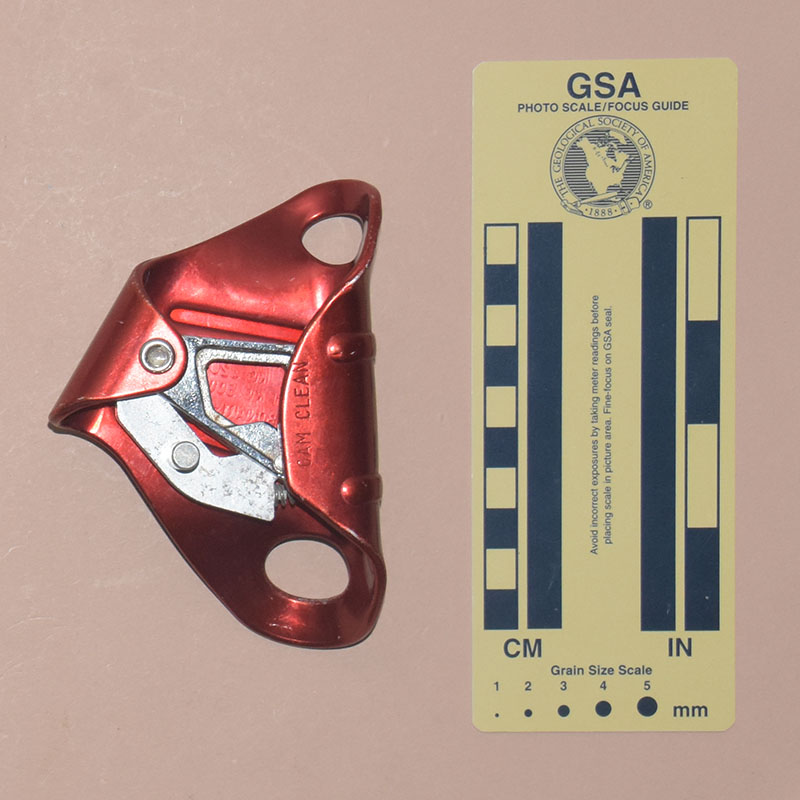

Kong-Bonaiti Cam-Clean, Version C 3429 Kong-Bonaiti Cam-Clean, Version C LH chest, stamped frame, oval top hole, large oval bottom hole, asymmetrical open-web cam /w sloping teeth, pin safety below cam Kristen Ongoy, 2021 149 115 80 39 362 14.8 30° (3)(4.H)^2(3.H)^2(2.2.1)
Kong-Bonaiti Cam-Clean, Version D 2146 Kong-Bonaiti Cam-Clean, Version D LH chest, stamped frame, oval top hole, large oval bottom hole, asymmetrical open-web cam /w sloping teeth, pin safety below cam Bob Thrun Collection, 2017 154 115 80 40 362 15.7 30° (3)(4.H)^2(3.H)^2(2.2.1)

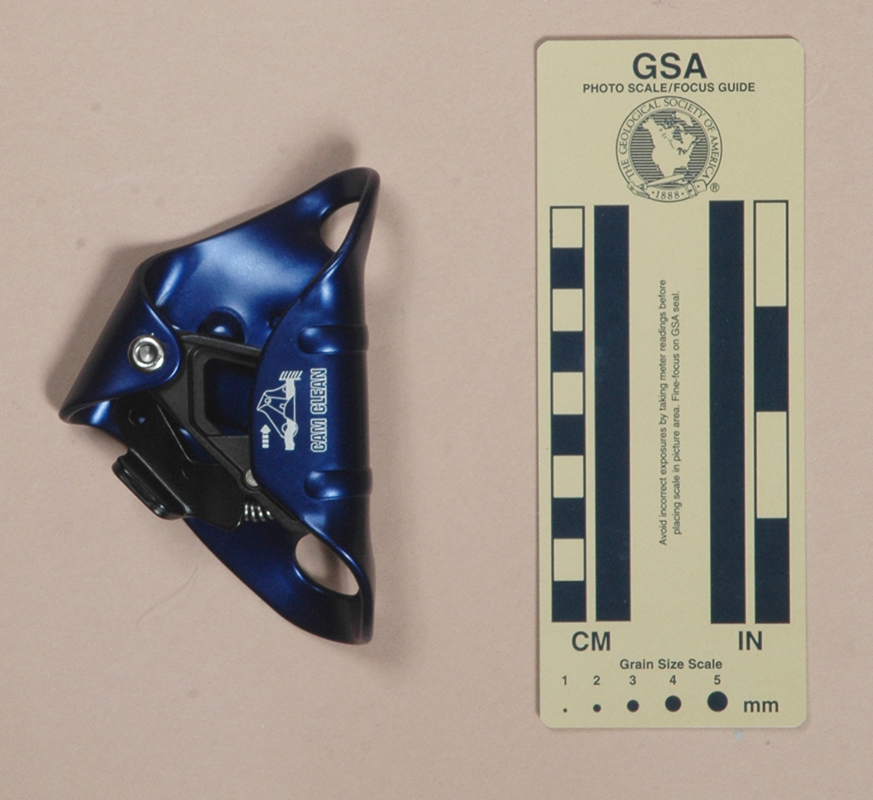

Kong Cam-Clean 2018 Kong Cam-Clean LH chest, stamped frame, oval top hole, large oval bottom hole, asymmetrical open-web cam /w sloping teeth, tab safety below cam Outdoor Shopping LLC, 2015 152 115 76 40 354 13.7 30° (3)(4.H)^2(3.H)^2(3.2.2)
Kong Futura Body 1537
2152
Kong Futura Body LH, extruded, milled & bent Al shell, pin cam stop, open cam /w sloping teeth, tab safety /w pull cord below cam
  • Expé-Spelemat, 2010
  • Bob Thrun Collection, 2017
82 82 48 35 139 13.9 32° (4)(5.2H2)^2(4.2)
Krok Chest Strap 1582 Krok Chest Strap LH, stamped & painted Al shell, hybrid cam /w straight teeth, double-pin safety with pivot on side of cam Gear4Rocks, 2012 147 114 69 31 245 15.2 32° (3.2)(2.2.H)^3(2.2.3.2)

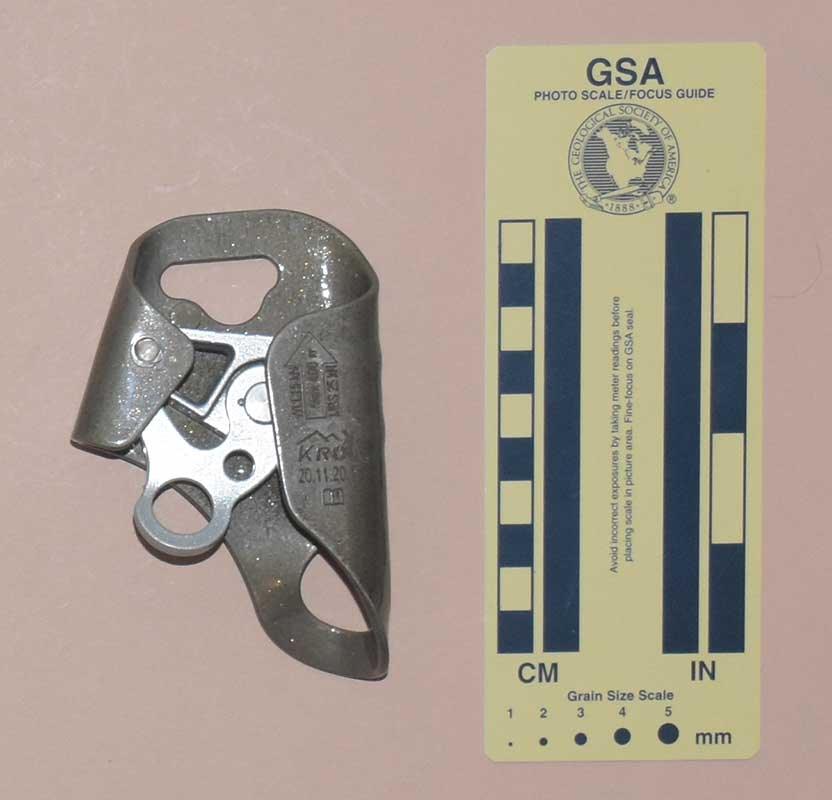

Krok Krol 2991 Krok Krol LH, stamped & painted steel shell, hybrid cam /w straight teeth, small loop safety with pivot on side of cam Krok, 2021 217 109 72 30 233 16.7 31° (3.2.2)(1H1.2)^3(2.3.2)

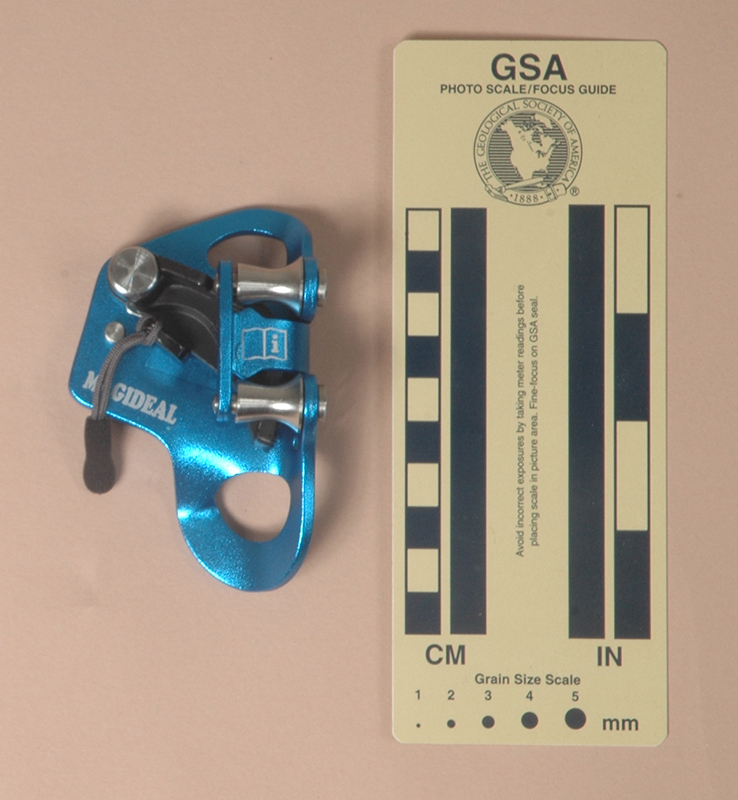

Magideal, Version A 2335 Magideal, Version A LH chest, stamped frame, subtriangular top hole, oval bottom hole, drooped cam /w sloping teeth, tab safety /w pull cord below cam Suntek, 2017 97 102 60 32 196 15.0 33° (3.4.H.4.2.3.H.2.2.1)(1H1)(4.3)
Magideal, Version B</B> 2333 Magideal, Version B LH chest, stamped frame /w 2 Al rollers, subtriangular top hole, oval bottom hole, drooped cam /w sloping teeth, tab safety /w pull cord below cam Suntek, 2017 107 90 58 38 198 15.0 33° (3.4.H.4.2.3.H.2.2.1)(1H1)(4.3)

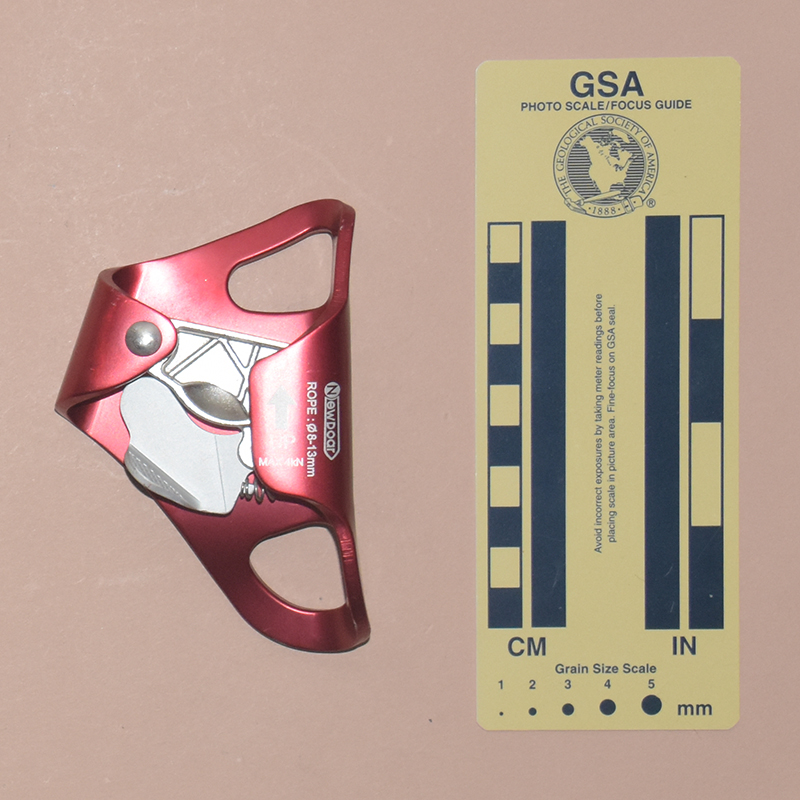

NewDoar, Version A</B> 3428 NewDoar, Version A LH, chest, stamped frame, subtriangular top & D-shaped bottom hole, hybrid cam /w sloping teeth, tab safety below cam FSAS LLC, 2021 138 111 74 35 285 15.6 30° (2.4)(1S1.2S2)^2(1S1)(2.3)
NewDoar, Version B</B> 3427 NewDoar, Version B LH chest, stamped frame, oval holes, stamped cam stop, braced cam /w straight teeth, tab safety below cam Meituo / Amazon.com, 2021 160 116 78 31 278 15.6 31° (3)(4.H)^2(3.H)^2(3.2.2)
NTR, Version A 2015 NTR, Version A LH, chest, stamped frame, oval top & bottom holes, open-web cam /w sloping teeth, tab safety below cam Linko Chen 训连 陈, 2015 160 117 82 35 333 14.9 27° (3)^3(1S1)^5(3)^2
NTR, Version B 2085 NTR, Version B RH, chest, stamped frame, subtriangular top & D-shaped bottom hole, hybrid cam /w sloping teeth, tab safety below cam Bob Thrun Collection, 2017 134 110 74 34 278 14.9 30° (2.4)(1S1.2S2)^2(1S1)(2.3)
Petzl Croll, Version A 1960
2148
Petzl Croll, Version A LH chest, stamped frame, oval top hole, large oval bottom hole, semi-open web cam /w sloping teeth, knob safety below cam
  • Bob Thrun, 2013
  • Bob Thrun Collection, 2017
135 117 75 36 317 13.7 25° (F)(3.4)^3(3.2)^2(1)
Petzl Croll, Version B 10 Petzl Croll, Version B LH chest, stamped frame, oval top hole, large oval bottom hole, semi-open web cam /w sloping teeth, pin safety below cam Speleoshoppe, 1979 137 117 76 38 338 17.1 25° (F)(3.4)^3(3.2)^2(1)
Petzl Croll, Version C 295 Petzl Croll, Version C LH chest, stamped frame, oval top hole, large oval bottom hole, semi-open web cam /w sloping teeth, pin safety below cam
  • Bruce Ellison, 2009
  • Bob Thrun Collection, 2017
136 119 76 37 338 14.5 24° (3.4)^2(3.2)^2(1.2)
Petzl Croll, Version D 11
2147
Petzl Croll, Version D LH chest, stamped frame, oval top hole, large oval bottom hole, pin cam stop, hybrid cam /w sloping teeth, D-loop safety below cam
  • Bob & Bob, 1988
  • Bob Thrun Collection, 2017
138 119 76 39 353 15.9 25° (2.3)(2S2.1S1)^2(1S1)^3(1.2)
Petzl Croll, Version E1 214 Petzl Croll, Version E LH chest, stamped frame, large top hole, large oval bottom hole, pin cam stop, hybrid cam /w sloping teeth, D-loop safety below cam Andy Dopson, 2007 142 119 77 37 339 14.8 26° (2.3)(2S2.1S1)^2(1S1)^3(1.2)

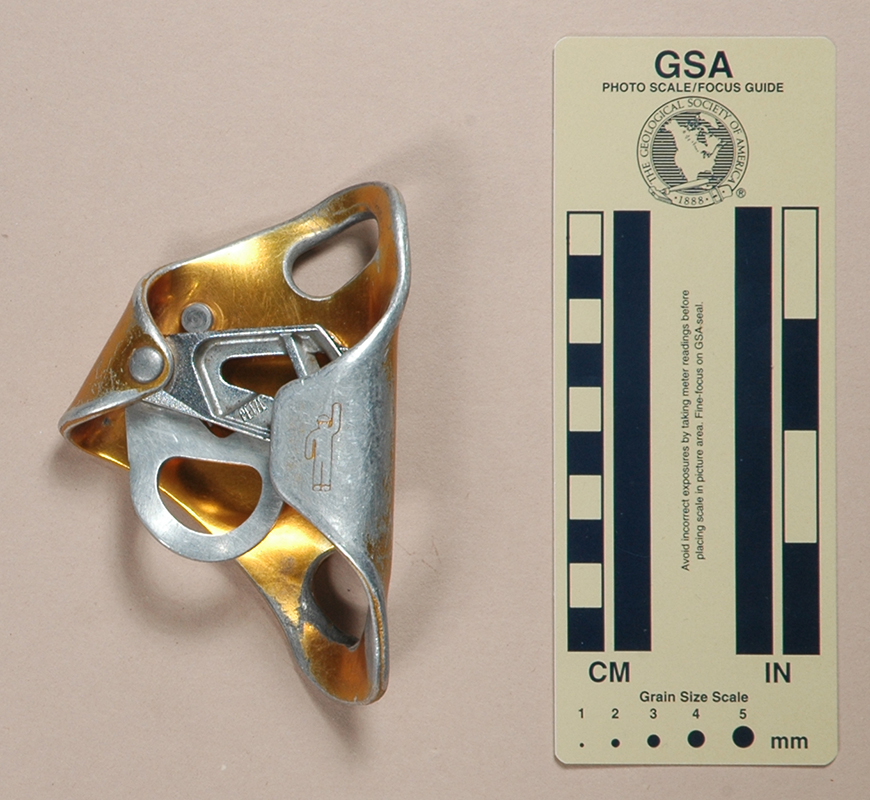

Petzl Croll, Version E2 215 Petzl Croll, Version F LH chest, stamped frame, large top hole, large oval bottom hole, pin cam stop, hybrid cam /w sloping teeth, D-loop safety below cam Andy Dopson, 2007 142 119 78 38 352 14.8 26° (2.3)(2S2.1S1)^2(1S1)^3(1.2)
Petzl Croll, Version G 237
3466
Petzl Croll, Version G LH chest, stamped frame, large top hole, large oval bottom hole, pin cam stop, hybrid cam /w sloping teeth, D-loop safety below cam
  • Ross Strother, 2008
  • On Rope 1, 2021
144 119 81 38 364 16.3 26° (2.3)(2S2.1S1)^2(1S1)^3(1.2)
Petzl Croll, Version H 126 Petzl Croll, Version H LH chest, stamped frame, oval top hole, large oval bottom hole, stamped cam stop, semi-open web cam /w sloping teeth, plastic safety below cam Bob & Bob, 1997 130 103 70 38 274 14.2 32° (3.4)(1S1.2S1)^2(1S1.2.3)
Petzl Croll, Version I 2080 Petzl Croll, Version I LH chest, stamped frame, oval top hole, large oval bottom hole, stamped cam stop, semi-open web cam /w sloping teeth, plastic safety below cam Bob Thrun Collection, 2017 132 109 75 37 305 14.2 32° (3.1.4)(1S1.1S0.2S1)^2(1S1.2.3)

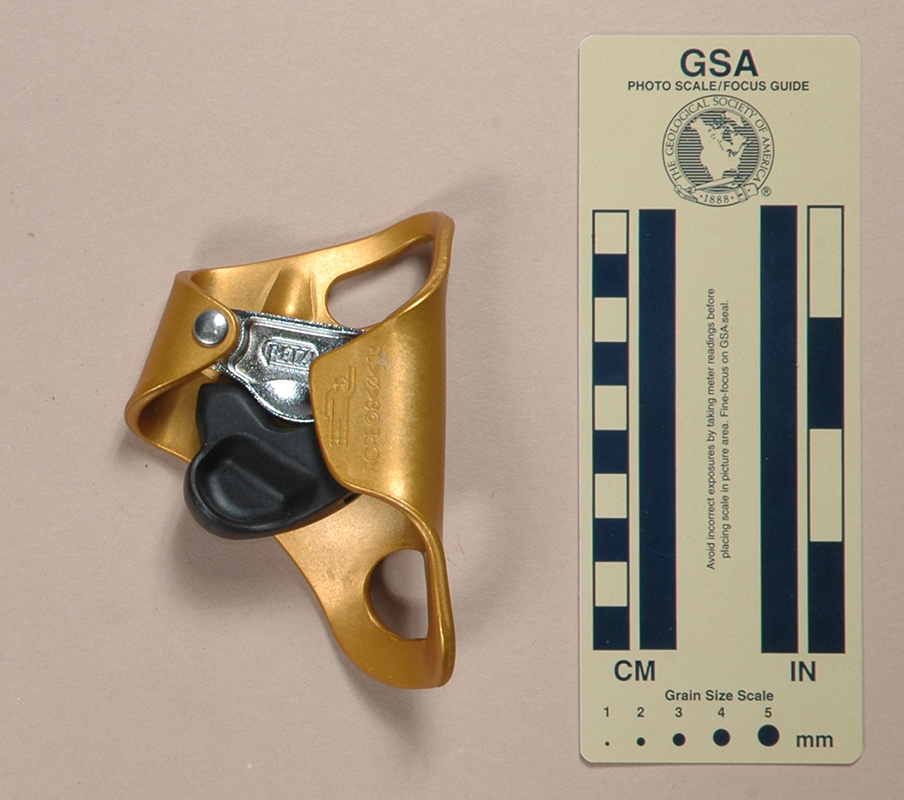

Petzl Croll, Version J 193
2081
Petzl Croll, Version J LH chest, stamped frame, large top hole, large oval bottom hole, stamped cam stop, semi-open web cam /w sloping teeth, plastic safety below cam
  • On Rope 1, 2005
  • Bob Thrun Collection, 2017
133 109 75 37 304 14.2 32° (3.1.4)(1S1.1S0.2S1)^2(1S1.2.3)

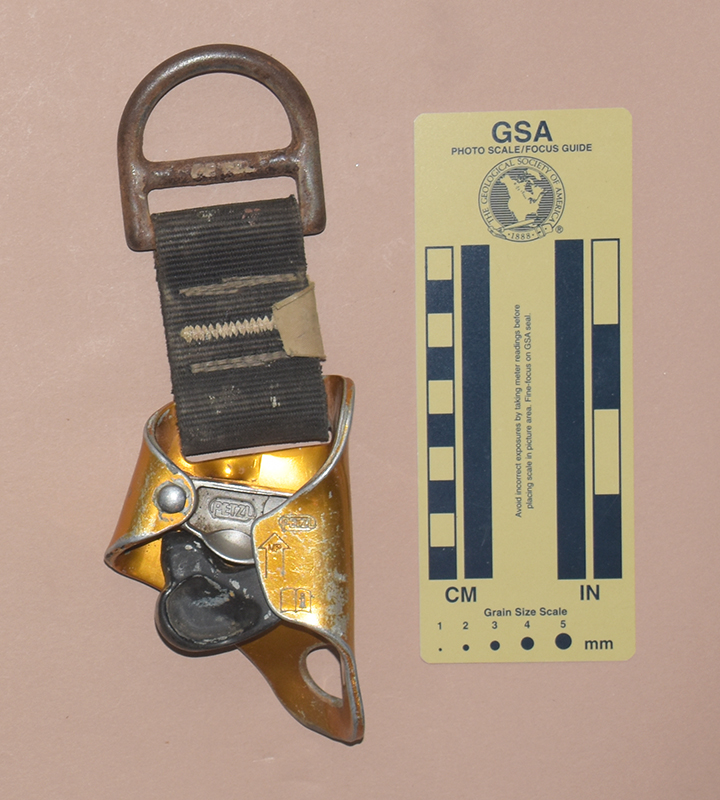

Petzl Croll, Version K 2371 Petzl Croll, Version K LH chest, stamped frame, top slot with webbing to D-ring,  large oval bottom hole, stamped cam stop, semi-open web cam /w sloping teeth, plastic safety below cam Stacey Sims, Leather and Lacy Acres (stacsim-6), 2018 238 109 78 37 315 15.3 32° (3.4)(1S1.2S2)^2(1S1.2.3)
Petzl Croll, Version L 1965
2064
Petzl Croll, Version L LH chest, stamped frame /w SS insert, large oval top & bottom holes, stamped cam stop, semi-web cam /w sloping teeth, plastic safety below cam
  • On Rope 1, 2013
  • Bob Thrun Collection, 2017
83 97 58 30 169 13.2 38° (3.4)((1S1)^2.2S2)^2(3.4.3)
PPetzl Croll, Version M  2372 Petzl Croll, Version M LH chest, stamped frame, oval top hole, irregular bottom hole, semi-web cam /w sloping teeth, plastic safety below cam On Rope 1, 2018 138 110 79 41 359 15.6 32° (3.4)(1S1)^2(2S2)(1S1)^4(3.4.3)

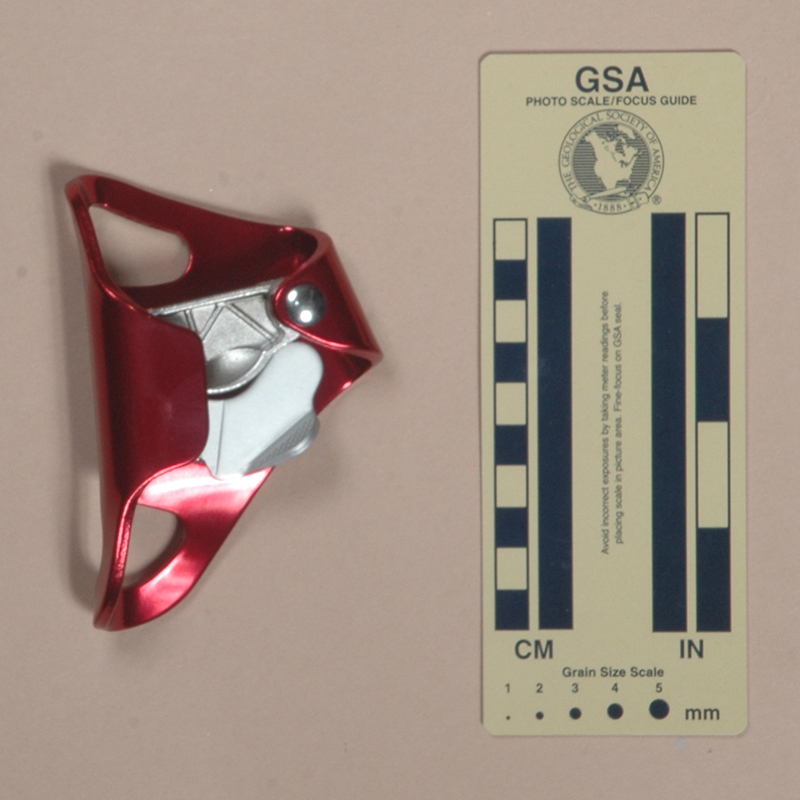

Proverti CD 201L 2020 Proverti CD 201L RH, stamped frame, pear top hole, D bottom hole, hybrid cam /w sloping teeth, tab safety below cam Ondřej Belica, 2015 137 110 74 33 269 16.3 39° (2.4)(1S1.2S2)^2(1S1)(2.3)

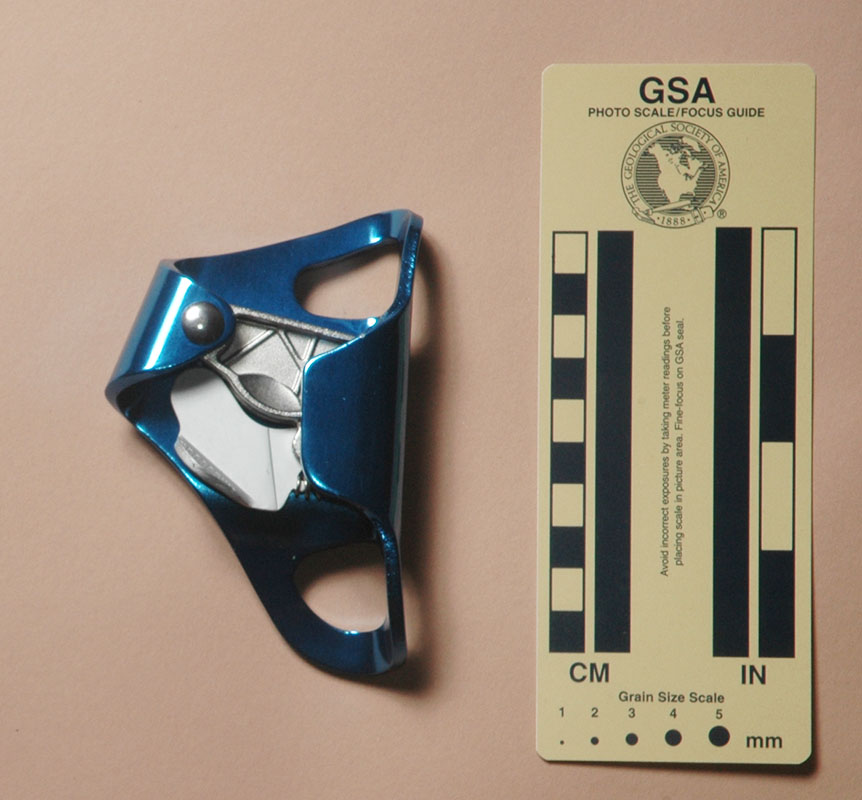

Proverti CD 202L 2035 Proverti CD 202L LH, stamped frame, pear top hole, D bottom hole, hybrid cam /w sloping teeth, tab safety below cam Ondřej Belica, 2015 137 110 74 33 269 16.3 39° (2.4)(1S1.2S2)^2(1S1)(2.3)

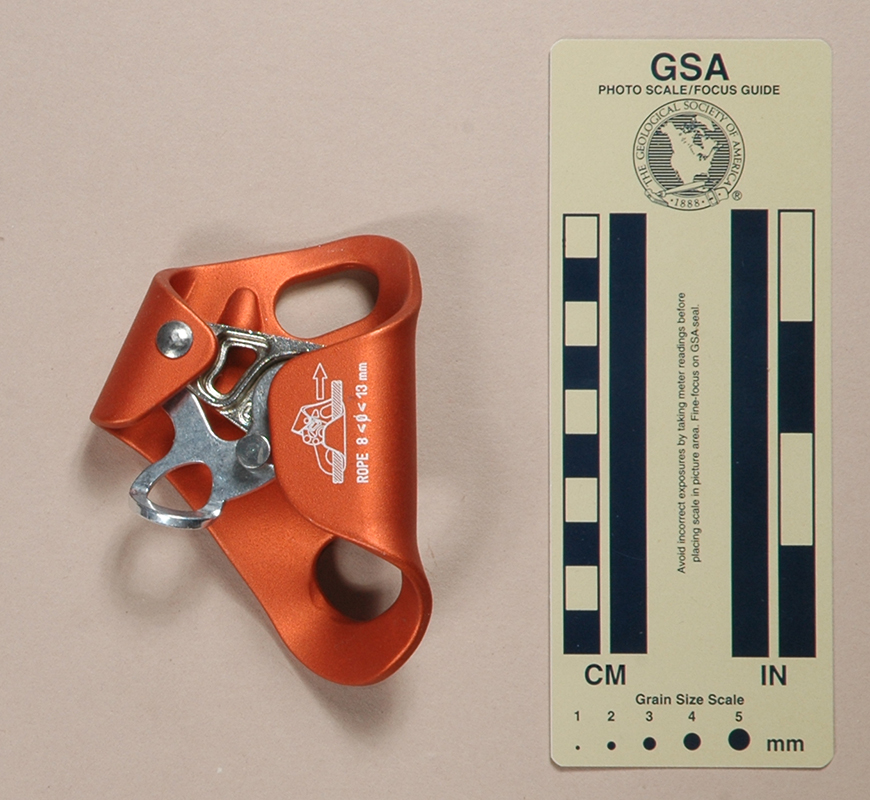

Repetto Cirano 247 Repetto Cirano LH chest, stamped frame, oval top hole, large oval bottom hole, hybrid cam /w sloping teeth, small loop safety with pivot on side of cam Expé-Spelemat, 2008 145 103 76 39 306 15.4 31° (3.4.2)(1H1.2)^3(3.2)
Rock Empire 2356 Rock Empire LH, chest, stamped frame, oval top & bottom holes, open-web cam /w sloping teeth, plastic-covered tab safety below cam Ondřej Belica / Climbing CZ sro, 2017 163 118 78 33 298 16.5 28° (3)^3(1S1)^5(3)^2
Rock Empire 2963 Rock Empire Chest Up LH, chest, stamped frame, oval top hole, bottom swivel eye, semi-web cam /w sloping teeth, plastic safety below cam Ondřej Belica / Climbing CZ sro, 2020 118 98 62 31 189 13.2 37° (2)^3(1S1.2S2.1S1)(2)^3(4^2)
Singing Rockk, Version A 2023 Singing Rock, Version A LH chest, stamped frame, oval top hole, large oval bottom hole, hybrid cam /w sloping teeth, small loop safety with pivot on side of cam Over the Ground, 2015 146 106 77 35 286 15.0 31° (3.4.2)(1H1.2)^3(3.2)

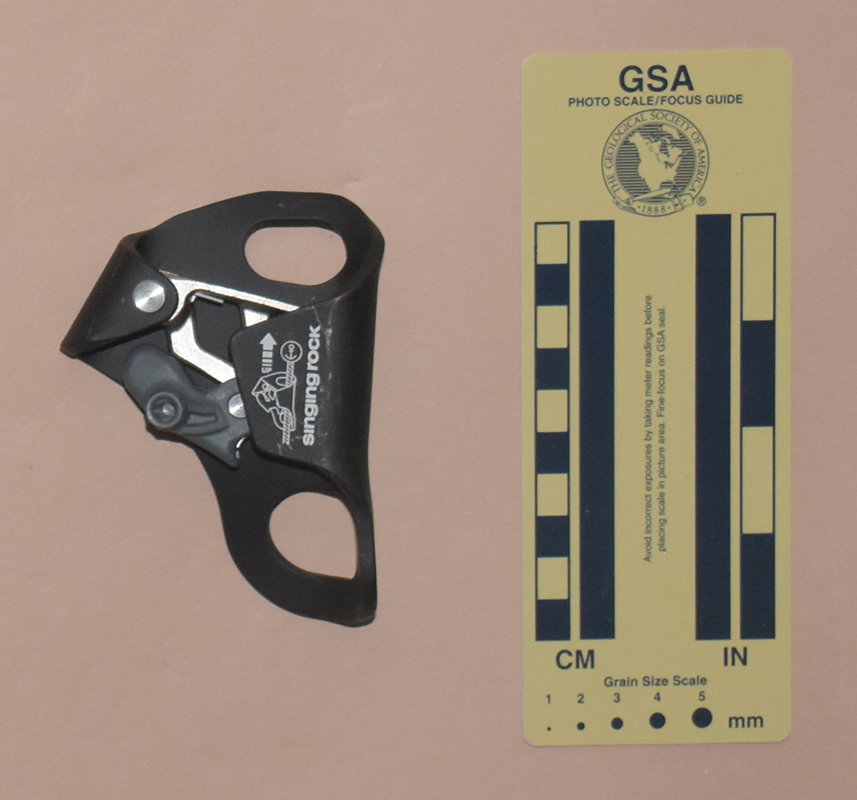

Singing Rockk, Version B 2962 Singing Rock, Version B LH chest, stamped frame, oval top hole, large oval bottom hole, braced cam /w sloping teeth, plastic safety below cam Ondřej Belica / Climbing CZ sro, 2020 127 101 77 35 271 14.5 33° (3)(4.1H1)^3(2.2.3.3)
Single Rope Technique A1 811 19
2155
Single Rope Technique Equipment A1 811 LH chest, extruded frame, round top & bottom holes, semi-web cam /w straight teeth, pin safety below cam
  • Inner Mountain Outfitters, 1994
  • Bob Thrun Collection, 2017
225 113 76 39 335 14.3 25° (3.4)^2(5.4)^2(3.4)^2(F)

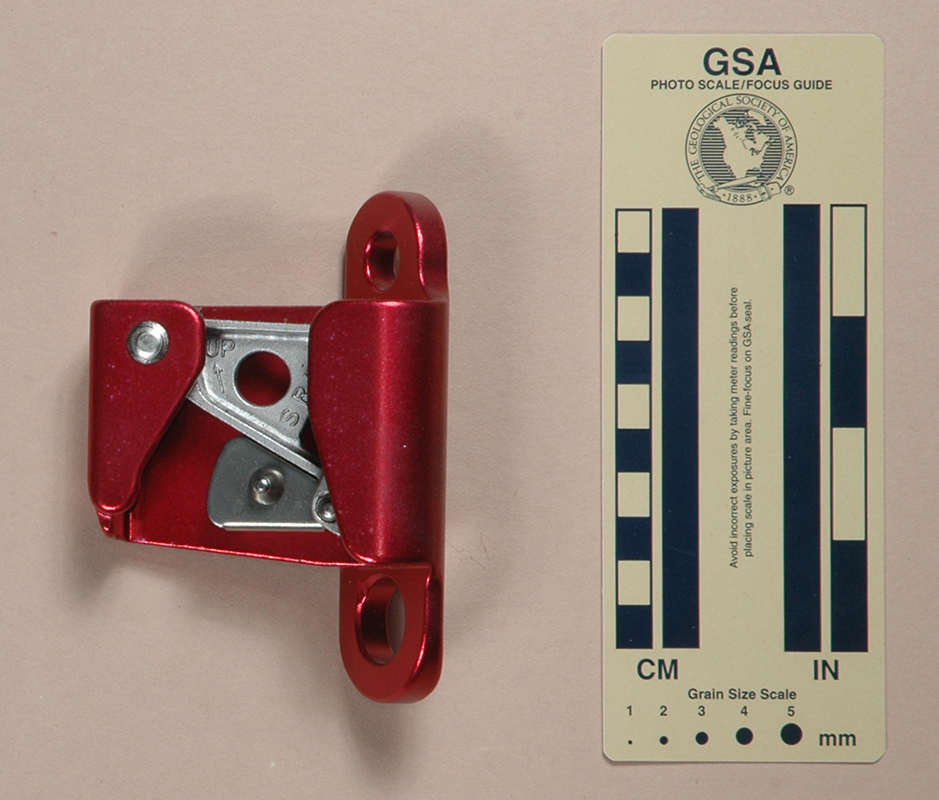

Single Rope Technique A4 816 L 148 Single Rope Technique Equipment A4 816 L LH chest, 16 mm rope, extruded frame, round top & bottom holes, semi-web cam /w straight teeth, pin safety below cam Single Rope Technique Equipment, 2000 292 116 80 43 398 17.9 29° (3.4)^2(5.4)^2(3.4)^2(F)
Single Rope Technique A4-816, Version A 17
2153
Single Rope Technique Equipment A4-816, Version A LH chest, extruded frame, round top & bottom holes, semi-web cam /w straight teeth, pin safety below cam
  • Single Rope Technique Equipment, 1989
  • Bob Thrun Collection, 2017
279 118 81 46 438 17.7 27° (4.5)^3, (4.3)^2(4)
Single Rope Technique A4-816, Version B 2154 Single Rope Technique Equipment A4-816, Version B LH chest, extruded frame, round top & bottom holes, semi-web cam /w straight teeth, pin safety below cam Bob Thrun Collection, 2017 292 115 80 43 393 17.7 27° (4.5)^3, (4.3)^2(4)
Single Rope Technique / Rollgliss / DBI Sala Rescue Explorer 1959
2098
Single Rope Technique Equipment / Rollgliss / DBI Sala Rescue Explorer LH chest, extruded frame, top slot & oval bottom holes, semi-web cam /w straight teeth, pin safety below cam
  • ropeandrescue.com, 2013
  • Bob Thrun Collection, 2017 (2)
  • Lance Swartwout, 2019
178 102 65 24 162 14.4 22° (4.5)^3, (4.3)^2(4)
SOB RB16 AAA 1961
2151
SOB RB16 AAA LH chest, stamped frame, large top hole, large oval bottom hole, hybrid cam /w sloping teeth, tab safety below cam
  • Xuefei Liu, 2013
  • Bob Thrun Collection, 2017
140 114 82 34 318 16.8 33° (4)(1S1.2S2.1S1)(4)(1S1)^4(4)
SOB, Version B 2912 SOB, Version B LH chest, stamped frame, long oval top hole, large oval bottom hole, stamped cam stop, hybrid cam /w sloping teeth, tab safety below cam Strade FarEast Ltd. (perfeclan), 2019 138 107 80 30 259 15.6 30° (4.2)(2S2.1S1)(4)(1S1)^3(2.4)
Spent Prsní, nožní 1958 Spent Prsní, nožní LH chest, stamped frame, round holes, pin cam stop, Al plate cam /w hard insert teeth, pin safety below cam Ondřej Belica, 2013 165 127 81 37 381 15.2 22° (3.2)^5

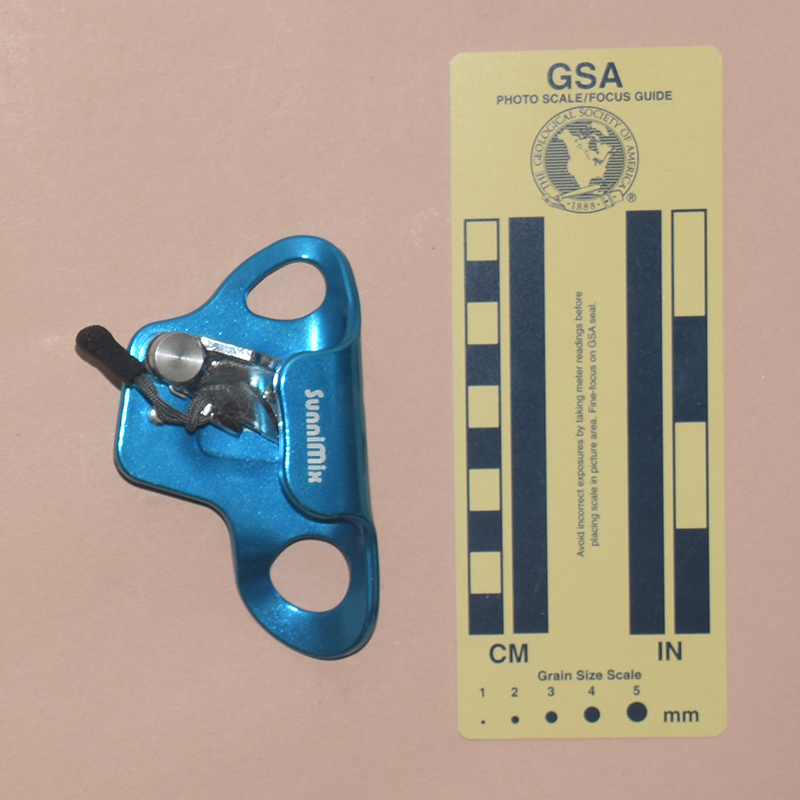

SunniMix 2908 SunniMix LH chest, stamped frame, pear top and round bottom hole, drooped cam /w sloping teeth, tab safety /w pull cord below cam motorpartsvalue, 2019 99 102 60 34 209 14.6 35° (3.4)(1H1)(2.3)(1H1)(2.3)(H)(4.3)

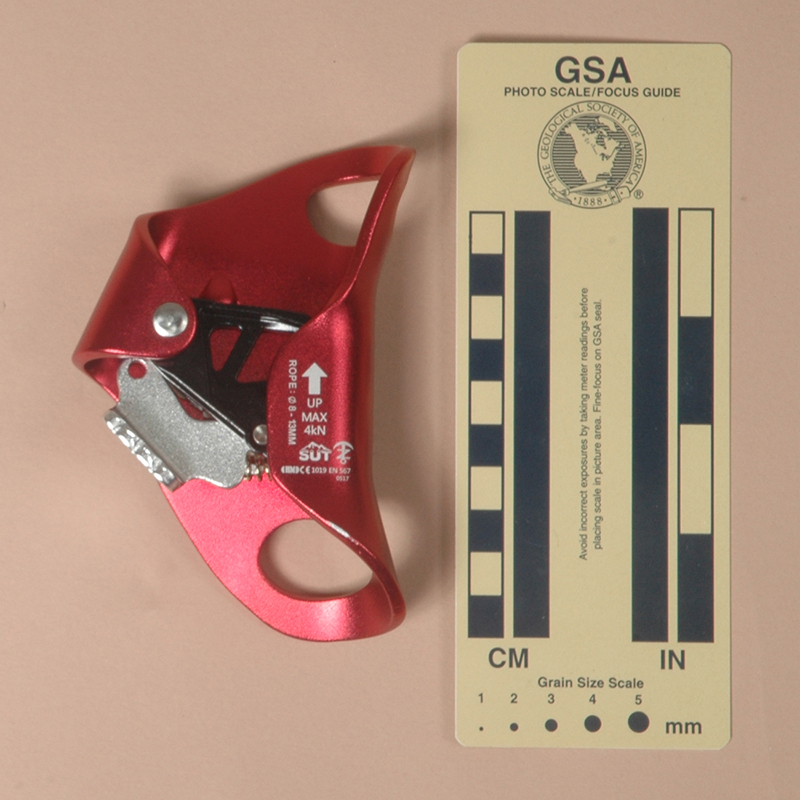

SUT 2334 SUT LH chest, stamped frame, oval holes, stamped cam stop, braced cam /w straight teeth, tab safety below cam Suntek, 2017 160 116 80 39 368 14.7 31° (3)(4.H)^2(3.H)^2(3.2.2)
Tupa 2913
2914
Tupa LH, chest, stamped frame, subtriangular top & oval bottom hole, hybrid cam /w straight teeth, tab safety below cam Ling Rukuan, Yuanyiguang Technology (colorsleaf), 2019 145 114 79 33 293 15.5 25° (3.4)(1S1.1S1)(4)(1S1)^3(2.3.2.2.3)

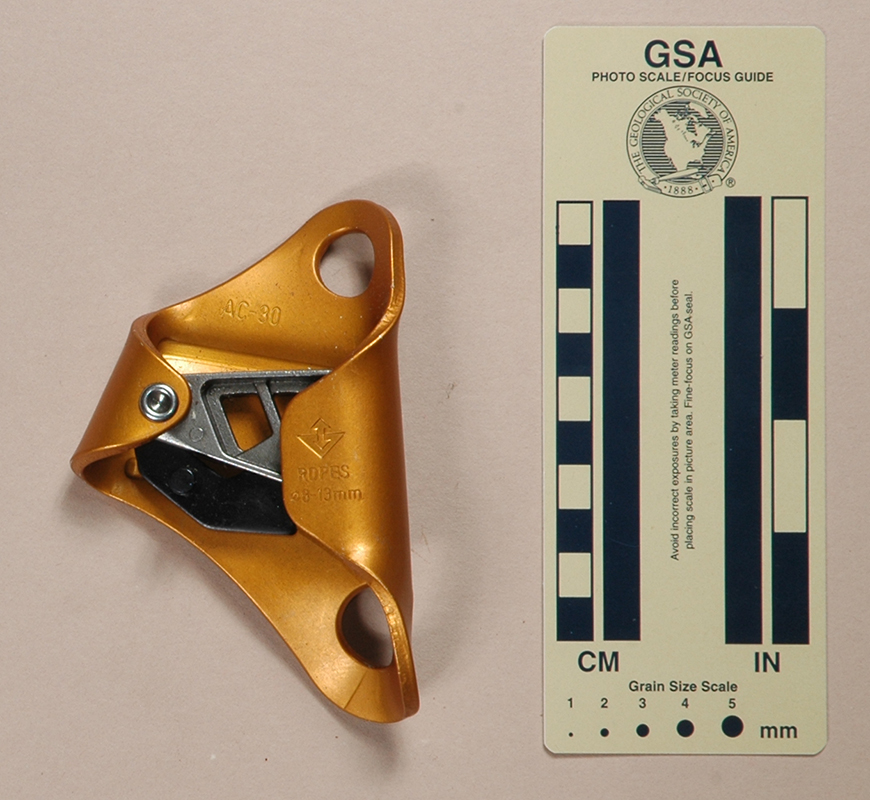

VauDe AC-30 Chest Ascender 140 VauDe AC-30 LH chest, stamped frame, oval top hole, large oval bottom hole, braced cam /w sloping teeth, pin safety below cam Inner Mountain Outfitters, 1999  147 109 76 33 273 15 24°  (3.2)^2(1.2)^2(B)
Vento 2377 Vento LH, chest, stamped frame, oval top & bottom holes, asymmetrical open-web cam /w sloping teeth, tab safety below cam Artyom Babin (Артём Бабин), 2019 164 116 76 40 350 14.8 29° (3)^3(1S1)^5(3)^2
Vertical, Version A 2378 Vertical, Version A LH, chest, stamped frame, oval top & bottom holes, pin cam stop, semi-web cam /w straight teeth, cast Al safety below cam Artyom Babin (Артём Бабин), 2019 141 107 73 38 293 15.4 32° (3.4)(1S1.2S2)^3(3)
Vertical, Version B 2379 Vertical, Version B LH, chest, stamped frame, oval top & bottom holes, pin cam stop, semi-web cam /w straight teeth, cast Al safety below cam Artyom Babin (Артём Бабин), 2019 143 107 73 40 309 15.4 32° (3.4)(1S1.2S2)^3(3)

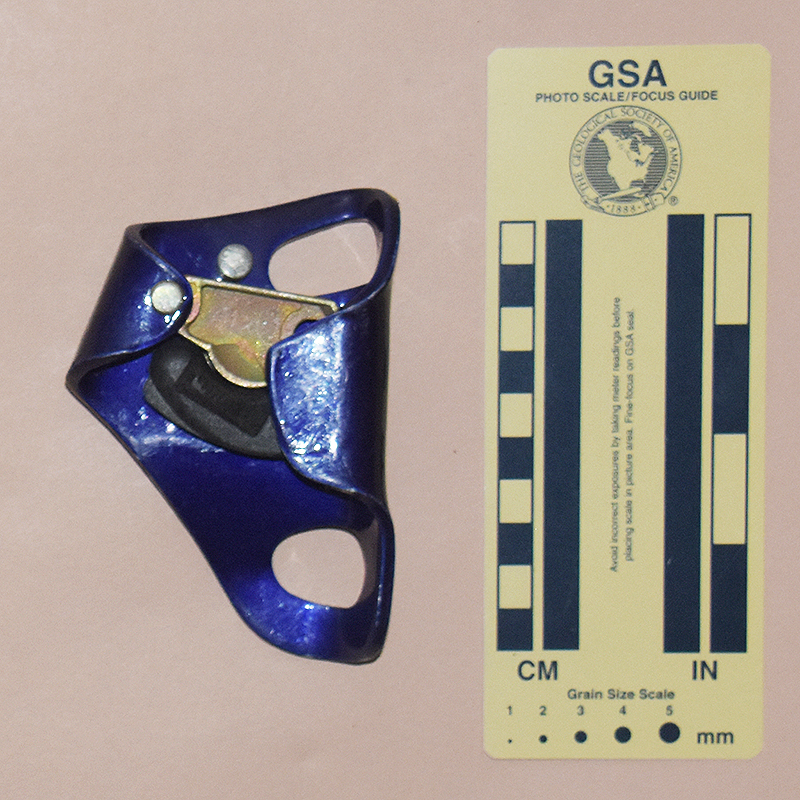

Vertical, Version C 2930 Vertical, Version C LH, chest, stamped frame, oval top & bottom holes, pin cam stop, semi-web cam /w straight teeth, plastic safety below cam Artyom Babin (Артём Бабин), 2019 133 109 76 38 316 15.5 32° (3.4)(1S1.2S2)^3(3)
Vertical, Version C 2975 Vertical, Version D LH, chest, stamped frame, oval top & bottom holes, pin cam stop, semi-web cam /w straight teeth, plastic safety below cam Artyom Babin (Артём Бабин), 2020 138 108 75 38 309 15.4 mm 30 (3.4)(1S1.2S2)^2(1S1)^2(3)
Walkosz i Spółka Chest, Version A 20 Walkosz i Spółka Chest, Version A LH, chest, stamped frame, round top & bottom holes, semi-open web cam /w sloping teeth, knob safety below cam John E. Weinel, Inc. 144 115 79 37 336 15.5 23° (3.2)^2(4)(3.2)^2(1.2)
Walkosz i Spółka Chest, Version B 2141 Walkosz i Spółka Chest, Version B LH, chest, stamped frame, round top & bottom holes, pin cam stop, hybrid cam /w sloping teeth, pin safety below cam Bob Thrun Collection, 2017 158 118 77 37 340 15.2 24° (1S1.2S2)^2(1S1)^4(2)
Wildken 3416 Wildken LH, chest, stamped frame, oval top & bottom holes, semi-web cam /w sloping teeth, plastic safety below cam Amazon.com, 2021 121 110 71 39 303 13.3 31° (3.2)(1S1)^3(2S2)(1S1)^3(3.4.3)
Xinda, Version A 2328 Xinda, Version A LH, chest, stamped frame, oval top & bottom holes, open-web cam /w sloping teeth, tab safety below cam Kuang Kianjin, 2017 159 118 81 35 335 16.5 28° (3)^3(1S1)^5(3)^2

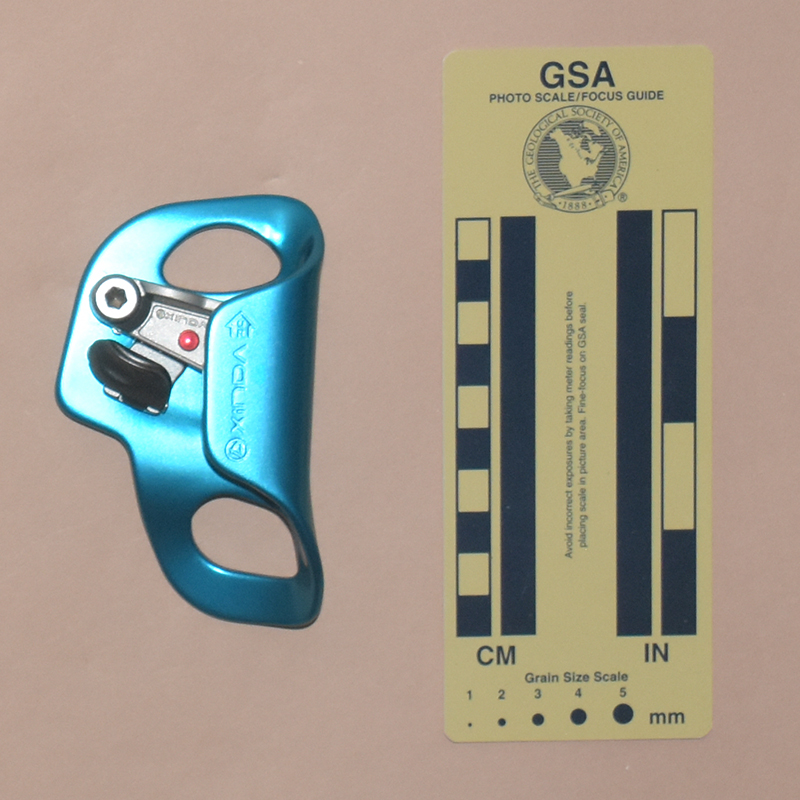

Xinda, Version B 2957 Xinda, Version B LH, chest, stamped frame, D top & irregular holes, drooped cam /w cutouts & straight teeth, folding tab safety below cam Pan Shaobin, 2020 110 102 63 32 205 15.9 37° (3.3.4.2)(2S2)(1S1)^4(3.4.3)

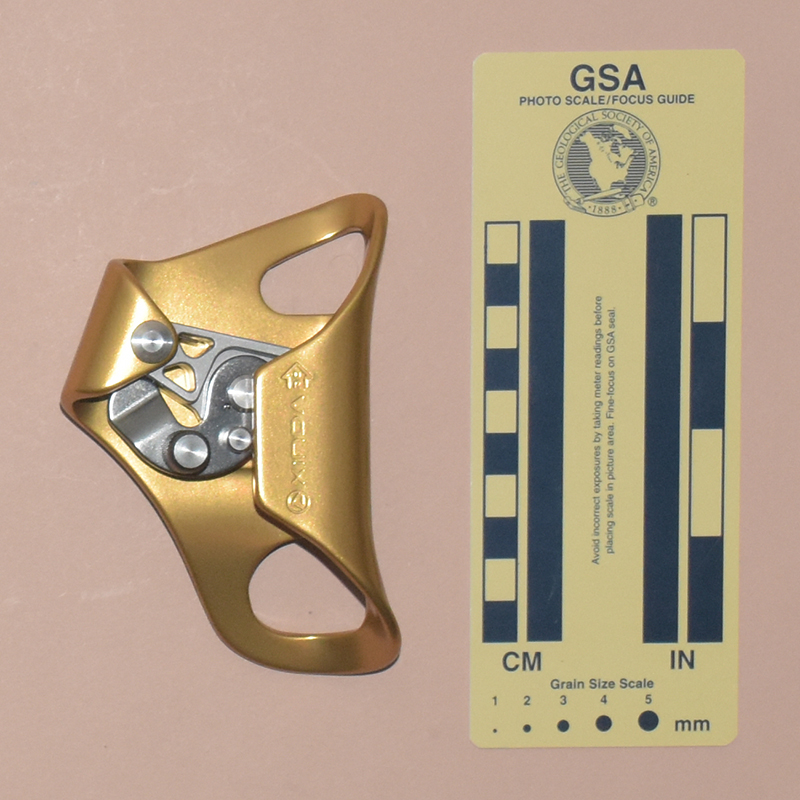

Xinda, Version C 3408 Xinda, Version C LH, chest, stamped frame, subtriangular top & oval bottom hole, hybrid cam /w sloping teeth, pin safety with pivot on side of cam e4store, 2021 144 113 78 34 304 15.5 33° (3.4)(1S1)^2(4)((1S1)^3(2.3.2.2.3)
Yoke 1970
2101
Yoke LH, chest, stamped frame, oval top & bottom holes, asymmetrical open-web cam /w sloping teeth, tab safety below cam
  • Kwikspace, 2014
  • Bob Thrun Collection, 2017
166 117 79 40 374 16.5 27° (3)^3(1S1)^5(3)^2
