Handled Eccentric Cam Ascenders
Milled Frame

This section includes mechanical ascenders consisting of a shell or frame and an eccentric cam assembly attached to the shell/frame at a single pivot point. The shell/frame is open on one side to allow admittance of the standing rope. The shell/frame below the cam is enlarged to provide a handle. No sling attachment points are provided on the cam.

These ascenders are generally larger and heavier than the handleless eccentric cam ascenders; conversely, they are easier to manipulate, particularly with gloved hands. I don't normally wear gloves while ascending (except in cold conditions), but many people prefer to do so.

I split the Handled Eccentric Cam Ascenders into these four groups:

Most milled frame ascenders made by milling an aluminum extrusion. This process can yield extremely rugged ascenders, and I prefer them in harsh environments. The extrusion process limits the possible shapes for the handle, and so these ascenders are often less comfortable than their cast frame cousins. Some extruded frame ascenders are quite heavy, but others, especially the Kong Futura, are quite light.

In the ID column and chart, I used a red background for cast-frame ascenders, green for milled-frame ascenders, and blue for stamped-frame ascenders. Magenta indicates a two-rope ascender.

Gallery

Image ID Device Description Acquired Weight Height Width Thickness Std. volume Channel Diameter Cam Angle Tooth Pattern
CMI 5000, Version A 2221 CMI 5000, Version A RH, extruded frame, round top & 2  round bottom holes, open-web cam /w straight teeth, safety lever above cam Bob Thrun Collection, 2017 229 184 76 27 381 14.6 29° (2)(5.4)^4(3.4)^2(3.2)^2

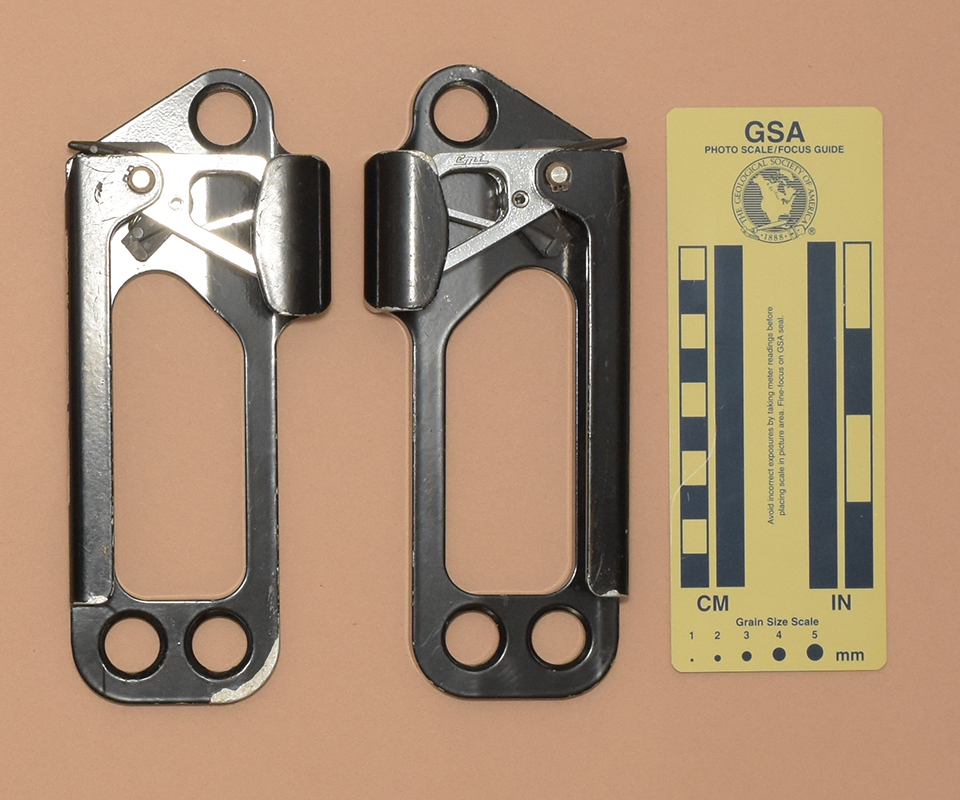

CMI 5000, Version B 2225 CMI 5000, Version B LH & RH, extruded frame, round top & 2  round bottom holes, open-web cam /w straight teeth, safety lever above cam Bob Thrun Collection, 2017 228 184 76 27 381 14.6 29° (2)(5.4)^4(3.4)^2(3.2)^2
CMI 5000, Version C 2222 CMI 5000, Version C LH, extruded frame, round top & 2  round bottom holes, open-web cam /w straight teeth, safety lever above cam Bob Thrun Collection, 2017 230 185 76 31 431 14.6 29° (2)(5.4)^4(3.4)^2(3.2)^2
CMI 5000, Version D 2299 CMI 5000, Version D LH, extruded frame, round top & 2 round bottom holes, open-web cam /w straight teeth, safety lever above cam Bob Thrun Collection, 2017 230 184 76 31 433 14.6 29° (2)(5.4)^4(3.4)^2(3.2)^2
CMI 5000, Version E 27 CMI 5000, Version E LH & RH, extruded frame, round top & 2  round bottom holes, open-web cam /w straight teeth, safety lever above cam Speleoshoppe, 1979 226 183 76 31 430 14.3 28° (2)(5.4)^4(3.4)^2(3.2)^2

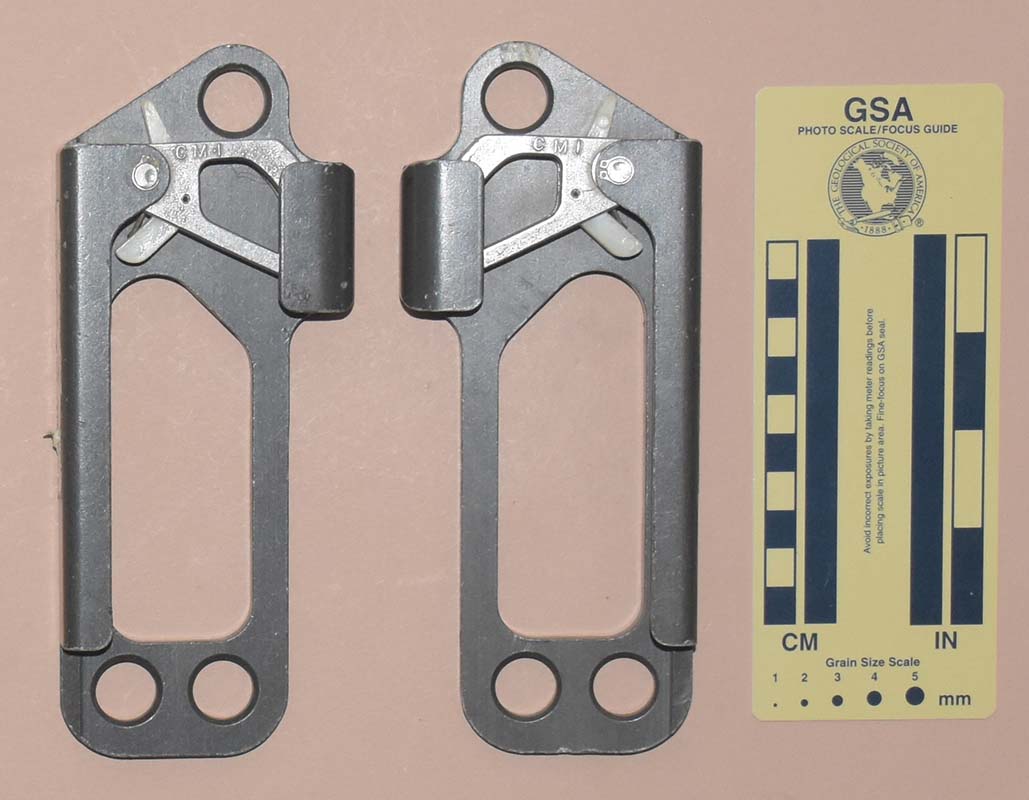

CMI 5000, Version F 3418
3433
CMI 5000, Version F LH & RH, extruded frame, round top & 2  round bottom holes, open-web cam /w straight teeth, safety lever above cam
  • Robert Quast, 2021
  • T. Renerce, 2021
230 184 76 31 430 14.6 29° (2)(5.4)^4(3.4)^2(3.2)^2
CMI 5000, Version G 2220 CMI 5000, Version G RH, extruded frame, round top & 2  round bottom holes, open-web cam /w straight teeth, safety lever above cam Bob Thrun Collection, 2017 227 184 76 27 381 14.6 29° (2)(5.4)^4(3.4)^2(3.2)^2
CMI 5000, Version H 292
2219
CMI 5000, Version H
(a.k.a. 5001)
LH & RH, extruded frame, round top & 2  round bottom holes, open-web cam /w straight teeth, safety lever above cam
  • Dean Berkbigler, 2009
  • Bob Thrun Collection, 2017
210 184 76 27 378 14.6 29° (2)(5.4)^4(3.4)^2(3.2)^2
CMI 5002 2385 CMI 5002, Version A LH & RH, extruded frame, round top & 2  round bottom holes, open-web cam /w straight teeth, safety lever above cam Michael Schultz, 2019 219 184 77 28 387 14.3 28° (3)(5.4)^4(3.4)(3.2)^3
CMI 5002 28
170
1545
2224
CMI 5002, Version B LH & RH, extruded frame, round top & 2  round bottom holes, open-web cam /w straight teeth, safety lever above cam
  • Speleoshoppe, 1989
  • Barry Kooda, 2004
  • Daniel Abend, 2011 (given to Артём Бабин)
  • Bob Thrun Collection, 2017
220 184 76 28 388 14.3 28° (3)(5.4)^4(3.4)(3.2)^3
CMI 5003 29 CMI 5003 LH & RH, extruded frame, round top & 2  round bottom holes, braced cam /w straight teeth, safety lever above cam Bob & Bob, 1987 236 183 77 27 383 17.4 29° (5.4)^2(3.4)^3(3.2)
CMI 5004 30
2223
CMI 5004 LH & RH, extruded frame, round top & 2  round bottom holes, braced cam /w straight teeth, safety lever above cam
  • Bob & Bob, 1989
  • Bob Thrun Collection, 2017
245 183 78 29 404 17.5 29° (5.4)^2(3.4)^3(3.2)
CMI Large UltrAscender, Version A 31
2229
CMI Large UltrAscender, Version A LH & RH, plastic grip, extruded frame, round top & 2  round bottom holes, hybrid cam /w straight teeth, plastic safety in frame
  • John E. Weinel, Inc., 1989
  • Bob Thrun Collection, 2017
267 186 78 29 415 17.5 25° (4.3)^5(4)
CMI Large UltrAscender, Version B 114 CMI Large UltrAscender, Version B LH & RH, plastic grip, extruded frame, round top & 2  round bottom holes, hybrid cam /w straight teeth, plastic safety in frame Inner Mountain Outfitters, 1995 267 186 78 29 415 17.5 25° (4.3)^5(4)
CMI Large UltrAscender, Version C 216
2230
CMI Large UltrAscender, Version C LH & RH, plastic grip, extruded frame, round top & 2  round bottom holes, hybrid cam /w straight teeth, plastic safety in frame
  • Tetyana Zurigat, 2007
  • Bob Thrun Collection, 2017
263 187 78 28 414 17.5 25° (4.3)^5(4)
CMI Large UltrAscender, Version D 246 CMI Large UltrAscender, Version D LH & RH, plastic grip, extruded frame, round top & 2  round bottom holes, hybrid cam /w straight teeth, plastic safety in frame Inner Mountain Outfitters, 2008 271 186 77 27 384 17.5 25° (4.3)^5(4)
CMI Large UltrAscender, Version D (Modified) 115/116 CMI Large UltrAscender, Version D (Modified) LH & RH, modified grip, extruded frame, round top & 2  round bottom holes, hybrid cam /w straight teeth, plastic safety in frame Inner Mountain Outfitters, 2008
Modified by Gary Storrick, 2008
263 186 78 29 415 17.5 25° (4.3)^5(4)
CMI Small UltrAscender, Version A 32 CMI Small UltrAscender, Version A LH & RH, extruded frame, triangular top hole, hybrid cam /w straight teeth, plastic safety in frame John E. Weinel, Inc., 1989 187 129 78 29 288 17.5 25° (4.3)^5(4)
CMI Small UltrAscender, Version B 33
3460
CMI Small UltrAscender, Version B LH & RH, extruded frame, triangular top hole, hybrid cam /w straight teeth, plastic safety in frame
  • Inner Mountain Outfitters, 1991
  • On Rope 1, 2021
187 129 78 29 288 17.5 25° (4.3)^5(4)
CMI Small UltrAscender, Version C 1518
2228
CMI Small UltrAscender, Version C LH & RH, extruded frame, triangular top hole, hybrid cam /w straight teeth, plastic safety in frame
  • On Rope 1
  • Bob Thrun Collection, 2017
183 130 77 28 285 17.5 25° (4.3)^5(4)
CMI Small UltrAscender, Version D 229 CMI Small UltrAscender, Version D LH & RH, extruded frame, triangular top hole, hybrid cam /w straight teeth, metal safety in frame On Rope 1, 2007 189 130 77 28 283 17.5 25° (4.3)^5(4)
CMI Small UltrAscender, Version D (Modified) 34/35 CMI Small UltrAscender, Version D (Modified)
Star
LH & RH, extruded frame, triangular top hole, hybrid cam /w straight teeth, modified safety in frame Inner Mountain Outfitters, 2008
Modified by Gary Storrick, 2008
190 129 78 29 288 17.5 25° (4.3)^5(4)
International Safety Components, Version A 145
2211
International Safety Components, Version A LH & RH, extruded frame, plastic & metal grip, 1 oval top & 1 round bottom holes, braced cam /w straight teeth, knob safety below cam
  • Mountain Tools, 1999
  • Bob Thrun Collection, 2017
358 216 85 37 679 14 27° (4.3)^6(4)
International Safety Components, Version B 287 International Safety Components, Version B LH, extruded frame, plastic & metal grip, 1 oval top & 2 round bottom holes, braced cam /w straight teeth, knob safety below cam Michael McGuinn, 2009 369 218 82 32 566 14.7 24° (4.3)^6(4)
International Safety Components RP240 2024
2209
International Safety Components RP240 LH & RH, extruded frame, plastic & metal grip, 1 oval top & 2 round bottom holes, braced cam /w straight teeth, knob safety below cam, safety push-pin through cam channel
  • Aarond Reagan, 2015
  • Bob Thrun Collection, 2017
365 217 84 35 643 14.7 24° (4.3)^6(4)
Jumar, Swiss Rescue 1967
2177
Jumar, Swiss Rescue LH, extruded frame, triangular top and round bottom holes, open-web cam /w straight teeth, tab safety below cam
  • Bob Thrun, 2014
  • Bob Thrun Collection, 2017
249 182 98 30 529 16.0 29° (4.H)^2(3.H)^2(3.2.2)
Jumar, Swiss Rescue 2972/2973 Kailas Vector LH & RH, extruded frame, Oval top and sub-quadrilateral bottom holes, drooped cam /w cutouts & straight teeth, plastic safety below cam Amazon.com, 2020 168 189 88 28 465 15.1 35° (3.4)(1S1.2S2)^2(1S1.1.2)
Kong Hand Futura (Large grip) 1552
2103
Kong Futura (Large Grip) LH & RH, extruded frame, plastic grip, round bottom hole, open cam /w sloping teeth, tab safety /w pull cord below cam
  • On Rope 1, 2011
  • Bob Thrun Collection, 2017
131 139 85 24 281 14.0 32° (4)(5.2H2)^2(4.2)
Kong Futura (Small grip) 299 Kong Futura (Small Grip) LH & RH, extruded frame, plastic grip, round bottom hole, open cam /w sloping teeth, tab safety /w pull cord below cam On Rope 1, 2009 130 139 85 24 281 14.0 32° (4)(5.2H2)^2(4.2)

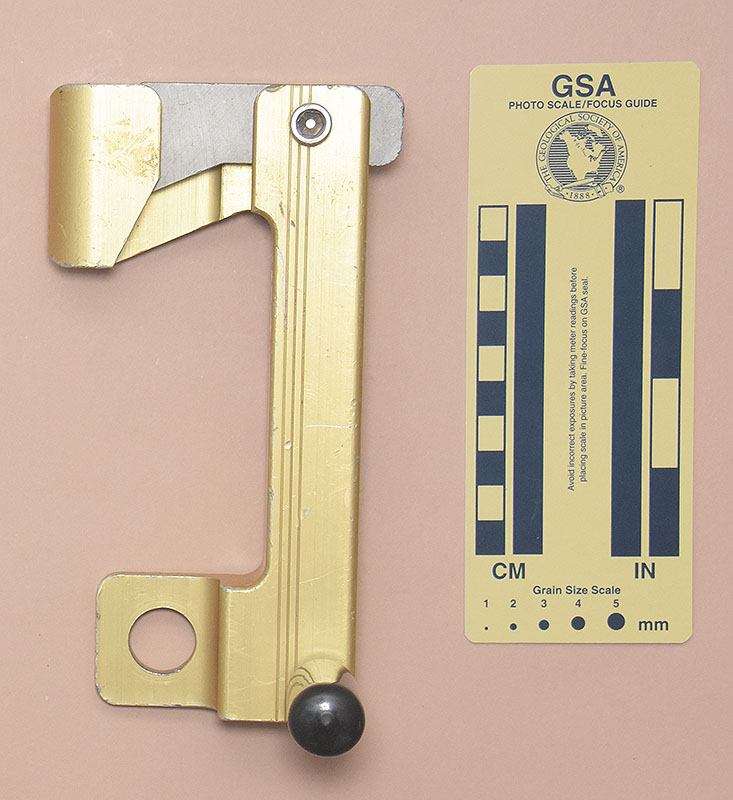

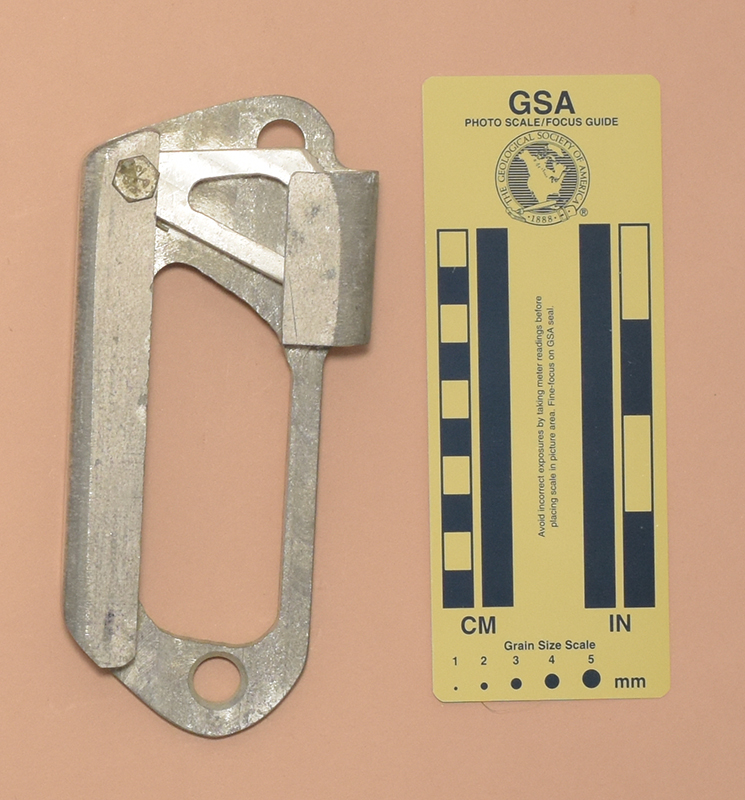

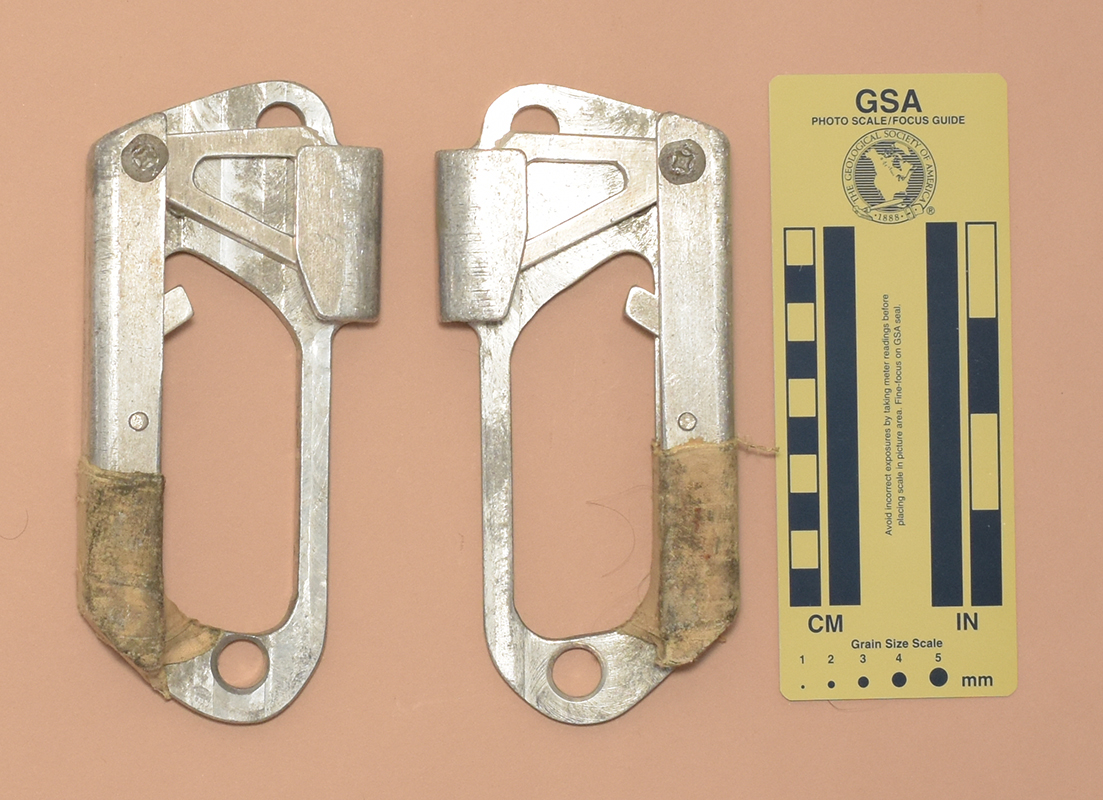

Krasnoyarsk Aircraft Repair Plant 3421 Krasnoyarsk Aircraft Repair Plant (Красноярский авиаремонтный завод) RH, milled Al frame, round top and vertical round bottom hole, open-web cam /w straight teeth, metal safety in frame Artyom Babin (Артём Бабин), 2021 269 180 72 32 413 14.7 24° (4.3)^6(4)
PMI Puma 157
2210
PMI Puma LH & RH, extruded frame, plastic & metal grip, 1 oval top & 2 round bottom holes, braced cam /w straight teeth, knob safety below cam
  • On Rope 1, 2001
  • Bob Thrun Collection, 2017
367 216 85 37 679 14.7 24° (4.3)^6(4)
Proverti CD 211 & CD 212 2021/2036 Proverti CD 211 & CD 212 LH & RH, milled frame, pear top & 2 round bottom holes, asymmetrical open-web cam /w sloping teeth, tab safety below cam Ondřej Belica, 2015 292 207 93 30 573 16.1 31° (3)(4.H)^2(3.H)^2(3.2.2)
Single Rope Technique Caver, 8-11 mm. 51
2214
2341
Single Rope Technique Equipment Caver, 8-11 mm. LH & RH, extruded frame, 2 round top & 2  round bottom holes, semi-web cam /w straight teeth, frame-mounted safety
  • KHS Sales, 1988
  • Bob Thrun Collection, 2017
  • Bill Liebman, 2017
251 185 76 25 358 13.9 26° (4.5)^3(4.3)^3
Single Rope Technique Caver, 8-15 mm. 52
53
2216
Single Rope Technique Equipment Caver, 8-16 mm. LH & RH, extruded frame, 2 round top & 2  round bottom holes, semi-web cam /w straight teeth, frame-mounted safety
  • J. E. Weinel, Inc., 1989
  • Single Rope Technique Equipments, 1989
  • Bob Thrun Collection, 2017
340 196 80 31 487 17.6 28° (4.5)^3(4.3)^2(4)
Single Rope Technique Climber 50
2215
Single Rope Technique Equipment Climber LH & RH, extruded frame, 2 round top & 2  round bottom holes, semi-web cam /w straight teeth, frame-mounted safety
  • Inner Mountain Outfitters, 1988
  • Bob Thrun Collection, 2017
215 135 76 25 261 13.9 26° (4.5)^3(4.3)^3
Single Rope Technique A1 Explorer 54
2213
Single Rope Technique Equipment A1 Explorer LH & RH, extruded frame, plastic grip, 2 round top & 2  round bottom holes, semi-web cam /w straight teeth, pin safety below cam
  • Inner Mountain Outfitters, 1994
  • Bob Thrun Collection, 2017
314 206 86 31 549 14.3 25° (4.3)^5(4)
Single Rope Technique A1 EXP 6 Large Explorer 147 Single Rope Technique Equipment A1 EXP 6 Large Explorer LH & RH, 16 mm rope, extruded frame, 2 top & 2 round bottom holes (different sizes), semi-web cam /w straight teeth, pin safety below cam Single Rope Technique Equipment, 2000 352 209 88 32 576 17.9 29° (3.4)^2(5.4)^2(3.4)^2(F)
Single Rope Technique / Rollgliss / DBI Sala A1 EXP 6L & 6R 2217
2218
Single Rope Technique Equipment / Rollgliss / DBI Sala A1 EXP 6L & 6R LH & RH, 16 mm rope, extruded frame, 2 top & 2 round bottom holes (different sizes), semi-web cam /w straight teeth, pin safety below cam
  • Bob Thrun Collection, 2017
  • Bob Thrun Collection, 2017
386 212 88 31 584 18.1 28° (3.4)^2(5.4)^2(3.4)^2(F)
Trango, Version A 1991 Trango RH, plastic grip, extruded frame, round top & 2  round bottom holes, semi-open web cam /w straight teeth, plastic safety in frame Jesse Albanese, 2015 246 187 72 23 309 15.5 22° (3)(2S2.1S1)^4(1S1)(3)
Yates Big Wall 291
2208
Yates Big Wall RH, stamped frame, plastic grip, oval + round top & round bottom holes, braced cam /w straight teeth, knob safety below cam
  • Acme Climbing, 2009
  • Bob Thrun Collection, 2017
370 217 84 32 588 14.6 24° (4.3)^6(4)

Handled eccentric Cam Ascender Weight Chart Double Cast Stamped
