Lever Box Descenders

Lever boxes are devices with the following four defining characteristics: (1) A body with a complex rope channel milled, cast, or otherwise formed into it, (2) a cover plate, (3) a lever that allows the rappeller to control the descent, yet automatically stops the descent if the rappeller lets go - at least in theory, and (4) a rope path that does NOT follow the S-shaped characteristic of bobbins, stop bobbins, and false bobbins (this allows me to call the SMC Spider a stop bobbin instead of a lever box). The enclosed rope path provides some protection, although it may be a liability in heavy mud. Lever boxes tend to be complex, and the corresponding manufacturing costs are reflected in their price.

Gallery

Image ID Device Description Acquired Weight Height Width Thickness Std. volume

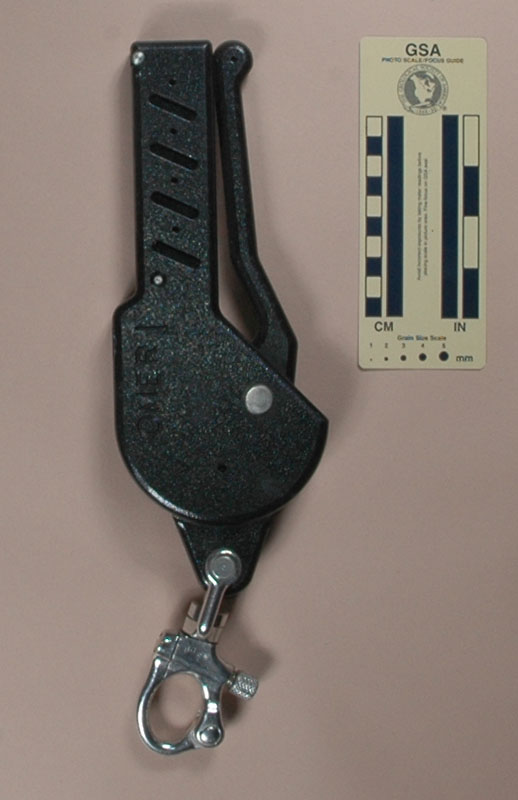

Omer 1 407 Omer 1 Milled, painted, 7 internal bars, handle moves bar #6 & brake for #7, hinged cover, quick release swivel eye. For 9 mm. rope. From Isreal. John E. Weinel, Inc., 1994 1055 270 150 45 1823

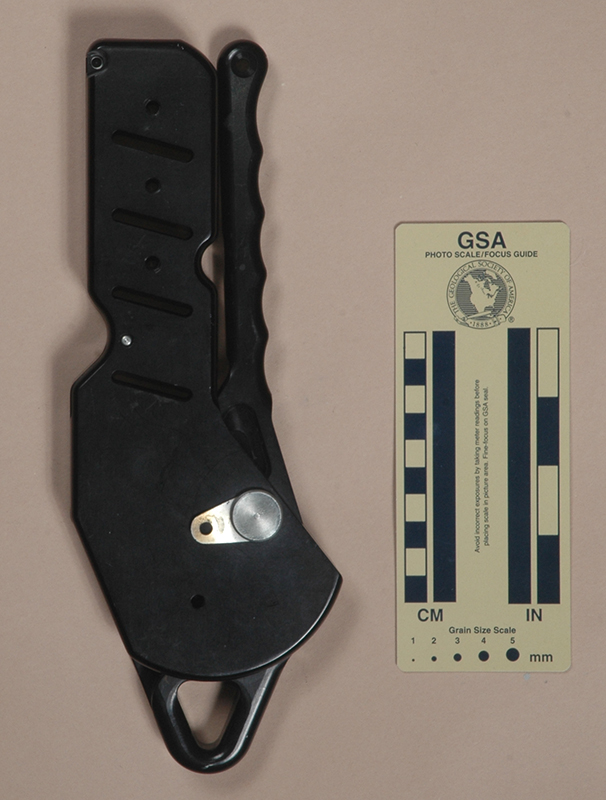

Rappel Master 11A 1456 Rappel Master 11A Milled, hard anodized, 6 internal bars, handle moves bar #5 & brake for #6, hinged cover, subtriangular eye. For 11mm rope. Steven M. Mattson, 2015 613 268 100 32 846

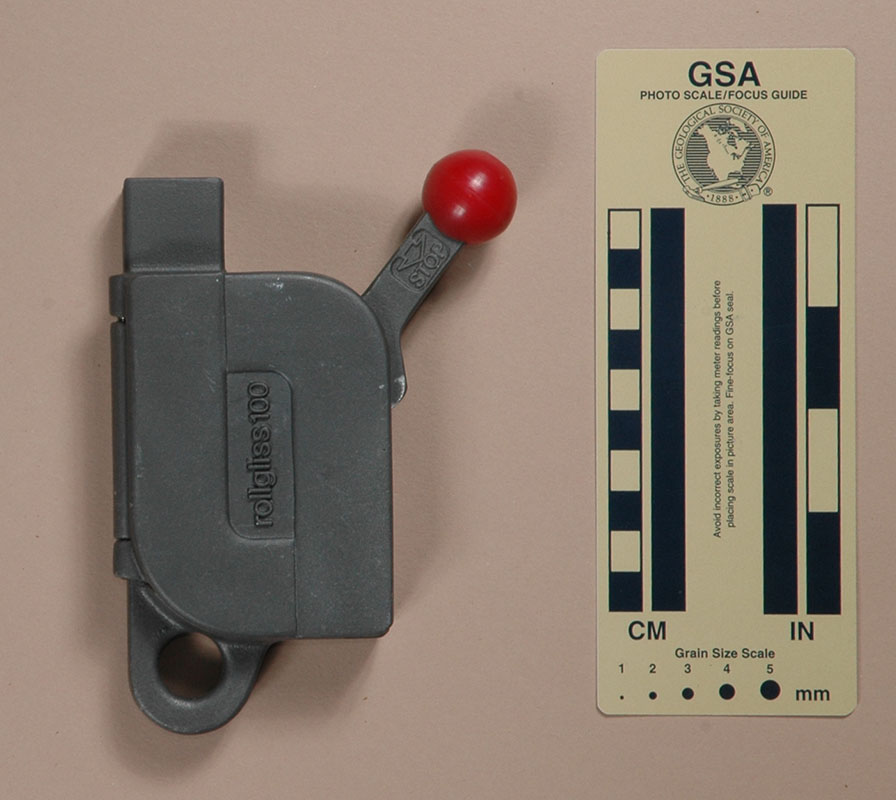

Rollgliss 100 906 Rollgliss 100 Milled cast Al, hard-anodized, internal spool, brake arm /w knob, bottom eye, Allen closure screw International Safety Equipment, 2001 349 152 76 29 328

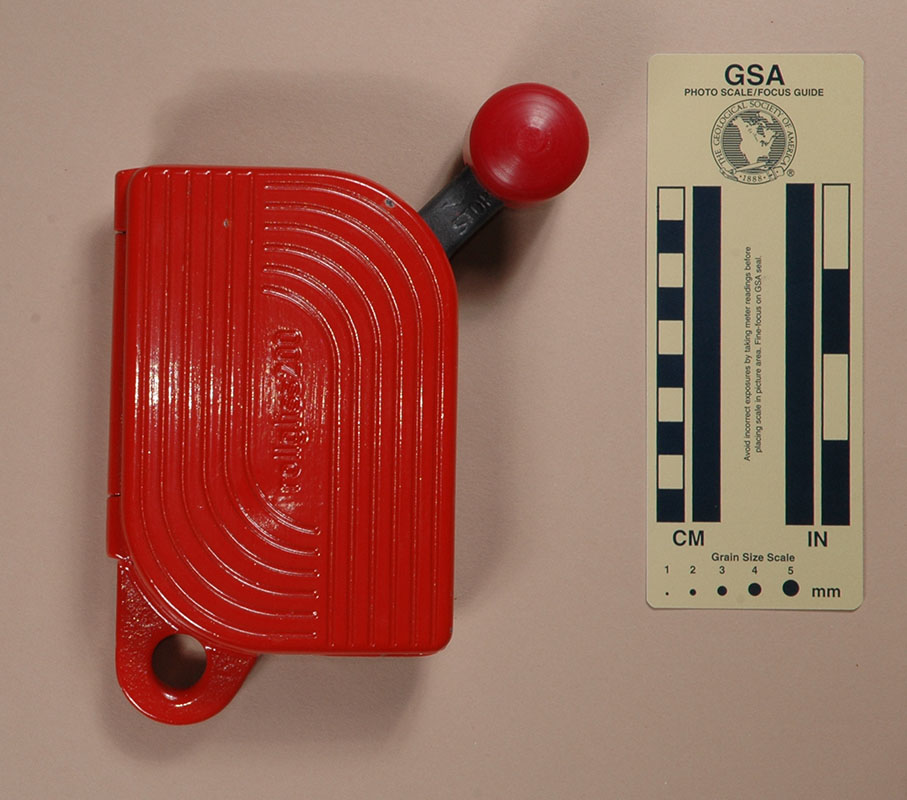

Rollgliss 200 Industrial, Version A 939 Rollgliss 200 Industrial, Version A Milled cast Al, painted, internal spool, brake arm /w knob, bottom eye, Allen closure screw. International Safety Equipment, 2004 695 163 102 49 812
Rollgliss 200 Industrial, Version B 940 Rollgliss 200 Industrial, Version B Milled Al, hard-anodized and painted, internal spool, fixed & brake arms, bottom eye, Allen closure screw, for 10 mm. rope. International Safety Equipment, 2004 795 199 108 37 802
Rollgliss 200 Industrial, Version C 941 Rollgliss 200 Industrial, Version C Milled Al, hard-anodized and painted, internal spool, fixed & brake arms, bottom eye, Allen closure screw, for 11 mm. rope. International Safety Equipment, 2004 800 199 108 37 802

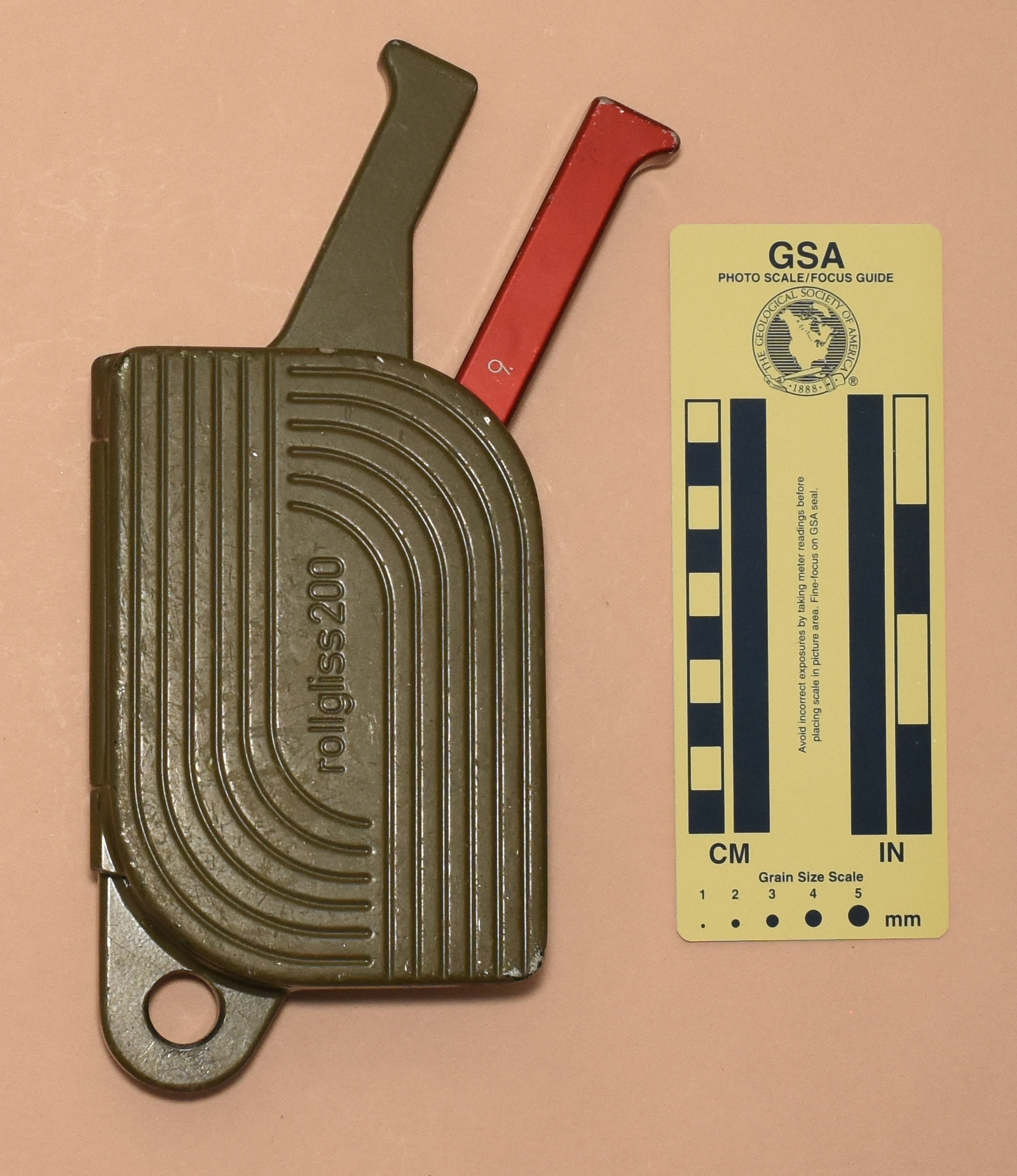

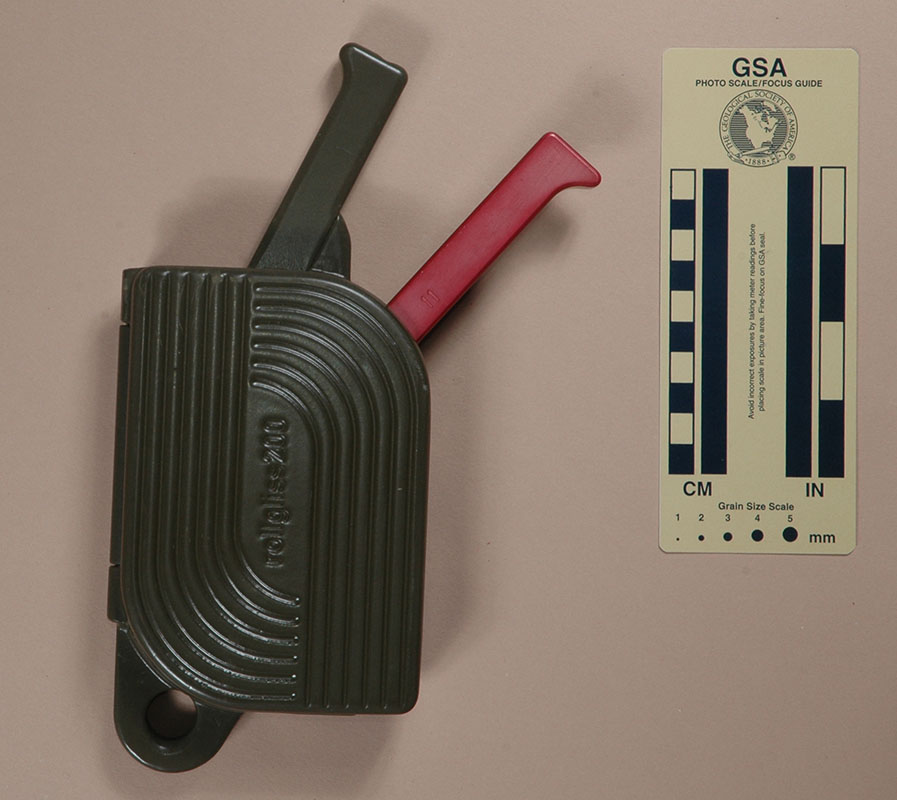

Rollgliss 200 Industrial, Version D 594 Rollgliss 200 Industrial, Version D
Milled Al, hard-anodized and painted, internal spool, fixed & brake arms, bottom eye, Allen closure screw, for 9 mm. rope. Jay Kennedy, 2001 849 237 108 37 955

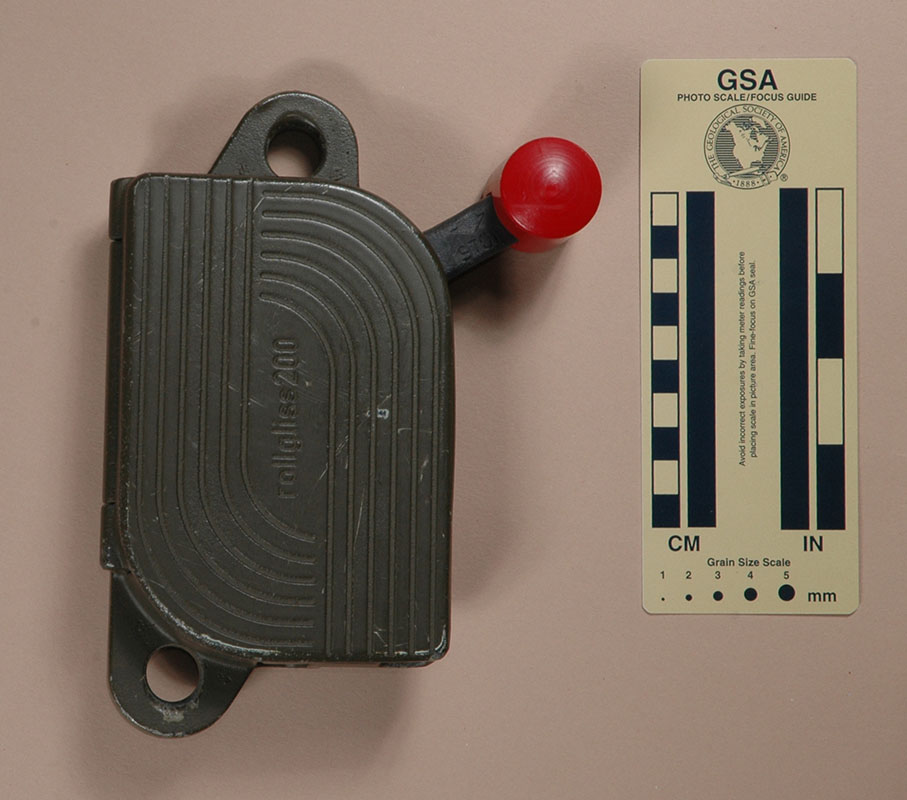

Rollgliss 200 Tactical, Version A 907 Rollgliss 200 Tactical, Version A Milled cast Al, painted, internal spool, brake arm /w knob, top & bottom eye, knurled opening knob International Safety Equipment, 2001 764 199 104 49 1010

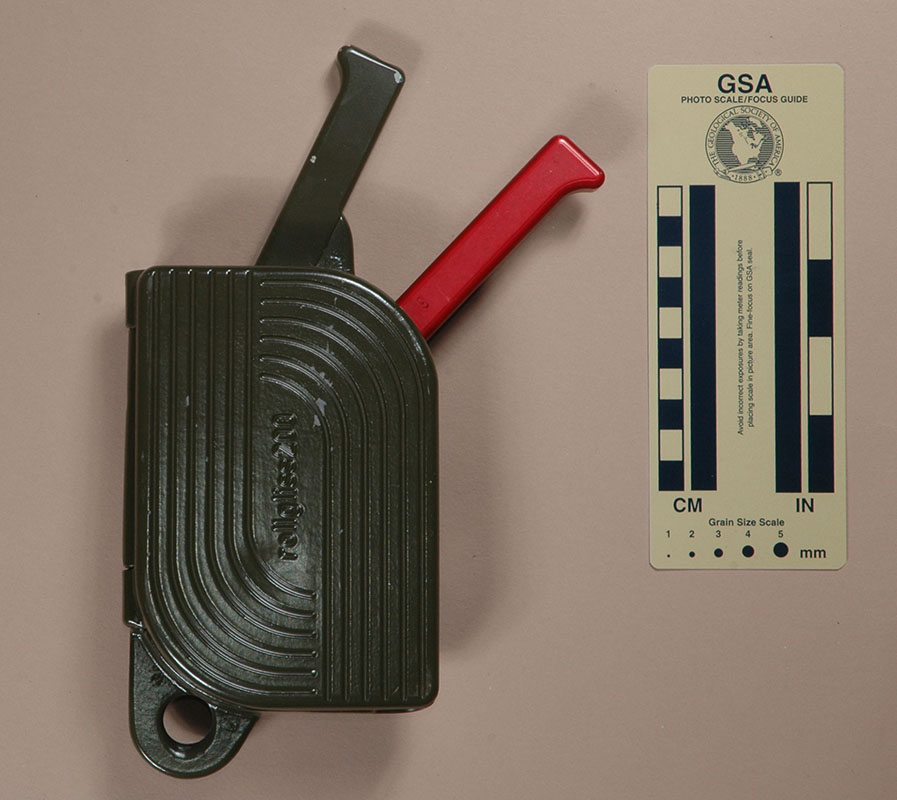

Rollgliss 200 Tactical, Version B 908 Rollgliss 200 Tactical, Version B Milled cast Al, painted, internal spool, fixed & brake arms, bottom eye, knurled opening knob International Safety Equipment, 2001 832 237 108 43 1101

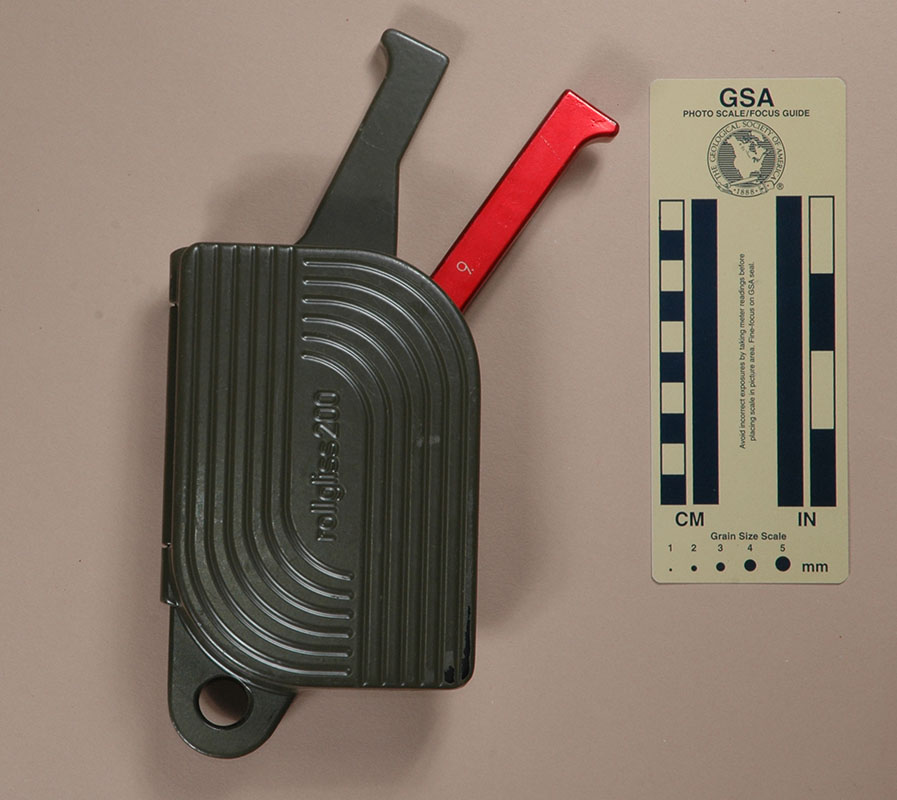

Rollgliss 200 Tactical, Version C 593 Rollgliss 200 Tactical, Version C
Star(!)
Milled Al, hard-anodized and painted, internal spool, fixed & brake arms, bottom eye, knurled opening knob Jay Kennedy, 2001 887 237 108 44 1124

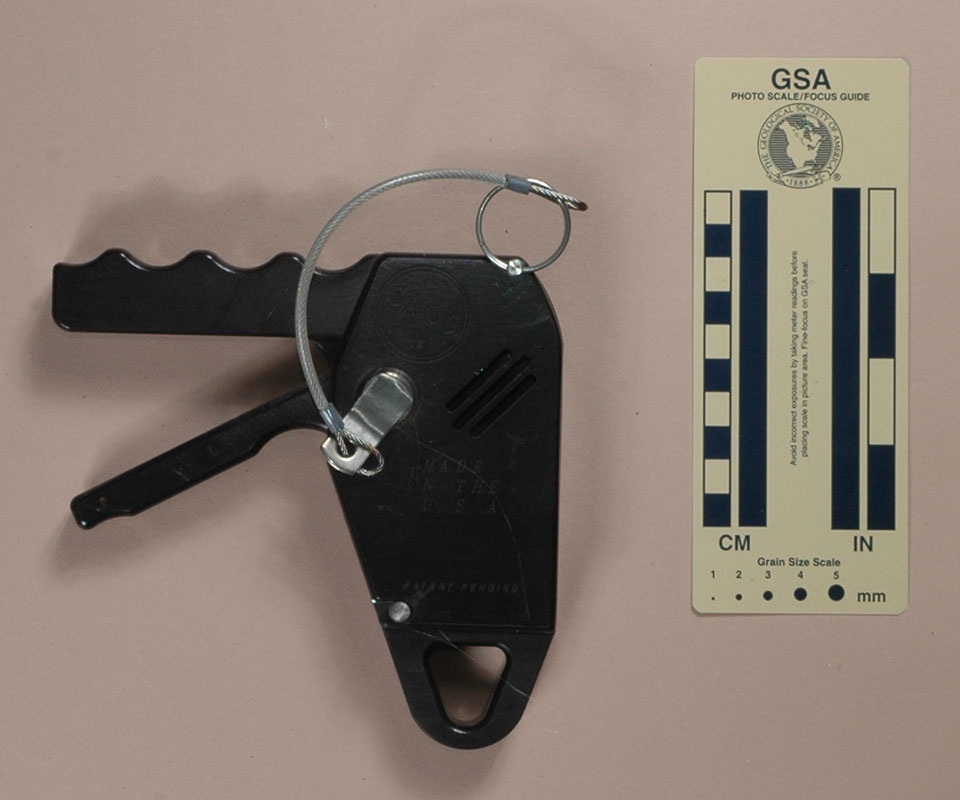

SALS Rappeller 911 SALS Rappeller Milled Al, soft anodized, handle moves internal brake, fixed & brake arms, hinged cover, QR-pin cover latch. Inner Mountain Outfitters, 2002 730 144 148 45 956

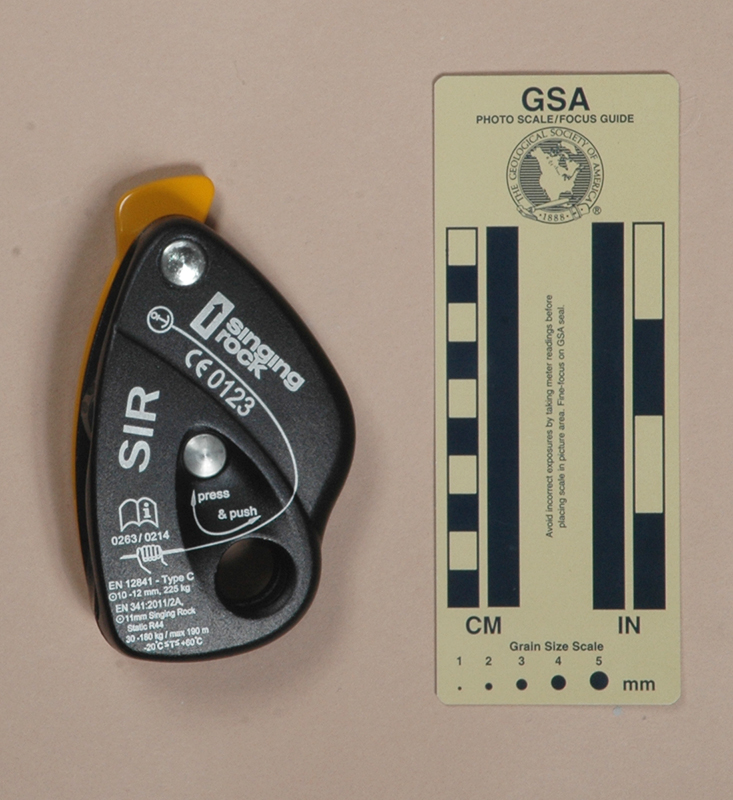

Singing Rock Sir 1851 Singing Rock Sir Forged Al frame, pivoting rope channel, spring loaded, hinged cover plate amazon.com, 2015 366 126 73 36 330

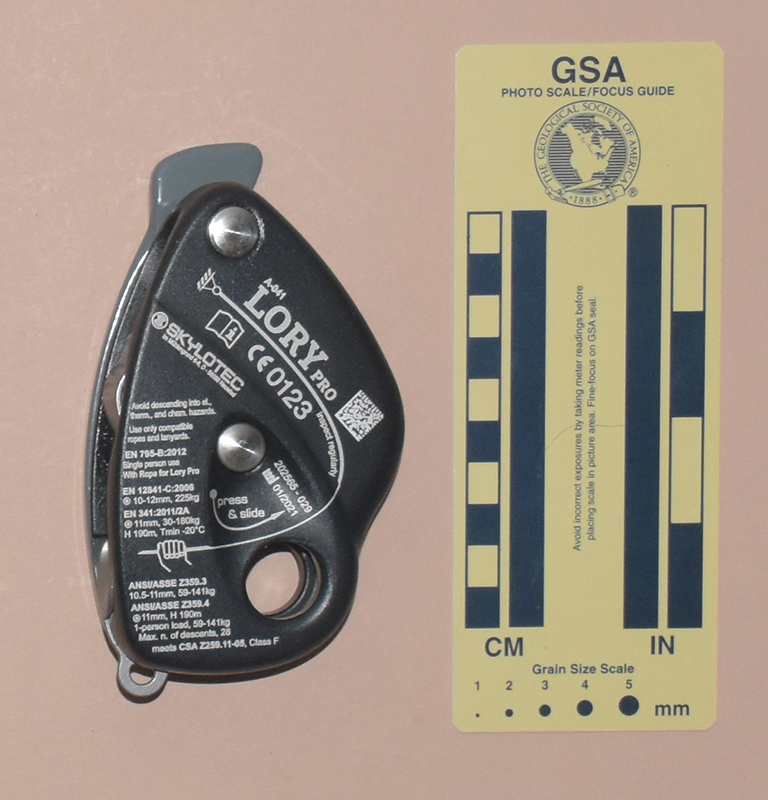

Skylotec Lory Pro 3025 Skylotec Lory Pro Forged Al frame, pivoting rope channel, spring loaded, hinged cover plate Skylotec North America L.P., 2021 361 130 76 36 356

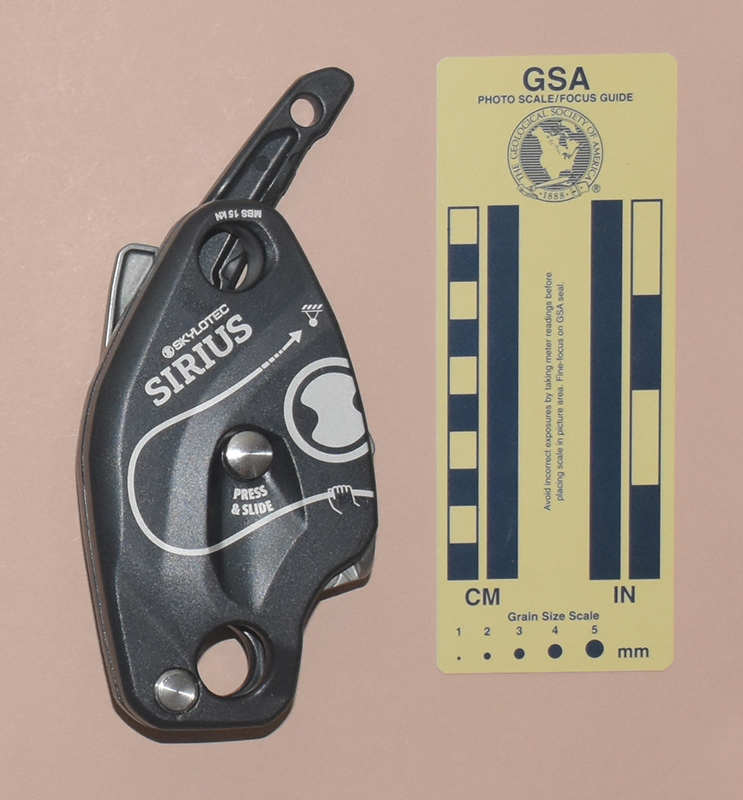

Skylotec Sirius 3001 Skylotec Sirius Forged Al body & hinged cover plate, pivoting spring loaded cast SS cam, cast SS anvil, antipanic control lever GME Supply Company, 2021 514 174 77 46 612

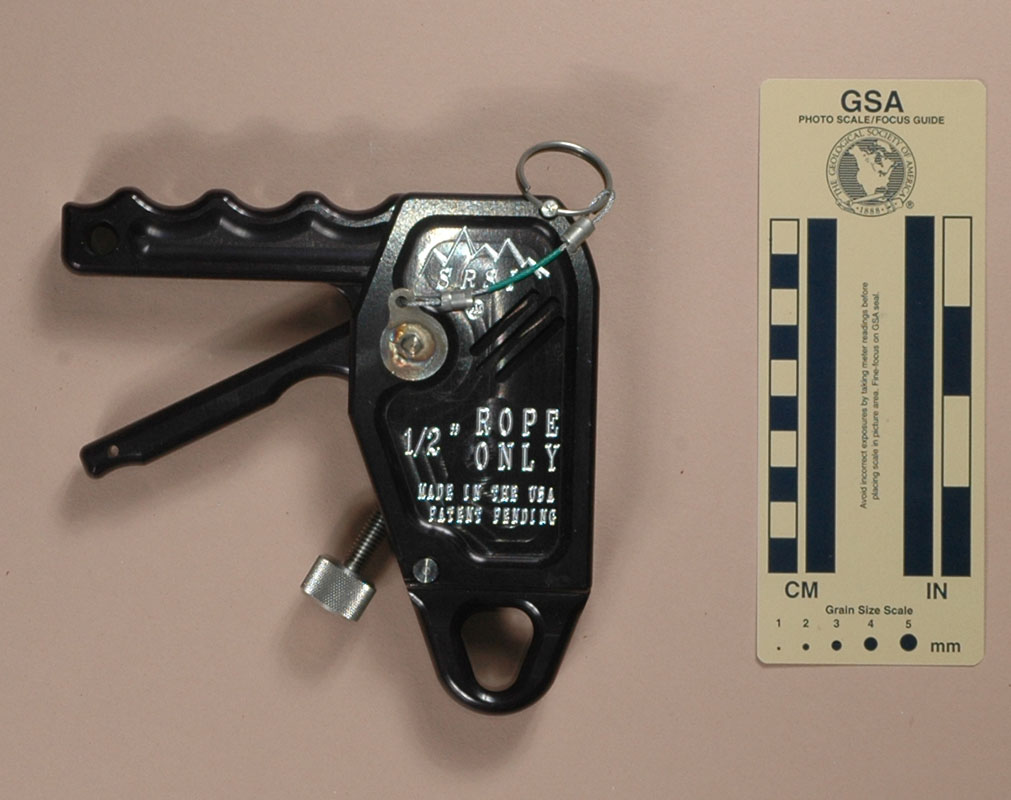

SRSI Tactical Descending Device 1297 SRSI Tactical Descending Device Milled Al, soft anodized, handle moves internal brake, fixed & brake arms, hinged cover, adjusting knob, QR-pin cover latch. D. W. Dodd, 2011 648 145 150 43 935

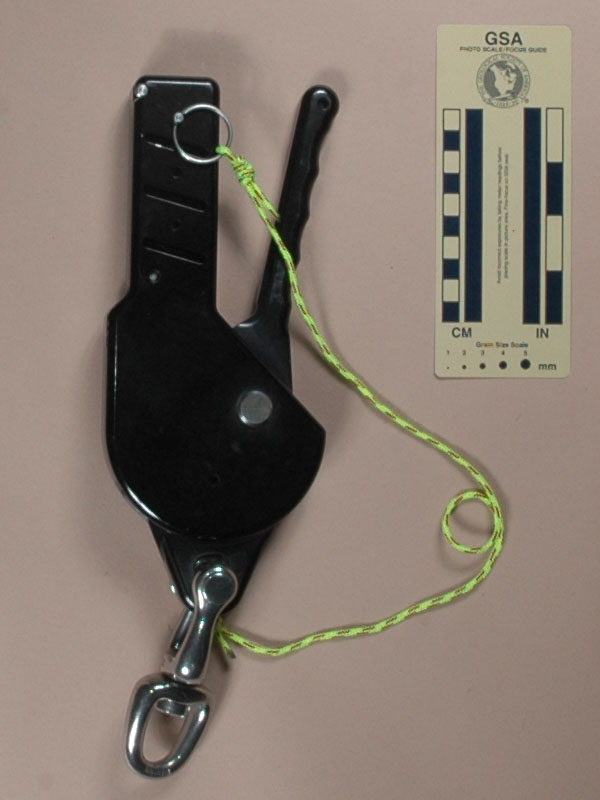

Tactical & Rescue Gear. Version A 1017 Tactical & Rescue Gear. Version A Milled, hard anodized, 6 internal bars, handle moves bar #5 & brake for #6, hinged cover, Swivel eye on clevis. For 9 mm. rope. Aric Schoonover, 2006 1064 330 107 51 1801

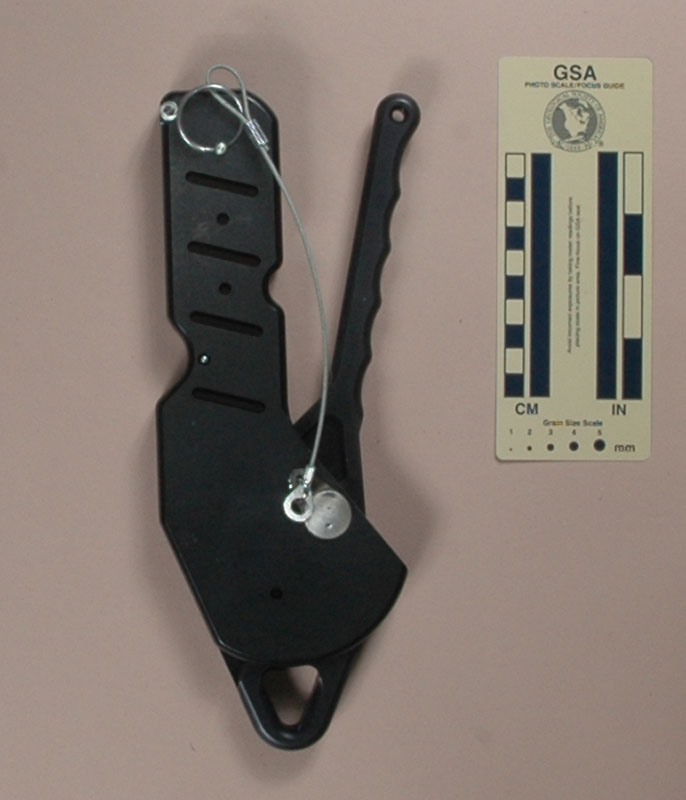

Tactical & Rescue Gear. Version B 917 Tactical & Rescue Gear. Version B Milled, hard anodized, 6 internal bars, handle moves bar #5 & brake for #6, hinged cover, subtriangular eye. For 11 mm. rope. Charles Barchuk, 2002 630 266 103 37 1012

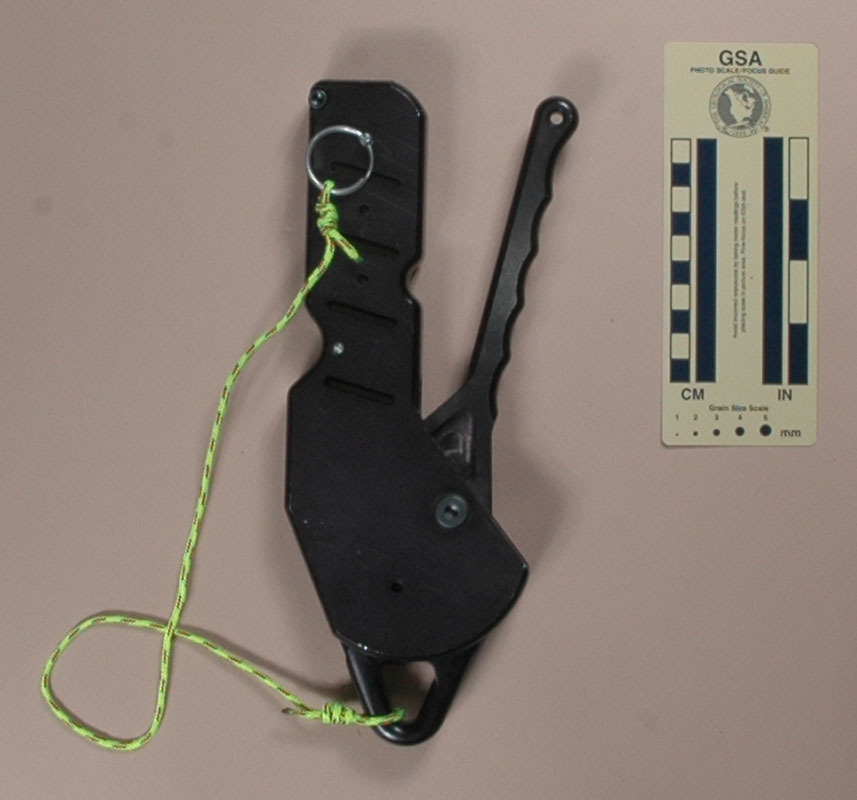

Tactical & Rescue Gear. Version C 1018 Tactical & Rescue Gear. Version C Milled, hard anodized, 6 internal bars, handle moves bar #5 & brake for #6, hinged cover, subtriangular eye. For 11 mm. rope. Aric Schoonover, 2006 685 266 103 39 1069

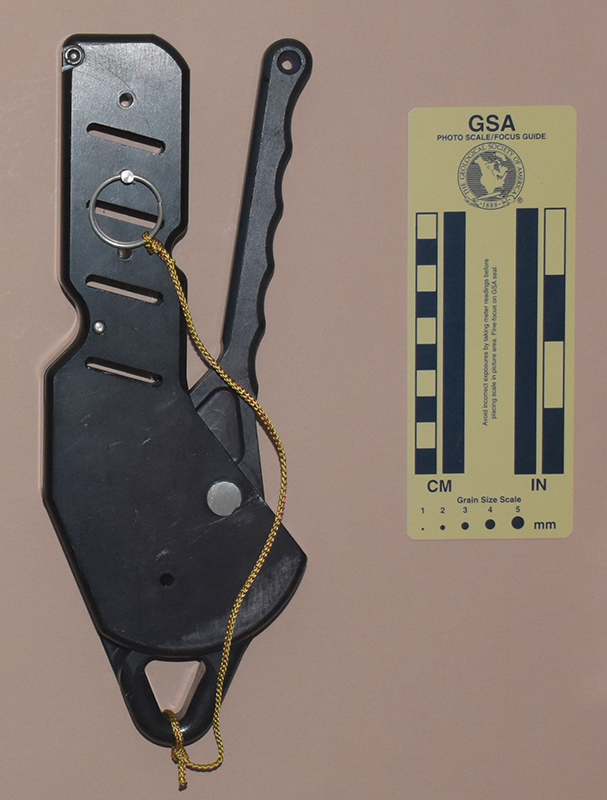

Tactical & Rescue Gear. Version D 2572 Tactical & Rescue Gear. Version D Milled, hard anodized, 6 internal bars, handle moves bar #5 & brake for #6, hinged cover, subtriangular eye. For 11mm rope. David Domina, 2020 636 269 102 41 1113

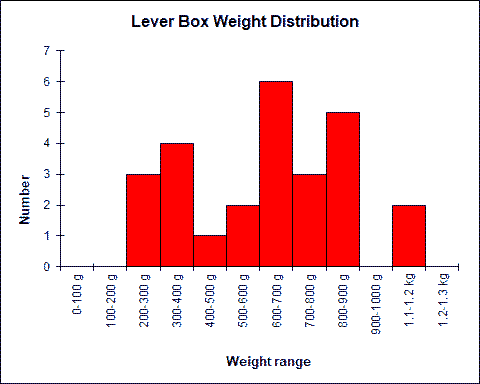

Lever Box Weight Chart
