Table 4: Standard, "Midi" Size, Forged Eights

• These are smaller than average, but not so small that they become cumbersome.
• I use a height of 123 to 133 mm. as the criteria for placing a forged eight into this category.
• Cavers may find that these give too much friction on muddy rope.
• Like most eights, all of these are forged from an aluminum alloy.
• With the exception of #1180, 1208, 1209, 3285, 1275,and 1366, all the eights in Tables 4 and 5 that have the same finish type are, for practical rappelling purposes, identical.

Image	ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width
	1054	Advanced Base Camp, Version A	131	75	13	48	48	11	43	25	19	25
	915	Advanced Base Camp, Version B	132	74	13	48	48	11	44	24	18	25
	2549	Anpen	131	73	14	48	48	11	43	25	19	26
	1073	AustriAlpin	132	74	13	48	48	11	44	24	18	25
	1208	BlueWater, Version D	131	74	13	48	48	11	44	24	18	25
	1339	Brasovia Small	130	74	13	48	48	11	43	25	13	25
	1035	C.A.M.P., Version C	131	74	13	48	48	11	44	25	19	25
	1100	C.A.M.P., Version D	132	74	13	48	48	11	43	25	19	25
	3035	C.A.M.P., Version E	132	75	13	49	49	11	42	24	19	24
	1101	C.A.M.P., Version F	132	75	13	49	49	11	43	24	19	25
	1090	C.A.M.P. 928.00/01, (Otto Small)	131	74	13	48	48	11	44	25	18	24

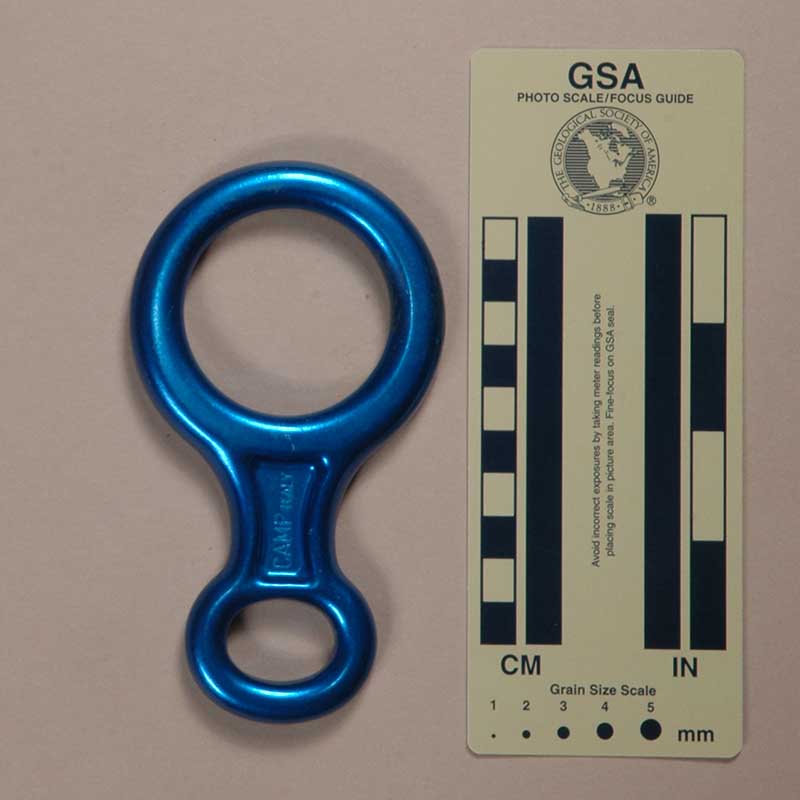

	498	C.A.M.P./Lowe, Version A	132	74	14	48	48	11	43	24	19	25
	506	C.A.M.P./Lowe, Version B	132	74	14	48	48	11	43	25	19	26
	1050	Climb High, Version C	132	74	13	48	48	11	44	24	18	25
	1180	Climb High, Version D	126	79	16	40	56	12	45	26	19	32
	985	Climbing Technology Ltd.	130	74	13	48	48	11	44	24	18	25
	2462	Cypher Descender 88	131	74	13	48	48	11	43	23	19	25
	1366	Edelrid Bud	128	77	13	49	52	11	30	30	26	25
	1209	Faders Little 8	129	71	13	48	48	11	34	26	25	25
	3285	Faders Little 8 Alien	129	71	13	48	48	11	33	26	25	25
	1440	GrandWall	130	74	13	48	48	11	43	25	18	25
	2501	ISC Stein RP110	130	74	13	18	48	11	43	25	18	25
	1489	Lowe Alpine Systems	131	74	13	48	48	11	43	24	18	25
	1085	Lucky Ecos Mini	130	75	13	48	48	11	43	25	19	25

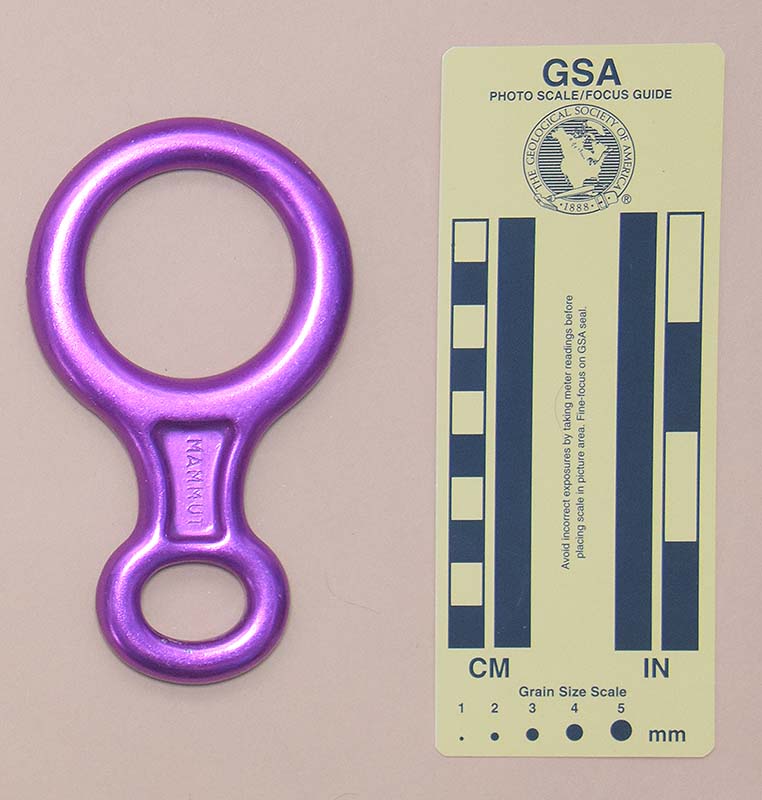

	3125	Mammut, Version B	132	75	13	49	49	11	43	24	19	24
	535	Mammut, Version C	132	74	14	48	48	11	43	24	19	25
	1072	Mammut, Version D	131	74	13	48	48	11	44	24	18	25
	1072	Omega Pacific	131	74	13	48	48	11	44	24	18	25
	1474	Proverti CD 303	131	74	13	48	48	11	44	24	18	28
	919	Salewa Midi, Version A	131	75	13	48	48	11	44	24	18	26
	1210	Salewa Midi, Version B	131	74	13	48	48	11	43	24	19	25
	3243	Singing Rock 8 M	131	74	13	48	49	17	43	27	17	26
	1115	Zero-G Classic 8	132	74	13	48	48	11	44	24	18	25

Table 5: Forged Eights with Keeper Holes

• These eights are similar to those in the previous table, but they also feature a hole for a keeper cord.
• Except for the RockHouse, a standard-sized eight, all of these are "midi" size.
• I don't have much need for a keeper cord, but if you want to use one, these eights have a place to tie it.
• With the exception of #1180, 1208, 1209, 1275, 1366, and 3352, all the eights in Tables 4 and 5 that have the same finish type are, for practical rappelling purposes, identical.
• In this table, special shading in the ID field background indicates eights that are particularly similar except for markings and possibly finish.

Image	ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width
	3352	C.A.M.P., Version H	126	92	13	40	62	10	40	26	24	23
	989	Kong "8" Light Plus, Version A	126	82	14	40	50	11	49	24	18	28
	3234	Kong "8" Light Plus, Version B	127	79	14	41	50	11	49	24	18	28
	1047	Kong "8" Light Plus, Version C	128	81	14	40	50	11	44	24	23	28
	1375	Kong "8" Light Plus, Version D	128	80	14	40	50	11	44	24	23	28
	566	Kong "8" Light Plus (805.02)	128	81	14	40	50	11	45	24	22	28
	1275	Rock House	141	85	15	49	49	12	44	25	26	26
	501	Salewa, Version A	128	80	14	40	50	11	44	24	23	28
	986	Stubai, Version B	129	81	14	41	50	11	49	24	19	28

Table 6: "Mini" Size Forged Eights

• I use a height of 110 to 122 mm. as the criteria for placing a forged eight into this category.
• These are much smaller than average, and may not work well on doubled rope.
• Cavers may find that these give too much friction on muddy rope.
• These are too small for my taste.
• Like most eights, all of these are forged from an aluminum alloy.
• Eights in this table that have the same finish type are, for practical rappelling purposes, interchangeable.
• In this table, special shading in the ID field background indicates eights that are particularly similar except for markings and possibly finish.

Image	ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width
	1053	Advanced Base Camp Mini	115	70	14	41	48	11	34	22	20	24
	1257	BlueWater Minus 8	115	69	13	40	46	11	35	22	20	23
	2561	C.A.M.P., Version A	113	68	15	40	46	12	34	21	19	24
	959	C.A.M.P., Version B	114	68	15	40	46	12	34	21	19	24
	1266	Kailas	110	69	12	45	48	10	26	27	20	25
	559	Kong "8" Light (805.01)	115	72	14	41	50	11	34	22	19	24
	1214	Mammut Bionic 8	120	76	10	40	51	6	34	25	24	26
	536	Mammut, Version E	113	68	16	40	46	12	34	21	19	24
	920	Salewa Mini	114	68	15	40	45	13	34	21	18	23
	921	Simond Petit 8	115	69	13	40	46	11	35	22	20	23
	3350	SMK, Version C	114	68	14	46	40	11	34	21	19	24
	502	Trango Mini	113	68	16	40	46	12	34	21	19	24
	1373	VauDe	114	68	15	40	45	12	34	21	19	24
	1042	Wild Country, Version A	113	68	13	41	47	11	34	21	21	24
	351	Wild Country, Version B	114	68	13	40	46	11	34	21	20	24
	1102	Wild Country, Version C	114	68	13	40	46	11	34	20	20	23

Table 7: "Micro" Size Forged Eights

• This takes size reduction to an extreme. I use a height of <110 mm. as the criteria for placing a forged eight into this category.
• I think that this is too small for practical use in normal situations.
• At least one vendor sold this as a PED.

Image	ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width
	315	CMI Ultra 8	104	62	10	39	45	9	31	19	18	12

Table 8: Large Forged Eights

• These are larger than normal. I use a height of >150 mm. as the criteria for placing a forged eight into this category.
• I can't justify the extra size and weight for an eight.
• Like most eights, all of these are forged from an aluminum alloy.
• The Faders Classic has an extra large eye that allows reversing it for use on thinner ropes.

Image	ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width
	1315	British	176	100	13	60	60	13	59	25	25	25
	305	Clog Large, Version A	169	83	15	55	55	14	64	27	21	22
	1045	Clog Large, Version B	169	83	14	55	54	15	65	28	21	21
	3061	Clog Large, Version C	169	84	17	54	54	16	64	28	21	21
	1041	Clog Large, Version D	169	83	16	55	55	15	65	28	20	20
	3144	Clog Large, Version E	169	83	16	55	55	15	64	27	21	21
	1046	Clog Large, Version F	168	83	16	54	54	16	65	27	21	21
	1118	Clog Large, Version G	167	82	16	54	54	15	62	26	22	21
	306	Clog Large, Version H	167	82	16	55	55	15	63	26	21	21
	1181	Clog Large, Version I	166	83	16	54	54	15	63	27	22	22
	1421	Clog Large, Version J	166	82	16	54	54	15	62	27	22	22
	2599	Faders Classic, Version A	157	75	16	52	52	12	47	23	35	35
	924	Faders Classic, Version B	155	76	17	52	52	13	47	26	36	35
	3240	Fixe Classic	158	76	16	52	52	13	46	24	35	35
	2573	Lapard	151	78	15	52	52	13	43	28	28	28

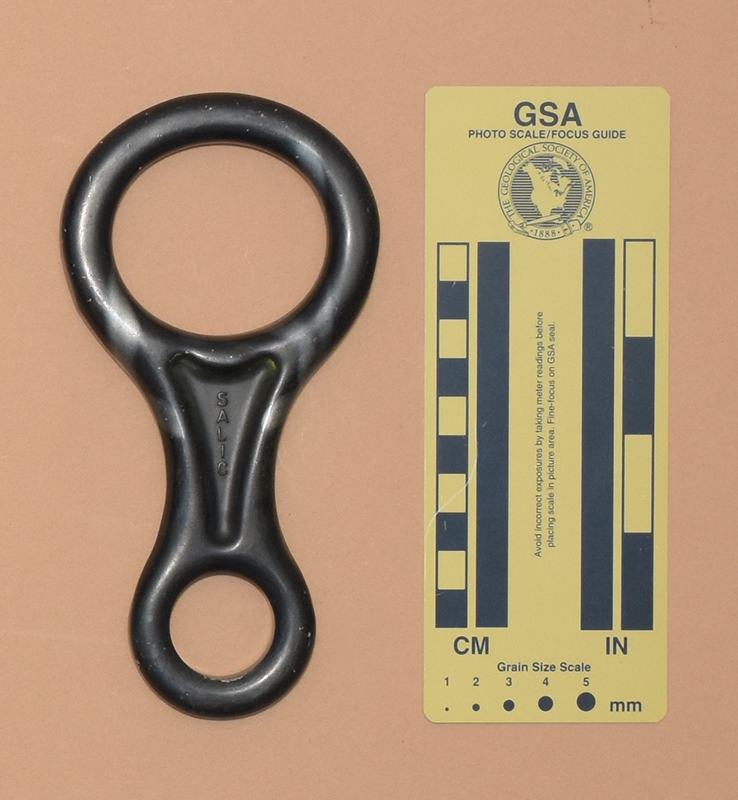

	337	Salic, Version A	158	82	16	49	55	12	61	28	26	26
	3087	Unknown #6	163	80	14	54	53	14	62	24	23	22
	350	Viking, Version A	168	81	16	53	53	16	65	27	21	21
	1131	Viking, Version B	169	83	17	55	55	16	65	27	21	21
