Ace Metal Products (AMP)


Front View Rear View
Front View Rear View

Technical Details

I acquired my AMP Tiny 8 from KWC Industries Inc. in 2011.

The AMP Tiny 8 is forged from aluminum alloy and then soft anodized. Mine is 145 mm. tall, 76 mm. wide, and 15 mm. thick. The rope hole is 51 mm. high and 51 mm. wide. The top center thickness is 12 mm. The shaft length and width are 45 mm. and 26 mm., respectively. The eye measures 26 mm. by 26 mm. My eight weighs 131 g.

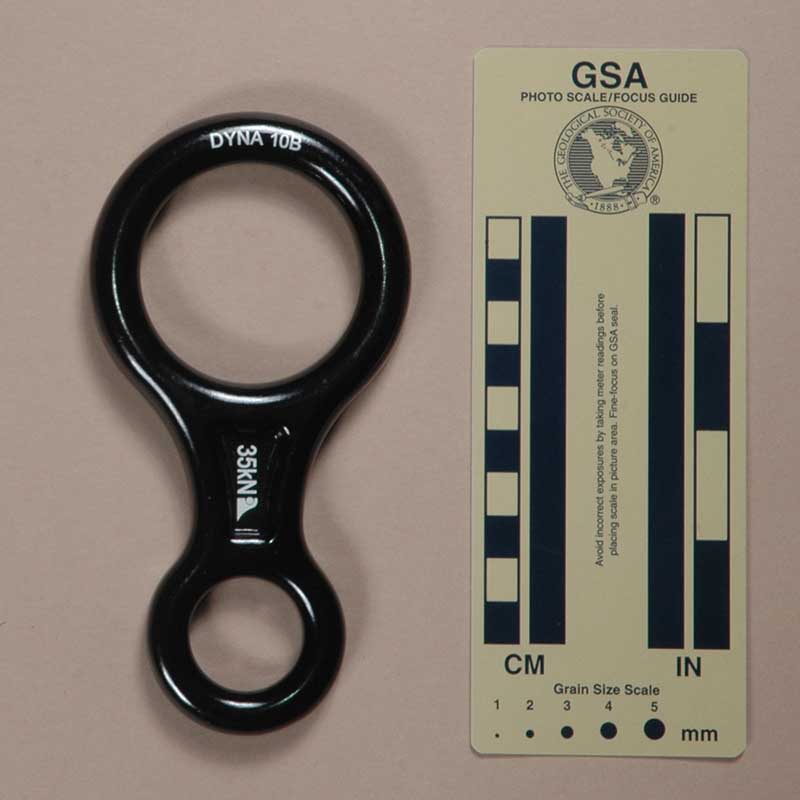

The front shaft is printed with "AMP," the rear top with"DYNA 10B," and the rear shaft with "35kN" and the Fusion logo.


The AMP Tiny 8 is a typical example of a full-sized, forged, aluminum figure eight. These are by far the most common figure eights. Everybody, their sisters, and their brothers seem to make one, and half the world's population and businesses have issued a custom version with their own name on it. I certainly have not acquired and tested every version madel, but I show the following eights as examples:

Image Eight
AMP Tiny 8 Alpidex Harmonia
AMP Tiny 8 AMP Tiny 8
Axis Axis
Beal Air Force 8 Beal Air Force 8
Brasovia Standard Brasovia Standard
C.A.M.P. 548.00/01 (Otto Large) C.A.M.P. 548.00/01 (Otto Large)
Climb Tech Climb Tech
Climb X Classic, Version A Climb X Classic, Version A
Image Eight
Climb X Classic, Version B Climb X Classic, Version B
Edelrid Petit-8, Version B Edelrid Petit-8, Version B
Edelrid Petit-8, Version C Edelrid Petit-8, Version C
Epic Peak Epic Peak
Field & Trek Field & Trek
Forester 8 Forester 8
Fusion Tiny 8, Version A Fusion Tiny 8, Version A
Fusion Tiny 8, Version B Fusion Tiny 8, Version B
Image Eight
Glacier Black Glacier Black
Good Makings Good Makings
Hugh Banner, Version A Hugh Banner, Version A
Hugh Banner, Version B Hugh Banner, Version B
Hugh Banner, Version C Hugh Banner, Version C
Hugh Banner, Version D Hugh Banner, Version D
I Climb (元鴻興有限公司) #632 I Climb (元鴻興有限公司) #632
Luixada Lixada
Lucky Ecos Lucky Ecos
Image Eight
Mammut, Version A Mammut, Version A
Pellor Oumers
Pellor Pellor
S.E.Peak S.E.Peak
Singing Rock 8 L Singing Rock 8 L
Stubai, Version D Stubai, Version D
Image Eight
Trango, Version A Trango, Version A
Trango, Version B Trango, Version B
Trillium Health + Fitness Trillium Health + Fitness
Troll, Version A Troll, Version A
Troll, Version B Troll, Version B
Wild Country Wild Country
Z&W, Version A Z&W, Version A
Z&W, Version B Z&W, Version B

Some of these eights are made in Europe, and some in Asia. Some are obviously rebranded eights, a good example being the Trillium Health + Fitness eight.

The S.E.Peak is larger than the others, an outlier. Each of the remaining eights is 145±2 mm. tall and 76±2 mm. wide, and has a weight in the 126±12 g. range. These variations have no practical significance.

Although similar, these eights are not identical, and close inspection will reveal some minor differences in their shapes. For example, the Fusion Tiny 8, Version A and Lucky Ecos are noticeably wider for their height than the others. None of these affect their performance to any noticeable degree.

The AMP Tiny 8, C.A.M.P. 548.00/01 (Otto Large), Fusion Tiny 8, Version A, Hugh Banner, Version D and SUT appear to have harder anodizing than the others, and may wear better. My experience with the high-quality hard anodizing on the similar CMI eights is that hard anodizing provides considerable protection on clean ropes, but the protection provided against cave mud is limited. In bad conditions the anodizing soon breaks through, and the protection is lost. For this reason, I don't place a lot of value on hard over soft anodizing for caving use, but I prefer hard anodizing for climbing applications.

None of these eights have slots for sticht-type belaying, and their round eyes are not really designed for that purpose. Some people will belay with an eight rigged for rappelling, but I don't like that practice since it does not provide the automatic locking assist and additional friction that a sticht plate or belay tube does.

Some caver friends refuse to use figure eights because they twist the rope. Eights are short drop devices, and rope twist concerns are absurd for short drops.

Many climbers think that eights are outdated, and prefer to rappel on belay tubes. I prefer belay tubes for belaying, but belay tubes get very hot when used for rappelling. Eights run much cooler. I would rather use an eight, but that may require carrying an extra device. On any given day, I make my choice about carrying a separate rappel device by considering several factors, and it is not unusual for me to carry an eight if I expect to be rappelling more than a very short distance.

AMP supplies Fusion products, and this explains the Fusion logo.
