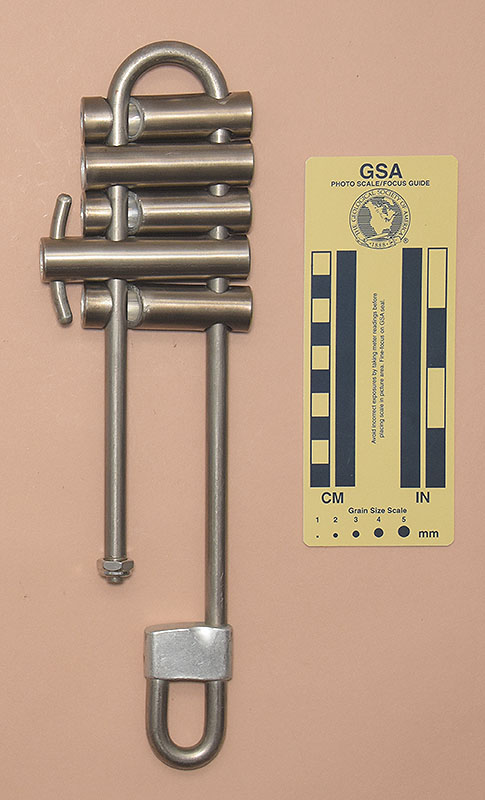

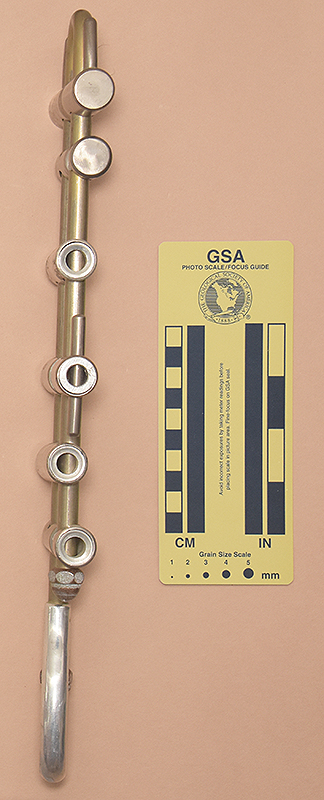

Sam[1] invented the hyperbar in October, 1992. Others "borrowed” (Sam used a stronger word) and popularized the idea a year later. In 2010, Sam sent me the Titan prototype rack with the first hyperbar. This helped confirm who invented the hyperbar. I accept Sam’s priority. I also recognize a similarity with the Buddy Rogers spooled bars from the early 1970s.
Hyperbars are nice and they have their place. They can be quite beneficial on short closed-frame racks (which are essentially constant friction devices). They are unnecessary for standard-length open-frame racks used for personal descent, as evidenced by a quarter century of standard rack use prior to the hyperbar’s invention.
[1] Sam Howell and Larry Howell are the same person. He answers to Sam now.
[ Top
| Smith Special, ver. A
| Smith Special, ver. B
| Smith Special, ver. C
| Smith Special, ver. D
| Smith Special, ver. E
]
[ Speleo, ver. A
| Speleo, ver. B
| Rescue, ver. A
| Rescue, ver. B
| Ed Sira Custom
| New Eye Prototype
| Return to Racks
]
|
|
 |
 |

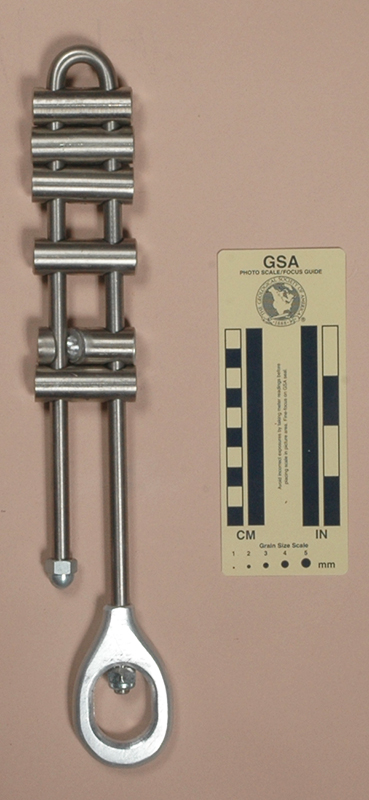

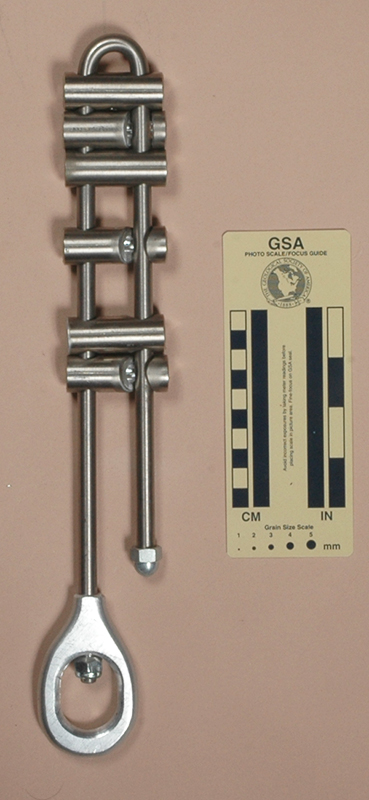

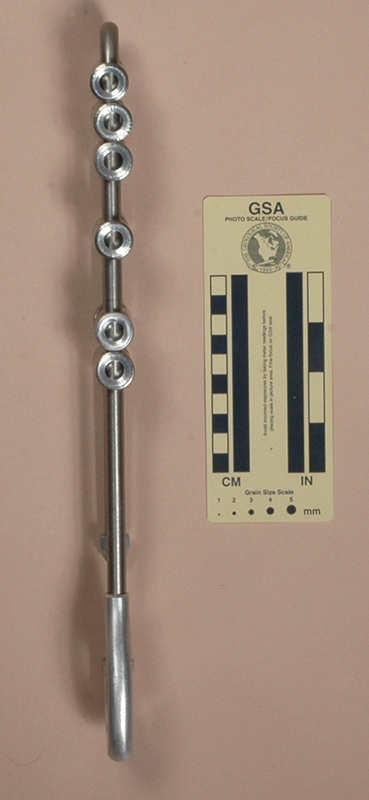

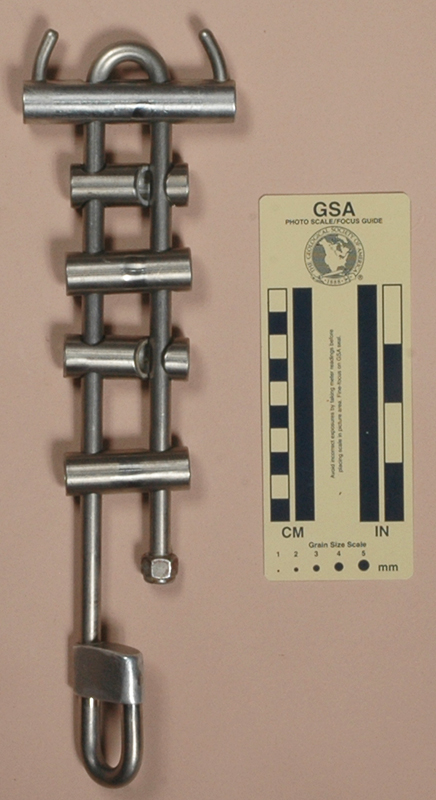

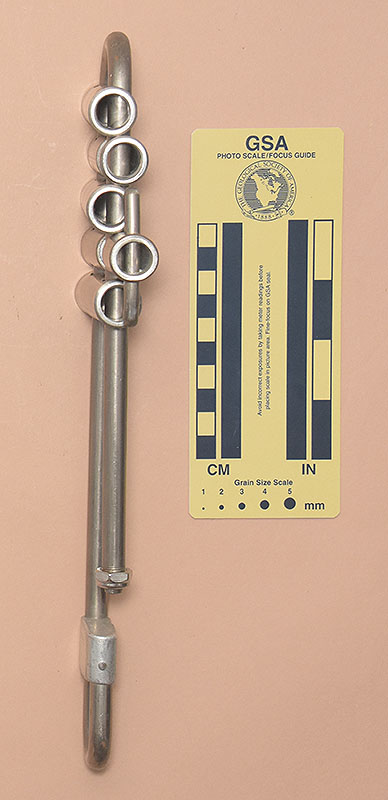

| Front View | Rear View | Side View |

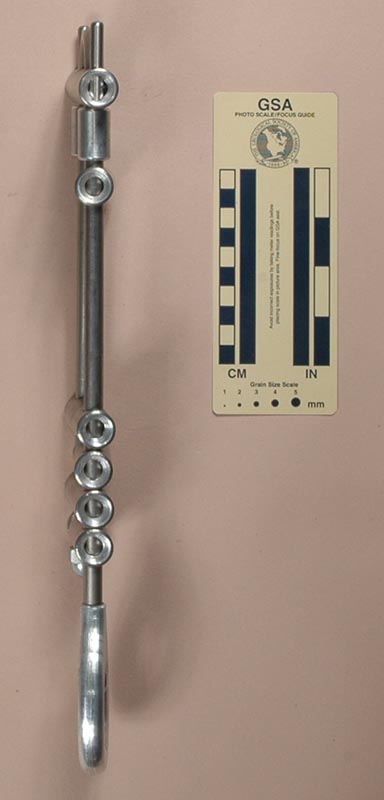

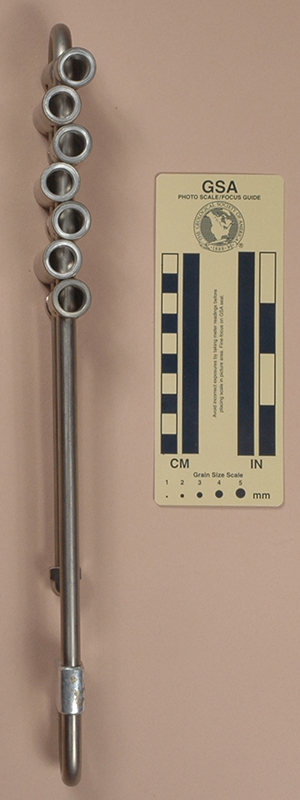

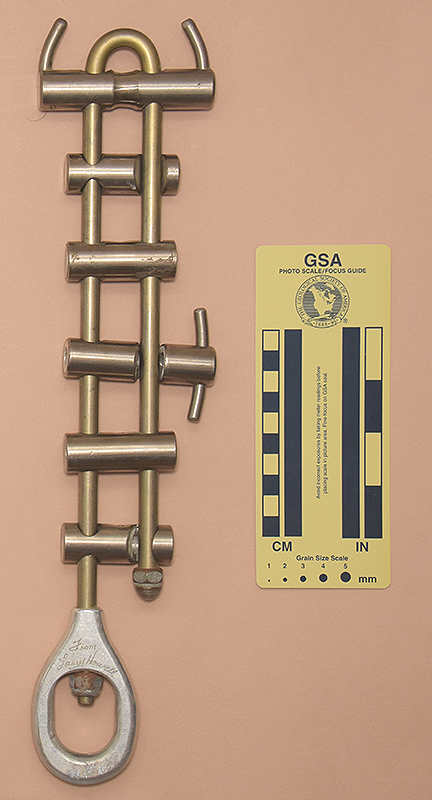

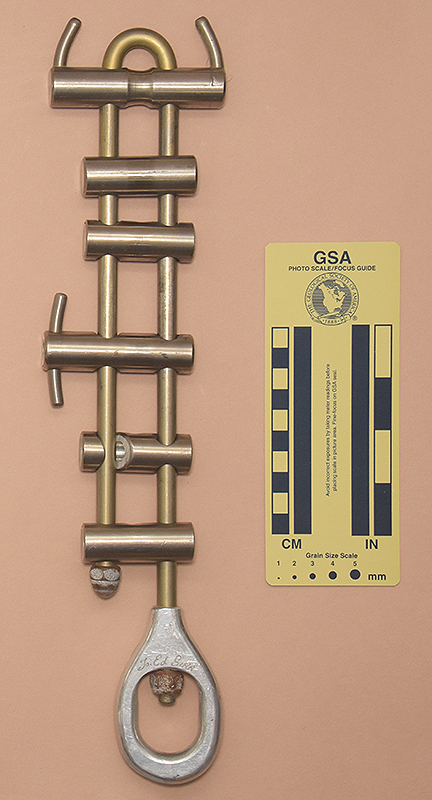

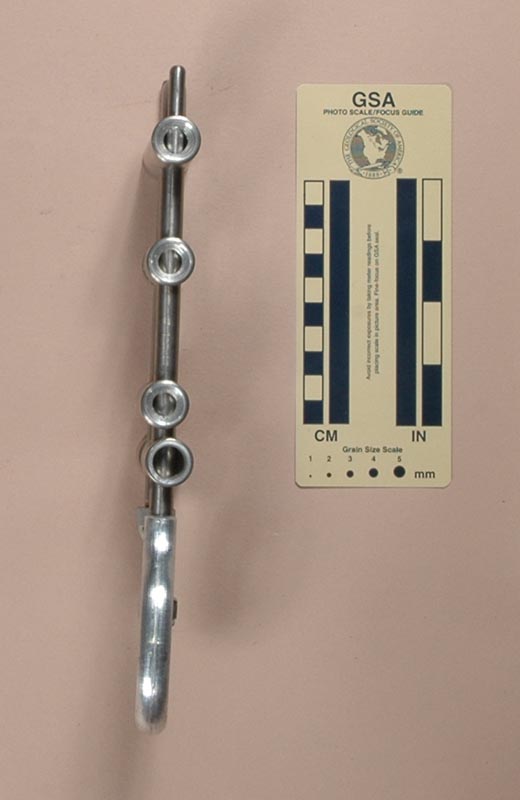

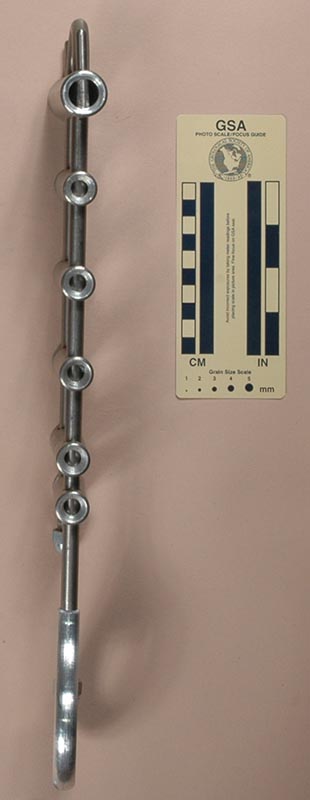

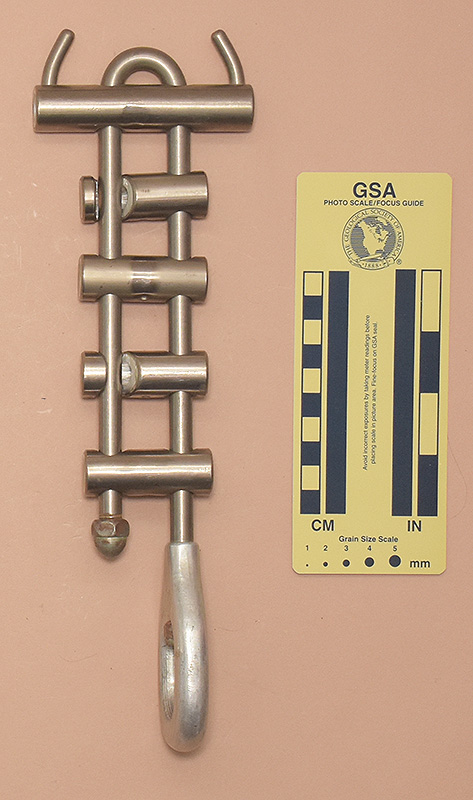

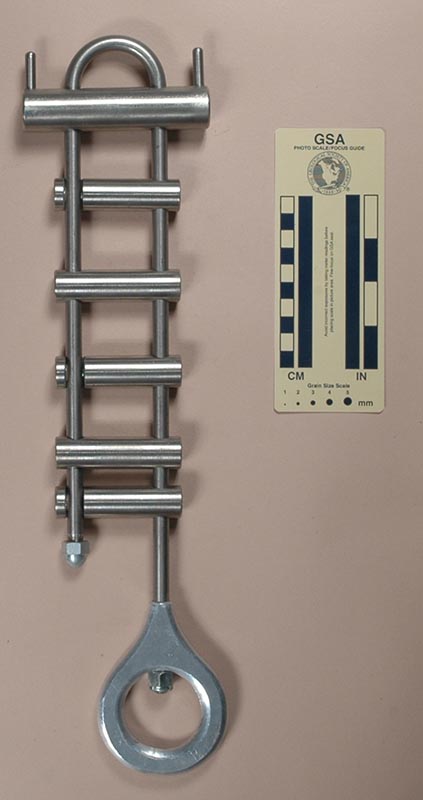

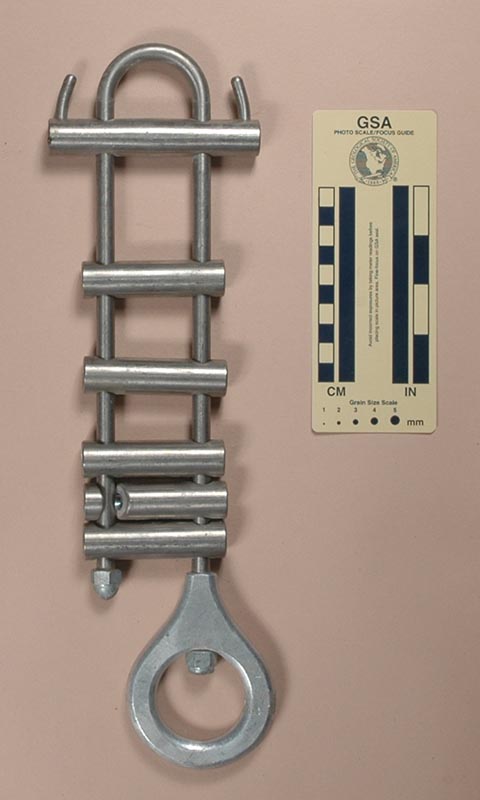

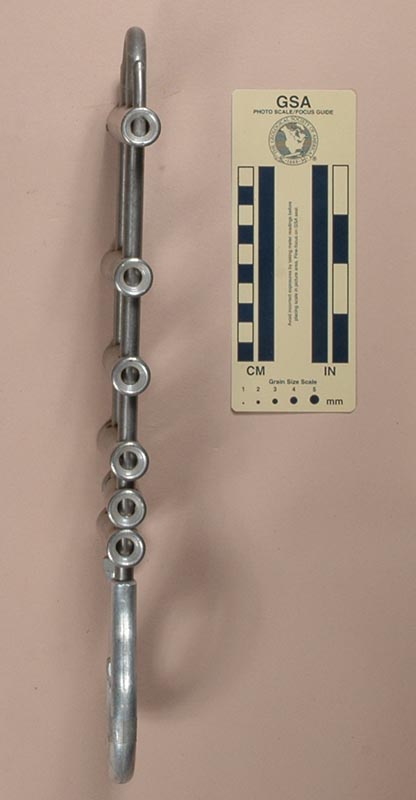

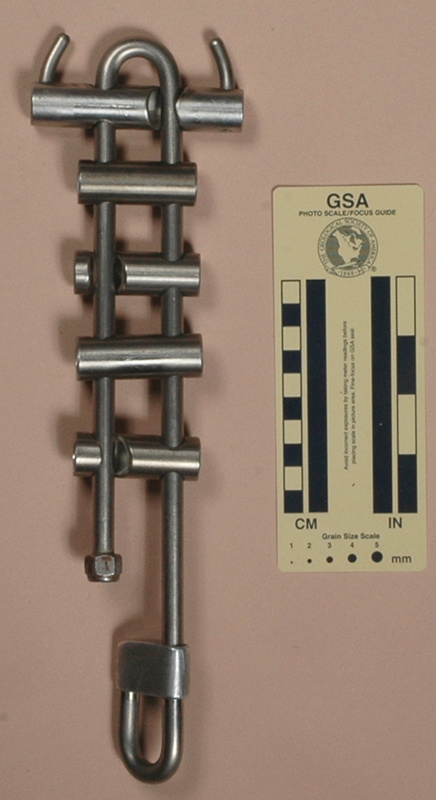

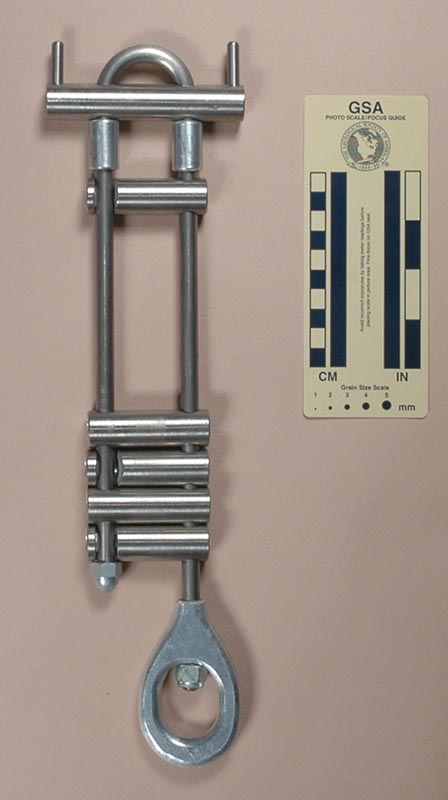

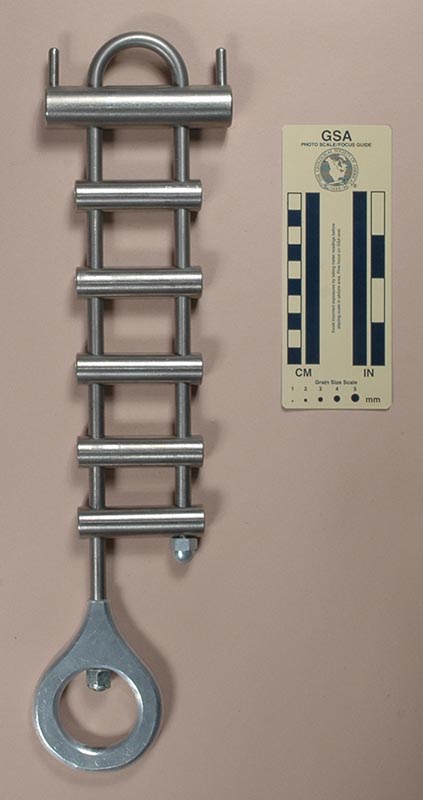

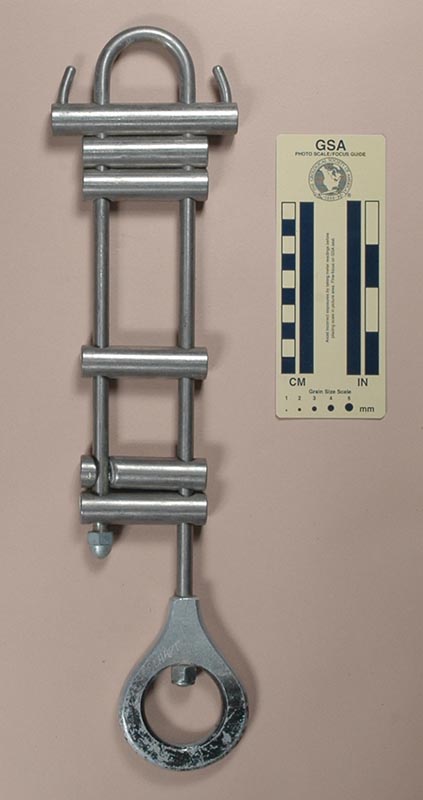

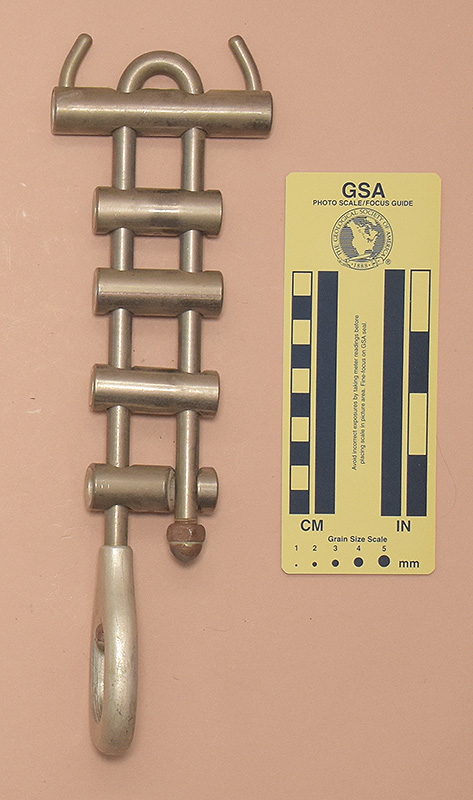

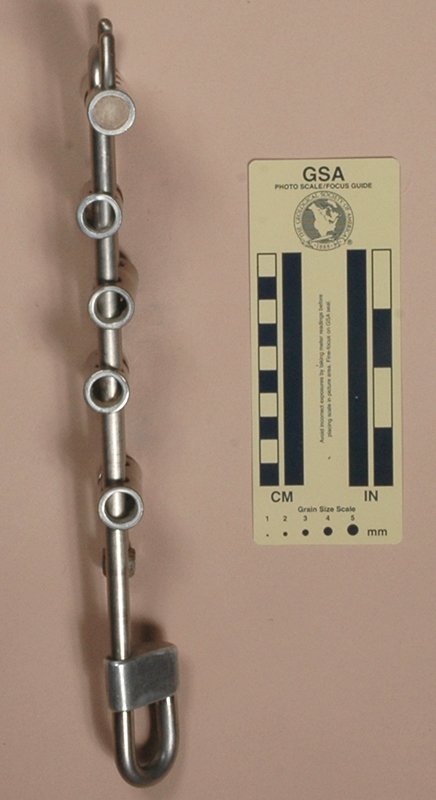

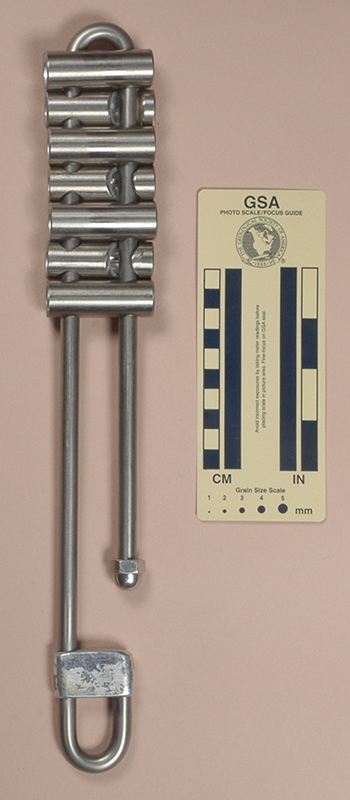

I acquired this rack from Larry Howell of Howell-N-Mann in at the 1993 Old Timers Reunion.
