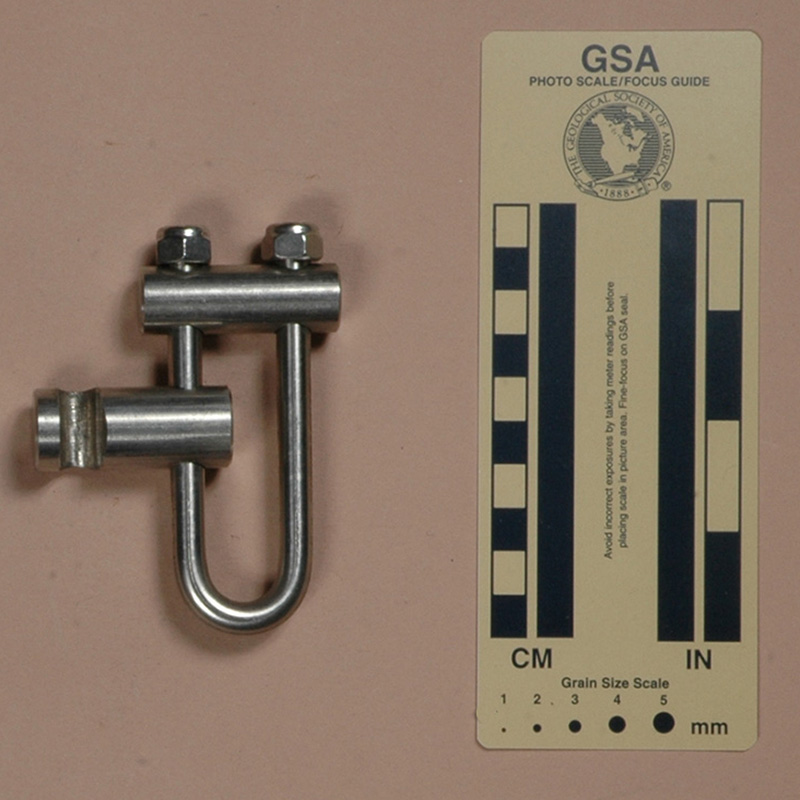

| Front View | Rear View |
 |
 |

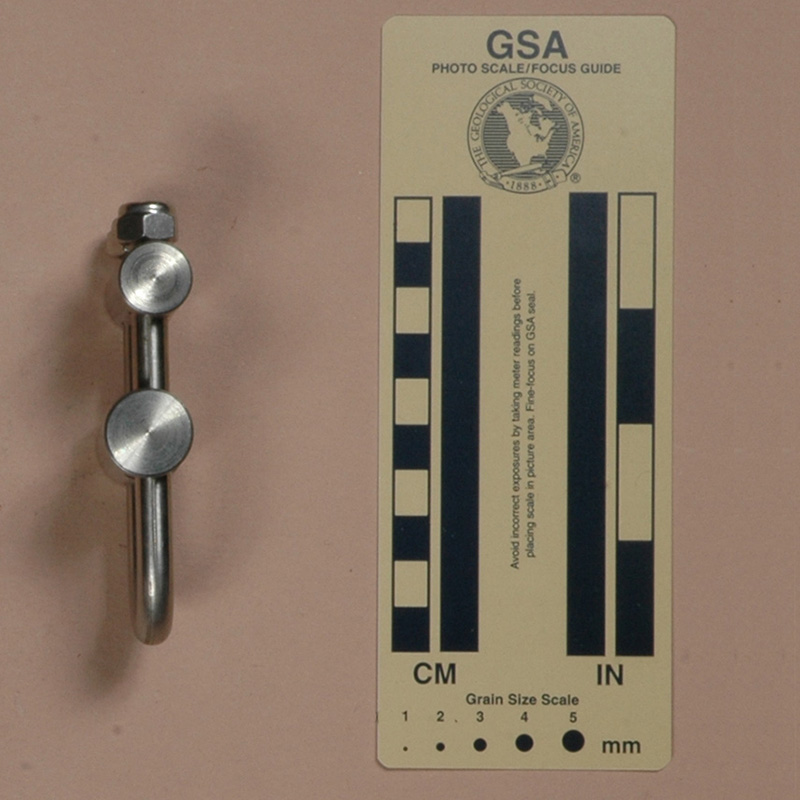

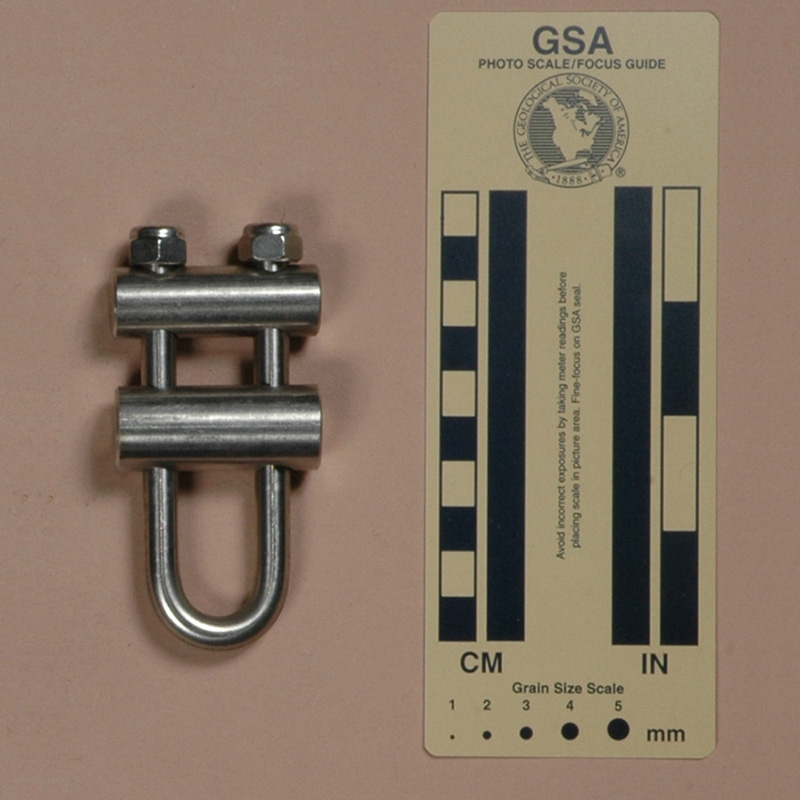

| Side View | Open for Rigging |
I made this rack in 2009.
The Femtorack rack is 94 mm. tall, 46 mm. wide, 19 mm. thick, and weighs 221 g. The frame is made from 7.9 mm. stainless steel bent into a U, with an internal width of 17 mm. There are two brake bars. The top (fixed) bar is 16 mm. in diameter and the second (swinging) bar is 19 mm. in diameter. Both bars are 46 mm. long. The nuts are stainless steel lock nuts. There is no effective room for spreading the bars.
If Carroll Bassett of BMS can take the idea of a standard rack and make a Mini (rack), Microrack, Nano belay (sort of a rack), and Pico-rack, then why not carry the idea to the absurd and logical end? That is why I created the 2-bar Femtorack and the one-bar Attorack.
There is no effective room for spreading the bars, so this is a constant friction device.
