Rescue Technology Rigger Rescue Rack
(#1179)

Front View Rear View
Front View Rear View

Technical Details

I acquired this rack on eBay from Thomas Costello in 2008. I got a second one on eBay from William Deaton in 2009.

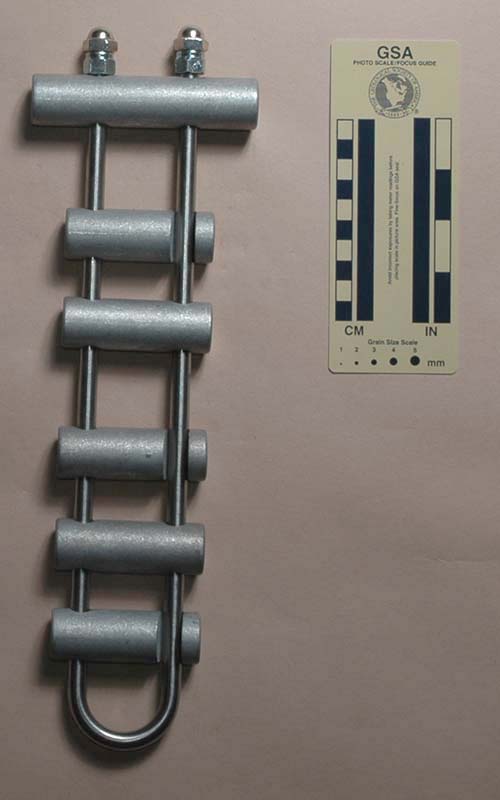

My Rigger Rescue Rack is 355 mm. tall, 111 mm. wide, 26 mm. thick, and weighs 987 g. The frame is made from 9.5 mm. stainless steel bent into a U, with an internal width of 35 mm. There are six unfinished solid aluminum brake bars. The bars are 26 mm. in diameter. The top bar is 111 mm. long, and the other five are 73 mm. long. Allowing 35 mm. for the rope leaves 124 mm. for spreading the bars.

There are no markings on this rack.

Comments

This rack is model number 601102. It looks very much like the Rescue Systems Rack, but is longer. The bases of the nuts are misaligned by more than 3 mm. giving the top bar a noticeable and undesirable tilt, indicating a lack of care during manufacture. I would repair this before using the rack.

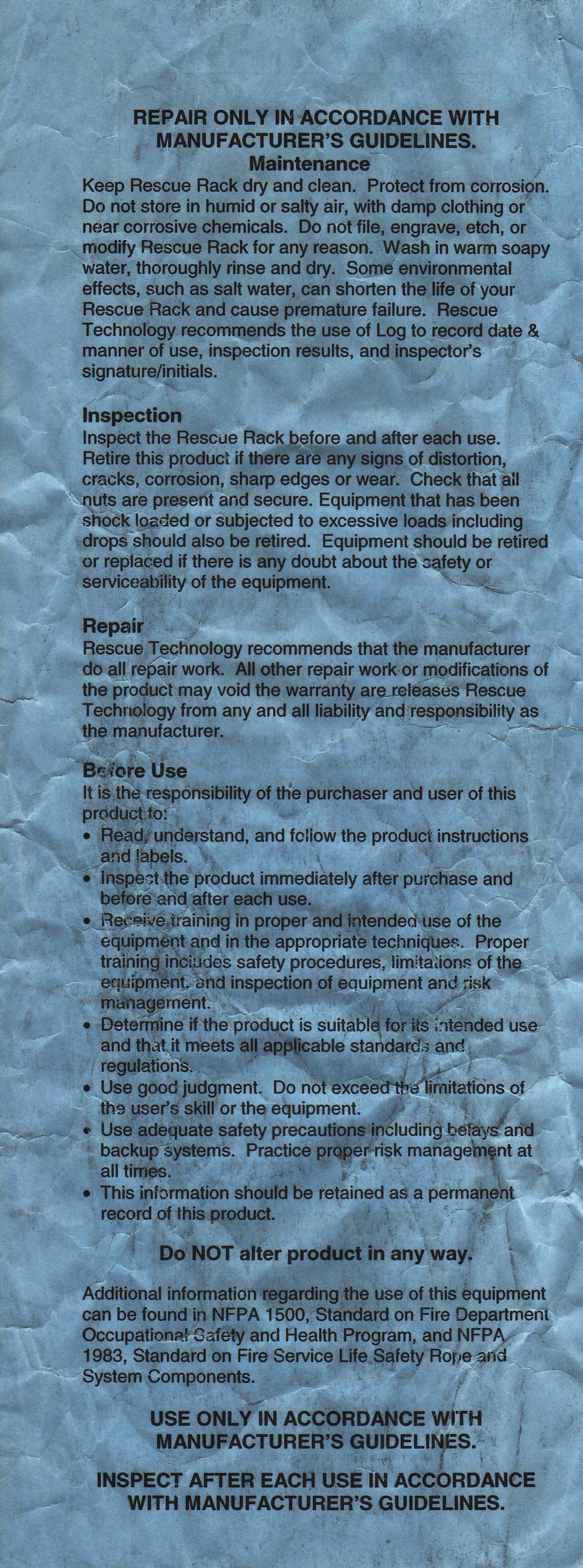

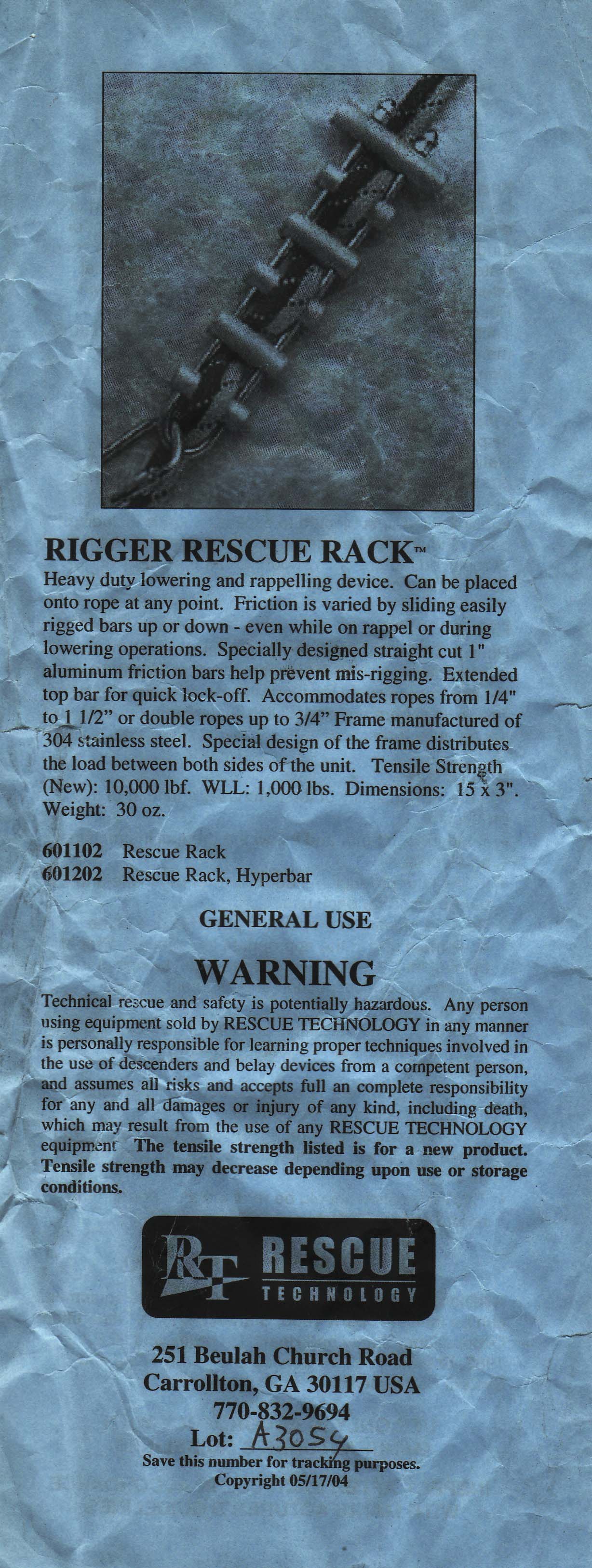

Instructions Instructions
