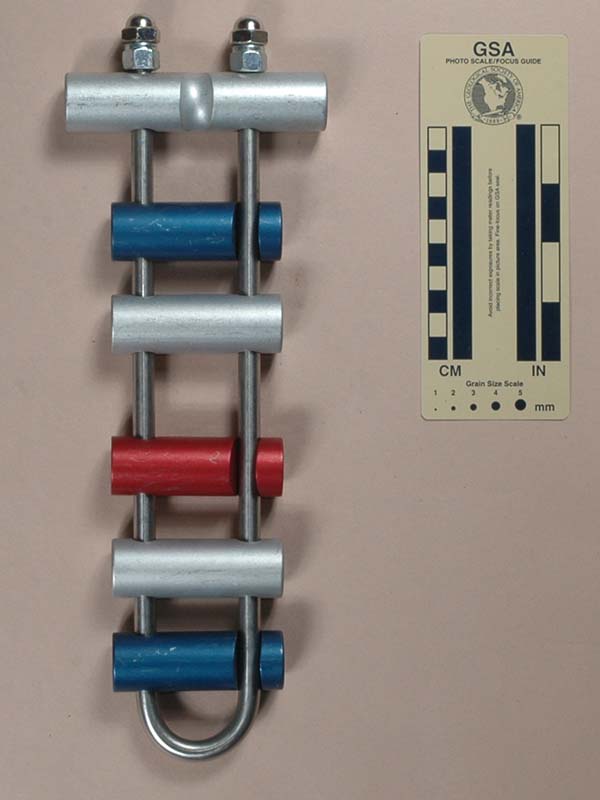

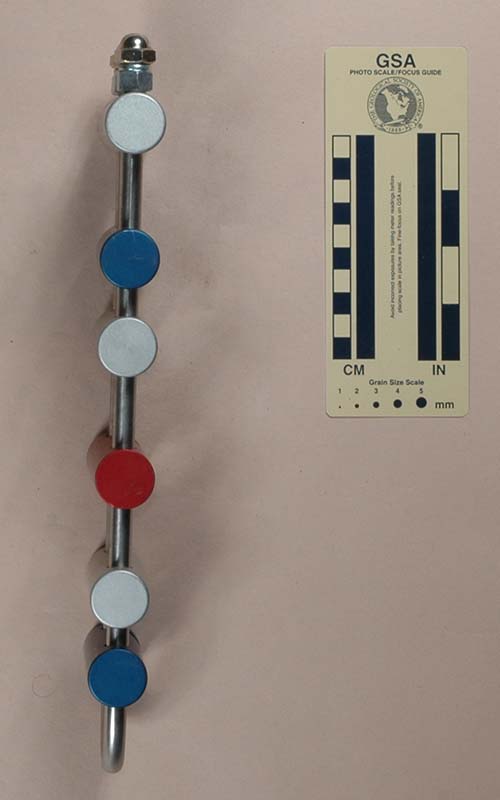

| Front View | Rear View | Side View |
I acquired this rack from Roy Schrader in 2003.
My ASR NFPA rack is 315 mm. tall, 111 mm. wide, 25 mm. thick, and weighs 943 g. The frame is made from 9.5 mm. stainless steel bent into a U, with an internal width of 37 mm. There are six solid aluminum brake bars, three of which are color anodized. The bars are 25 mm. in diameter. The colored bars have slots to allow opening, the other do not. The top bar is 111 mm. long, and the other five are 72 mm. long. Allowing 35 mm. for the rope leaves 109 mm. range for spreading the bars.
The top bar is engraved "ASR NFPA," upside down.
The ASR NFPA rack virtually identical to one of the SBCI racks (including bar color), and is similar to the large Rescue Systems rack and to the Mio Mechanical RR-2A. The top bar is longer to assist in tying off.
