Simond Multicoin #3

Version A

Version B

Version A Version B
Version A Version B

Overview


Version A
(#1428)

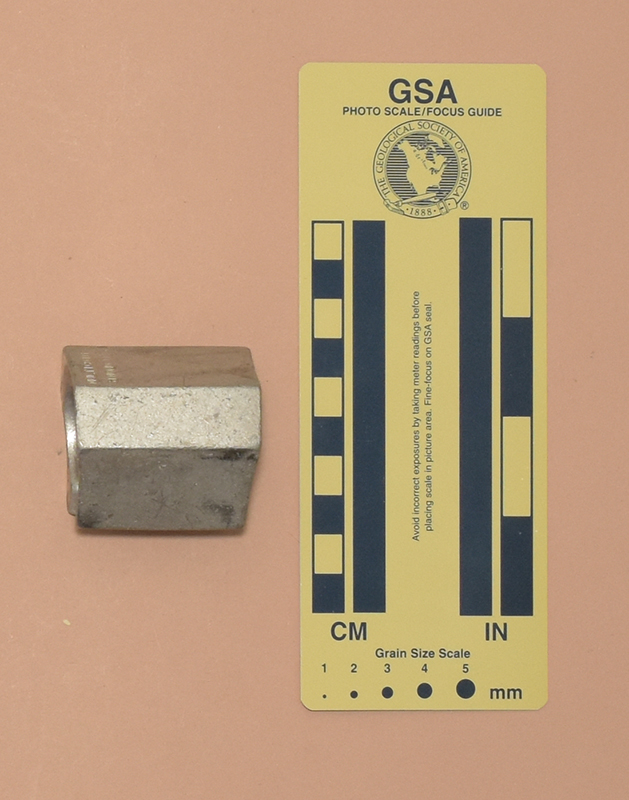

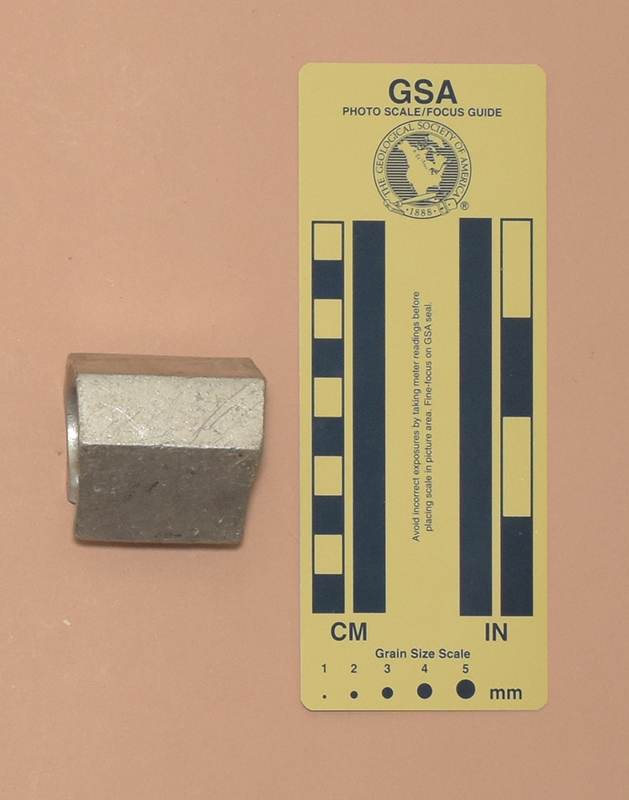

Front View Bottom View End View
Front View Bottom View End View

Technical Details

I acquired my Simond Multicoin #3 from Denis Pivot in 2013.

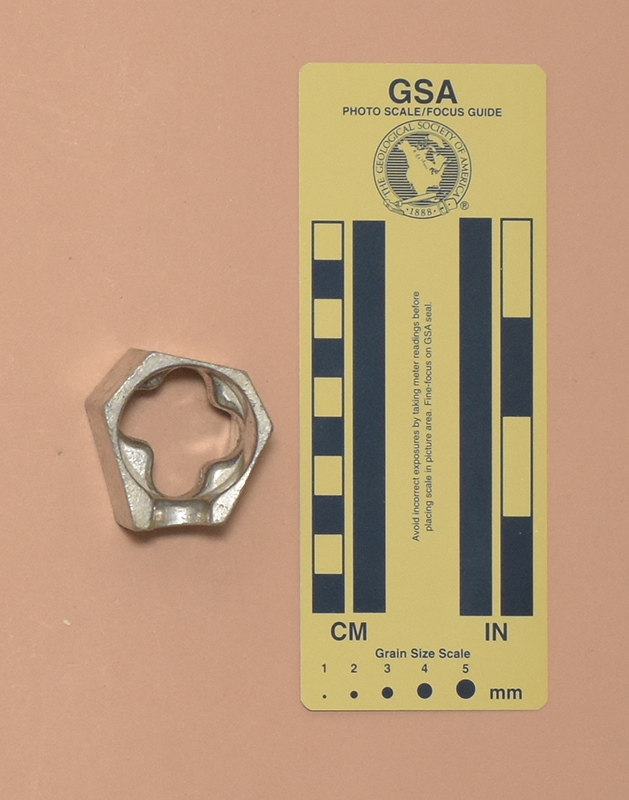

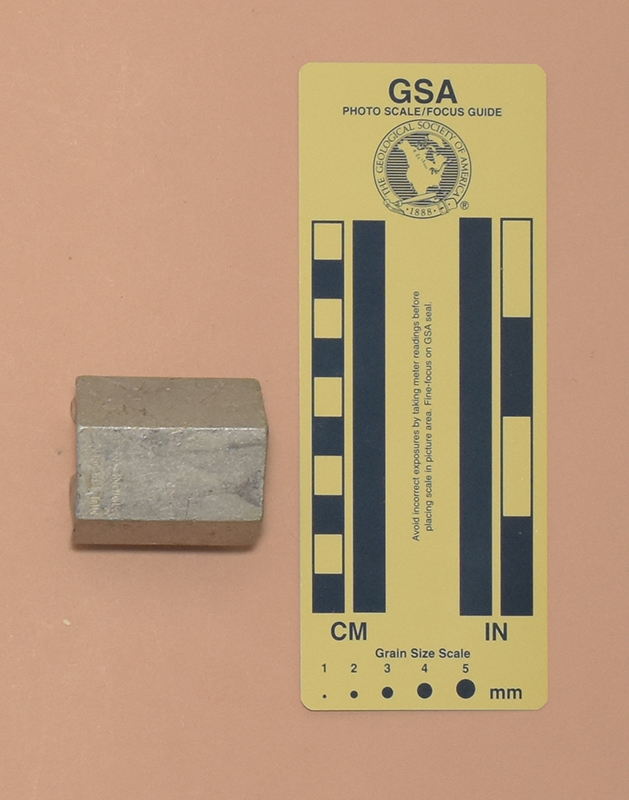

The Simond Multicoin #3 is 46 mm. tall, 44 mm. wide, 42 mm. thick, and weighs 62 g. The #3 multicoin is a hexentric chock. The interior has four 14 mm wide protruding lugs that reduce the nominal 33 mm. subcircular cross section to a rounded cross.

The top is stamped "MULTICOIN" and "SIMOND No 3."

Comments

The Multicoin works like a standard hexentric chock, but it is the internal structure that interests us here, since it is designed for using the #3 multicoin as a descender. Their cut sheet shows how to rig for a double-rope rappel. In that case, the rope strands for each rope fit into adjacent notches. When used on single ropes, the rope tends to fit into opposite notches, giving a much faster rappel.

The #3 Multicoin can also be used for belaying.

Simond also offered two smaller Multicoins. These did not have the internal cross for rappelling. There were also wired versions. I suppose the wired #3 could be used for rappelling, particularly on doubled rope, but the wire might rub the rope. Without having tried one, I'm skeptical about the idea.

Denis works at Camp R&D. He wrote:

Congratulations for the quality of your web site: is helpful for all mountain equipment manufacturers.

This pleased me! I had always hoped that manufacturers would be interested in my site. The more time manufacturers spend researching what has and has not worked before, the more likely we are to see better products in the marketplace.

Catalog listing


Version B
(#1458)

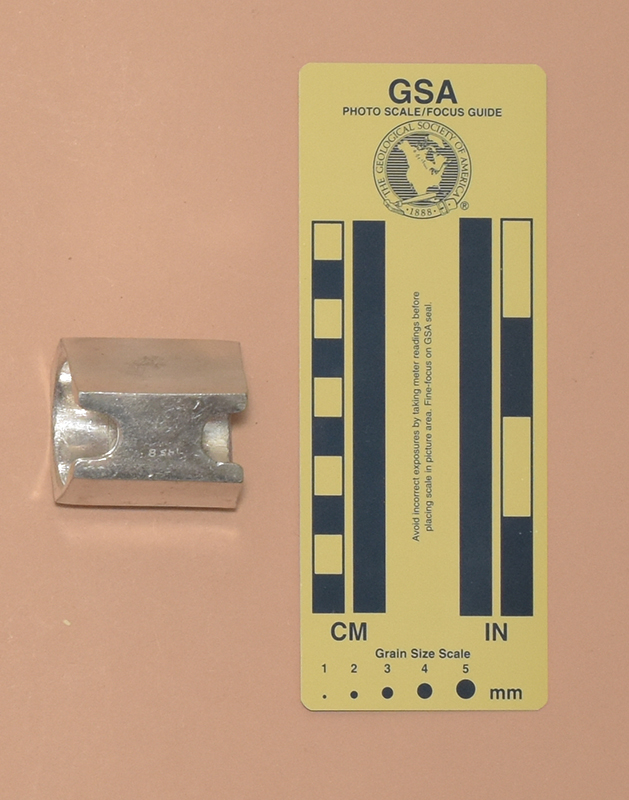

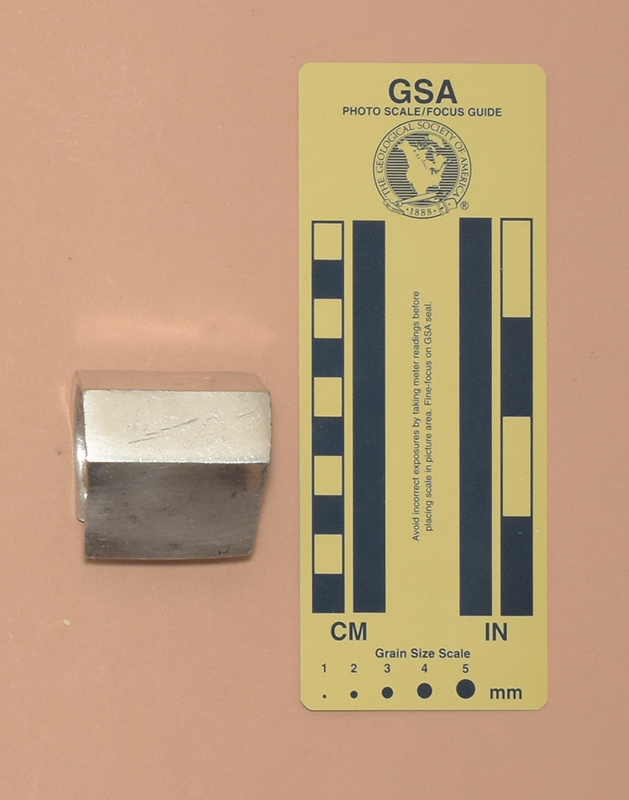

Front Rear Top
Front Rear Top

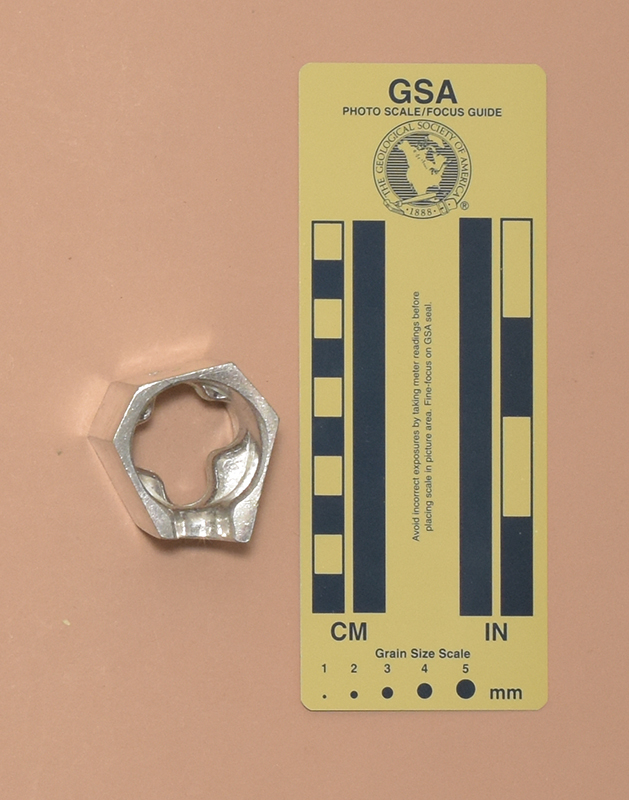

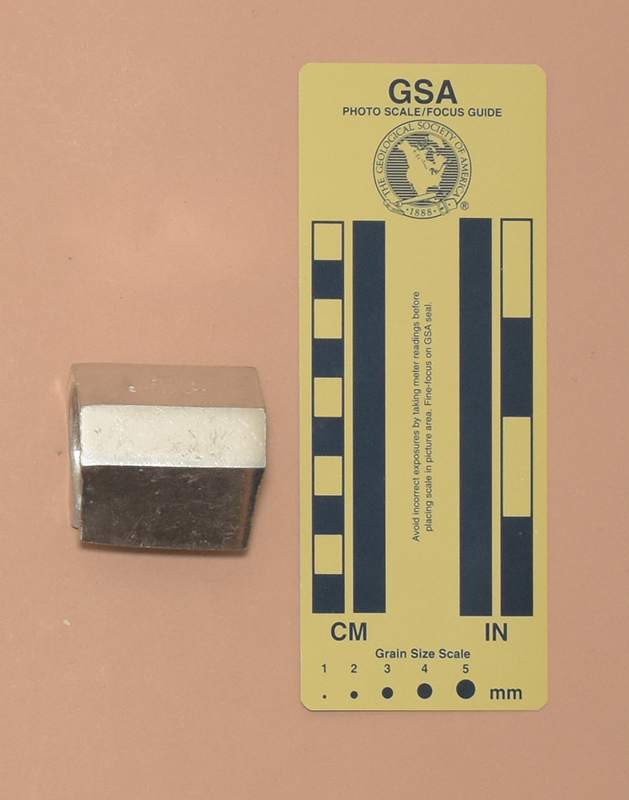

Left Right Bottom
Left Right Bottom

Technical Details

I acquired my Simond Multicoin #3, Version B from Slade Matthews in 2015.

Version B is 47 mm. tall, 42 mm. wide, 45 mm. thick, and weighs 70 g.

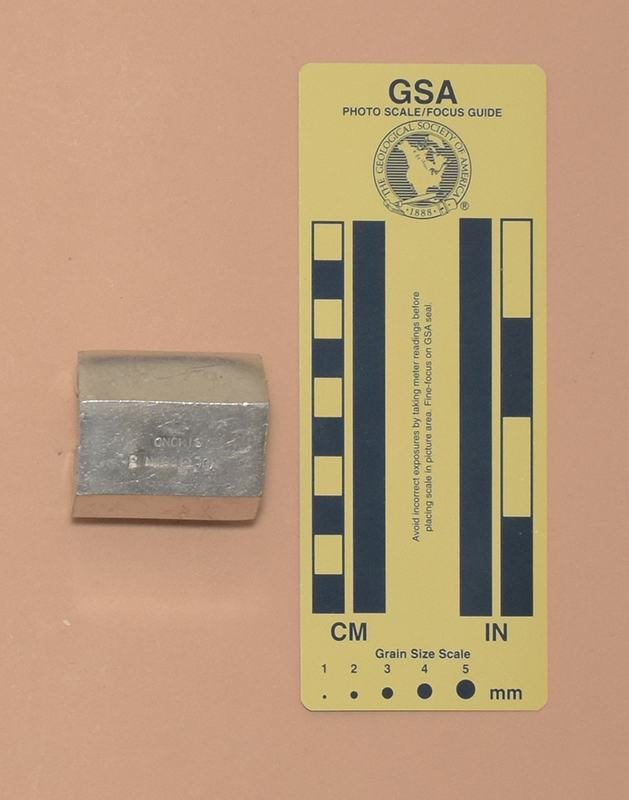

The top is stamped "MULTICOIN 3" and "SIMOND"

Comments

The markings on Version B are different than those on Version A; otherwise, they are essentially identical.
