Vertical (Вертикаль) ver 0113


Front View Rear View
Front View Rear View

Technical Details

Artyom Babin (Артём Бабин) helped me acquire my Vertical (Вертикаль) ver 0113 from Vertical in 2022.

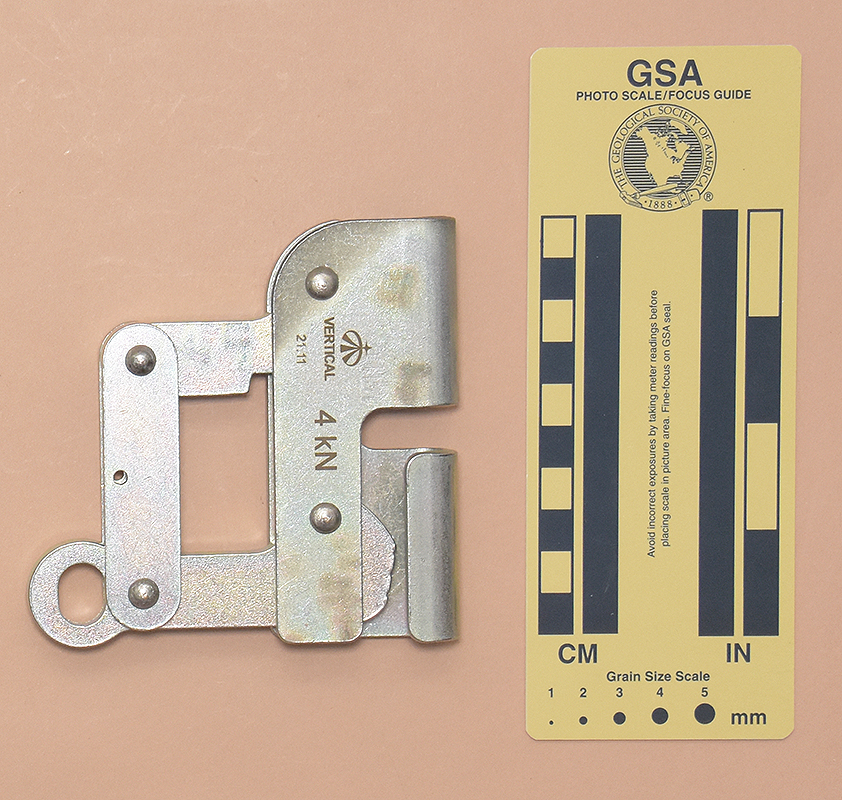

Model ver 0113 is 100 mm. long, 103 mm. wide, 22 mm. high, and weighs 468 g.

The 0113 consists of two connected cams mounted in a plated steel shell. The unique shell grooves allow the unit to be attached to a cable without opening or disassembling the unit.

The front is etched with a rigging illustration and "⇧." The rear is etched with the Vertical logo, "VERTICAL," "21.11" (the date of manufacture), and "4 kN."


The 0113 is a direct copy of the Protecta AC130 Cabloc. It is designed to be used on 8 mm. wire cable.

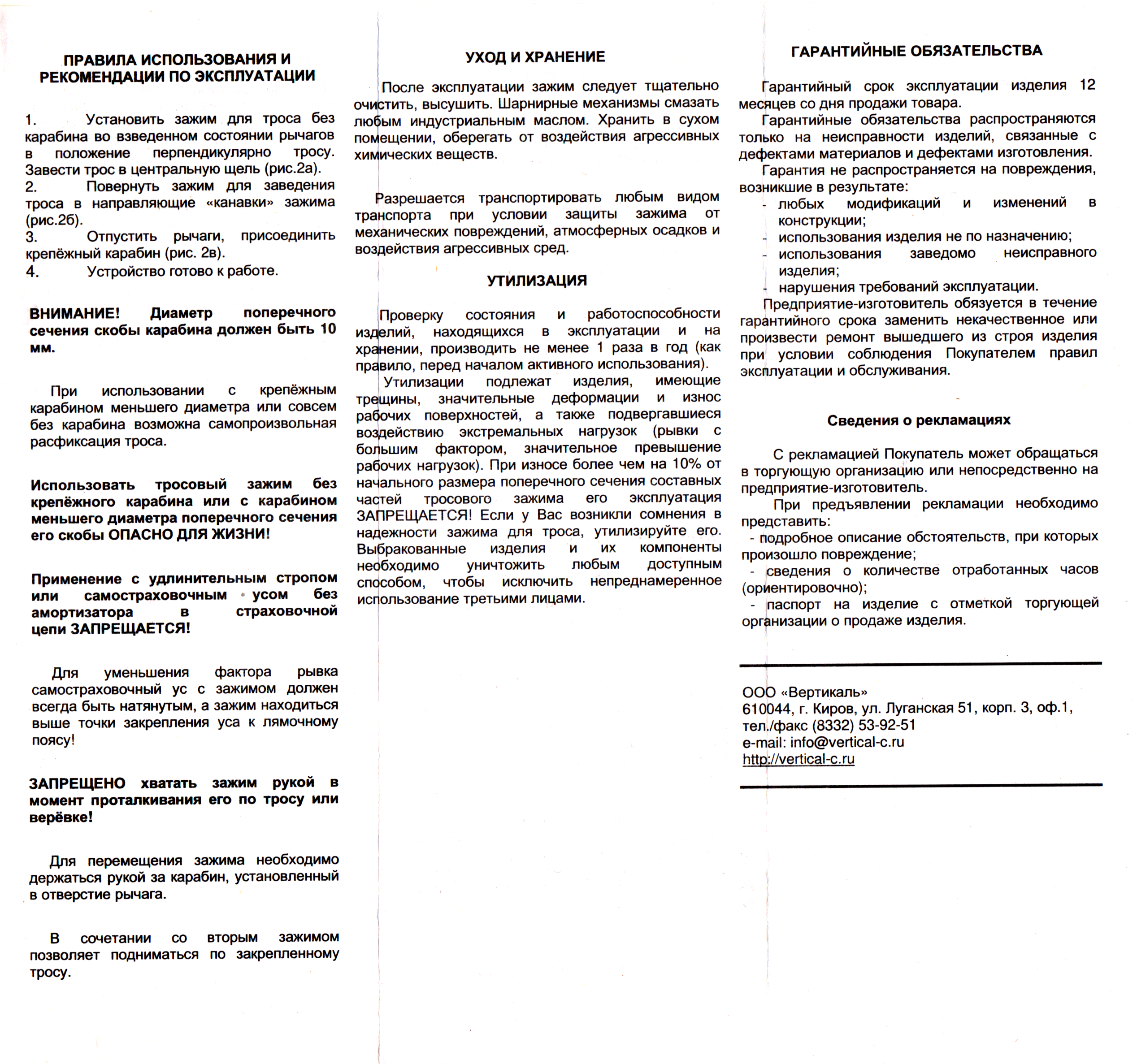

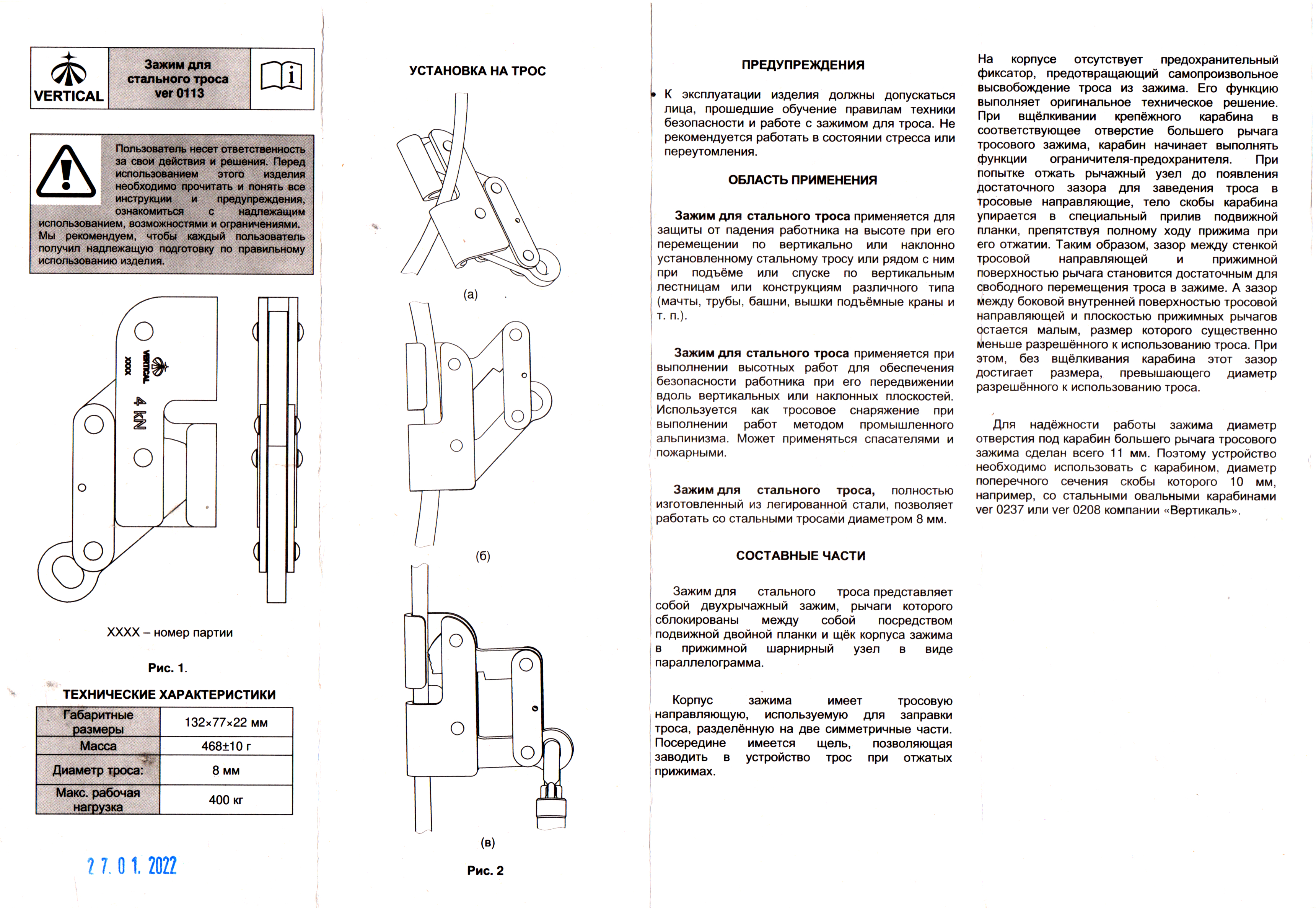

Instructions Instructions
