Technical Details

I acquired my Spider from Darfene Pryne in 2021.

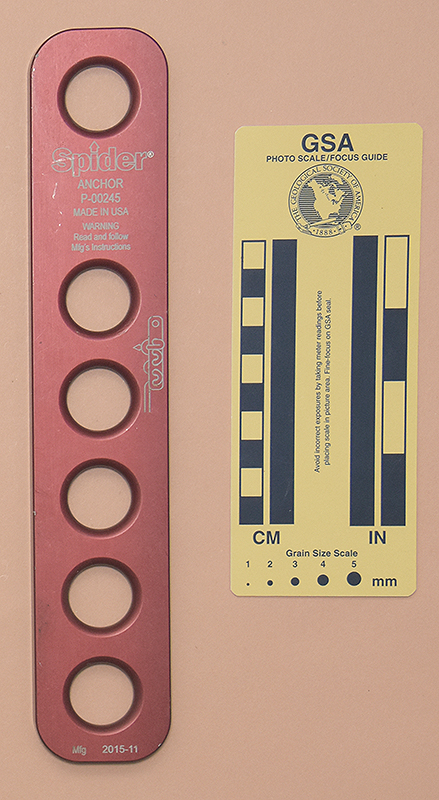

My Spider is 257 mm. long, 48 mm. wide, 9 mm. thick, and weighs 229 g.

The Big City Access Hold Me™ Termination Anchor is 257 mm. long, 51 mm. wide, 9 mm. thick, and weighs 254 g. It is milled from an aluminum alloy plate and then soft anodized. It has six 22 mm. holes and designed for use with 5/8" (16 mm.) rope.

One side is printed with "USE 5/8" (15 MM) APPROVED ROPE ONLY," "Spider®" (with "⇧" replacing the dot over the "i"), and a spider image. The other side is printed with "Spider®" (with "⇧" replacing the dot over the "i"), "ANCHOR," "P-00245," "MADE IN USA," "WARNING," "Read and follow Mfg's instructions," a rigging illustration, and "Mfg 2015-11.

Comments

The Big City Access Hold Me� is one of the following nearly identical termination anchors:

Image Item Finish Rope Bee Access Termination Anchor Anodized 5/8" - 3/4" (16-19 mm.) Big City Access Hold Me™ Termination Anchor Anodized 5/8" - 3/4" (16-19 mm.) Guardian Fall Protection #01300 Anodized 5/8" - 3/4" (16-19 mm.) Mio Mechanical RCP–12, Version A Galvanized 7/16" - 1/2" (11-13 mm.) Mio Mechanical RCP–12, Version B Anodized 7/16" - 1/2" (11-13 mm.)	Image Item Finish Rope MSA RIW1000 None 5/8" (16 mm.) MSA SRIW1000 Anodized 5/8" (16 mm.) Spider Anodized 5/8" (16 mm.) Tractel Splice-Safe V4260 None 5/8" - 3/4" (16-19 mm.) laid 7/16" - 1/2" (11-13mm.) kernmantle Westfall Pro WF–7001 Anodized 7/16" - 3/4" (11-19 mm.)

My first impression was that these were designed for members of the bigger-is-better crowd and for people who don't know how (or can't be trusted) to tie knots. Even so, users should be particularly careful to follow the rigging illustrations exactly, even when it not provided. The typical illustration, if one exists, has an Escheresque feel that makes it easy to overlook some of the subtleties required for proper use. By the way, the rigging illustrations, when they exist, do not always completely agree with each other.

These can be used to create an anchor that can be released under load, but that can be done without requiring special equipment. These might prove useful in some specialized situations (perhaps in training rigging?), but I don't see much need for these in general caving or climbing.
