Vertical Supply
(#647)

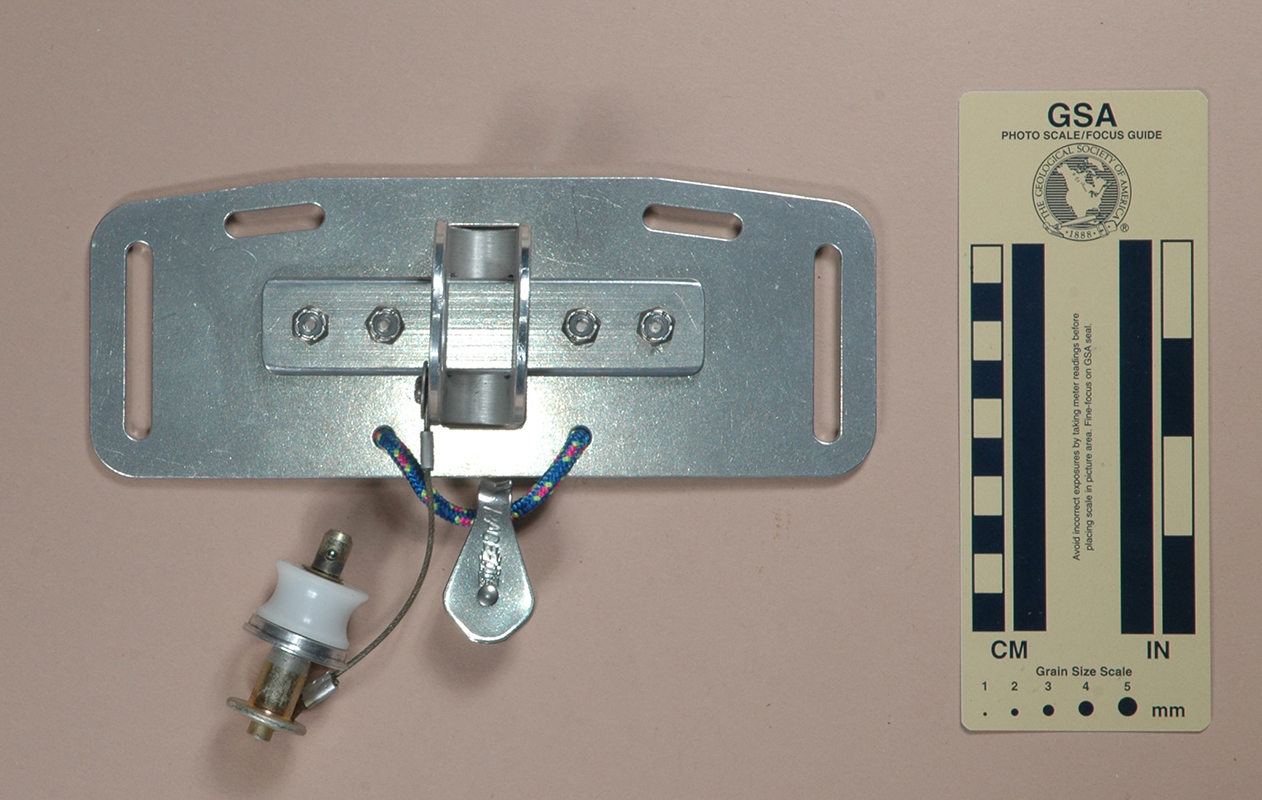

Front View: Closed
Front View: Closed

Open for Rigging
Open for Rigging

Top View
Top View

Technical Details

I acquired my Vertical Supply box from Vertical Supply at the 1993 Old Timers Reunion.

My Vertical Supply is 77 mm. long, 202 mm. wide, 54 mm. high, and weighs 268 g. It is a single channel chest box consisting of a stainless steel back plate with a Simmons Roller attached by passing an aluminum bar through the roller slots, and then bolting the bar to the back plate. The back plate has 51 mm. tall vertical slots for attaching the box to a chest strap and 25 mm. wide horizontal slots for attaching shoulder straps. A rectangular holes in the back plate provides clearance for the Simmons Roller shell. Two 5 mm. holes near the base of the plate allow hanging a bungee pulley on a short length of accessory cord.

The Simmons Roller is stamped "SIMMONS." The quick release pins are each stamped with "AVK 55207."

Comments

The stainless steel plate makes this box heavier than it needs to be, and I feel that it is too bulky as well.

If the holes in the back plate looks like the ones on the Bassett Metal Studio box, its because Carroll Bassett founded both companies.
