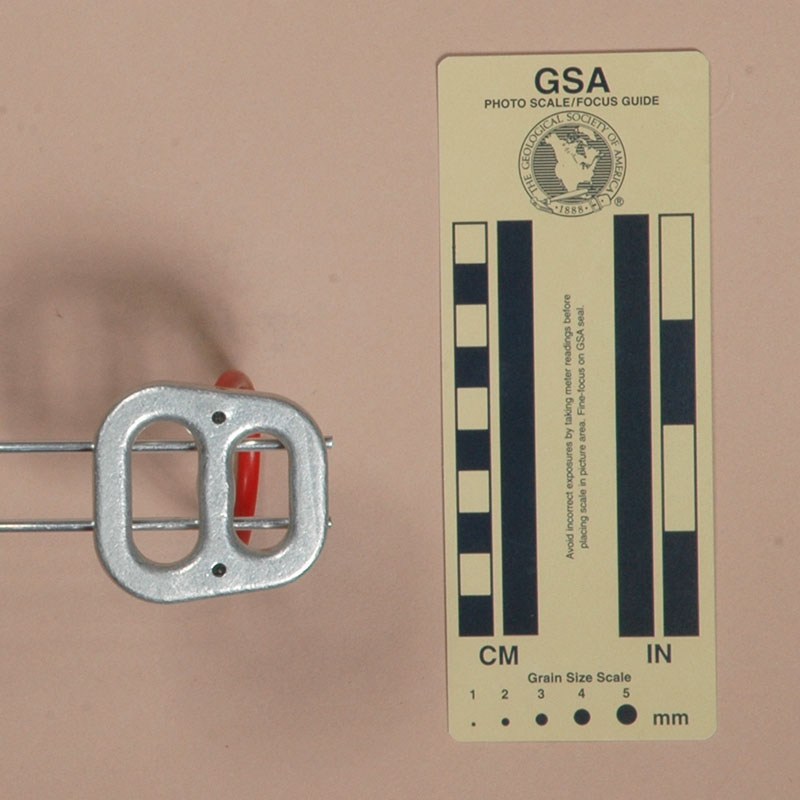

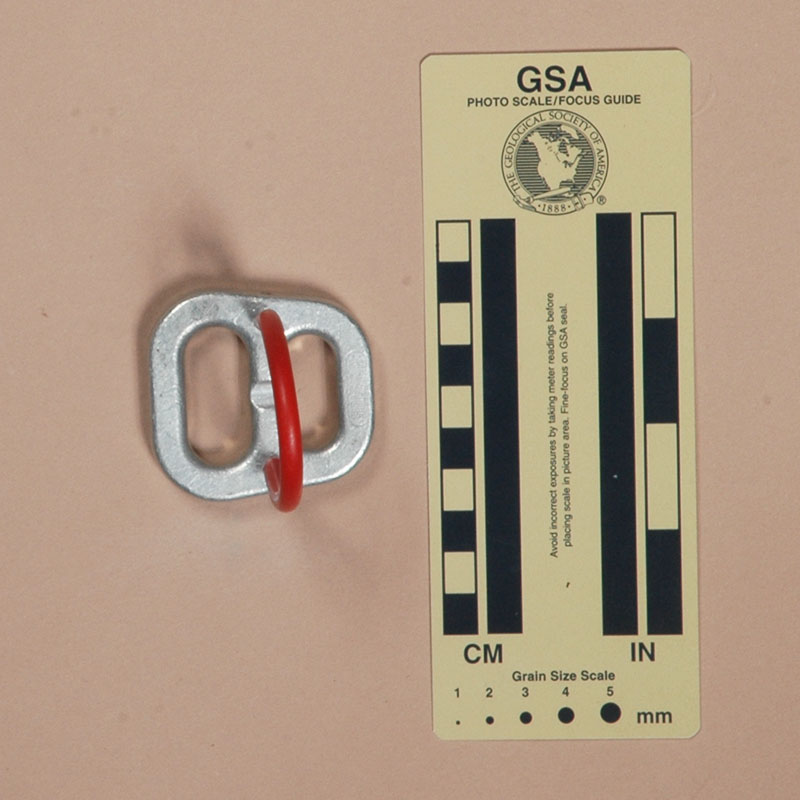

Front Side
Front Side

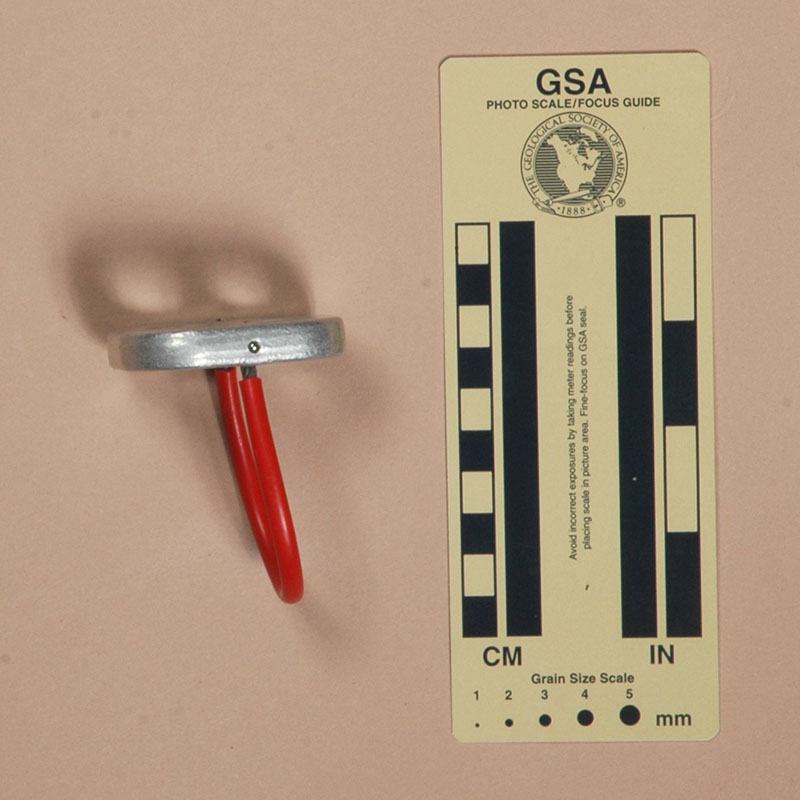

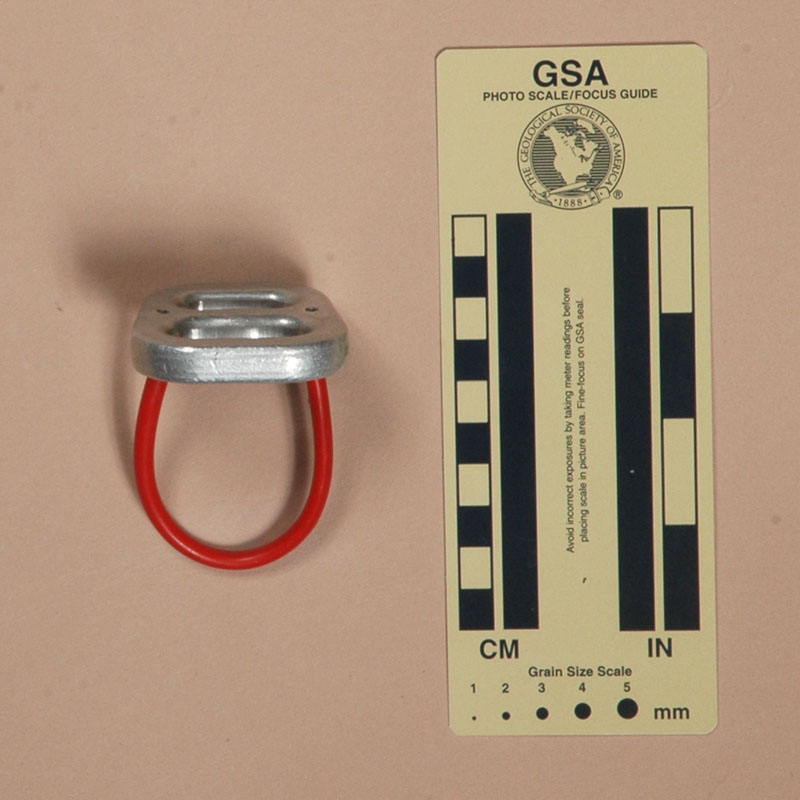

Top Bottom
Top Bottom

Technical Details

I acquired my Salewa 9/11, Version B from Claudio Fontanari in 2012.

Version B is a sticht-type belay plate forged from aluminum alloy and unfinished. Mine is 54 mm. long, 51 mm. wide, 67 mm. high, and weighs 46 g. It has two slots that are 27 and 33 mm. long. A plastic-covered cable keeper fits into two 3.4 mm holes drilled through the plate. Two pins fit into holes in the side of the plate secure the cable.

The bottom of the plate has the Salewa logo.


The plate resembles the Wild Country Brakeman and Outside plates.
