I am looking for an original Hitch Hiker. If you have one that
you are willing to part with or trade, please email me.
Hitch Hiker

Rope-Tek Hitch Hiker 2
(#2303)

Front Left Right
Front Left Right

Front, Assembled Top, Assembled Accessories
Front, Assembled Top, Assembled Accessories

Technical Details

I acquired my Rope-Tek Hitch Hiker 2 from Pinnacle Arborist Supplies in 2017.

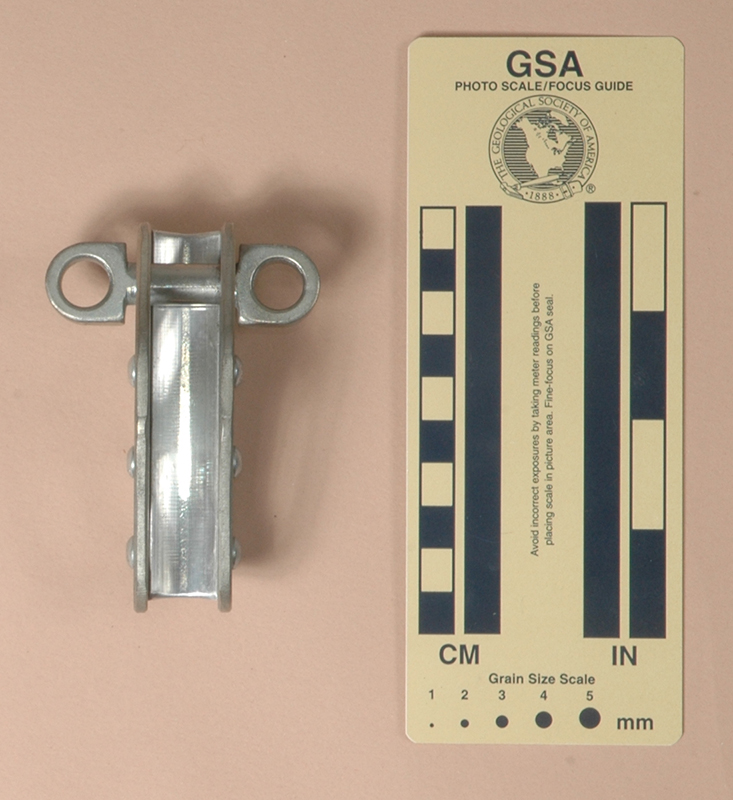

The Rope-Tek Hitch Hiker 2 is 90 mm. tall, 51 mm. wide, 63 mm. thick, and weighs 311 g.

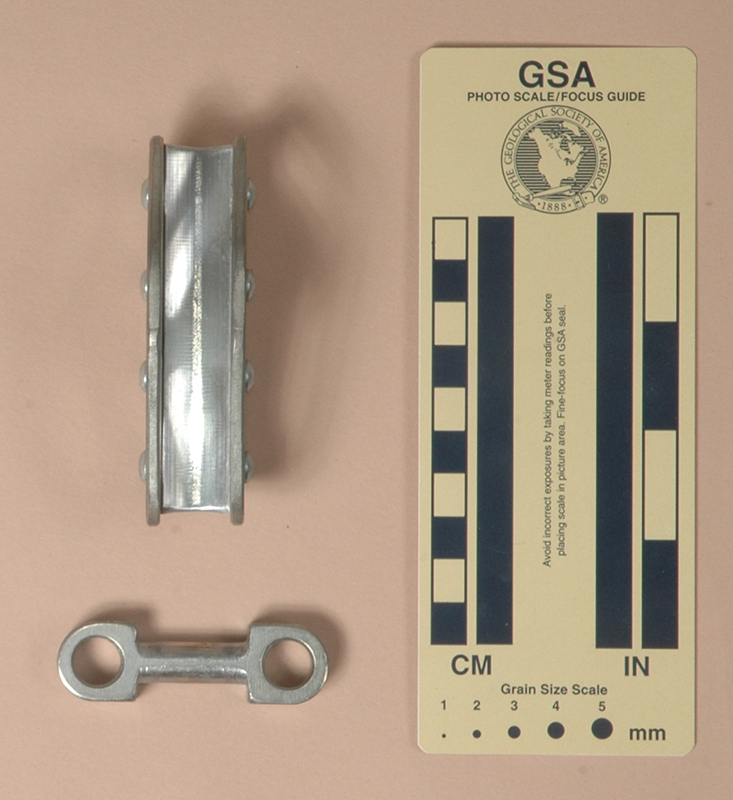

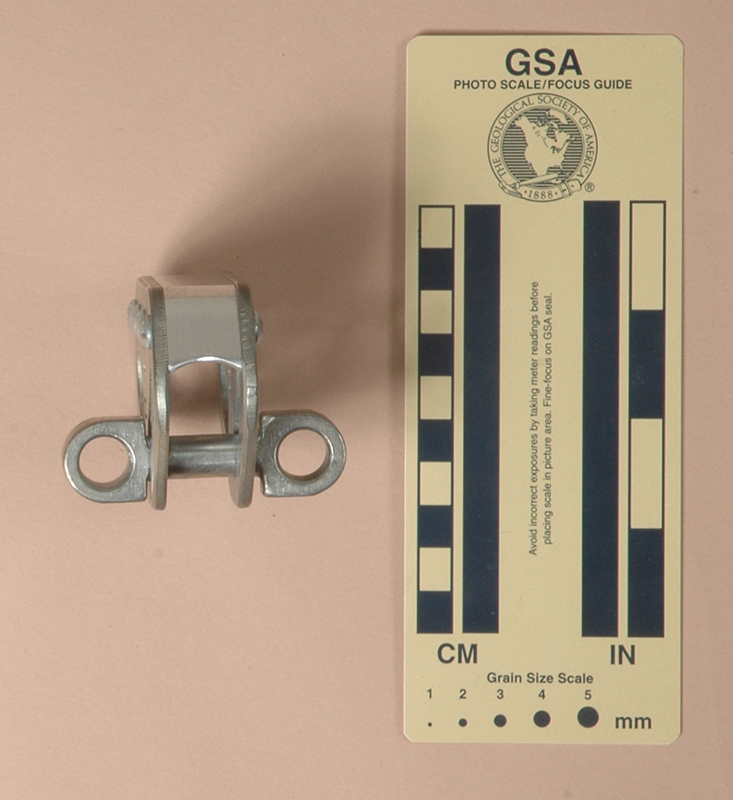

The Hitch Hiker 2 consists of a body and a dog-bone. The body consists of two side plates made from nickel-coated AR400S steel attached to a 7075 aluminum alloy spine with four hex socket machine screws each. Each side plate has a 36.5 mm. long, 10.2 mm wide oval upper slot for the dog-bone, and a 32 mm. long, 14.5 mm. wide lower opening for the attachment carabiner. The spine is 16 mm. thick, giving a rope channel of the same width. The inner face of the spine is concave.

The dog-bone is 63.2 mm. long, 18.8 mm. wide and 9.5 mm. thick. It has an 11 mm. hole drilled at each end. The center 25.8 mm. are turned to form a 9.5 mm. round shaft.

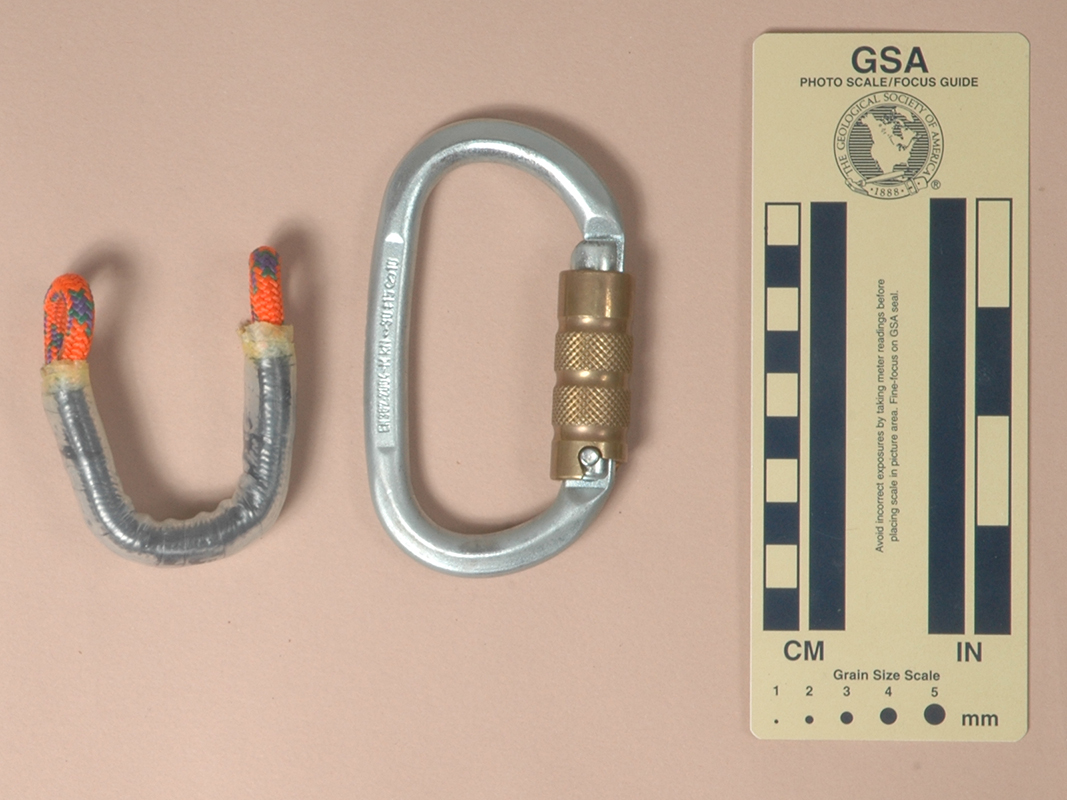

My hitch Hiker 2 came with a Climbing Technology steel locking carabiner, a 1.2 m. length of 9 mm. cord, and a tether sewn from 6 mm. accessory cord and covered with thick heat-shrink.

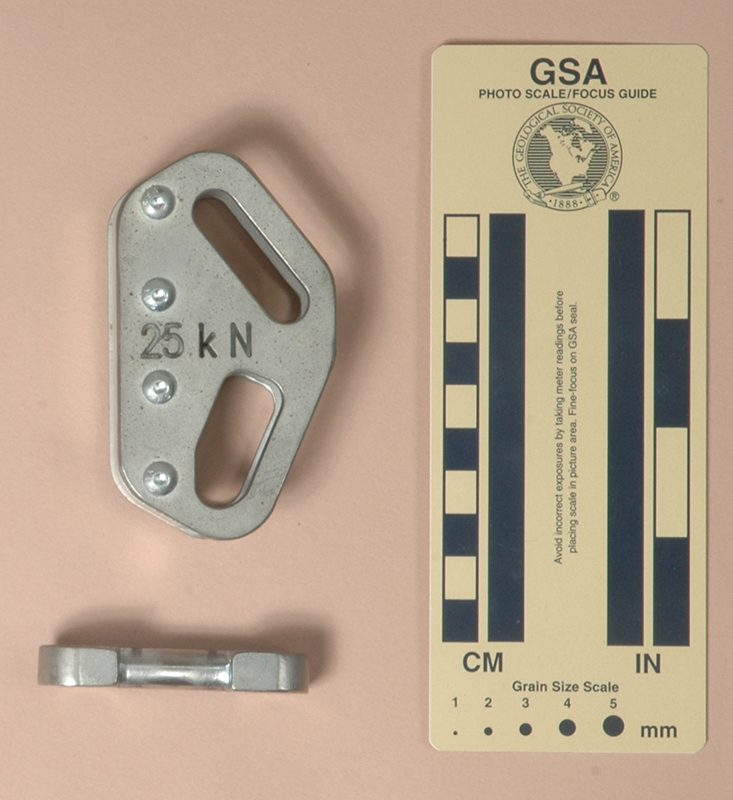

The left side plate has "25 kN" cut through it, and the right plate has "H H 2."

Comments

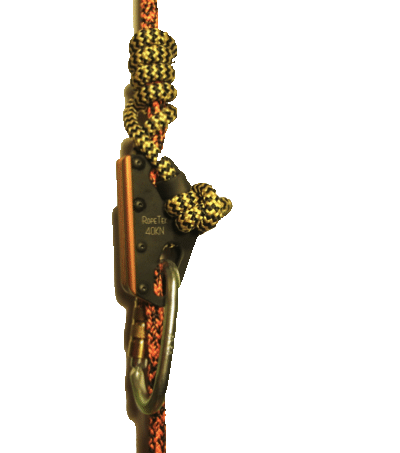

The Hitch Hiker 2 allows one to tie a semi-mechanical helical knot. Under load, the dog-bone slides up the upper slot and wedges the main line against the spine, providing additional friction below the helical. The system works well with the proper cord selection, and sufficient wraps in the helical. In general, smaller cord and more wraps provides a more secure grip, but also results in greater lost motion when ascending. Do not make the sling rope too long, or the knot will slip.

It was designed for arborists, whose needs are different than those of cavers and climbers. Since I am not Tarzan, I will not try to evaluate it for arborist use.

From a caver’s perspective, the Hitch Hiker 2 has several deficiencies, such as the following:

Due to feedback from many the original Hitch Hiker users, Rope-Tek no longer includes the hitch cord or tether. This allows climbers to choose the cordage they feel most comfortable using. Several of the online arborist supply houses continue to package cord with the Hitch Hiker 2.

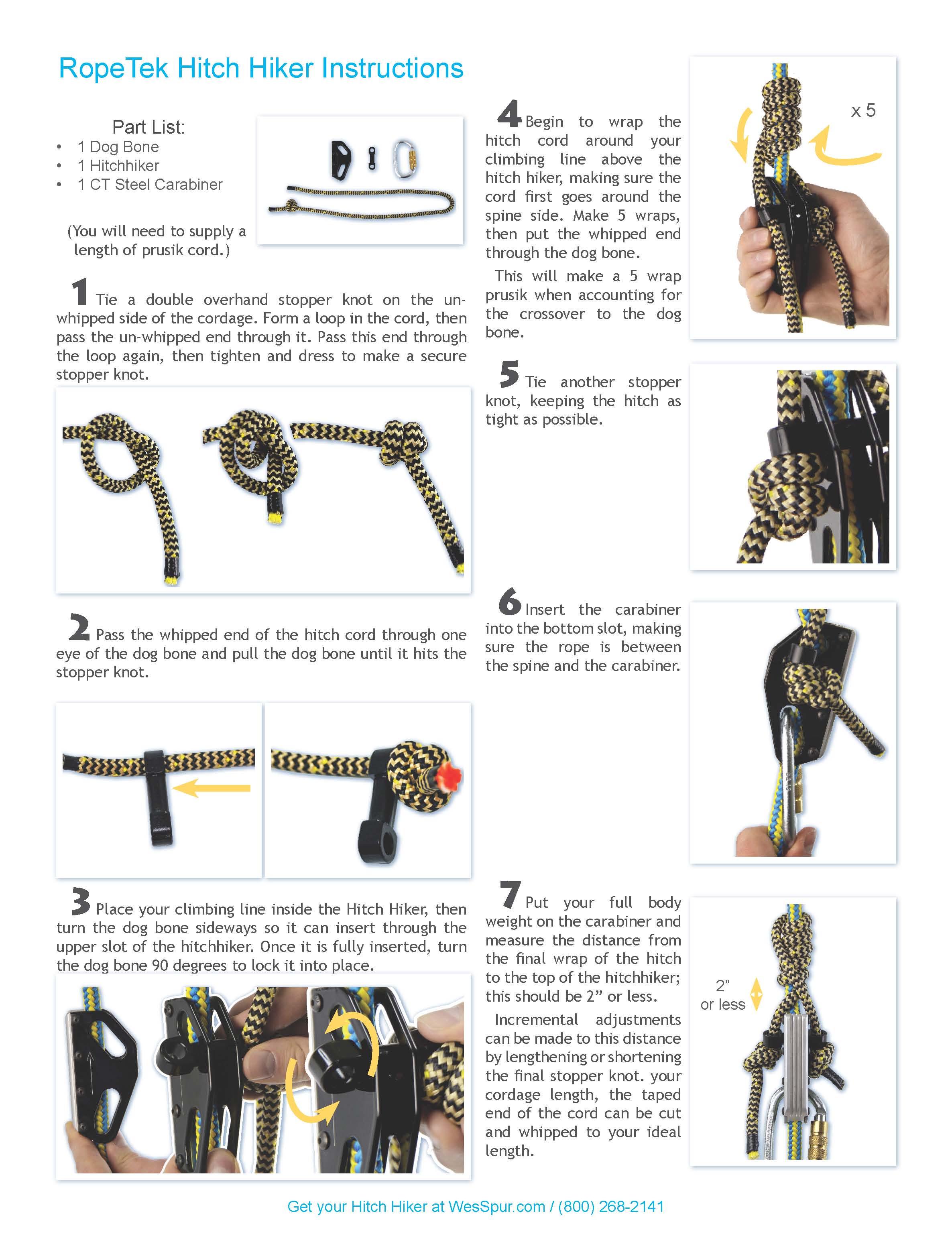

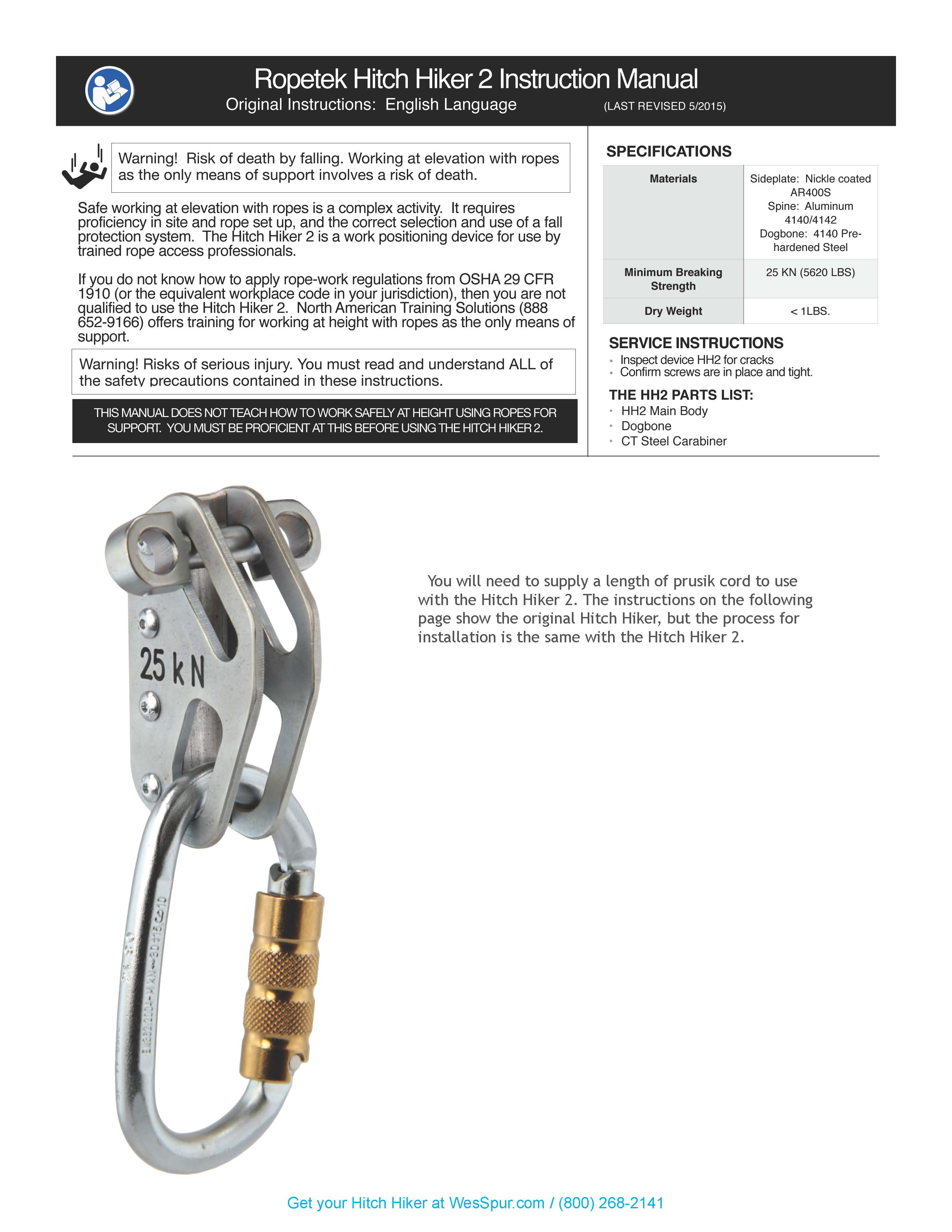

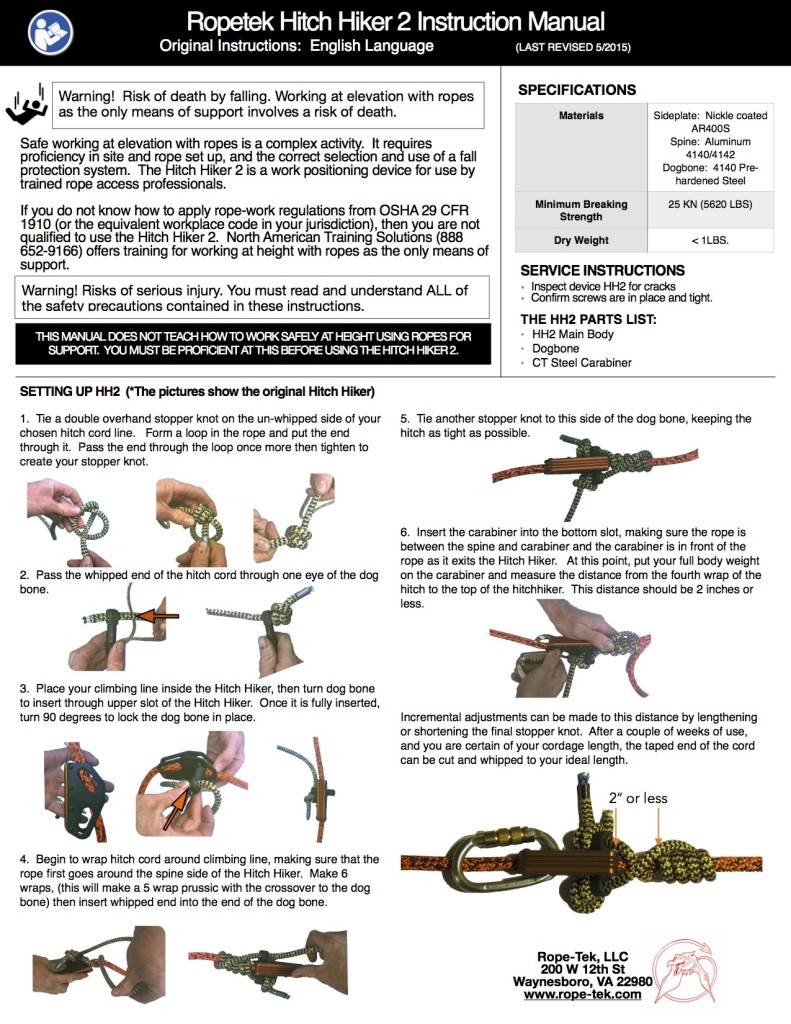

Instructions Instructions Instructions
