International Safety Components (ISC) Stryder

RP227A1

RP228A1

RP227A1 RP228A1
RP227A1 RP228A1

Overview


RP227A1
(#2301)

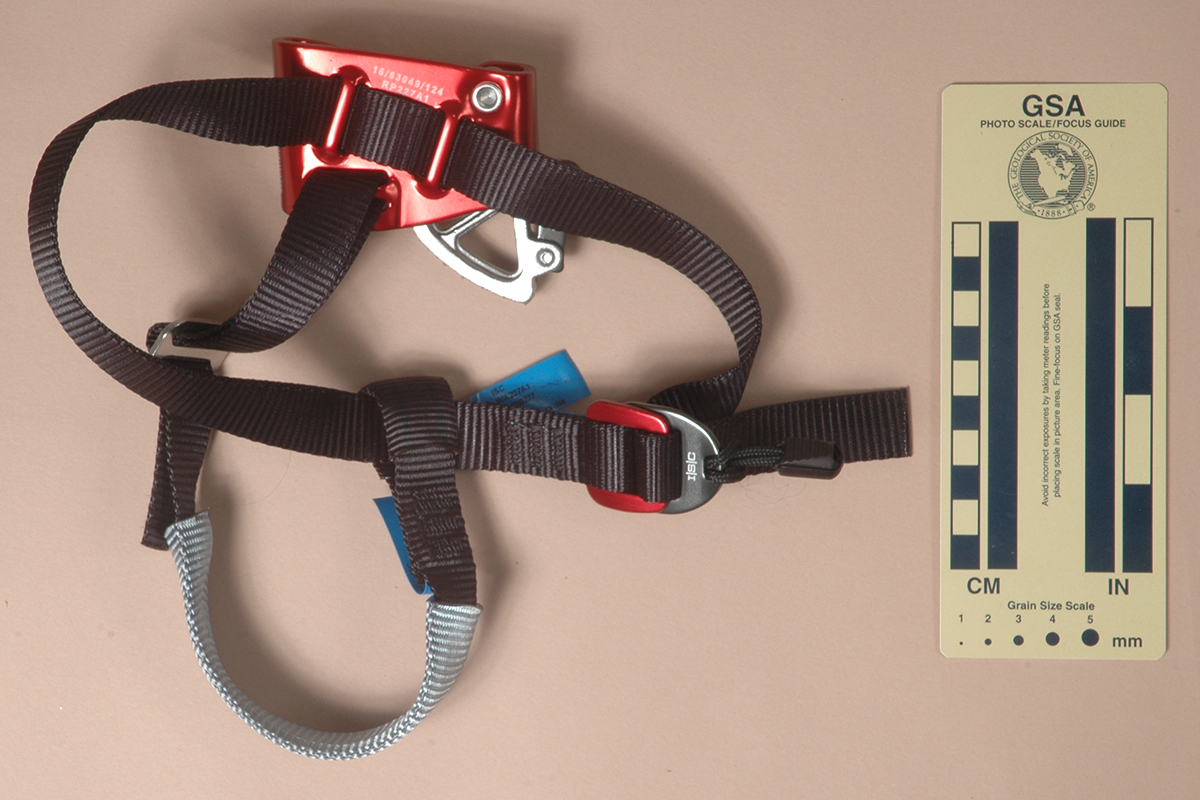

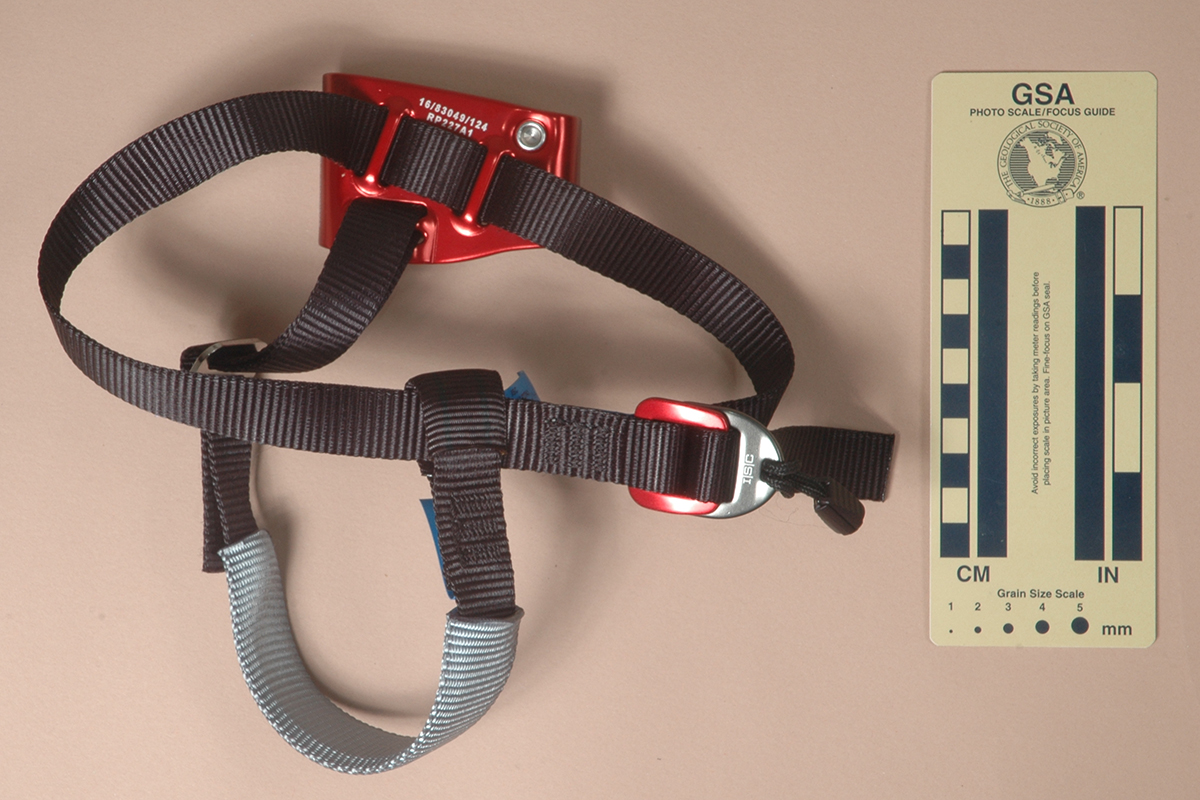

Front View: Closed Rear View: Closed
Front View: Closed Rear View: Closed

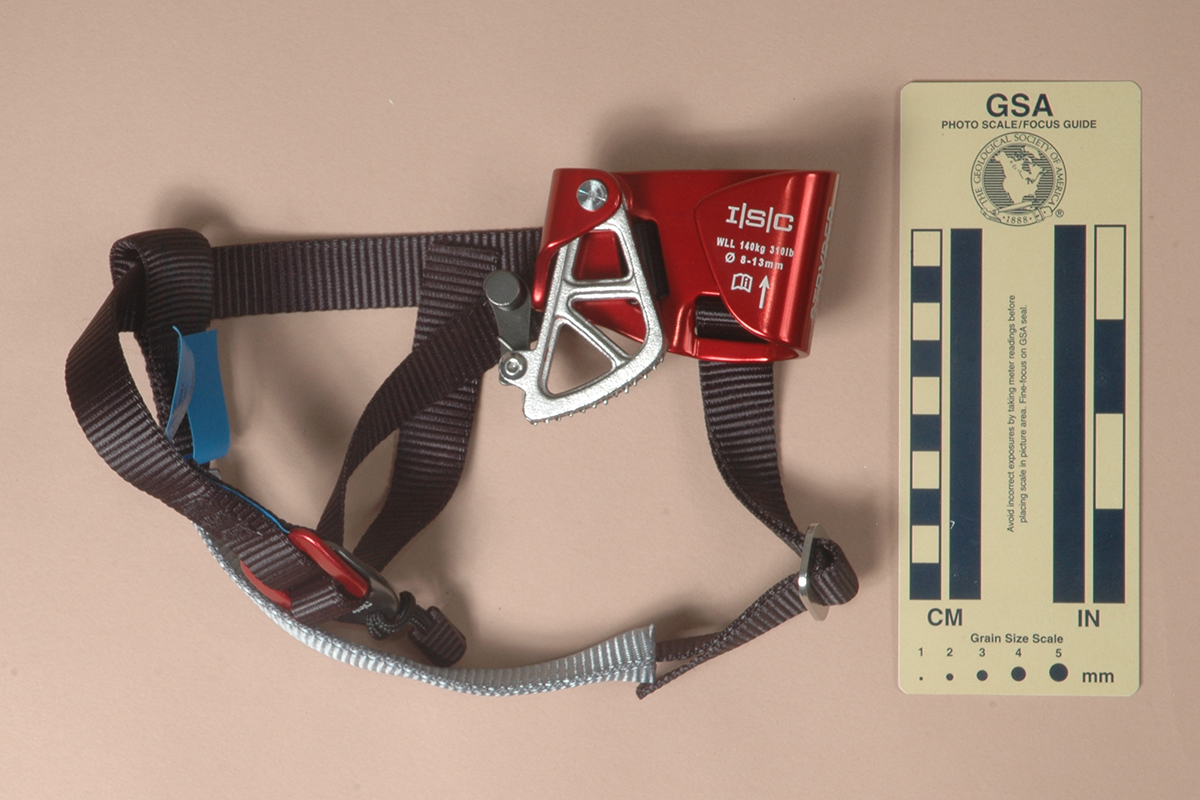

Front View: Open for Rigging Rear View: Open for Rigging
Front View: Open for Rigging Rear View: Open for Rigging

Technical Details

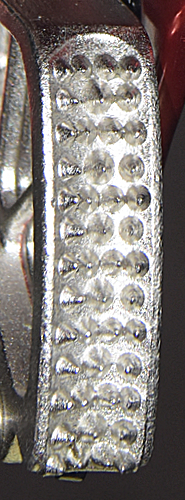

Cam faceI acquired my ISC Stryder RP227A1 from WesSpur Tree Equipment in 2017.

The ISC Stryder RP227A1 is 52 mm. tall, 76 mm. wide, 28 mm. thick, and weighs 130 g. (202 g. including the supplied harness). The frame is stamped from aluminum alloy. The rope channel is 15 mm. wide. The cam radius increases from 42 to 61 mm. over an angle of 42°, giving a 28° cam angle. The tooth pattern is (4.3)^6(4). There is a spring-loaded safety with a turned pin attached to the underside of the cam. This safety can be manipulated to hold the cam open.

The Stryder comes with a harness made from 20 mm. flat webbing webbing. One piece of webbing circles the ankle, another goes under the instep. The piece under the instep passes through a length of 30 mm. tubular webbing that provides some protection against abrasion.

The outside of the rope channel is printed with "I|S|C," "WLL 140kg 310lb," "Ø 8-13mm," a book-with-an-"i" icon, and an up-pointing arrow. The edge of the rope channel is printed with "STRYDER" and "Manufactured in the UK by I|S|C." The rear is printed with "16/83049/124" and "RP227A1." The adjustment buckle is printed with "I|S|C."

Comments

Foot ascenders such as this don't fit into the climbing systems that I commonly use, although I have met froggers that seem to like them. The ISC is nicely made, and if you take time to learn it, it should work well.


RP228A1
(#3425)

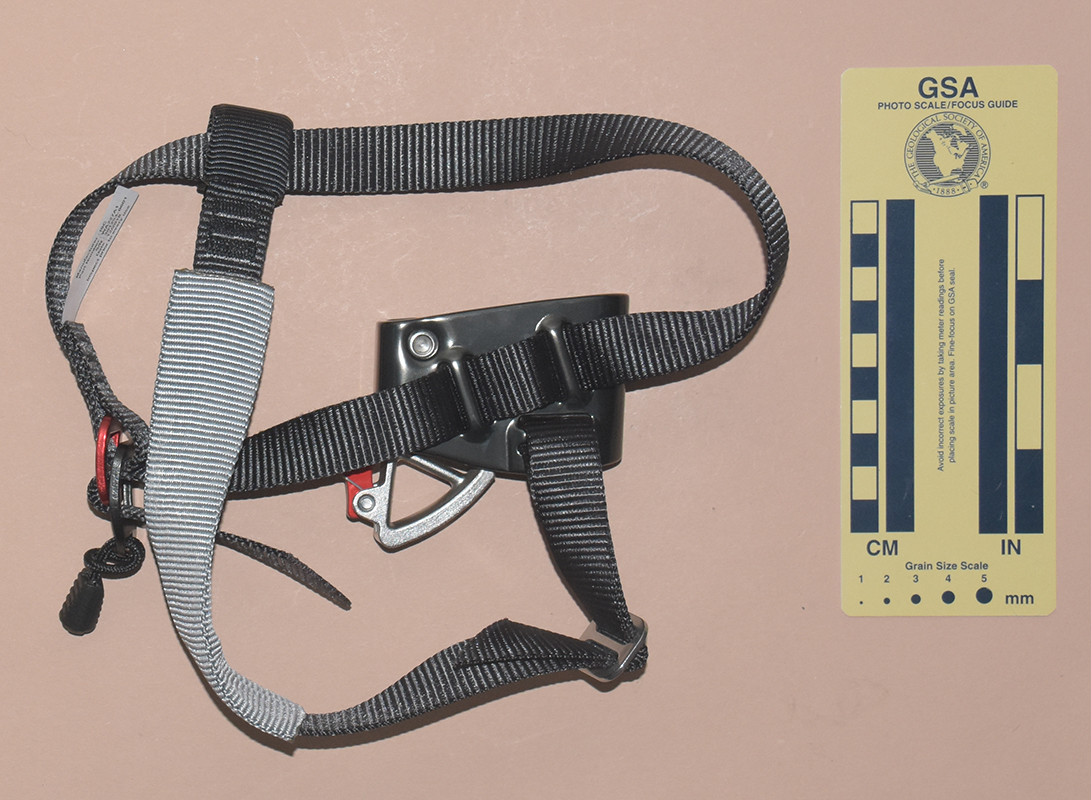

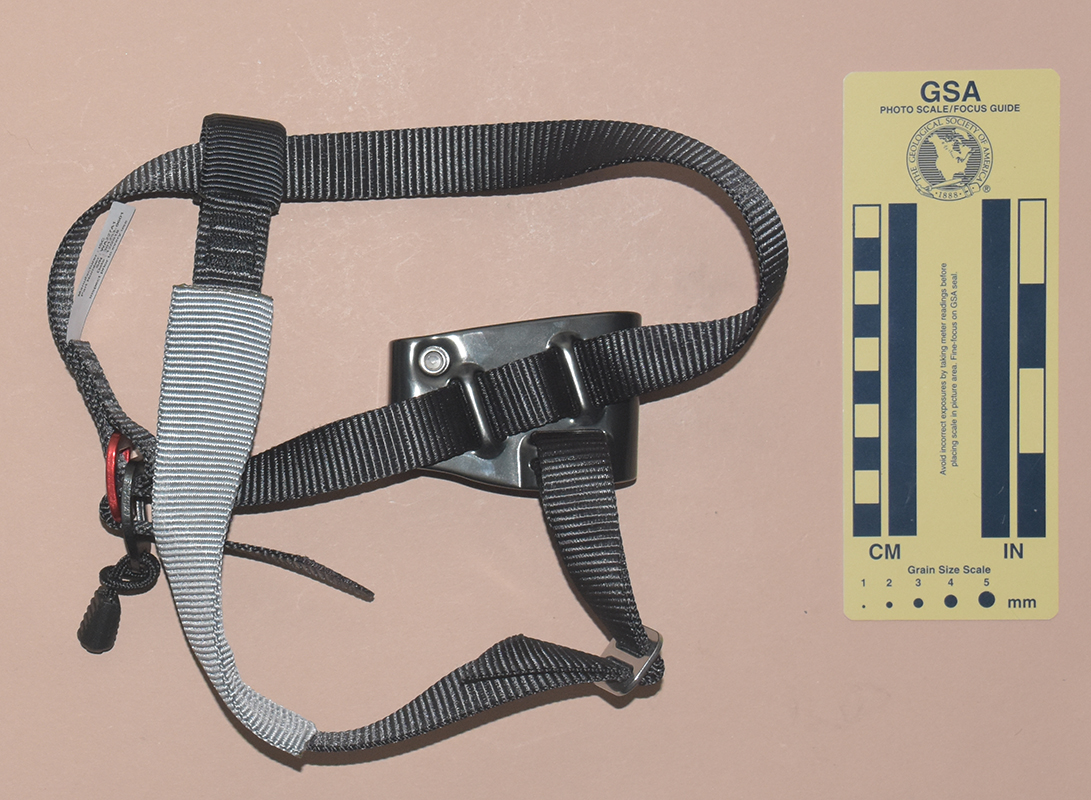

Front View: Closed Rear View: Closed
Front View: Closed Rear View: Closed

Front View: Open for Rigging Rear View: Open for Rigging
Front View: Open for Rigging Rear View: Open for Rigging

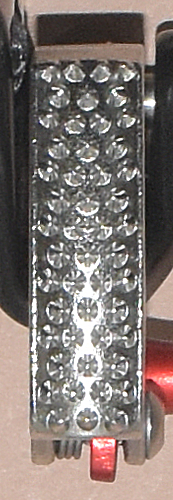

Cam faceTechnical Details

I acquired my ISC Stryder RP228A1 from Elevated Climbing on Amazon.com in 2021.

The ISC Stryder RP227A1 is 52 mm. tall, 75 mm. wide, 30 mm. thick, and weighs 136 g. (211 g. including the supplied harness). The frame is stamped from aluminum alloy. The rope channel is 16 mm. wide. The cam radius increases from 44 to 61 mm. over an angle of 41°, giving a 25° cam angle. The tooth pattern is (4.3)^7. There is a spring-loaded safety with a turned pin attached to the underside of the cam. This safety can be manipulated to hold the cam open.

The Stryder comes with a harness made from 20 mm. flat webbing webbing. One piece of webbing circles the ankle, another goes under the instep. The piece under the instep passes through a length of 30 mm. tubular webbing that provides some protection against abrasion.

The outside of the rope channel is printed with "I|S|C," "RP228A1," "191127720069," "WLL 140kg 310lb," "Ø 8-13mm," an up-pointing arrow, and a book-with-an-"i" icon. The edge of the rope channel is printed with "STRYDER" and "Manufactured in the UK by I|S|C." The adjustment buckle is printed with "I|S|C." The harness has a two sewn tags, one on the ankle loop printed with "Manufacturer : ISC," "Part Number : WA227A1," "S/N : 301253-0447," "Date: 12/2018," and "Inspect prior to every use" and the other on the instep loop printed with "Manufacturer : ISC," "Part Number : WA228A1" [sic], "S/N : 301253-0601," "Date: 12/2018," and "Inspect prior to every use" The cam has "I|S|C" in raised letters.

Comments

The RP228A1 is not just a left-foot RP227A1, as it features a new cam with a new tooth pattern.
